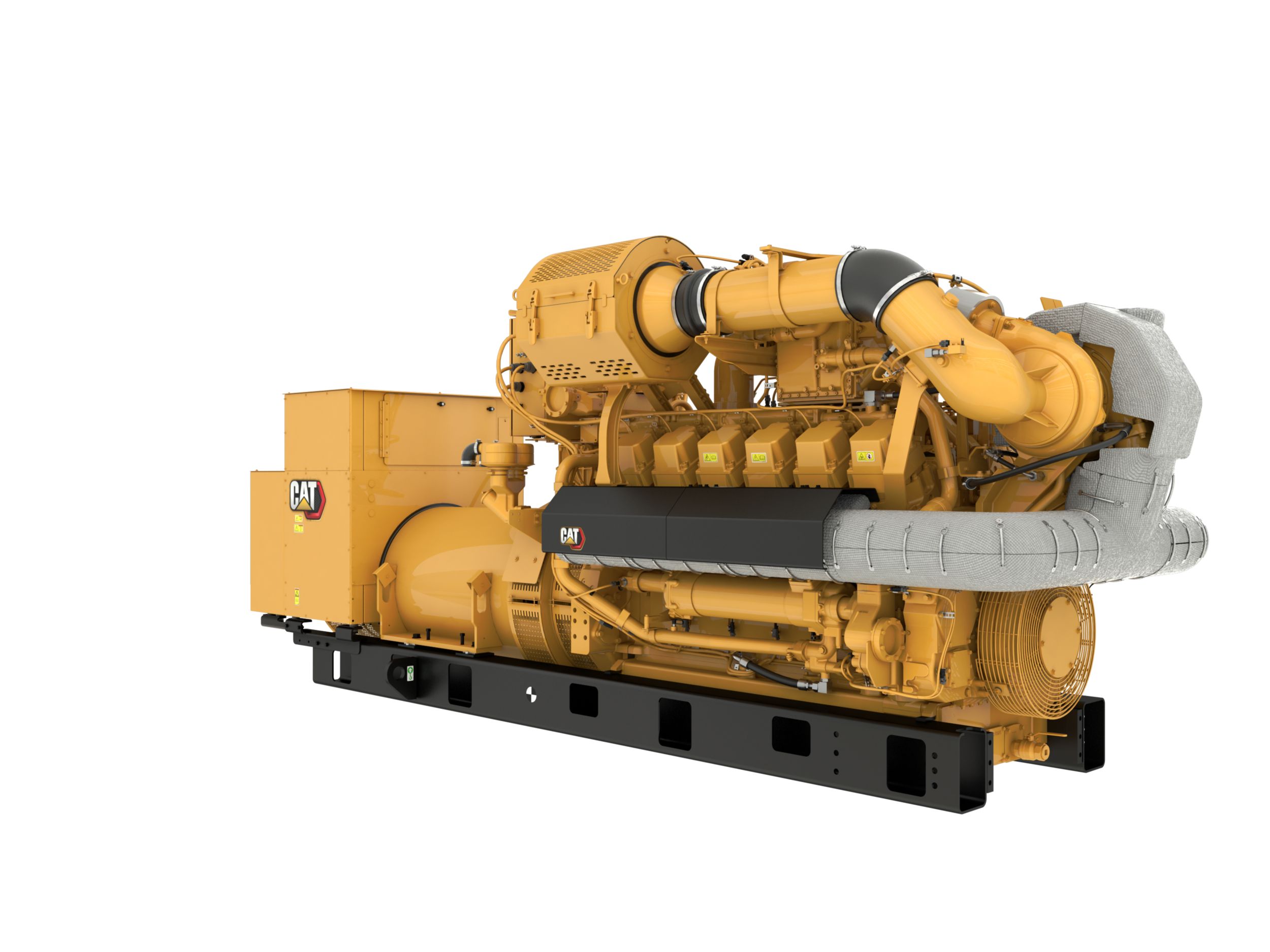

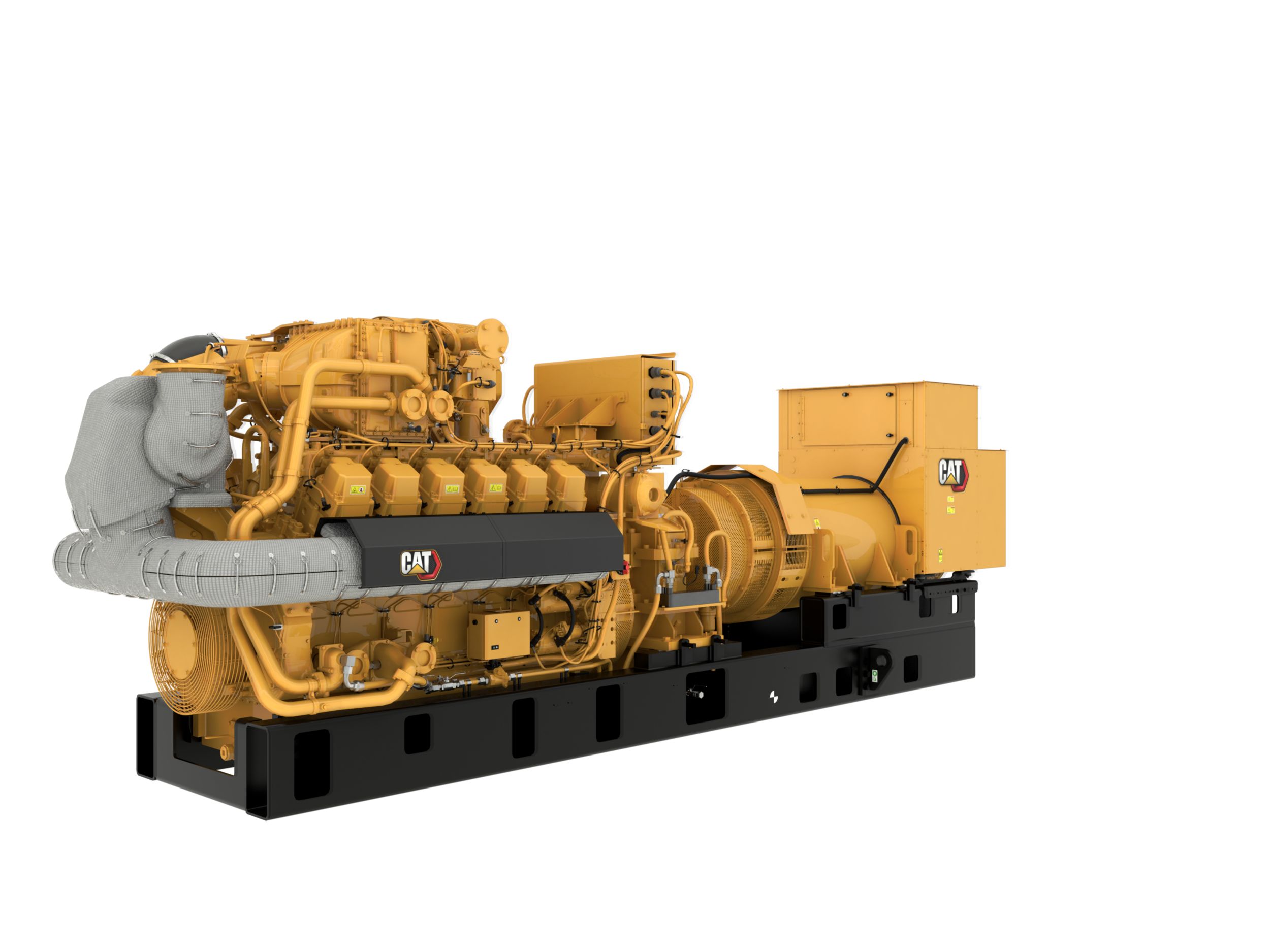

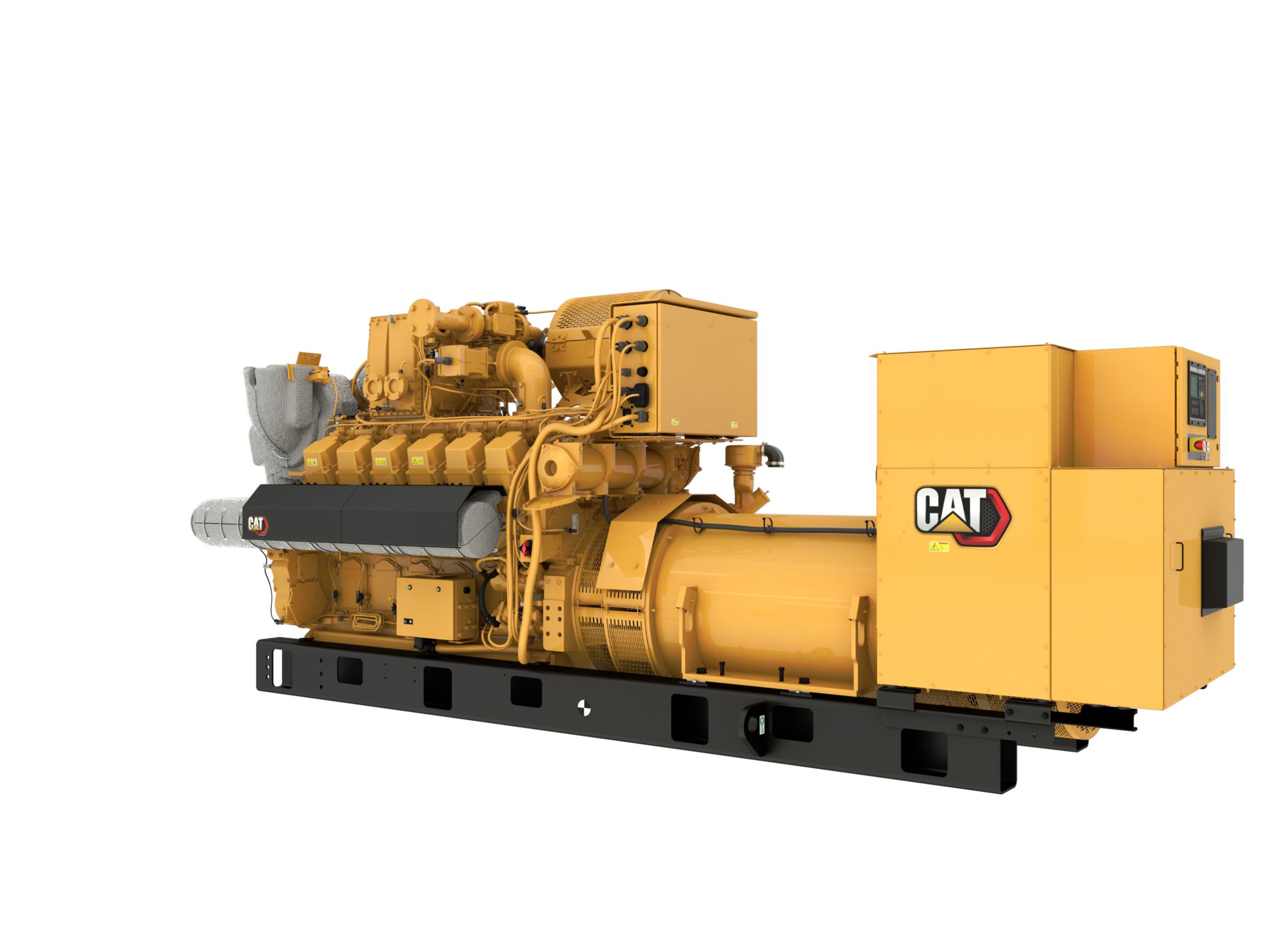

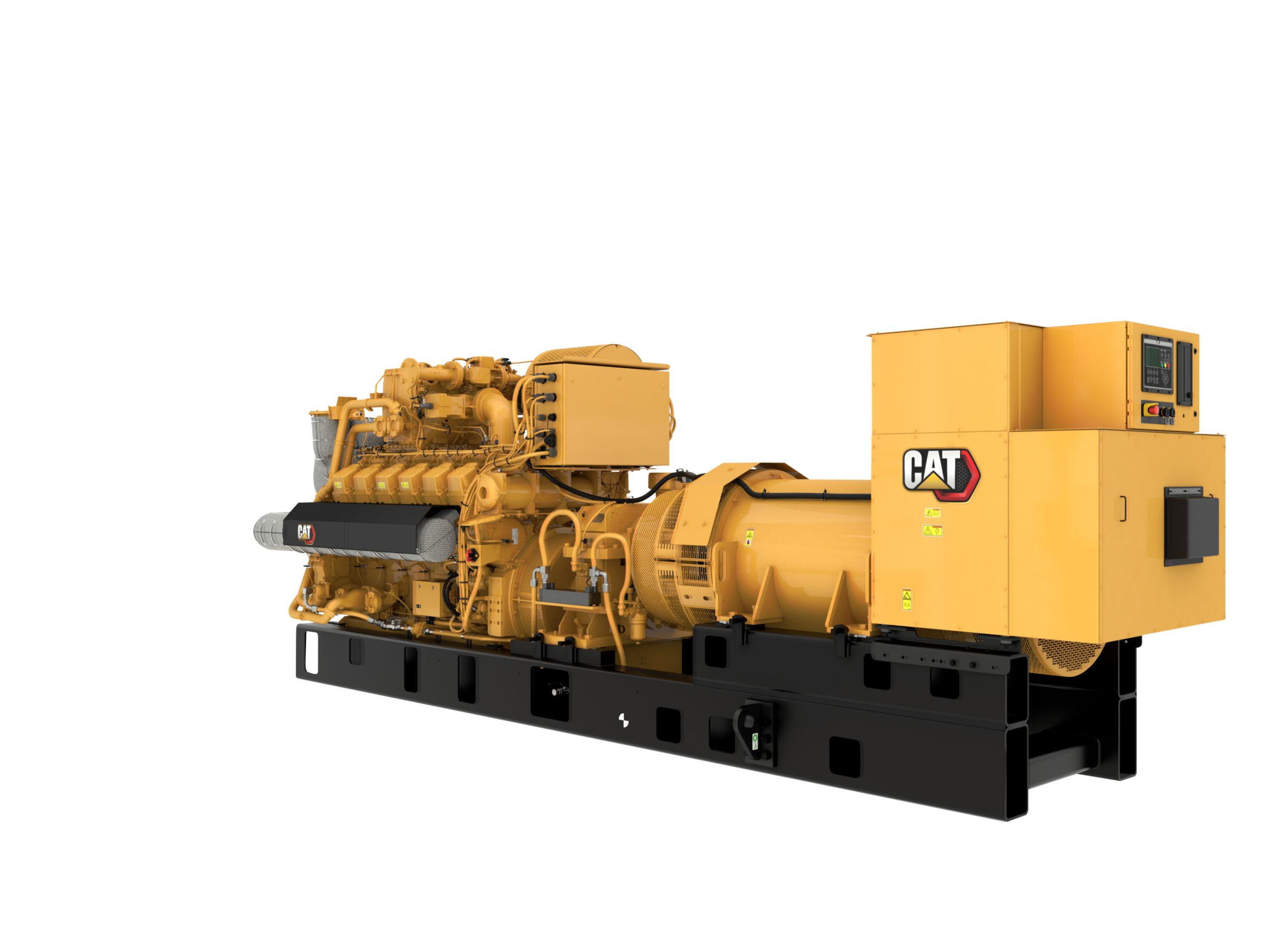

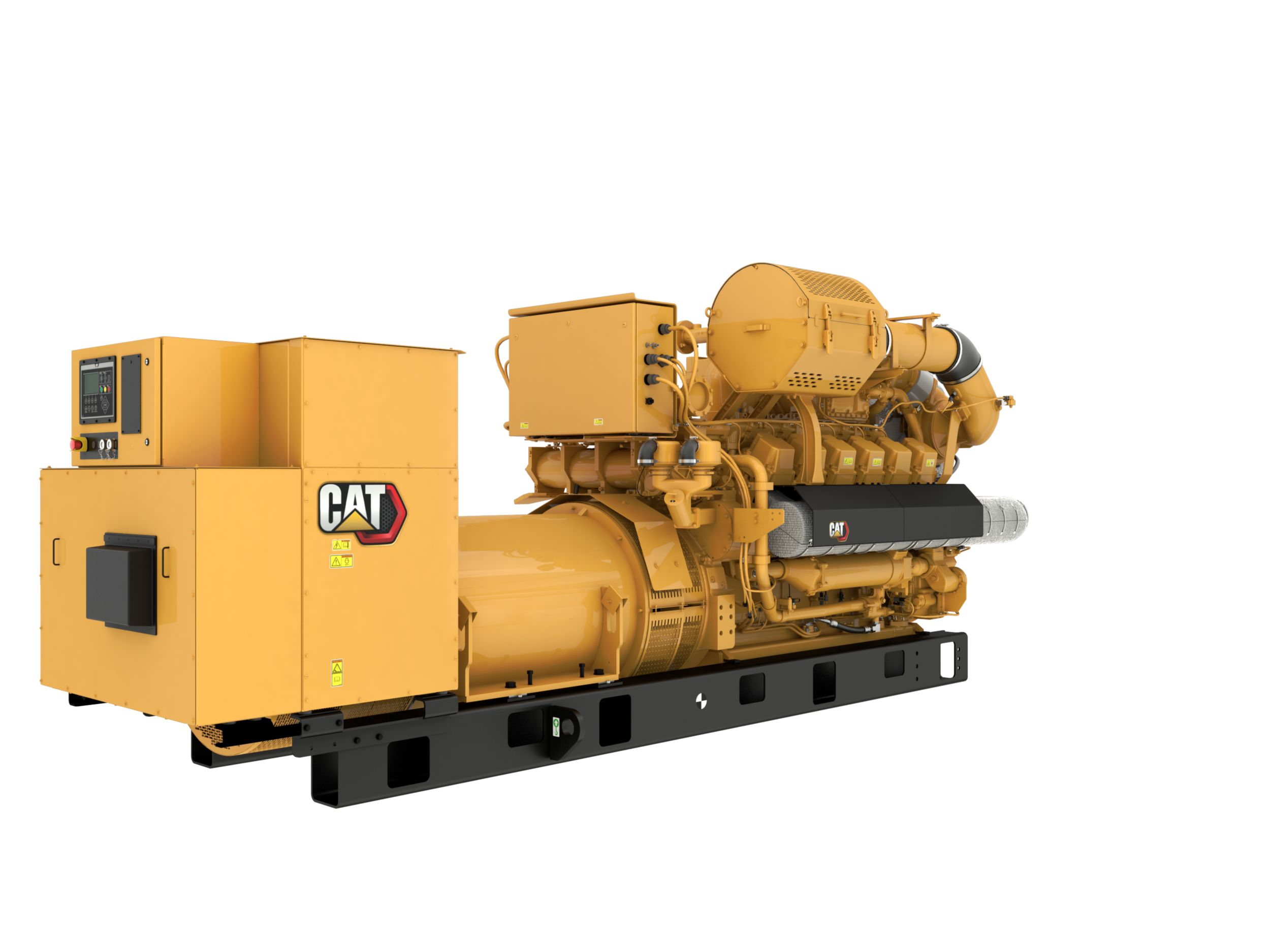

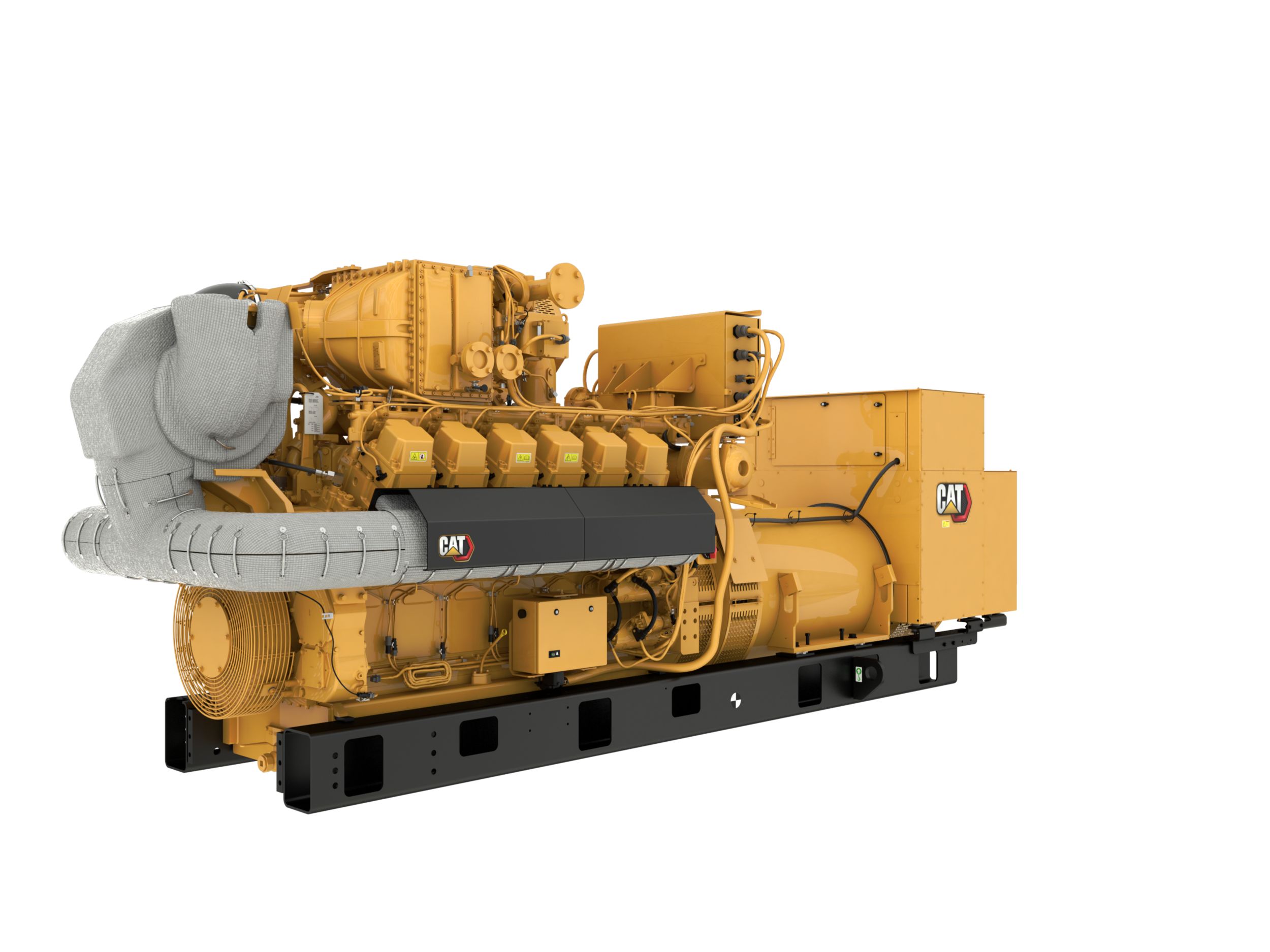

G3512H

Name: G3512H
SKU: 39068
Availability: InStock

Gas Generator G3512H

From natural gas to biogas, coal mine gases, or hydrogen fuel blends to support combined heat and power (CHP), emergency power, and local grid support applications, Caterpillar has a wide range of reliable gas power solutions.

Category: Gas Generator Sets

Description
Additional Information
Attachments To Use

Cat G3512H Gas Engine

Robust high speed block design provides prolonged life and lower owning operationg costs
Designed for maximum performance on low pressure pipeline natural gas and hydrogen mixtures
Simple open chamber combustion system for reliability and fuel flexibility
Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection

SR5 Generator

Designed to match performance and output characteristics of Caterpillar gas engines
Industry leading mechanical and electrical design
High efficiency

EMCP 4.3 Control Panel

User-friendly interface and navigation
Scalable system to meet a wide range of installation requirement
Expansion modules and site-specific programming for specific customer requirements

Emissions

Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment

Proven System

Field proven in a wide range of applications worldwide
Fully prototype tested
Certified torsional vibration analysis available

Full Range of Attachments

Wide range of bolt-on system expansion attachments
Factory designed and tested
Flexible packaging options for easy and cost effective installation

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countries
Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

Air Inlet

Package Mounted Air Cleaner with service indicator

Cooling

Jacket water and SCAC thermostats
2nd Stage CAT Flange
ANSI Class 150 JW Connection
Engine driven pumps for jacket water and aftercooler cooling

Control Panels

Dedicated customer wiring terminals

Control Panel

EMCP4.3

Exhaust

Dry exhaust manifolds insulated and shielded
Center section cooled turbocharger with Cat flanged outlet

Generator

High efficiency low voltage Cat generator, permanent magnet excitation, digital regulation, IP23 water ingress protection, & form wound construction.

Starting/Charging

Electric Starter

General

Paint - Caterpillar Yellow except rails and radiators gloss black
Crankshaft vibration damper and guard

Additional Information

مواصفات مجموعة المولدات - الحد الأقصى للتقديرات المتواصلة	1515 كيلووات كهربائي / 1505 كيلووات كهربائي عند معامل طاقة 1,0
مواصفات مجموعة المولدات - نوع الوقود	الغاز الطبيعي
مواصفات مجموعة المولدات - أقصى كفاءة كهربائية	44.90%
مواصفات مجموعة المولدات - التردد	50 / 60 هرتز
مواصفات مجموعة المولدات - دورة في الدقيقة	1500 دورة في الدقيقة
مواصفات المحرك - موديل المحرك	G3512H
مواصفات المحرك - الإزاحة	59 l ( 3574 بوصة³ )
مواصفات المحرك - السحب	TA
مواصفات المحرك - التجويف	170 مم ( 6.7 بوصة )
مواصفات المحرك - الشوط	215 مم ( 8.5 بوصة )
أبعاد مجموعة المولدات - الطول	5656 مم ( 223 بوصة )
أبعاد مجموعة المولدات - العرض	1921 مم ( 76 بوصة )
أبعاد مجموعة المولدات - الارتفاع	2308 مم ( 91 بوصة )
أبعاد مجموعة المولدات - الوزن الجاف - مجموعة المولد	14100 كجم ( 31085 رطل )
مواصفات المحرك - نوع المنظم	ADEM A4
Offering Type	New
