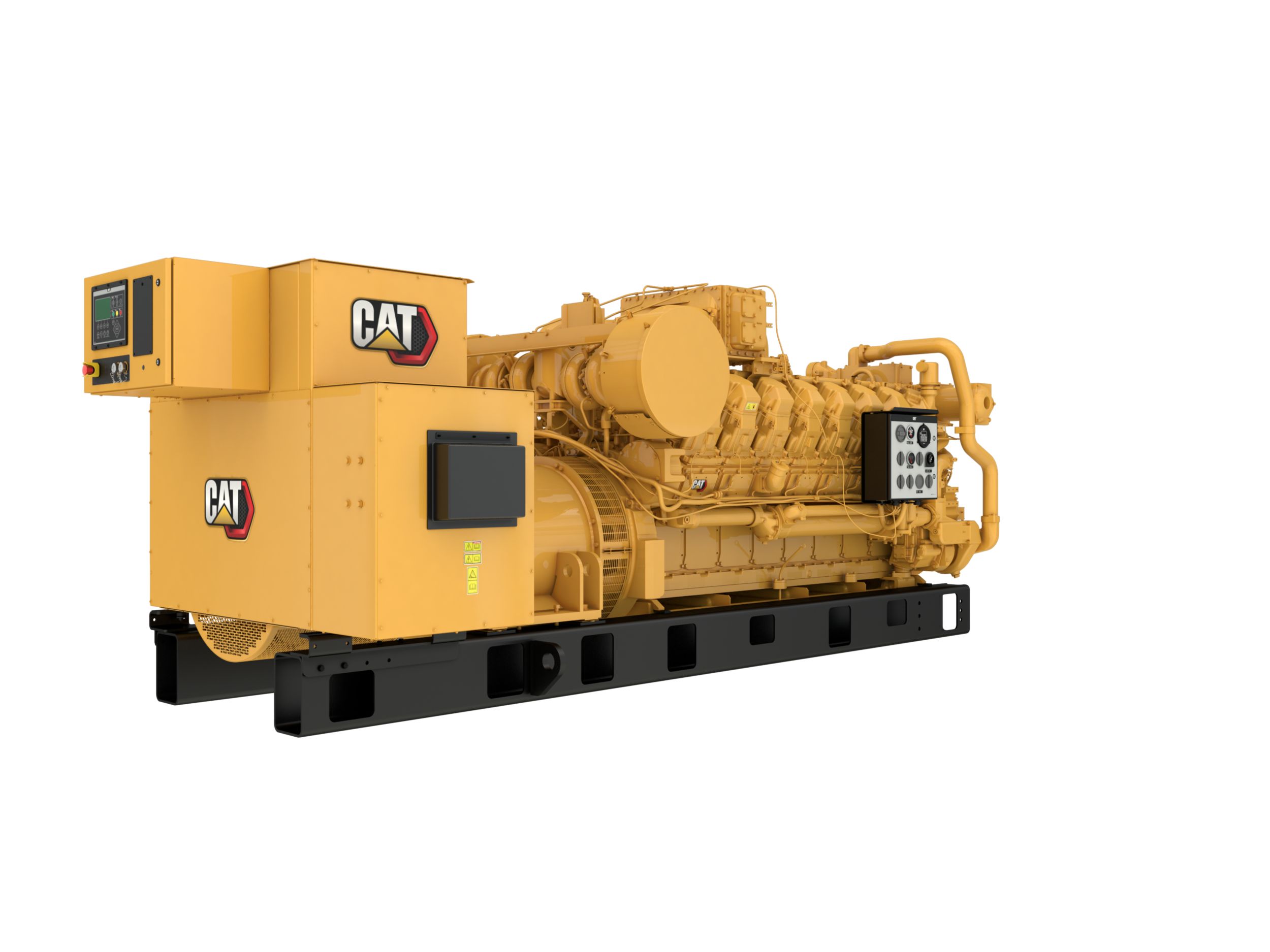

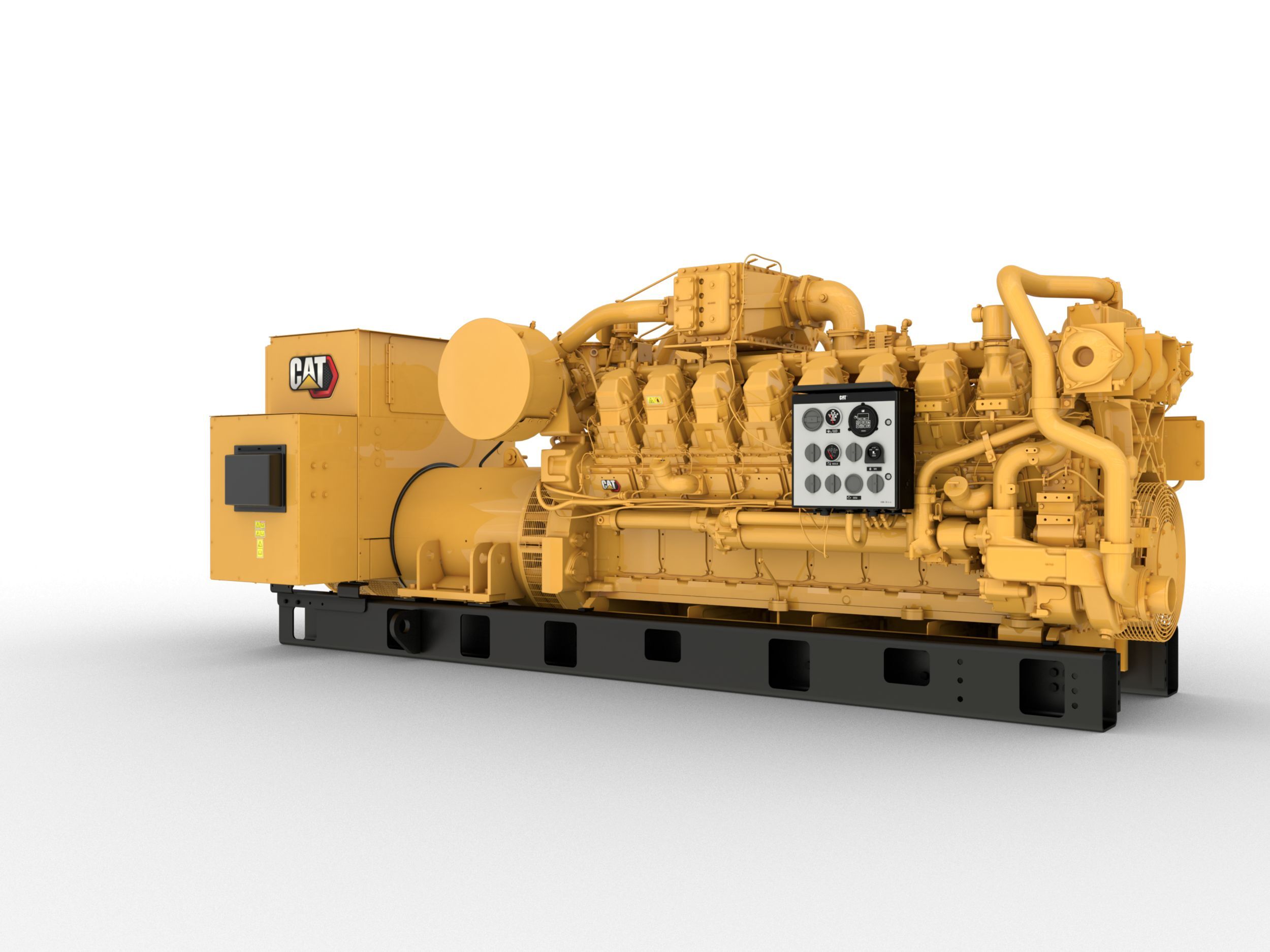

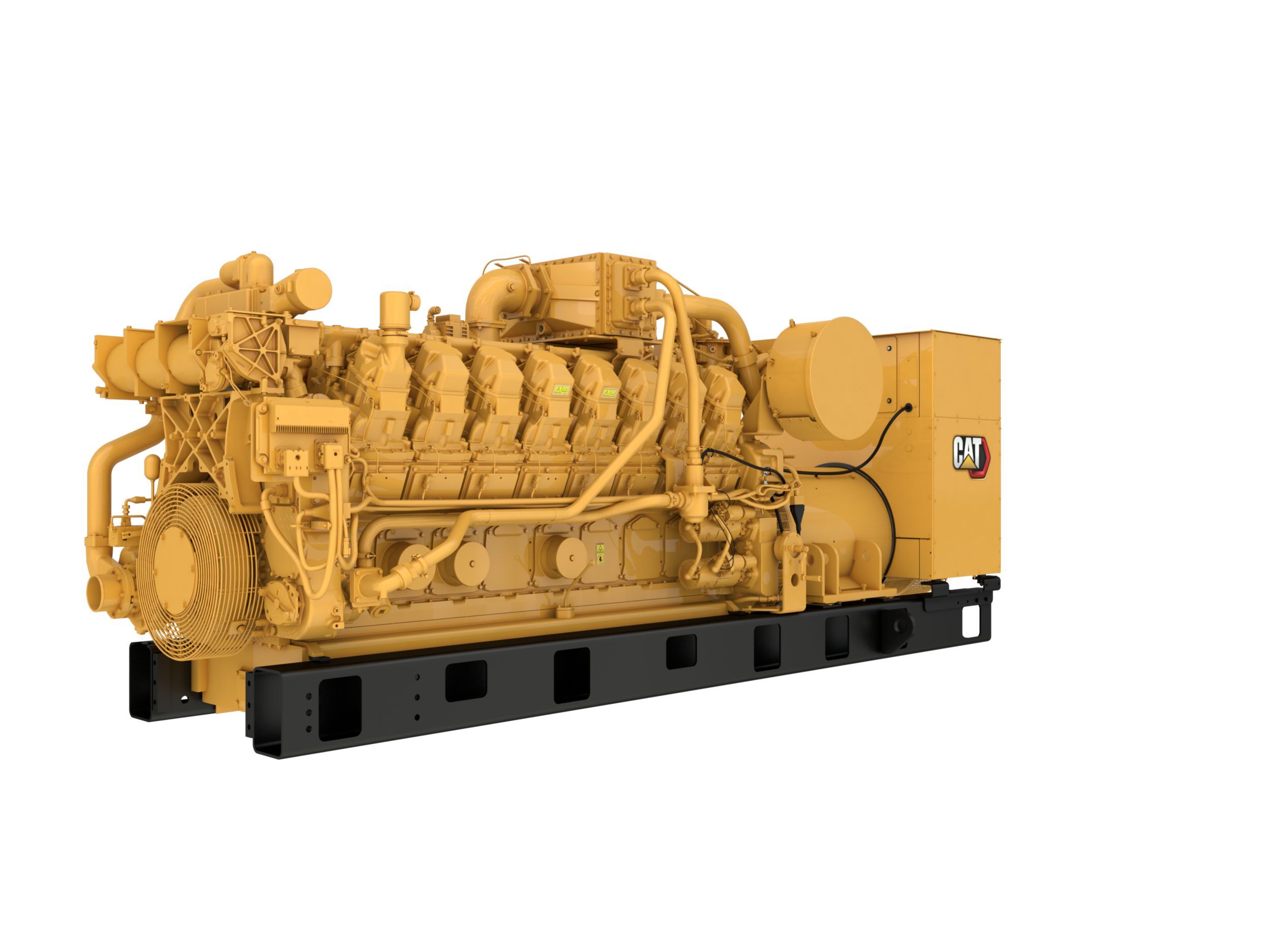

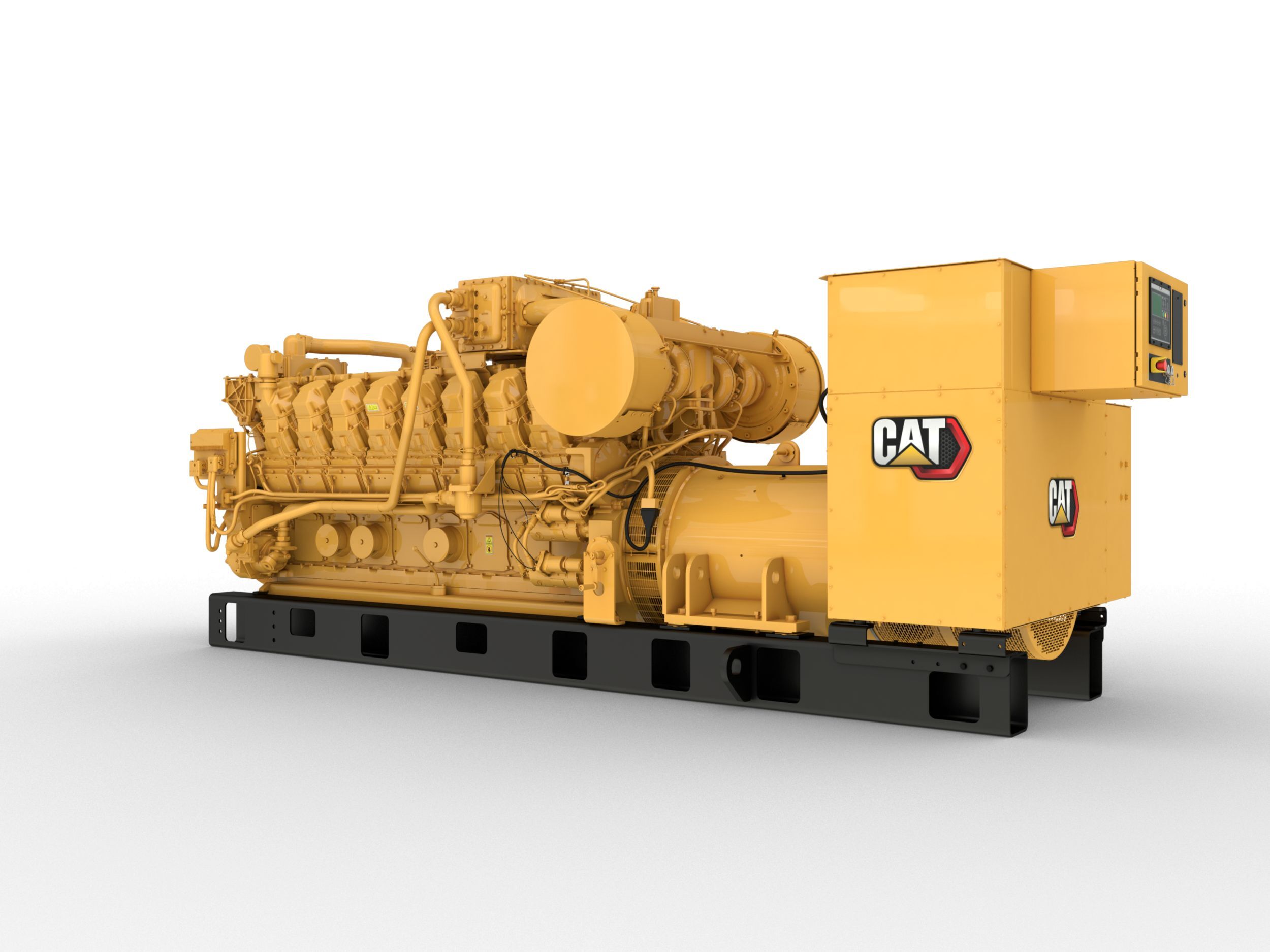

G3516A
Gas Generator G3516A
From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.
Cat G3516A Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
EMCP 4.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Emissions
- Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
Standard Equipment
Exhaust
- Dry exhaust manifolds, insulated and shielded
Generator
- Anti-condensation space heater
- Permanent magnet excitation
- SR4B
- Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
Starting/Charging
- 24V starting motors
General
- Crankshaft vibration damper and guard
- Paint - Caterpillar Yellow except rails are gloss black
- Operation and maintenance manuals
- Parts book
Additional information
| مواصفات مجموعة المولدات - الحد الأقصى للتقديرات المتواصلة | 1085 كيلووات كهربائي |
|---|---|
| مواصفات مجموعة المولدات - نوع الوقود | الغاز الطبيعي، والغاز الحيوي، وغاز الفحم |
| مواصفات مجموعة المولدات - أقصى كفاءة كهربائية | 36.50% |
| مواصفات مجموعة المولدات - أقصى تقدير للطاقة الاحتياطية | 1000 كيلووات |
| مواصفات مجموعة المولدات - التردد | 50 / 60 هرتز |
| مواصفات مجموعة المولدات - دورة في الدقيقة | 1200 / 1500 دورة في الدقيقة |
| مواصفات المحرك - موديل المحرك | G3516A |
| مواصفات المحرك - الإزاحة | 69 l ( 4210 بوصة³ ) |
| مواصفات المحرك - السحب | TA |
| مواصفات المحرك - التجويف | 170 مم ( 6.7 بوصة ) |
| مواصفات المحرك - الشوط | 190 مم ( 7.5 بوصة ) |
| أبعاد مجموعة المولدات - الطول | 4913 مم ( 193 بوصة ) |
| أبعاد مجموعة المولدات - العرض | 1736 مم ( 68 بوصة ) |
| أبعاد مجموعة المولدات - الارتفاع | 1940 مم ( 76 بوصة ) |
| أبعاد مجموعة المولدات - الوزن الجاف - مجموعة المولد | 12549 كجم ( 27670 رطل ) |
