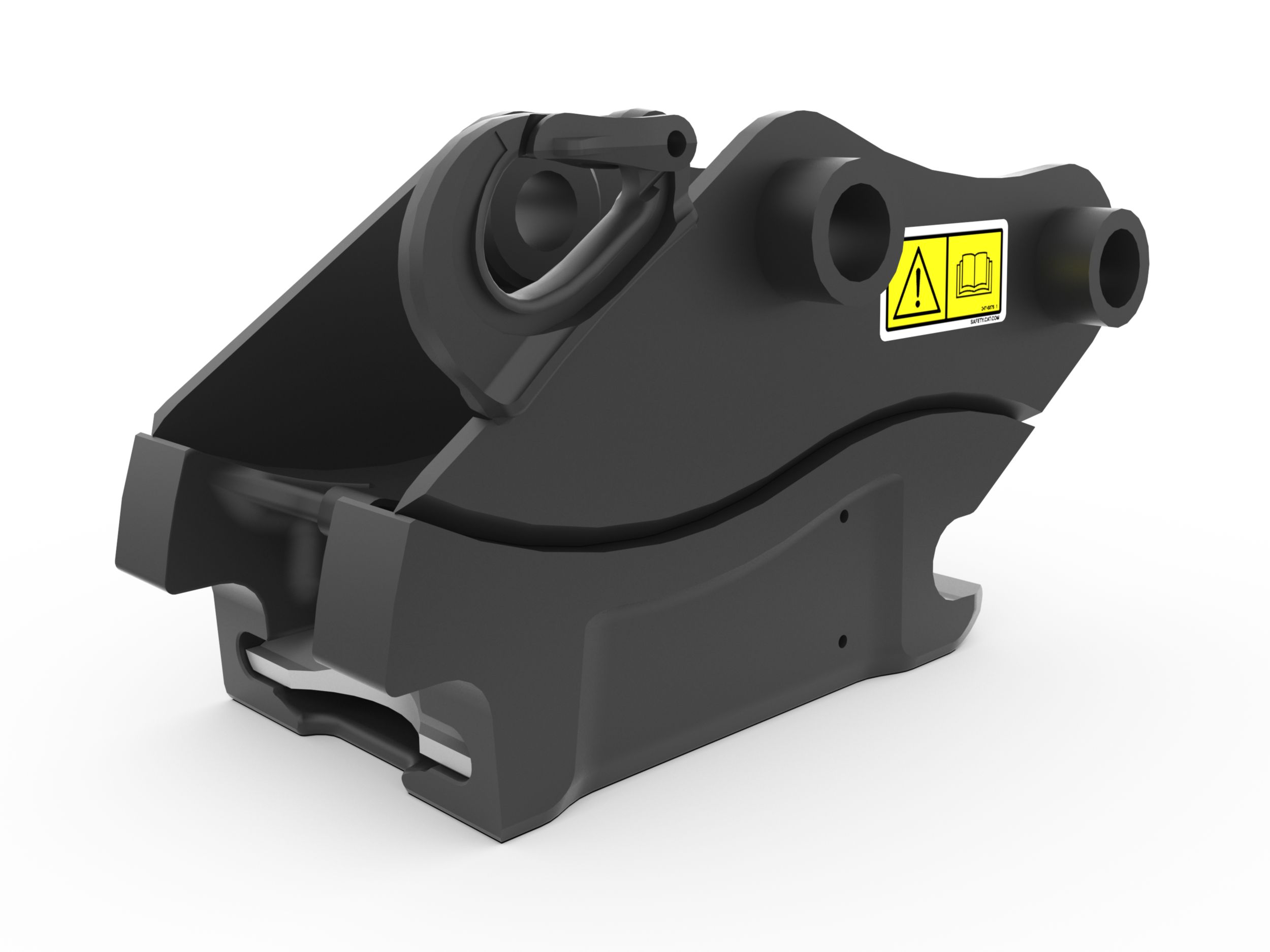

S-40 Pin Grabber 3 Ton
Hydraulic Cylinder Lock
Hydraulic cylinder lock maintains positive pressure on bucket pin, ensuring a consistent and reliable connection to your attachment.
Locking Indicator
The visual verification rod allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Lifting Hook
Integrated lifting hook allows the operator to switch tasks to lifting without changing tools or coupler.
Low Profile/Build Height
Low build height quick coupler with minimal offset results in minimal break out force reduction.
Protected Components
All components integrated inside the coupler housing and protected against contaminants and potential force impact.
Wedge Type Locking Mechanism
Wedge type locking mechanism minimizes impact loading into the hydraulic cylinder.
Locking Control System
Locking Control System (LCS) incorporates cylinder positioning sensing and provides electrical feedback to the machine which requires Cat® software to display locking system status.
Additional information
الوزن | 42 كجم ( 92.6 رطل ) |
---|---|
سعة خطاف الرفع | 2000 كجم ( 4409.2 رطل ) |
العرض | 254 مم ( 10 بوصة ) |
الطول الإجمالي | 470 مم ( 18.5 بوصة ) |
الارتفاع الإجمالي | 262 مم ( 10.3 بوصة ) |
قطر المسمار | 40 مم ( 1.6 بوصة ) |
فئة الماكينة | الحفارات الصغيرة 3-4 أطنان |
نوع الوصلة البينية | تثبيت بمسمار |
المكونات الهيدروليكية المطلوبة | مخصص ومُركب في المصنع |
أقصى ضغط للتشغيل | 300 bar ( 4351.1 رطل لكل بوصة مربعة ) |
نوع قارنة التوصيل | مسمار الإمساك S-40 |
