XQP150

XQP150

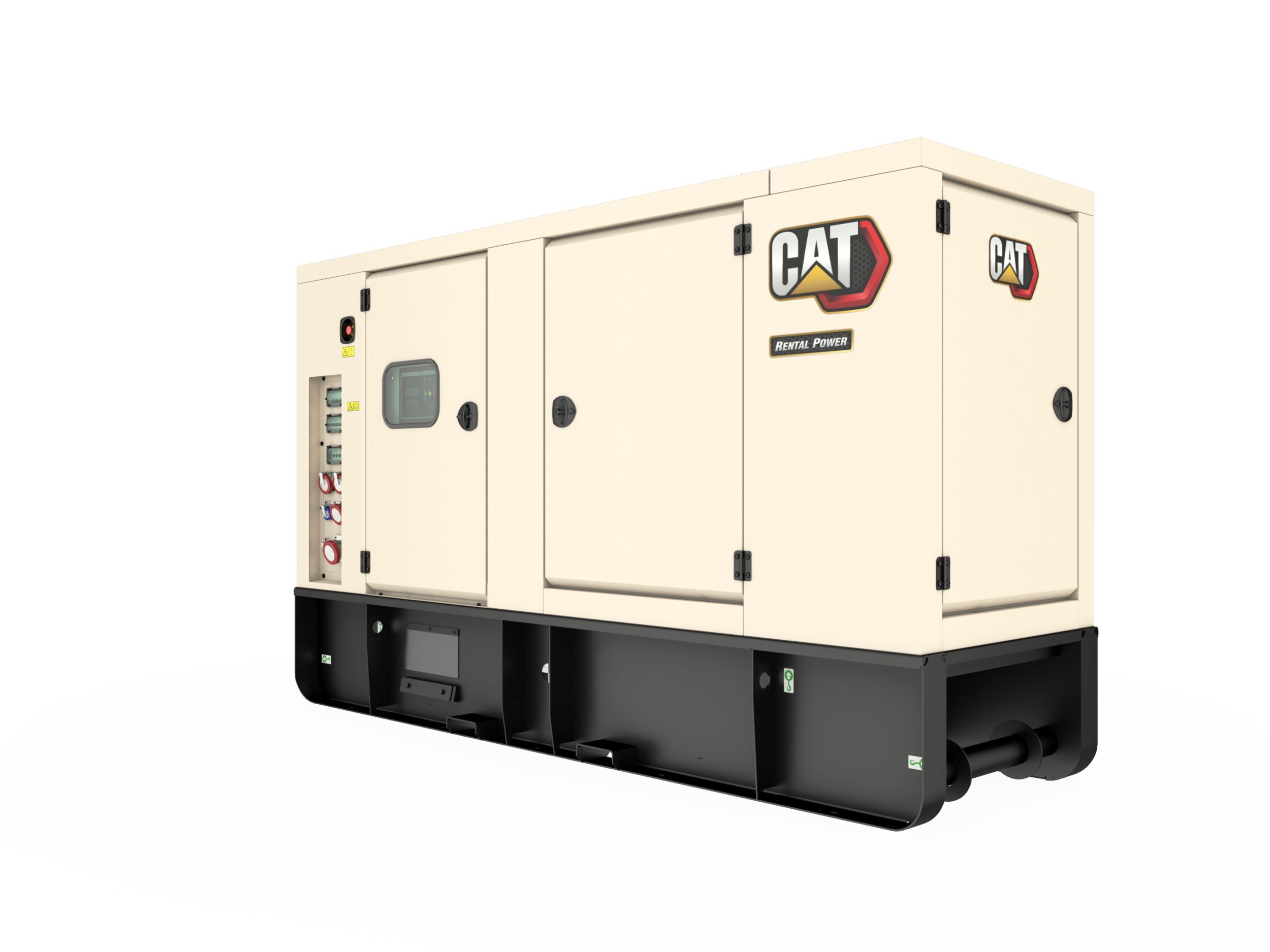

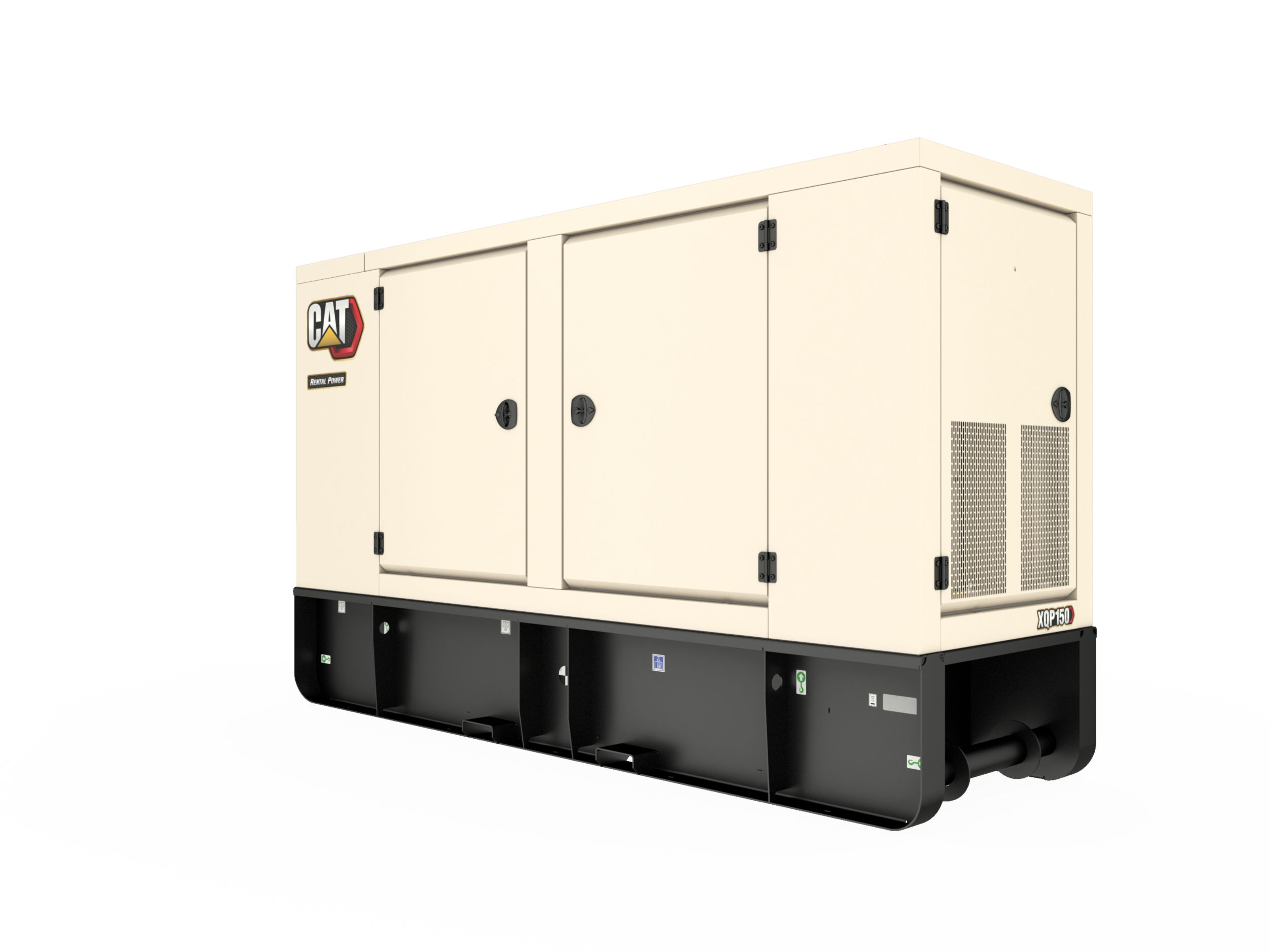

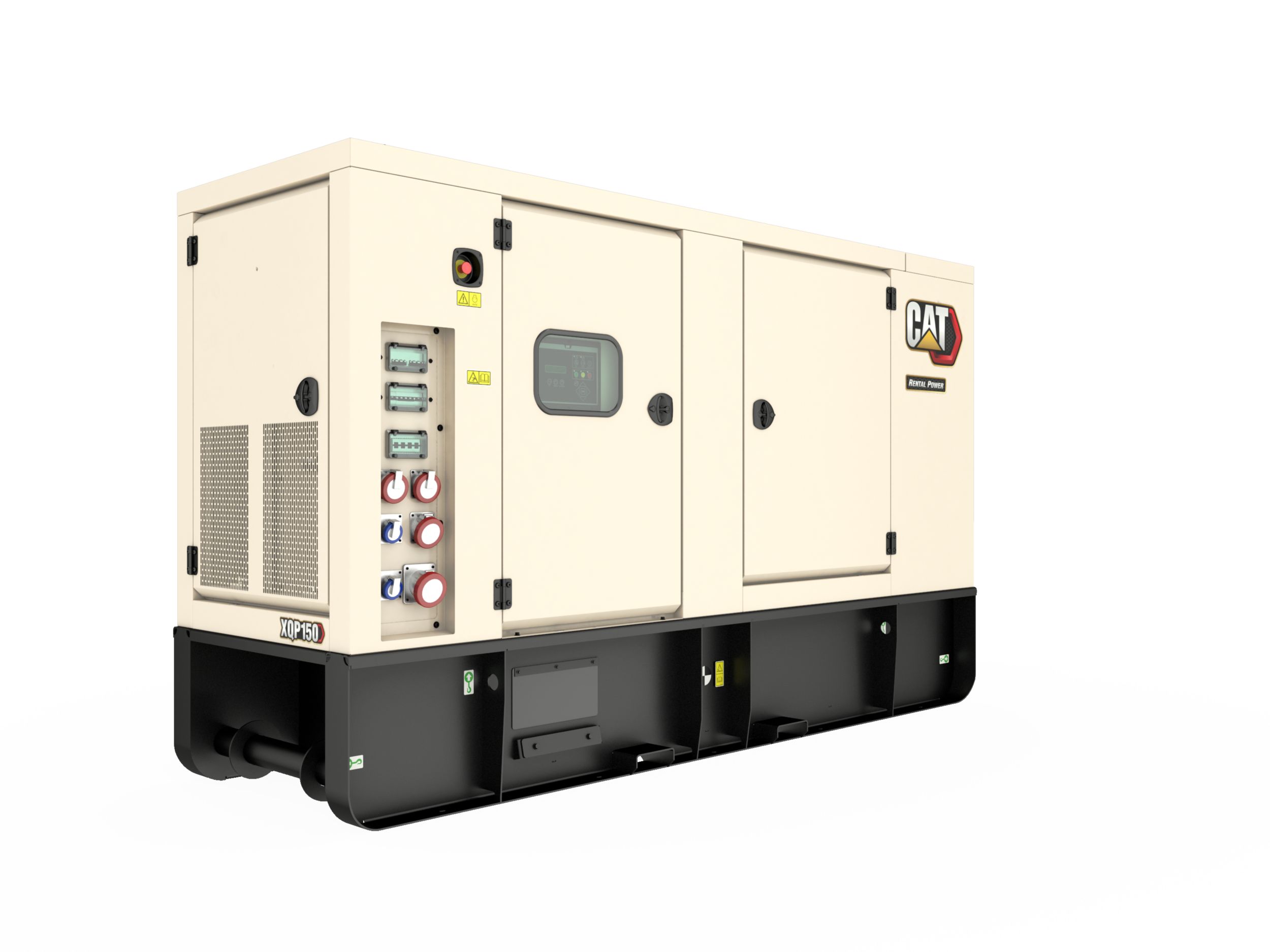

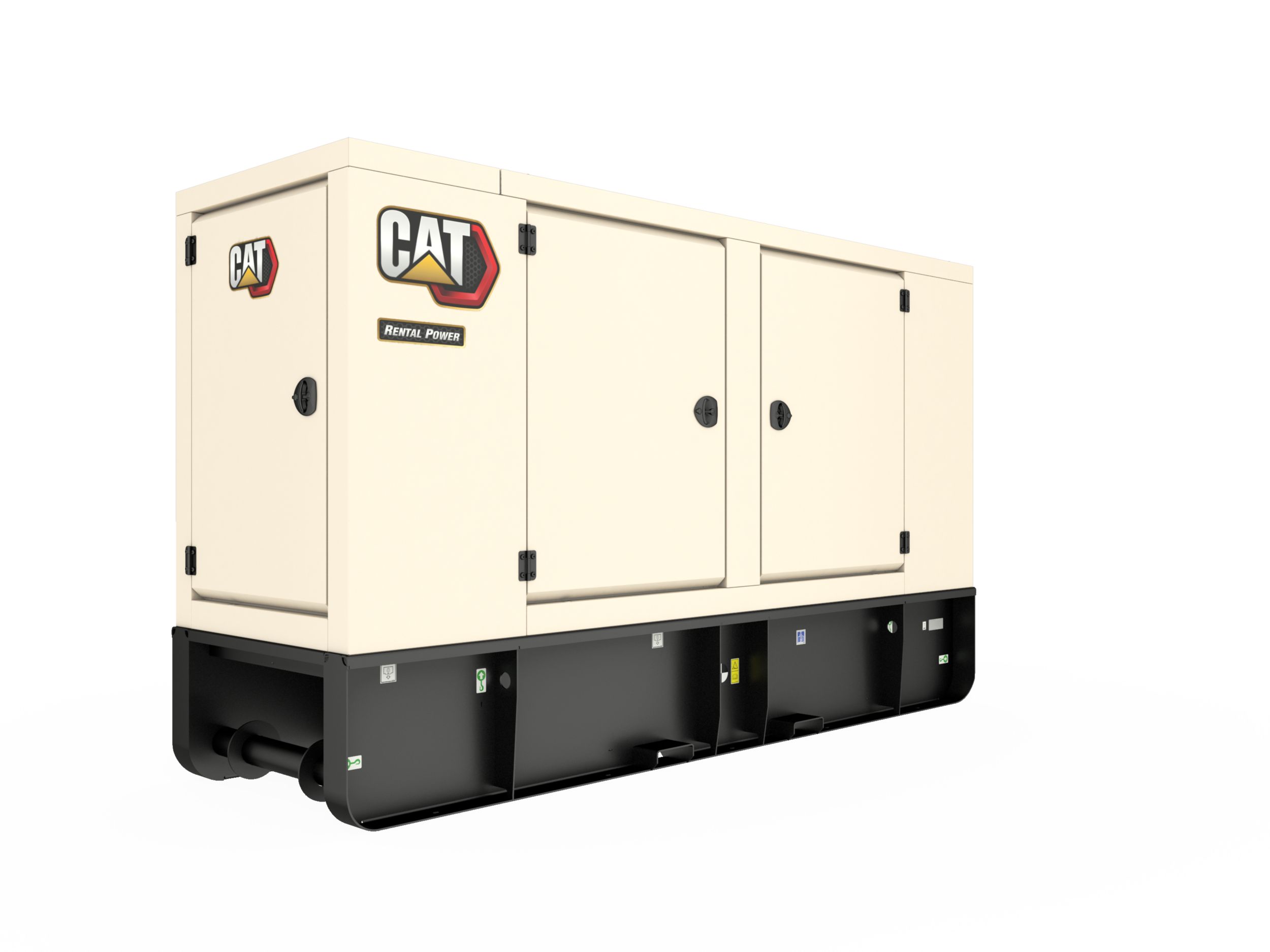

This XQP150 generator set is fuel consumption optimized . Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Category:
Add to Quote

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.

Cat C7.1 Diesel Engine

Industry proven reliability.

XQCP Control Panel

Easy to use digital controls.

Cat LC3114J Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Single-source Supplier

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Additional Options Available

Synchronising controls. Distribution sockets. Extended Service interval kits.

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

CAT C7.1 Diesel Engine
  • Turbocharged
Generator
  • LC3114J Frame
Air Filter
  • Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
  • Provides package monitoring and management
Cooling System
  • Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
  • 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
  • 24 hour dual wall fuel tank with 3 way directional valve for external supply
Control Panel
  • Digital XQCP set mounted controller
Distribution
  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
  • Integrated spark arresting silencer
Lube Oil
  • On engine primary and secondary oil filters. Filled from factory
General
  • Factory tested and inspected

Additional information

Offering Type

Generator Set - Rating Prime

150 kVA
Generator Set - Frequency

50/60 Hz
Generator Set - Voltage

127 – 480 V
Engine

Cat C7.1
Engine - Fuel

Diesel
Dimensions - Width

1120 mm ( 44.1 in )
Dimensions - Height

2226 mm ( 87.6 in )
Dimensions - Length

3520 mm ( 138.6 in )
Dimensions - Weight - With Lube Oil and Coolant

2547 kg ( 5615 lb )
Fuel Consumption EU Stage IIIA - 100% Load 50Hz

37.5 l/hr ( 9.9 gal/hr )
Fuel Consumption EU Stage IIIA - 100% Load 60Hz

42.3 l/hr ( 11.2 gal/hr )
Fuel Consumption EU Stage IIIA - 75% Load 50Hz

29.6 l/hr ( 7.8 gal/hr )
Fuel Consumption EU Stage IIIA - 75% Load 60Hz

34.7 l/hr ( 9.2 gal/hr )
Fuel Consumption EU Stage IIIA - 50% Load 50Hz

20.3 l/hr ( 5.4 gal/hr )
Fuel Consumption EU Stage IIIA - 50% Load 60Hz

23.8 l/hr ( 6.3 gal/hr )
Fuel consumption Best Fuel Efficiency - 100% Load 50Hz

33.3 l/hr ( 8.8 gal/hr )
Fuel consumption Best Fuel Efficiency - 100% Load 60Hz

38.2 l/hr ( 10.5 gal/hr )
Fuel consumption Best Fuel Efficiency - 75% Load 50Hz

24.7 l/hr ( 6.5 gal/hr )
Fuel consumption Best Fuel Efficiency - 75% Load 60Hz

29.1 l/hr ( 7.7 gal/hr )
Fuel consumption Best Fuel Efficiency - 50% Load 50Hz

16.4 l/hr ( 4.3 gal/hr )
Fuel consumption Best Fuel Efficiency - 50% Load 60Hz

19.1 l/hr ( 5 gal/hr )
Noise rating (with enclosure) EU Stage IIIA - Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)

73.1 dB(A)
Noise rating (with enclosure) EU Stage IIIA - Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)

76.4 dB(A)
Noise rating (with enclosure) Best Fuel Efficiency - Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)

74.7 dB(A)
Noise rating (with enclosure) Best Fuel Efficiency - Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)

78.3 dB(A)
