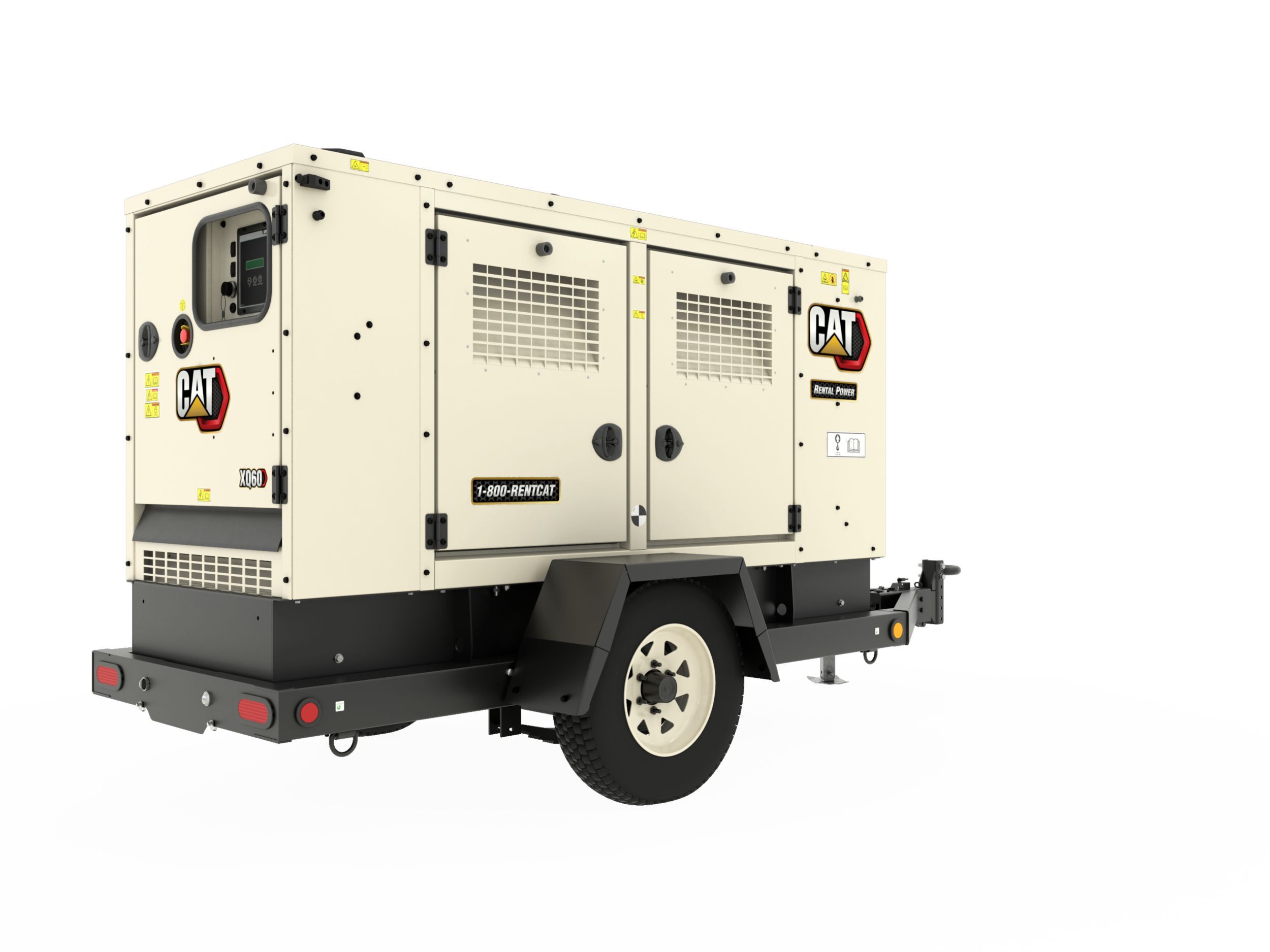

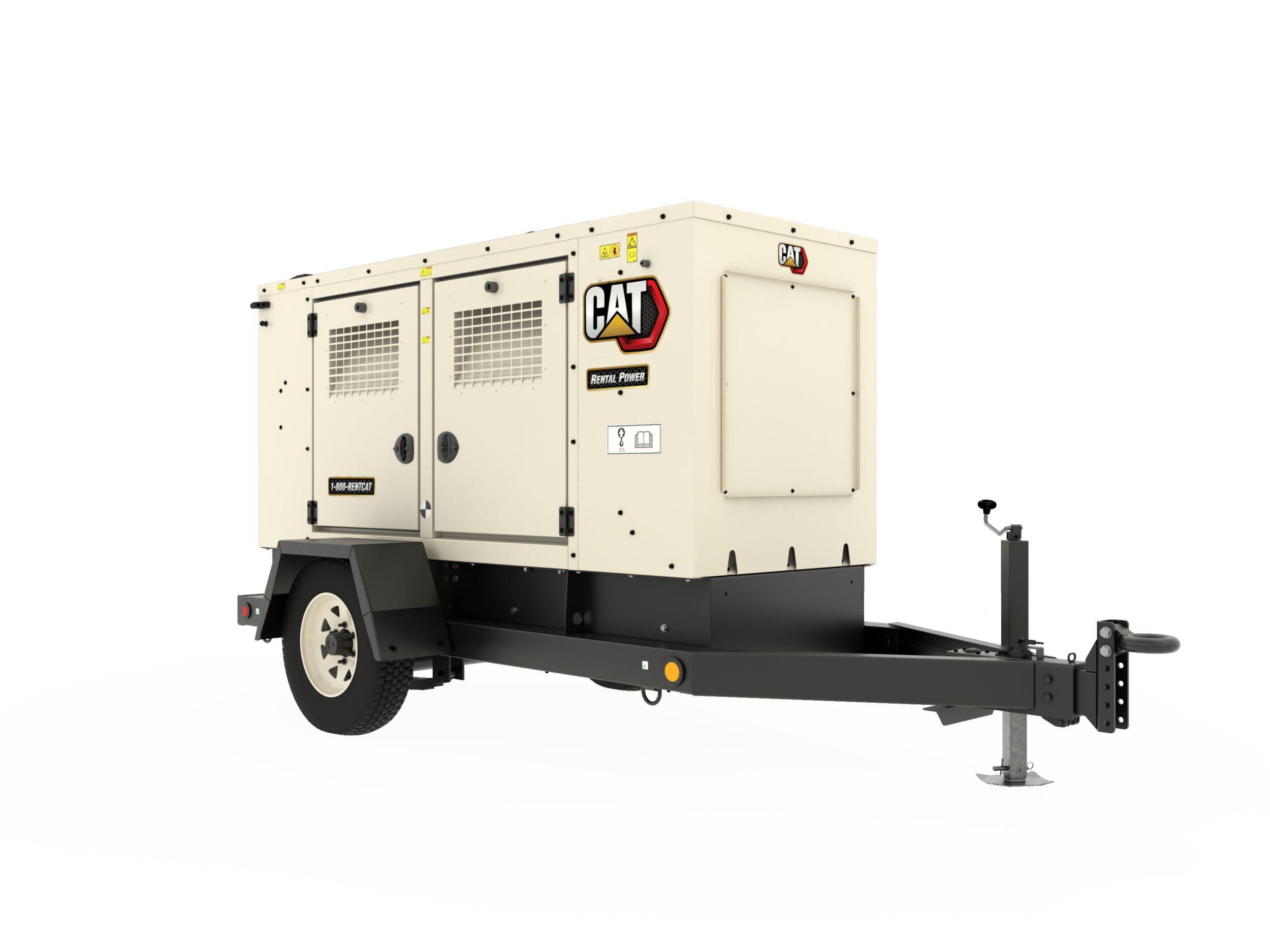

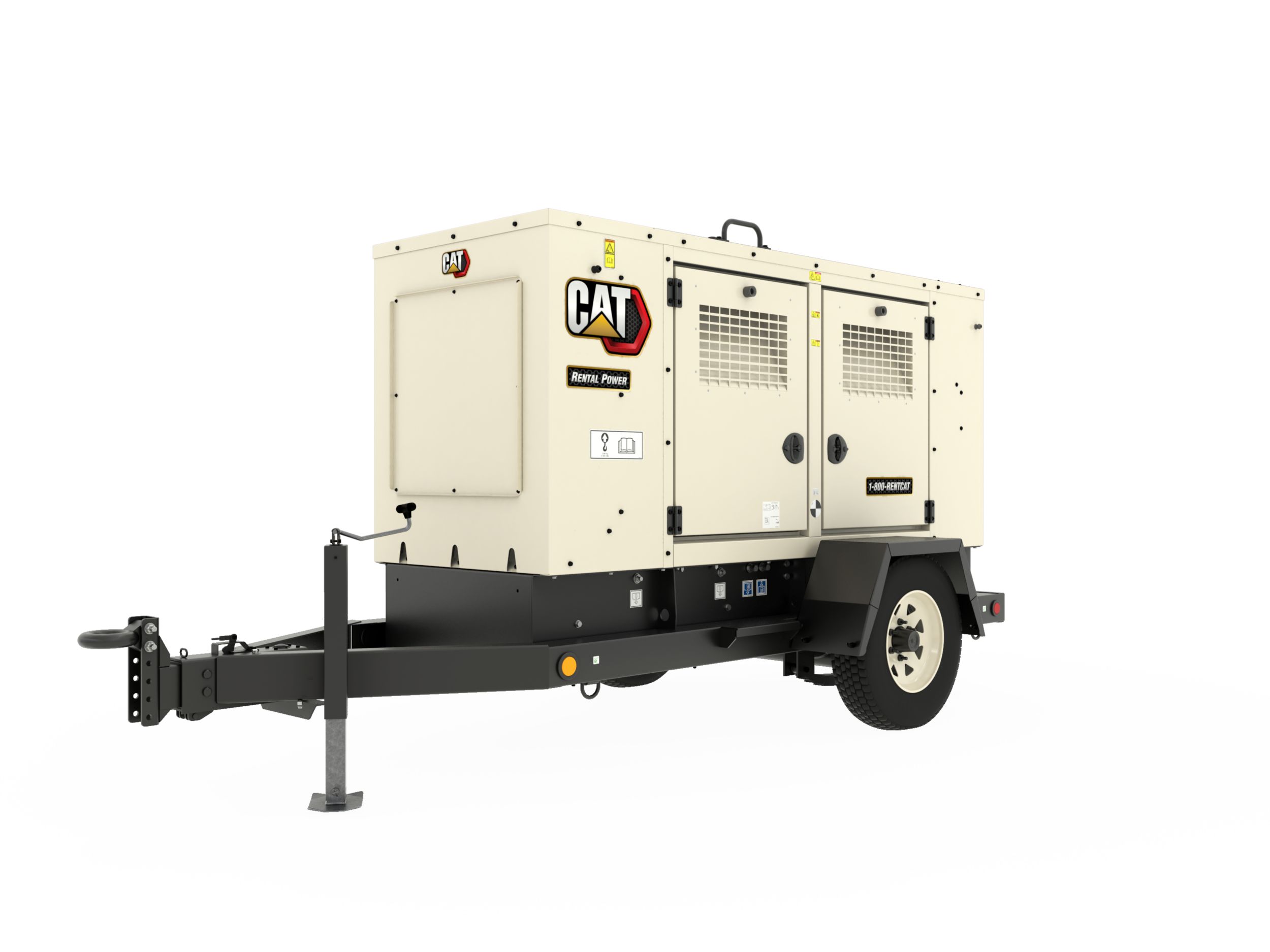

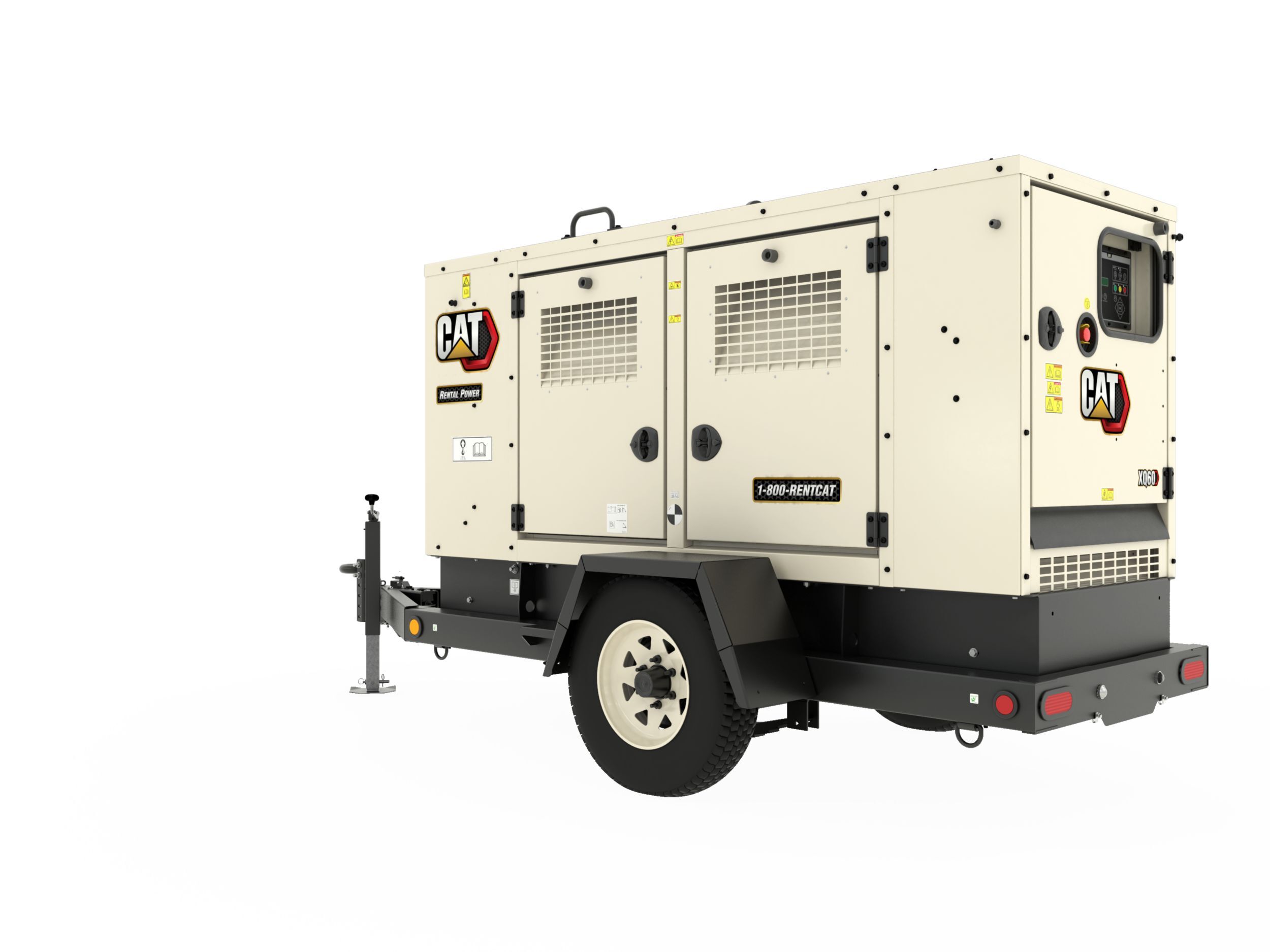

XQ60 Tier 4 Final

XQ60

With a robust, rental-ready construction, the XQ60 is designed to be easily transported around project sites safely and efficiently. A smaller footprint saves space and provides installation versatility on worksites. The XQ60 is capable of 500-hour oil change intervals, which likewise increases uptime, lowers maintenance costs and consumes fewer parts and oil making it friendlier for the environment.

Category:
Add to Quote

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Meets U.S. EPA Tier 4 Final emission standards and CARB certified for non-road mobile applications at all 60 Hz ratings

Cat C3.4B Diesel Engine

Industry proven reliability

XQCP digital controls

Easy to use digital controls

Cat LC Series Generator

Integrated voltage regular for fast response in demanding applications

Sound Isolated Operator panel

Improved operator comfort

Cat Connect

Remote monitoring for fleet management and asset tracking

Factory designed, built and tested

Single-source Supplier

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Improved transportability

Lifting frame, 4 point lift and trailers

500 hr oil change intervals

Reducing operating costs and producing less waste

Improved transportability

Lifting frame, 4 point lift and trailers

Power Distribution

Distribution sockets

Additional options

Synchronising controls.
Extended Service interval kits
600V generator
208V 3-phase NEMA Sockets

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

CAT C3.4B Diesel Engine
  • Heavy-duty.
    After treatment
Generator
  • 1514P Frame
Control Panel
  • XQCP dgital set mounted controller
Cat Connect remote monitoring
  • Provides package monitoring and management
Cooling System
  • Package mounted radiator with vertical air discharge.
    Filled from factory
Charging / Starting System
  • 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
  • 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
  • Cyclonic/paper with dust cup and service indicator
Distribution
  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation
Enclosure
  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
  • Integrated spark arresting silencer
Lube Oil
  • On engine primary and secondary oil filters. Filled from factory
General
  • Factory tested and inspected

Additional information

Offering Type

Generator Set - Rating Prime

47.5 ekW (60 kVA)
Generator Set - Frequency

60 Hz
Generator Set - Voltage

120 – 600 V
Engine

Cat C3.4
Engine - Fuel

Diesel
Dimensions - Height - Without Trailer

1658 mm ( 65.3 in )
Dimensions - Length - Without Trailer

2705 mm ( 106.5 in )
Dimensions - Width - Without Trailer

1049 mm ( 41.3 in )
Dimensions - Weight with Lube Oil and Coolant, Without Trailer

2877 lb ( 1305 kg )
Fuel Consumption - 100% Load 60Hz

13.9 l/hr ( 3.7 gal/hr )
Fuel Consumption - 75% Load 60Hz

10.5 l/hr ( 2.8 gal/hr )
Fuel Consumption - 50% Load 60Hz

7.1 l/hr ( 1.9 gal/hr )
Noise rating (with enclosure) - Sound Power @ 7 meters (23 feet) @ All Ratings

63 dB(A)
