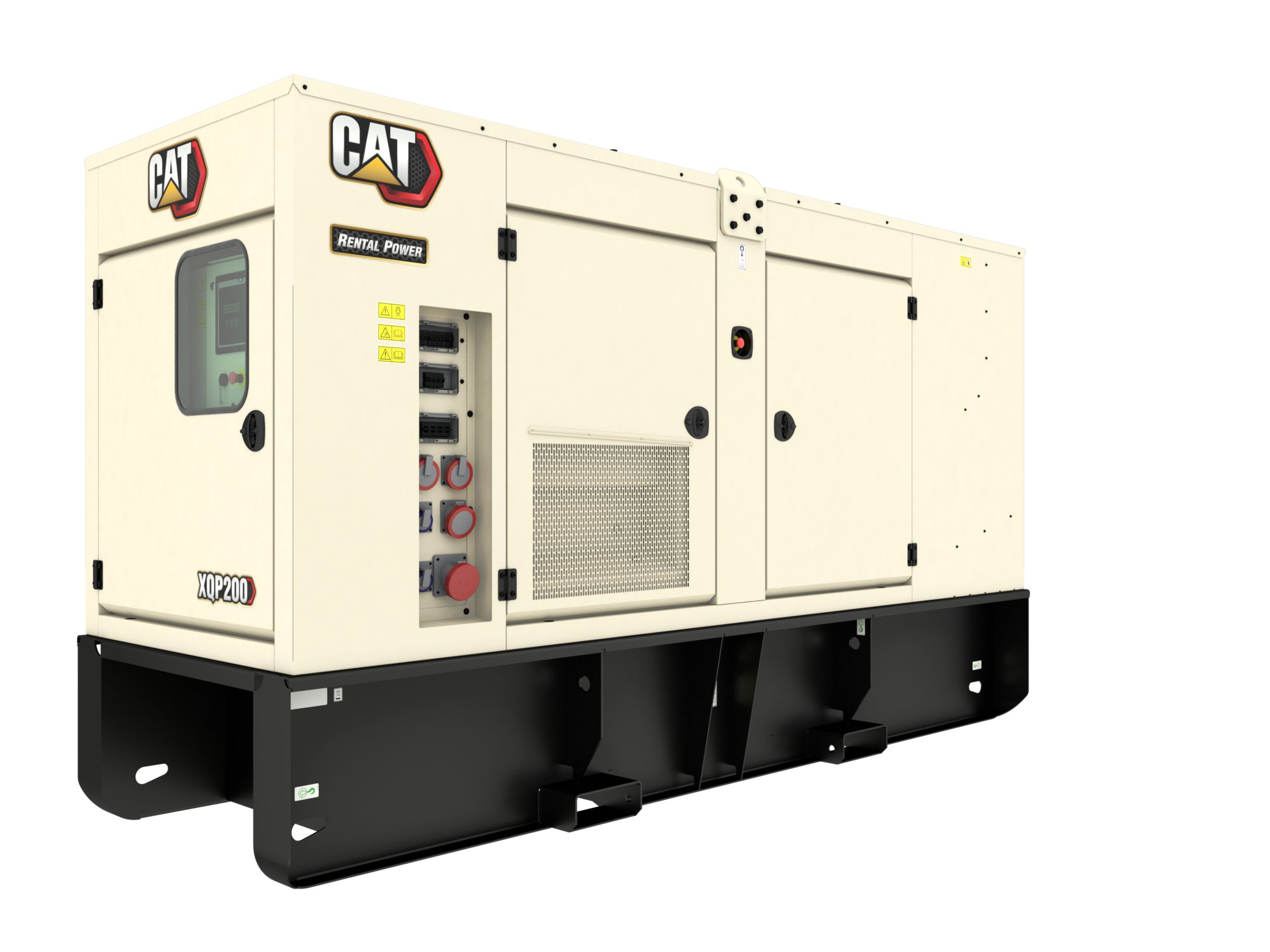

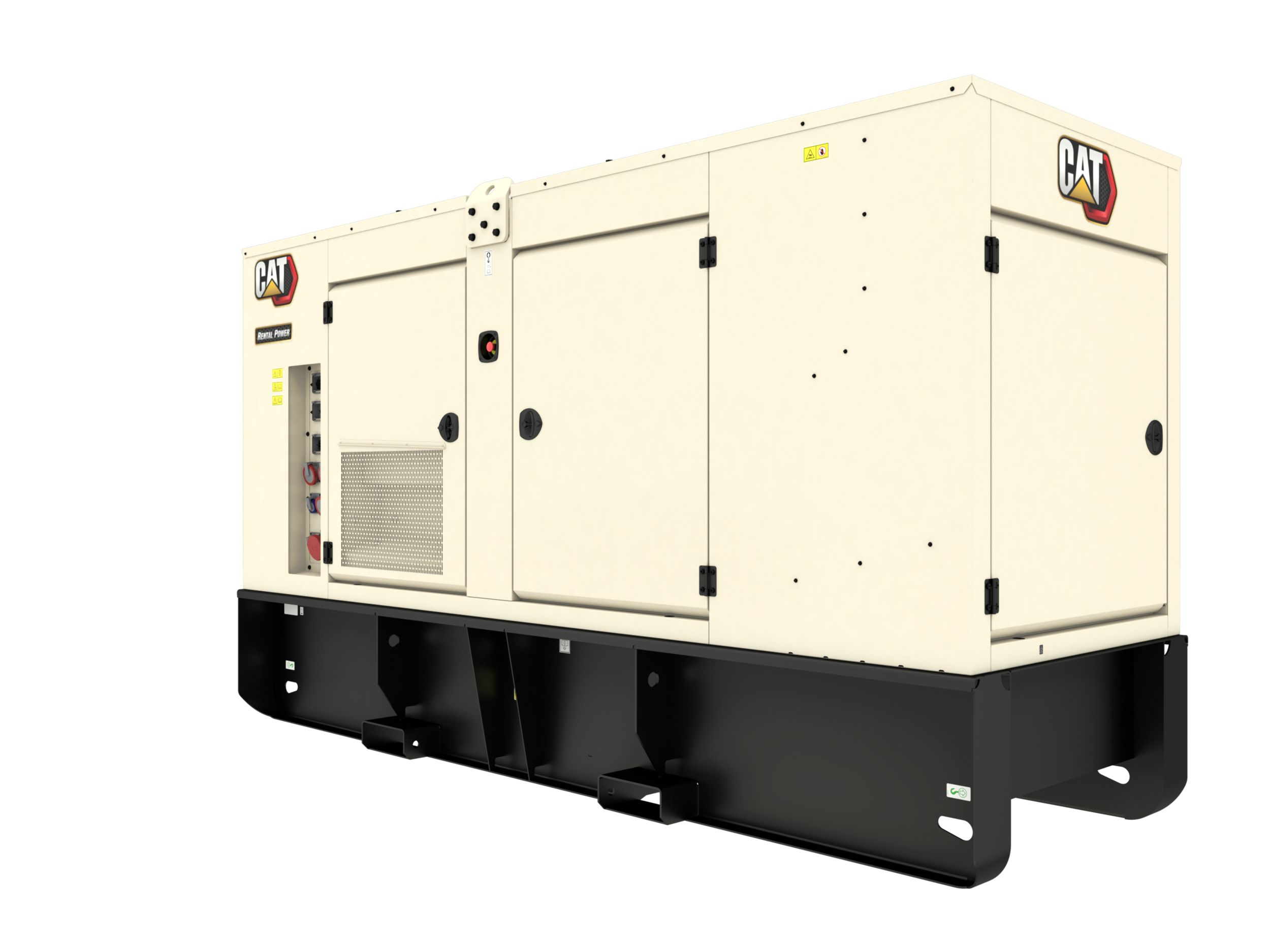

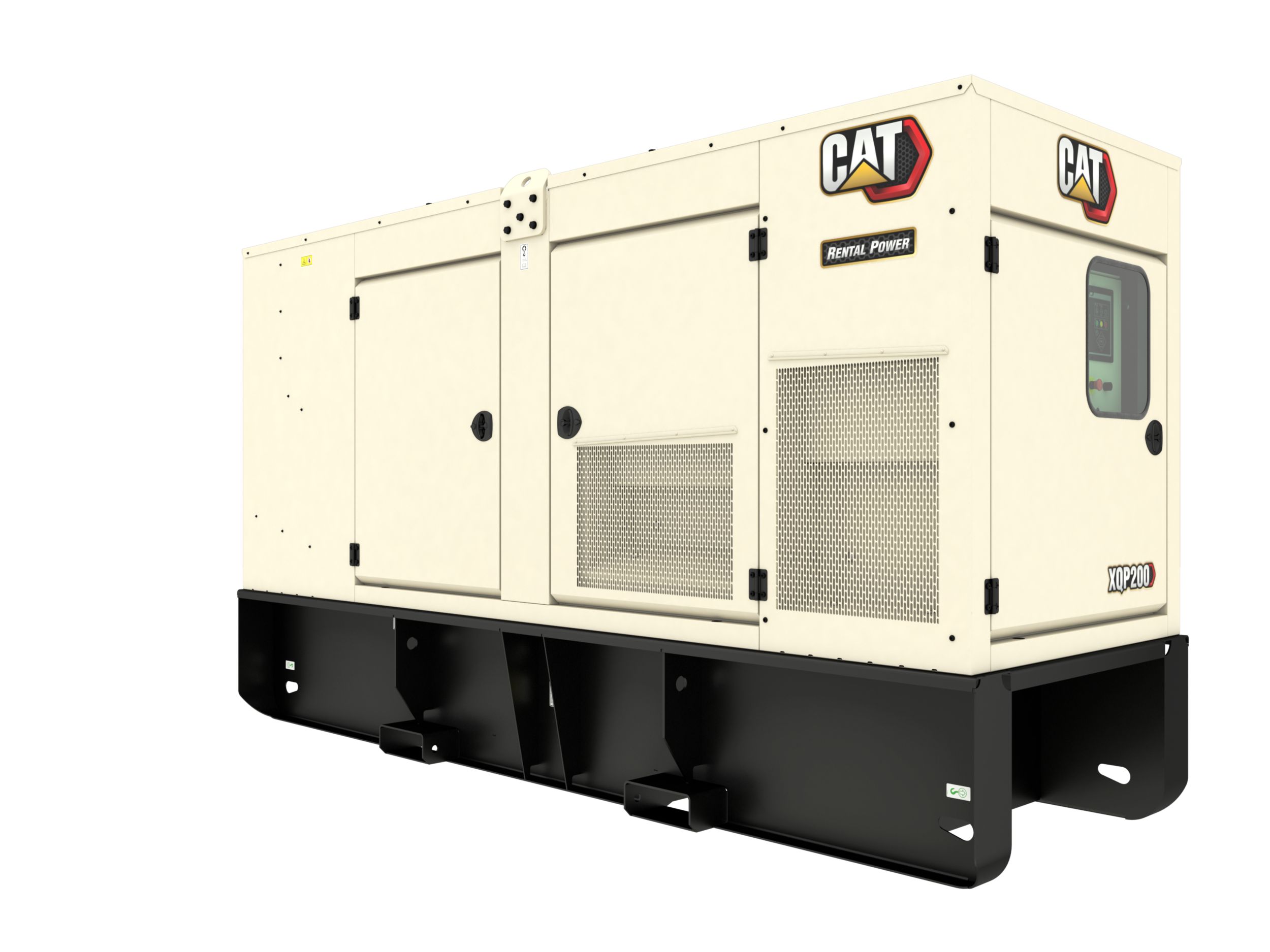

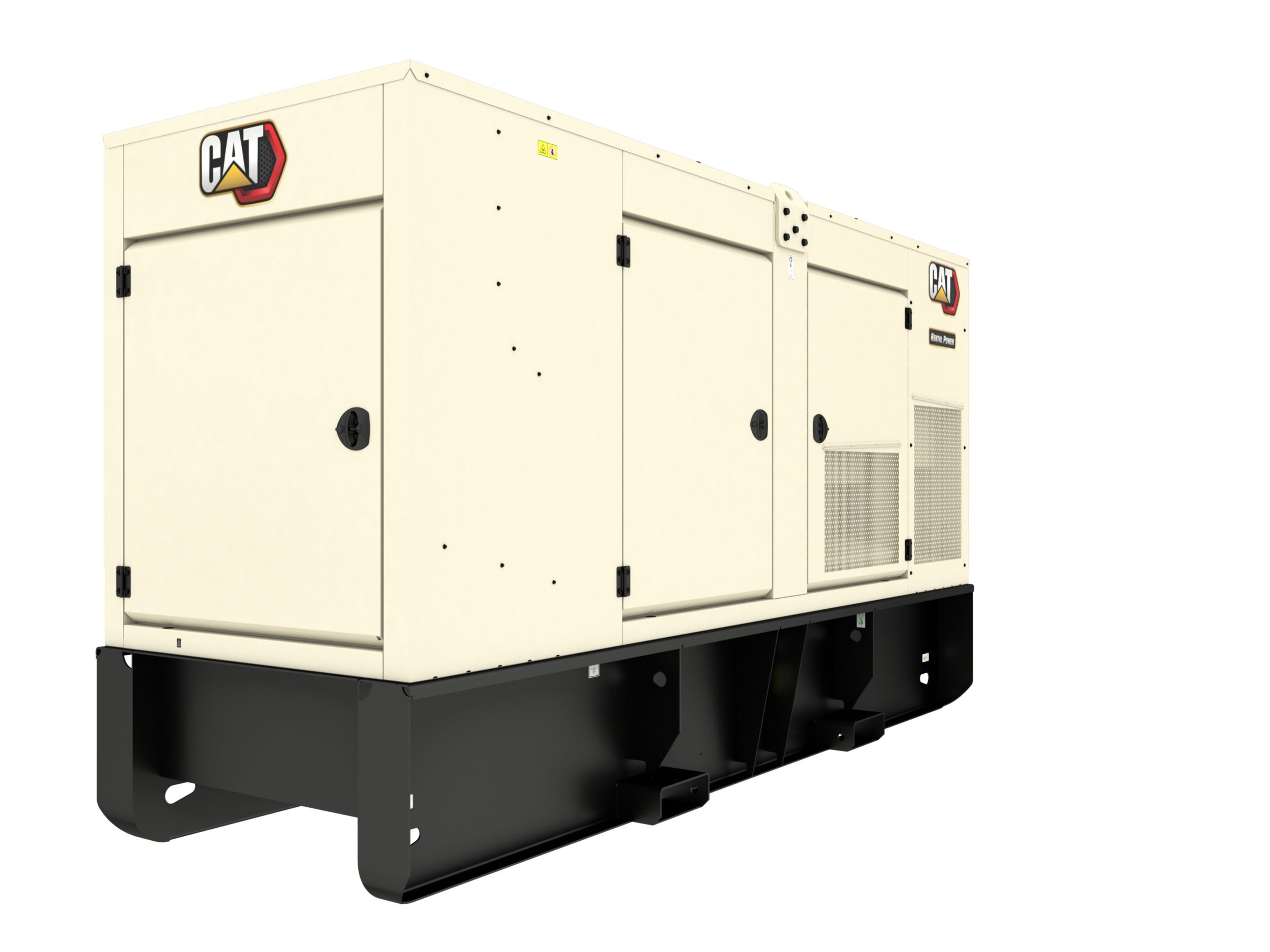

XQP200

XQP200 EU Stage V

This XQP200 generator set is EU Stage V emission standard capable. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Category:
Add to Quote

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

EU Stage V.

Cat C7.1 Diesel Engine

Industry proven reliability.

Cat EMCP 4.2B Control Panel

Easy to use digital controls.

Cat LC5114F Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Single-source Supplier

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

Improved Transportability

Drag bars, Dual point lifting frame, Fork lift pockets and 4 Point lift.

Additional Options Available

Synchronising controls. Distribution sockets. Extended Service interval kits.

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

Cat® C7.1 Diesel Engine
  • Twin Turbocharged, air-to-air aftercooler
  • Electronic ECM controlled
After Treatment
  • Engine Mounted Clean Emissions Module (CEM)
  • Diesel Emissions Fluid (DEF)
Alternator
  • LC5114F Frame
  • Coastal insulation protection
Control Panel
  • Digital EMCP4.2B set mounted digital controller
Air Filter
  • High efficiency two stage air cleaner, with dust cup andservice indicator
Cat Connect remote monitoring
  • Provides package monitoring and management
Cooling System
  • Package mounted radiator with vertical air discharge. Filled from factory
  • High ambient performance
Charging / Starting System
  • 24V heavy duty charging alternator with integral regulator
Fuel System
  • 24 hour dual wall fuel tank with internal fuel fill
  • Engine mounted primary and secondary fuel filter
Distribution
  • Separate robust steel enclosures for control & distribution sections
  • 4 pole, 400A main circuit breaker
Enclosure
  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Sealed quarter-turn compression latches with key orpadlock capabilities
Lube Oil
  • On engine primary and secondary oil filters. Filled from factory
General
  • Factory tested and inspected
  • Full manufacturer's warranty

Additional information

Offering Type

Generator Set - Rating Prime

200 kVA
Generator Set - Frequency

50/60 Hz
Generator Set - Voltage

220 – 480 V
Generator Set - Fuel/Emissions Strategy

EU Stage V
Engine

Cat® C7.1
Engine - Fuel

Diesel
Dimensions - Width

1420 mm ( 56 in )
Dimensions - Height

2350 mm ( 93 in )
Dimensions - Length

4085 mm ( 161 in )
Dimensions - Weight - With Lube Oil and Coolant

3651 kg ( 8049 lb )
Fuel Consumption - 100% Load 50 Hz

43.4 l/hr ( 11.5 gal/hr )
Fuel Consumption - 100% Load 60 Hz

54.3 l/hr ( 14.3 gal/hr )
Fuel Consumption - 75% Load 50 Hz

32.4 l/hr ( 8.6 gal/hr )
Fuel Consumption - 75% Load 60 Hz

39.9 l/hr ( 10.5 gal/hr )
Noise rating (with enclosure) - Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)

75.1 dB(A)
