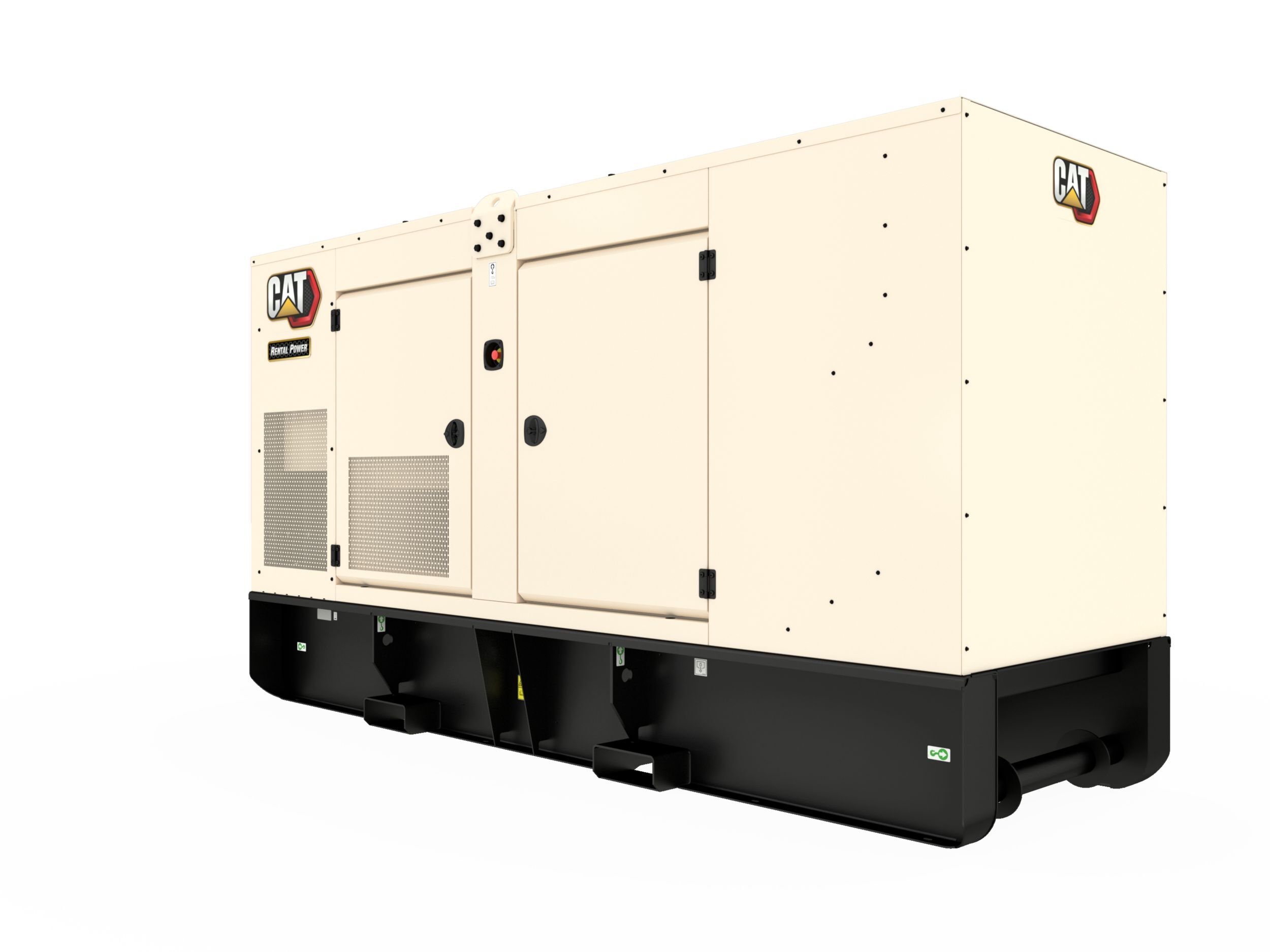

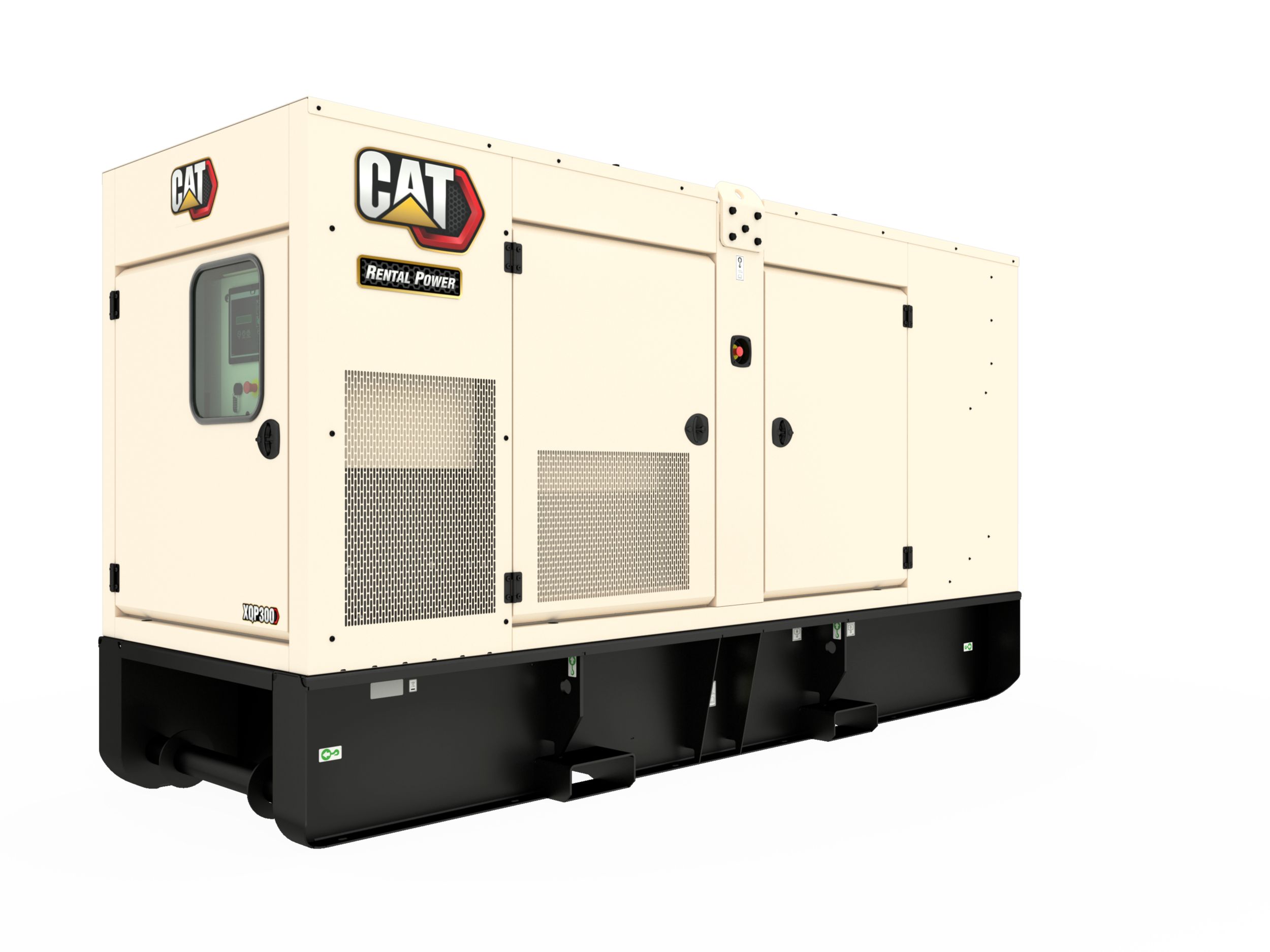

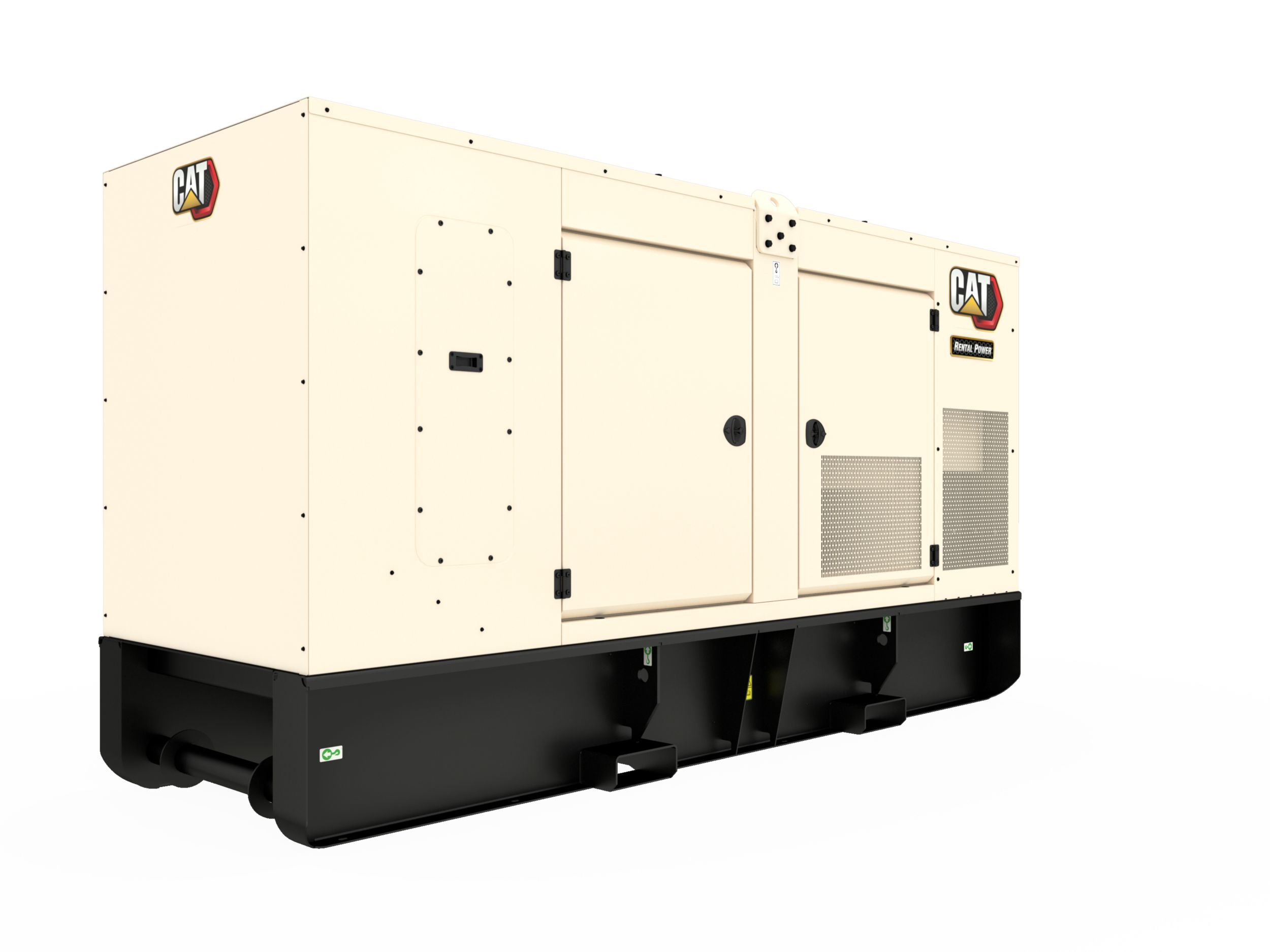

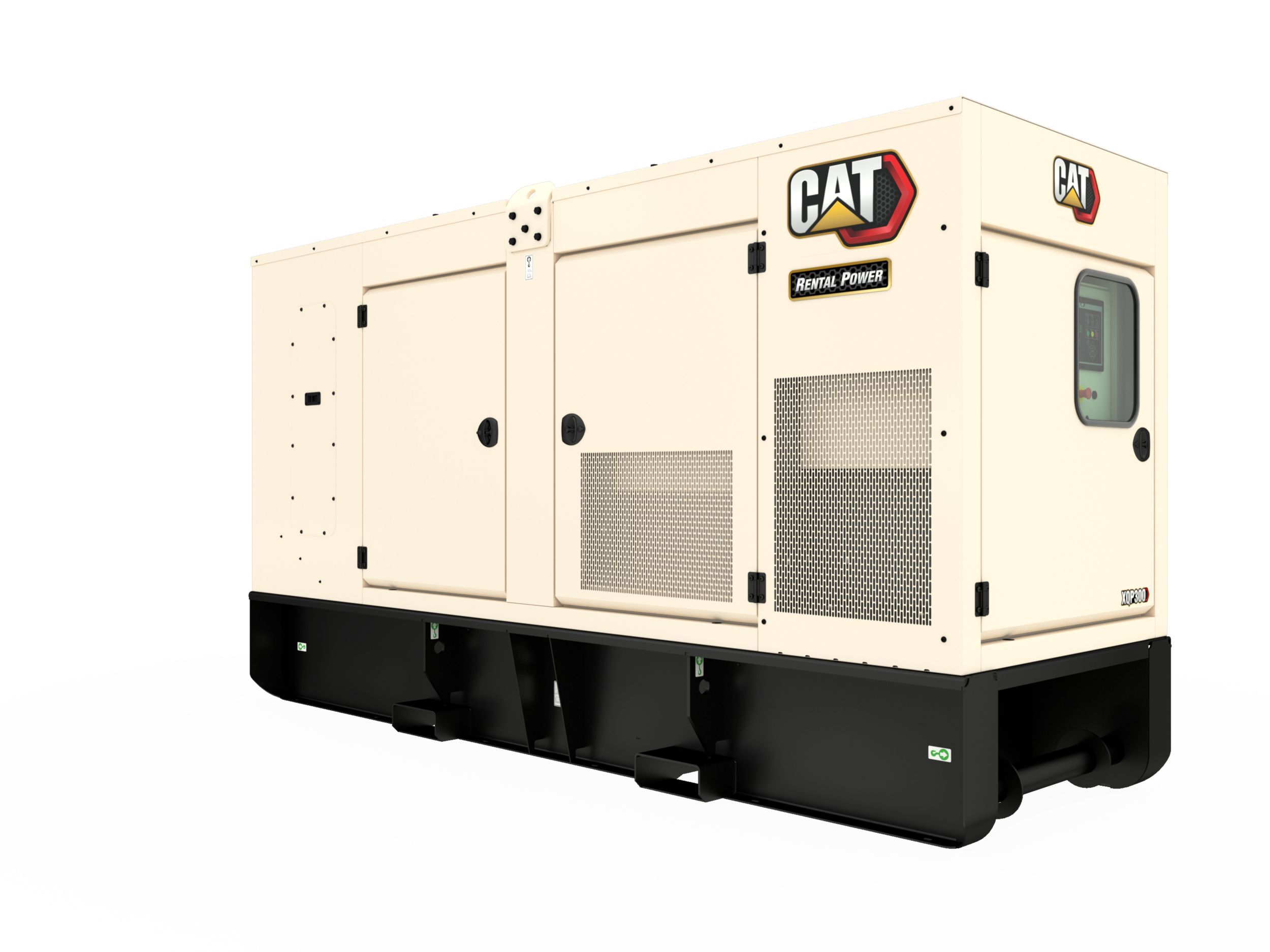

XQP300
XQP300
This fuel-optimized rental power product is ideal for customers interested in consuming the least amount of fuel. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.
Rental ready
Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy
Best Fuel Efficiency.
Cat C9 Diesel Engine
Industry proven reliability.
Cat EMCP 4.2B Control Panel
Easy to use digital controls.
Cat LC5100 Generator
Integrated voltage regular for fast response in demanding applications.
Robust Galvanised Enclosure
Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.
Sound Isolated Operator Panel
Improved operator comfort.
Cat Connect
Remote monitoring for fleet management and asset tracking.
Factory Designed, Built and Tested
Single-source Supplier
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
500 hr Oil Change Intervals
Reducing operating costs and producing less waste.
Improved Transportability
Drag bars, Lifting frame, Fork lift pockets and 4 point lift.
Additional Options Available
Synchronising controls.
Extended Service interval kits.
Videos
Virtual Tours
Documents & Brochures
Standard Equipment
CAT C9 Diesel Engine
- Turbocharged
Generator
- LC5114N Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 24V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- Dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital EMCP4.2B set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
Additional information
| مجموعة المولد - التقدير الرئيسية | 300 كيلوفولت أمبير |
|---|---|
| مجموعة المولد - التردد | 50/60 هرتز |
| مجموعة المولد - الجهد | 127 – 480 فولت |
| محرك | Cat C9 |
| محرك - لاستهلاك | ديزل |
| الأبعاد - العرض | 1400 مم ( 55 بوصة ) |
| الأبعاد - الارتفاع | 2124 مم ( 84 بوصة ) |
| الأبعاد - الطول | 4065 مم ( 160 بوصة ) |
| الأبعاد - الوزن - مع زيت التشحيم وسائل التبريد | 3880 كجم ( 8553 رطل ) |
| أفضل كفاءة في استهلاك الوقود - 100% حمل بتردد 50 هرتز | 33.8 l/hr ( 8.9 gal/hr ) |
| أفضل كفاءة في استهلاك الوقود - 75% حمل بتردد 60 هرتز | 55.8 l/hr ( 14.7 gal/hr ) |
| أفضل كفاءة في استهلاك الوقود - 50% حمل بتردد 60 هرتز | 40.1 l/hr ( 10.6 gal/hr ) |
| Offering Type |
