3054C

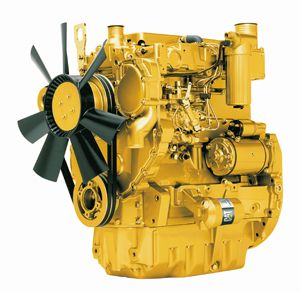

Cat®3054C Industrial Diesel Engine
The Cat® 3054C Industrial Diesel Engine is offered in ratings ranging from 52-97 bkW (69.7-130 bhp) @ 2000-2400 rpm. These ratings meet U.S. EPA Tier 2 equivalent and EU Stage II equivalent emission standards and are available for other regulated and non-regulated areas. Industries and applications powered by 3054C engines include: Agriculture, Aerial Lifts, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Harvesters, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers, Turf and Landscaping and Underground Mining Equipment.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Package Size
Ideal for equipment with narrow engine compartments. Multiple installation options minimize total package size.
Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
Air Inlet System
- Inlet manifold with choice of inlets.
Control System
- Alternator
- Starter motor
- Control Panel
- Glow plug starting aid
Cooling System
- Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
- 50:50 water glycol mix
Flywheels and Flywheel Housing
- SAE No. 3 flywheel housing
- Flywheel and starter rings
Fuel System
- Fuel filter positions
Lube System
- Lubricating oil filters and breathers
- Oil filter positions
- Lube oil sump
Power Take Off
- SAE B Power Take Off (PTO)
General
- Timing case and gear-driven auxiliaries
- Belt-driven auxiliaries
- Engine mountings
- Gauges
- Displays
- Power and torque curve tailoring
- Paint: Caterpillar yellow, with optional colors available at request
Additional Information
| تقدير القدرة - القدرة القصوى | 97 كيلووات ( 130 حصان ) |
|---|---|
| تقدير القدرة - أقصى عزم دوران | 500 Nm @ 1400 rpm ( 369 رطل-قدم عند 1400 دورة/دقيقة ) |
| تقدير القدرة - السرعة المقدرة | 2200-2400 دورة في الدقيقة |
| تقدير القدرة - القدرة الدنيا | 52 كيلووات ( 69.7 حصان ) |
| معايير الانبعاثات - الانبعاثات | معايير مكافئة لمعايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 2، ومعايير الاتحاد الأوروبي من المرحلة II |
| عام - تكوين المحرك | ديزل بدورة من 4 أشواط، ذو 4 أسطوانات في خط مستقيم |
| عام - التجويف | 105 مم ( 4.1 بوصة ) |
| عام - الشوط | 127 مم ( 5 بوصة ) |
| عام - الإزاحة | 4.4 l ( 269 بوصة³ ) |
| عام - نسبة الانضغاط | 16.2:1 |
| عام - السحب | طبيعي التنفس (NA)، مزوَّد بشاحن توربيني (T) أو مزوَّد بشاحن توربيني وبمبرد لاحق (TA) |
| عام - نظام الاحتراق | حقن مباشر |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | – |
| أبعاد المحرك - بالتقريب - الطول | 663 مم ( 26.1 بوصة ) |
| أبعاد المحرك - بالتقريب - العرض | 620 مم ( 24.4 بوصة ) |
| أبعاد المحرك - بالتقريب - الارتفاع | 810 مم ( 31.9 بوصة ) |
| أبعاد المحرك - بالتقريب - الوزن - الصافي الجاف - محرك التشغيل الأساسي من دون الملحقات الاختيارية | 306 كجم ( 674.6 رطل ) |
| Offering Type |
