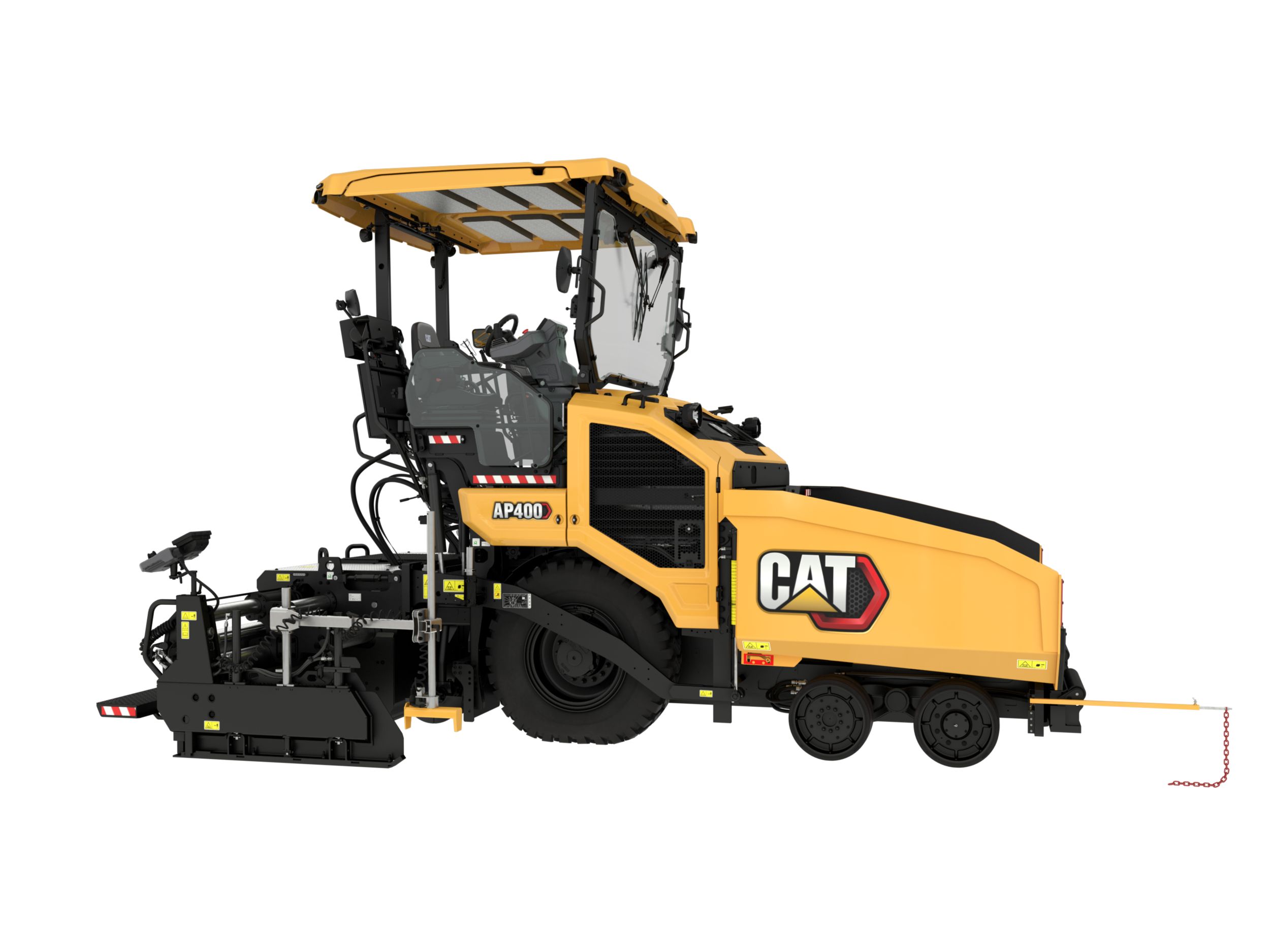

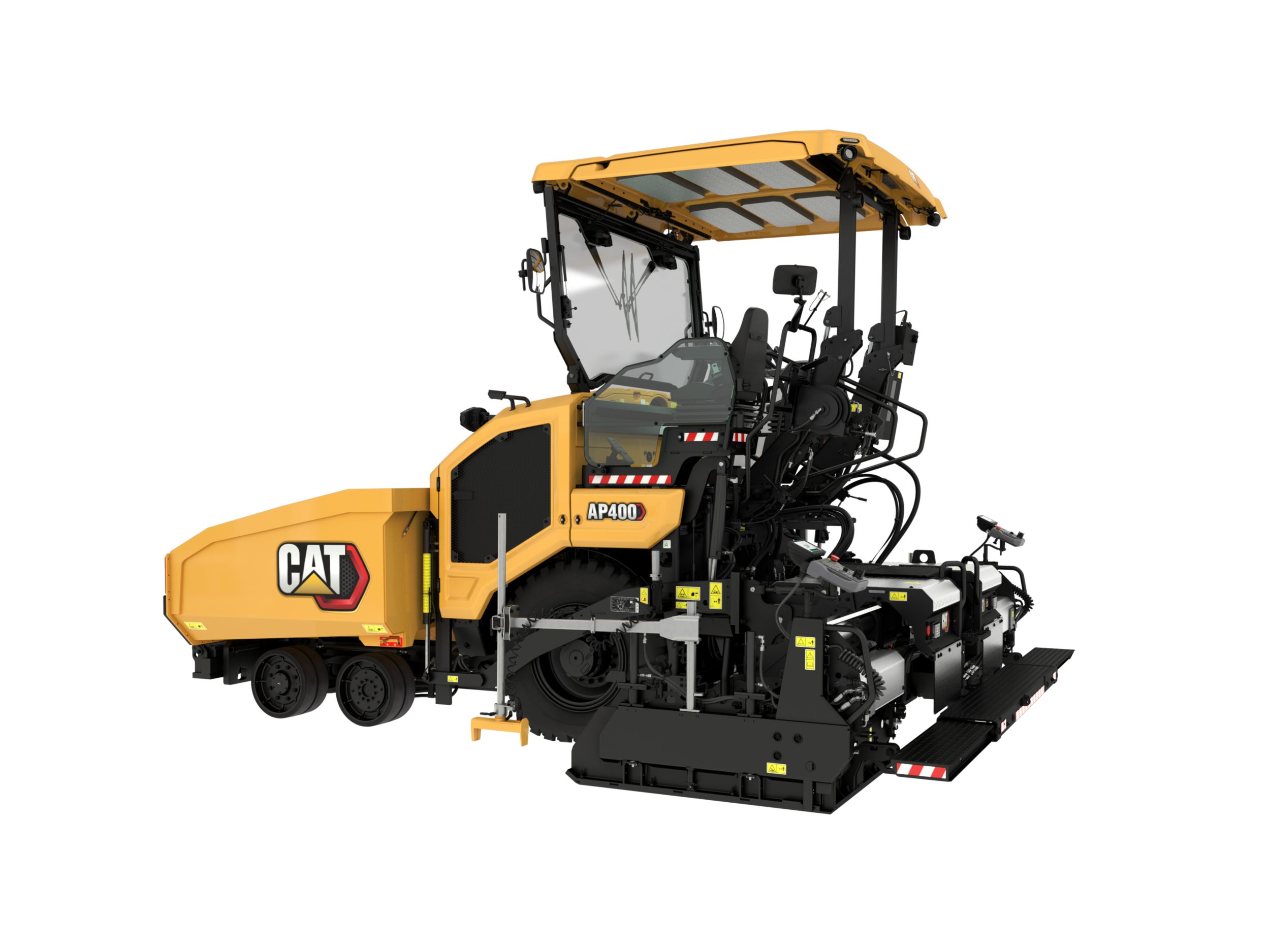

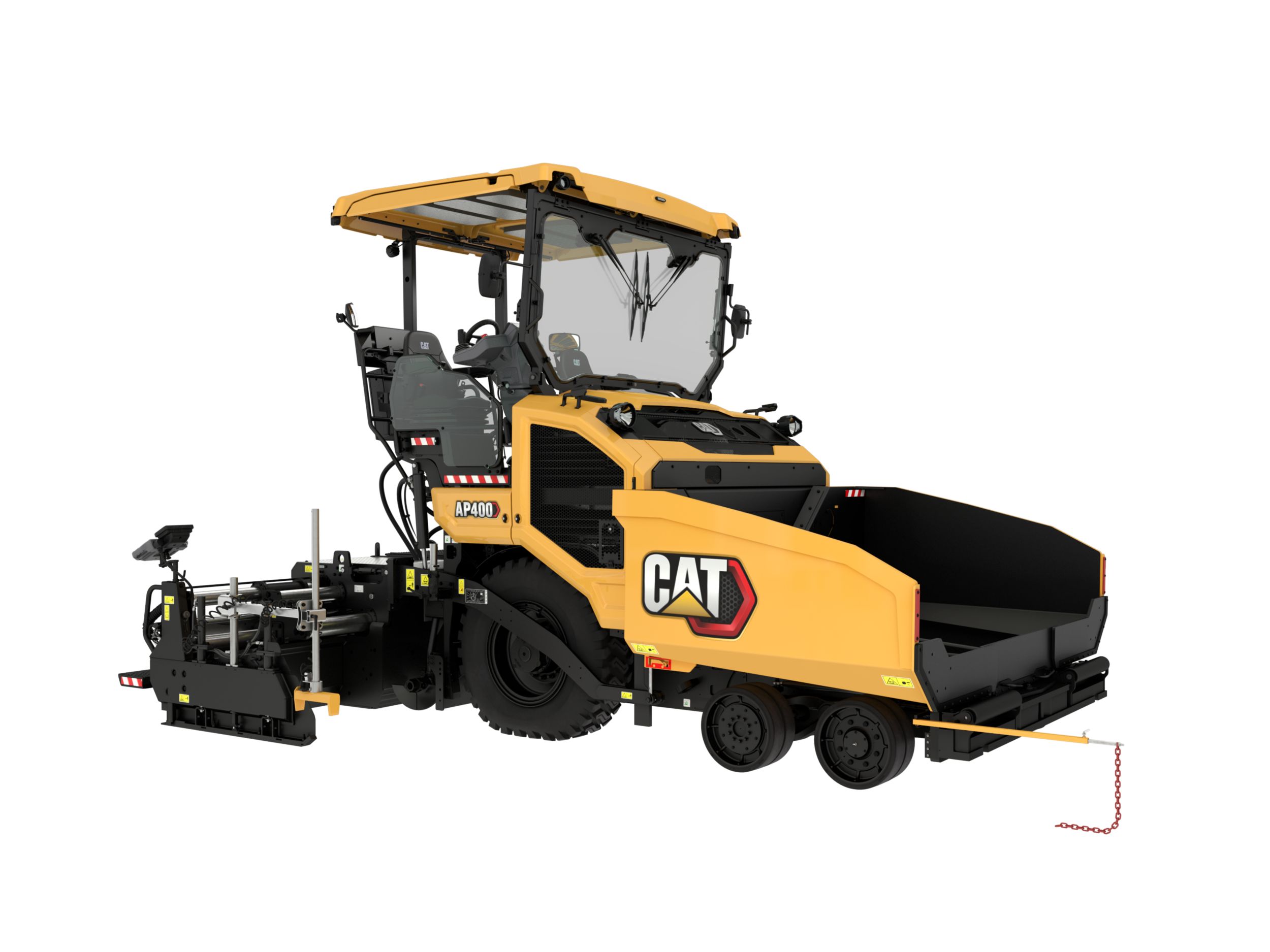

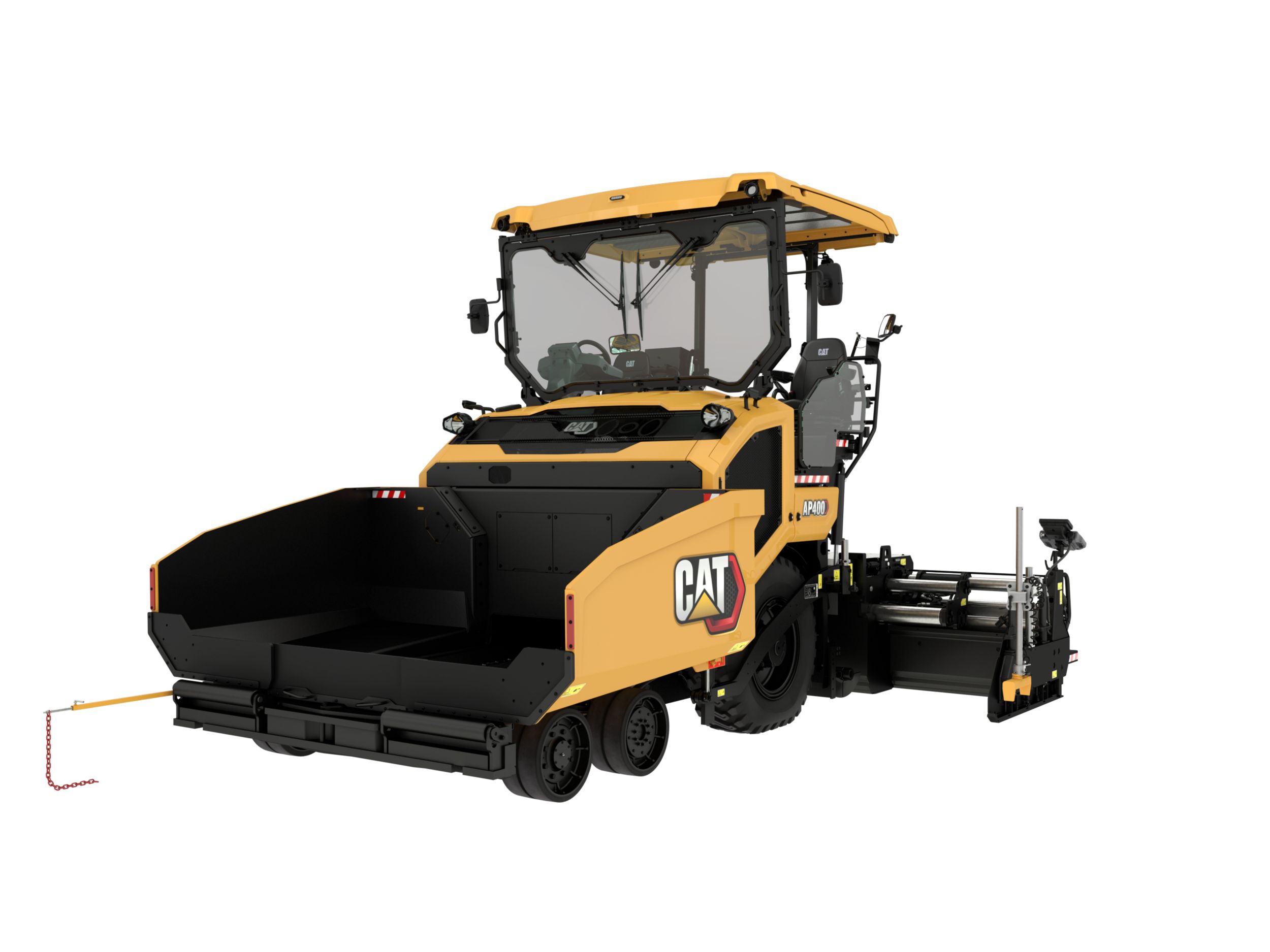

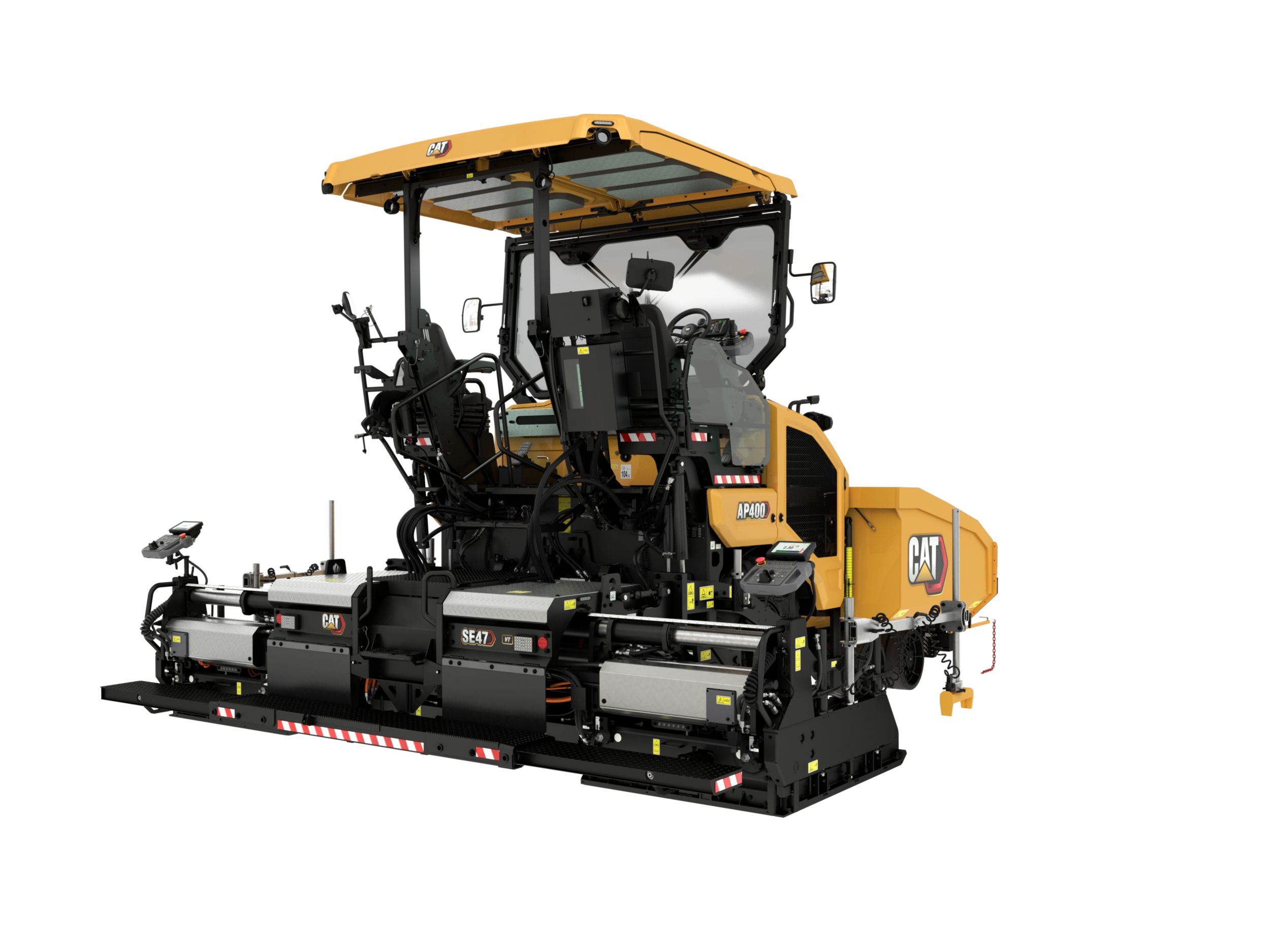

AP400
Compact Size, Big Opportunities
- The compact size and small footprint simplify maneuverability in tight spaces for efficient work in urban-type applictions
- Tight 90º turning capability enables the paver to rotate and cover tracks on a return paving pass
- Standard paving range utilizing the SE47 VT screed is 2.4 m - 4.7 m (7' 10" - 15' 4") with a maximum width of 6.0 m (19' 8")
- Paving depths up to 300 mm (12") supports aggregate paving applications
Transport Made Easy
- Machine weight of approximately 14.3 mt (31,539 lb) paver and screed combination enables easy transport on a variety of trailer types
- Length of less than 5.7 m (18' 7") and width of 2.55 m (8' 4") accommodates machine transport without special permits. When equipped with 225 mm (9') extensions, transport width is 3 m (10') and paving width extends to 5.1 m (16')
- The front-loading angle of 19º and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
- Raising or retracting the canopy is fast and easy with both electric or manual options available
- Front, middle, and rear tie-down locations make securing the paver efficient for quick travel to the next job site
Exceptional Mobility
- Wheel undercarriage provides exceptional mobility and fast travel speeds for unmatched maneuverability around the job site
- Excellent traction is delivered through the 15.5 R25 radial tires
- Front-wheel assist option provides power to the rear set of bogie wheels for excellent performance in tough conditions
- High, front ground clearance of 203 mm (8") helps avoid storm drains, curbs, and other obstacles
Smooth Material Flow
- Single amplitude tamper system with variable frequency screed plate vibration delivers excellent material flow and tight mat textures
- Low truck entry height and short front apron enhances material flow while simplifying clean-out
- Feeder system design with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
- Narrow auger chamber keeps material moving and helps eliminate stagnate patches
- Independent control of each material feed sensor, simply turn off the sensor for manual proportional feed control
More Comfort
- Optional ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Single sliding console enables operation from either side of the machine
- Dual independent seats swing out 40 degrees beyond the platform for good visibility to curbs and obstacles
- Optimized height and integrated exhaust provide unobstructed visibility around the machine
- Optional screed and paver mounted umbrellas offer protection from direct sun
- Heated seat option delivers comfort in cool weather conditions
- High visibility 76 mm (3") seat belt helps with crew safety compliance
Easy Viewing Displays
- High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
- New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
- Single-touch functions from the main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
- Cat® Grade Control or Basic Grade Control options available
- Operating displays can be tailored to specific language requirements with multiple options available
- Wash-down system includes level indication
Low Owning and Operating Costs
- Durable Cat C3.6 engine provides 90 kW (120 hp) of power with variations that meet U.S. EPA Tier 4 Final and EU Stage V emission standards. The Cat 3.6 engine also meets Brazil MAR-1 and UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
- Single source supplier of Cat engines and machine parts helps maximize uptime
- Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lowers sound levels for better job site communication
- Conveyor bed plates and chain guards are designed to minimize labor requirements and lower replacement costs
- Maintenance-free high torque motors for the auger and conveyor drive systems reduce service requirements
Product Link™ Elite
- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time in real time
- Diagnostic codes are made available through online web applications
- Remote flash for easy software updates
- Scheduled maintenance and Scheduled Oil Sampling notifications
- Remote disable deactivates the engine for enhanced security
Service and Repair Kits
- Paver and screed service and repair kits include all the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Virtual Tours
Documents & Brochures
Standard Equipment
Operating Environment
- Single sliding console
- Steering guide
Technology
- Product Link™ Elite 643 (cellular)
Powertrain
- Ballast - front weights
- Cat® C3.6, four-cylinder
- Cooling fan, variable speed
- Radial drive Tires
Electrical System
- 1400 CCA battery, maintenance-free
- 150-amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Auto-reset breaker for material sensors
- Cat® Electronic Technician (Cat ET)
Material Delivery
- Auger extensions, 0.15 m (6")
- Material feed sensors, contact
- Push-roller, adjustable
- Tamper Bar System
Service and Maintenance
- Hydraulic oil, Cat HYDO™ Advanced
- Remote access drains
- Remote flash
- Service repair kits
- Sampling ports for Scheduled Oil Sampling
- Sight Gauges, engine coolant, hydraulic oil
Safety
- Alarm, back-up
- Horn, warning (front & rear)
- Lights, LED Working
- Mirror package
Additional information
Offering Type | |
---|---|
Dimensions - Paving Range with SE47 VT | 2.4 m – 6.0 m (7' 10" – 19' 8") |
Engine Model (1) | Cat® C3.6 (U.S. Tier 4 Final, EU Stage V) |
Engine Power (1) | 90 kW ( 120 HP ) |
Engine Model (2) | Cat® C3.6 (UN ECE R96 Stage IIIA, equivalent to U.S. EPA Tier 3 and EU Stage IIIA) |
Engine Power (2) | 90 kW ( 120 HP ) |
Operating Specifications - Maximum Travel Speed | 16 km/h ( 10 mile/h ) |
Operating Specifications - Maximum Paving Speed - With Tamper Bar Screed | 25 m/min ( 82 ft/min ) |
Weights - Operating weight with SE47 VT | 14581 kg ( 32146 lb ) |
Operating Specifications - Maximum Throughput Capacity | 774 tonnes/hr ( 853 ton(US)/h ) |
Weights - Shipping Weight - Paver Only | 11256 kg ( 24,819 lb ) |
Dimensions - Truck Entry Height | 544 mm ( 21 in ) |
Dimensions - Operating Length | 5.9 m ( 19.3 ft ) |
Dimensions - Operating Width | 3.3 m ( 10.75 ft ) |
Dimensions - Overall Height | 3.9 m ( 12.75 ft ) |
Dimensions - Transport Length | 5.7 m ( 18.6 ft ) |
Dimensions - Transport Width | 2.55 m ( 8.3 ft ) |
Dimensions - Transport Height | 2.9 m ( 9.75 ft ) |
Service Refill Capacities - Fuel Tank | 200 l ( 53 gal (US) ) |
Service Refill Capacities - DEF Tank | 19 l ( 5 gal (US) ) |
Service Refill Capacities - Cooling System - Total | 24 l ( 6.3 gal (US) ) |
Service Refill Capacities - Hydraulic Oil Tank | 121 l ( 32 gal (US) ) |
Service Refill Capacities - Washdown Spray Tank | 32 l ( 8.5 gal (US) ) |
