AP500

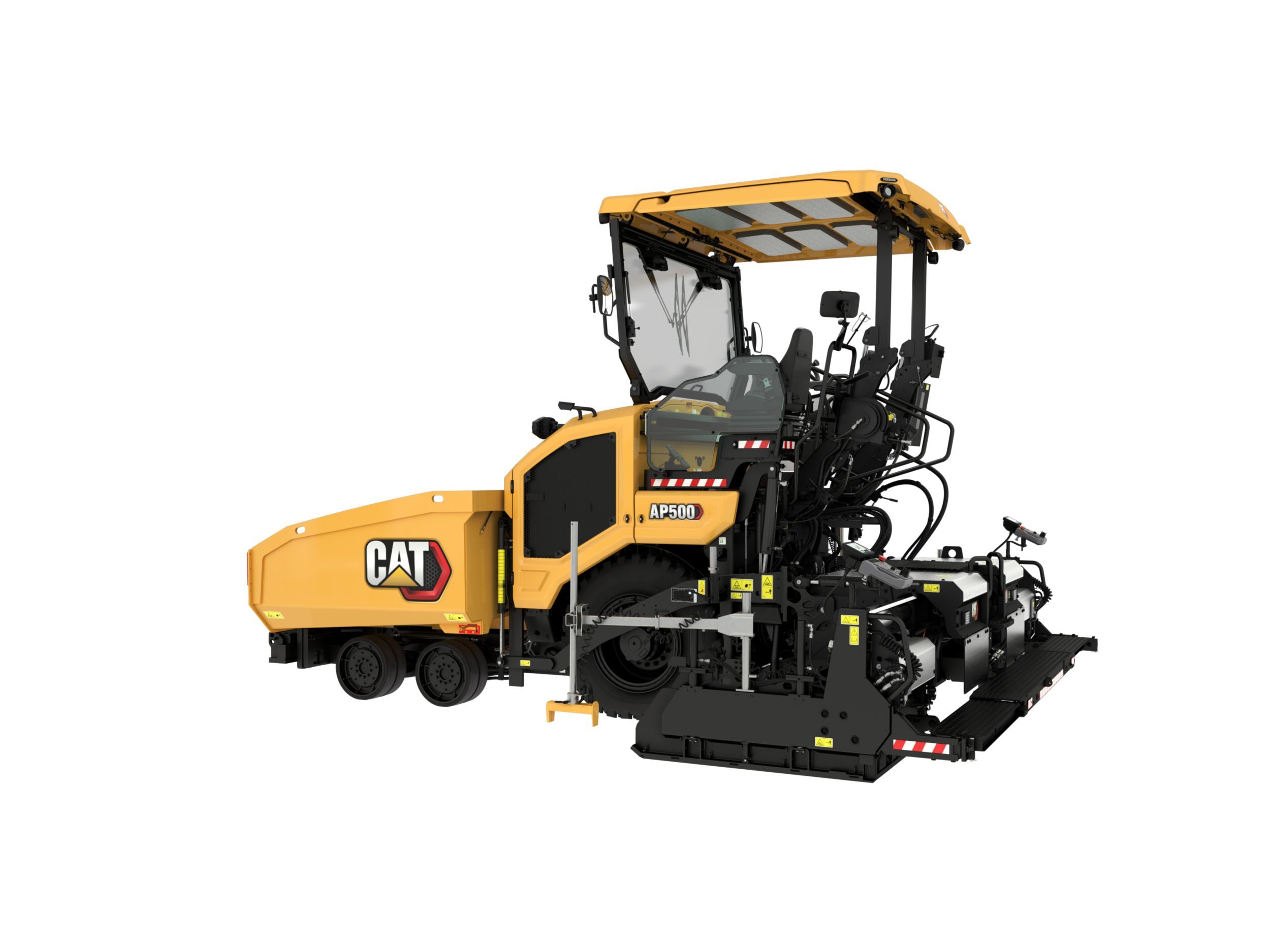

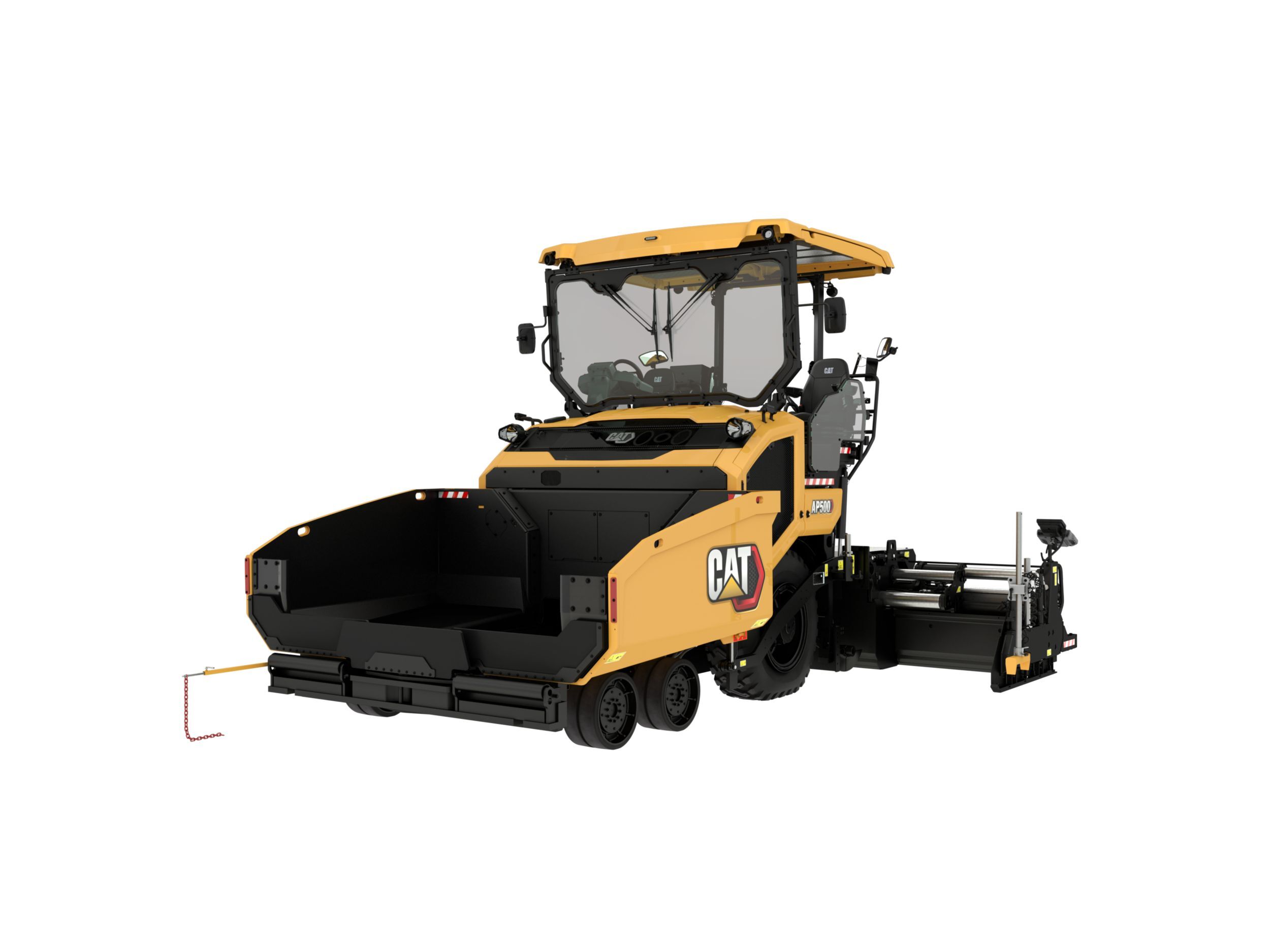

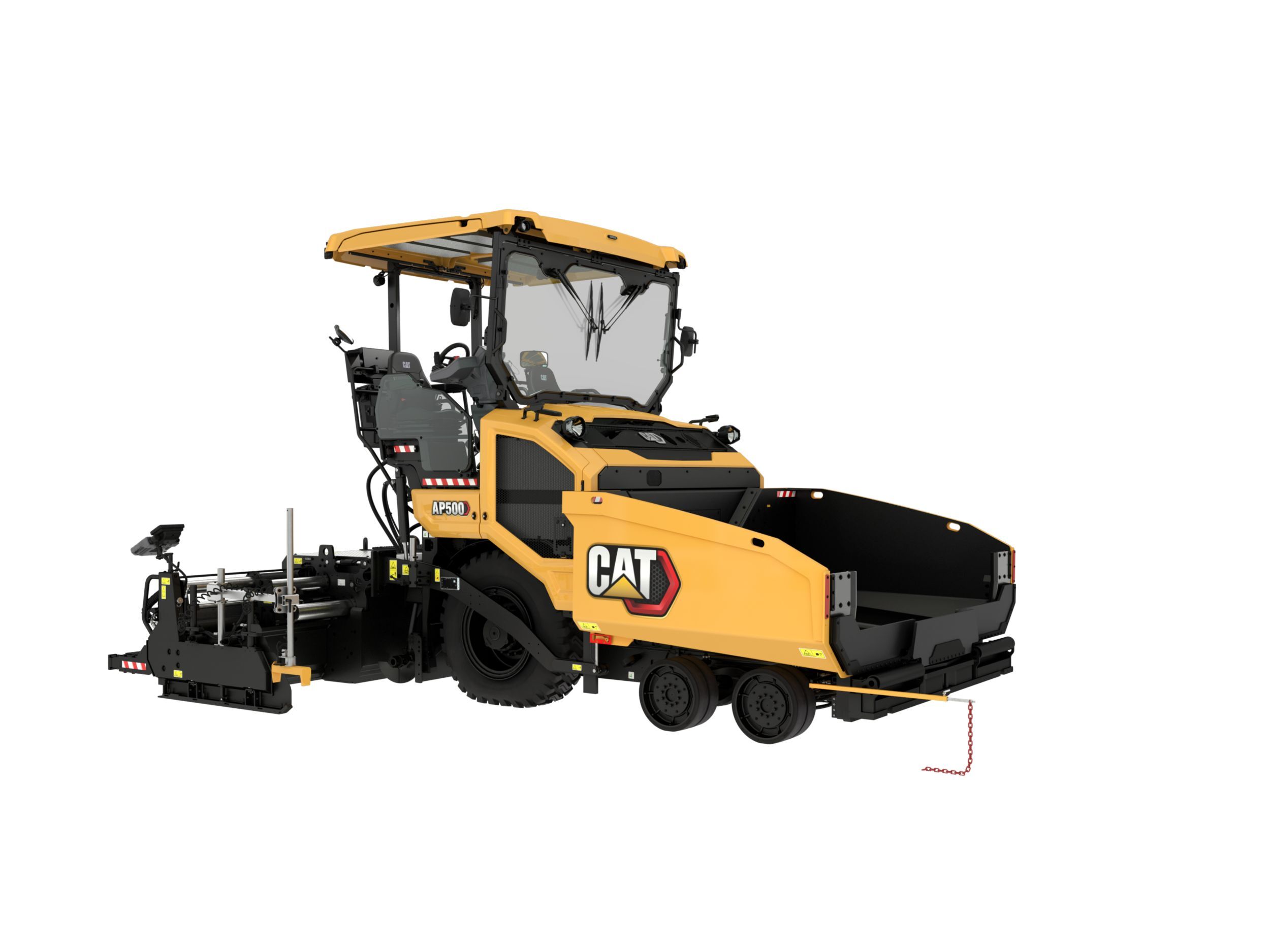

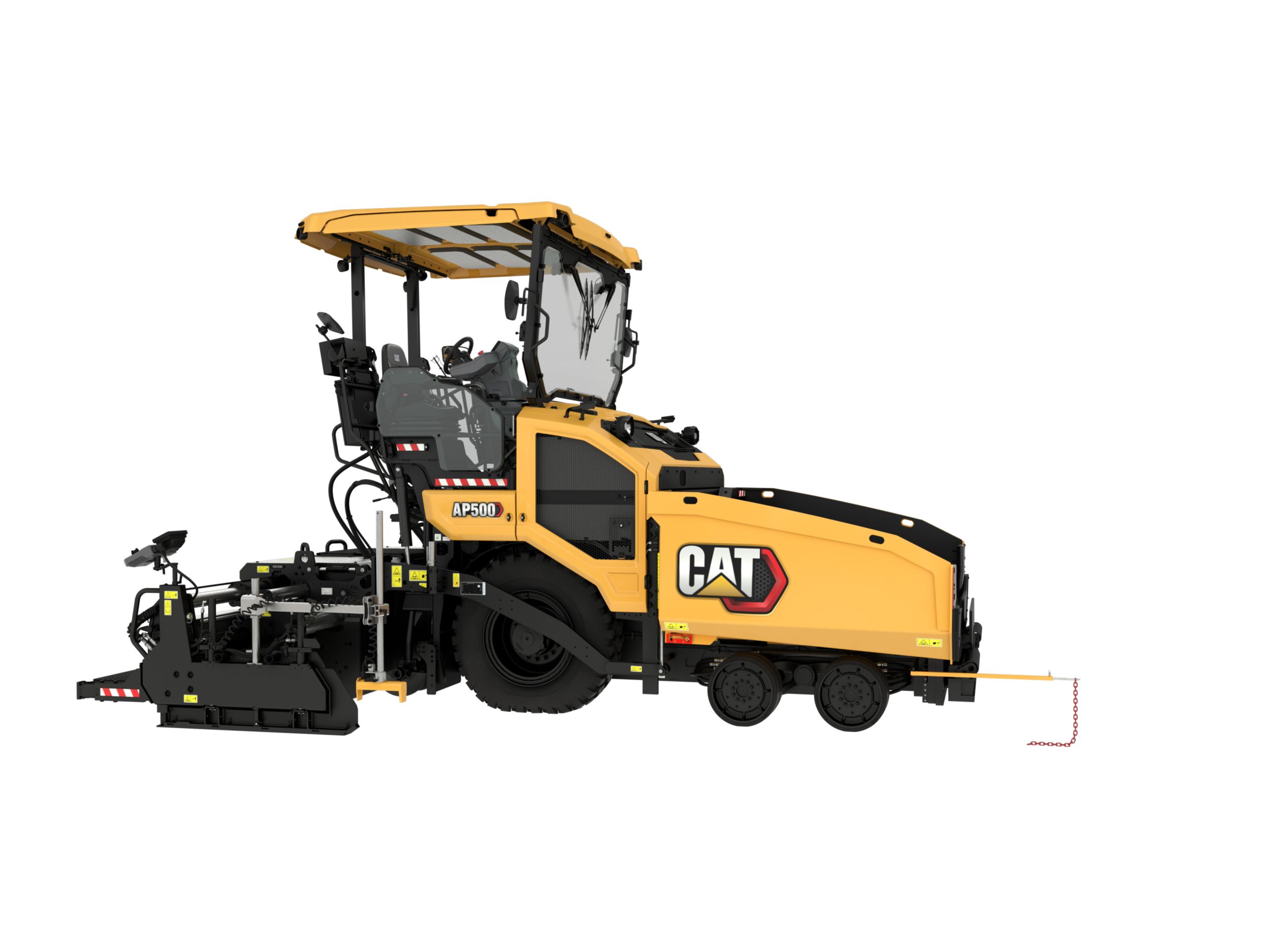

The Cat® AP500 Asphalt Paver is designed for urban streets, car parks, rural roads and many other small to intermediate-type applications. This paver provides high throughput capability as-well as application versatility, easy set-up, and a wide paving range.

More Performance and Flexibility

  • Powerful C4.4 engine supports increased feeder system capacity as well as hopper inserts for continuous paving
  • Tight 90º turning capability enables the paver to rotate and cover its tracks on a return paving pass
  • Standard paving range utilizing the SE47 VT screed is 2.4 m - 4.7 m (7' 10" - 15' 4") with a maximum width of 6 m (19' 8")

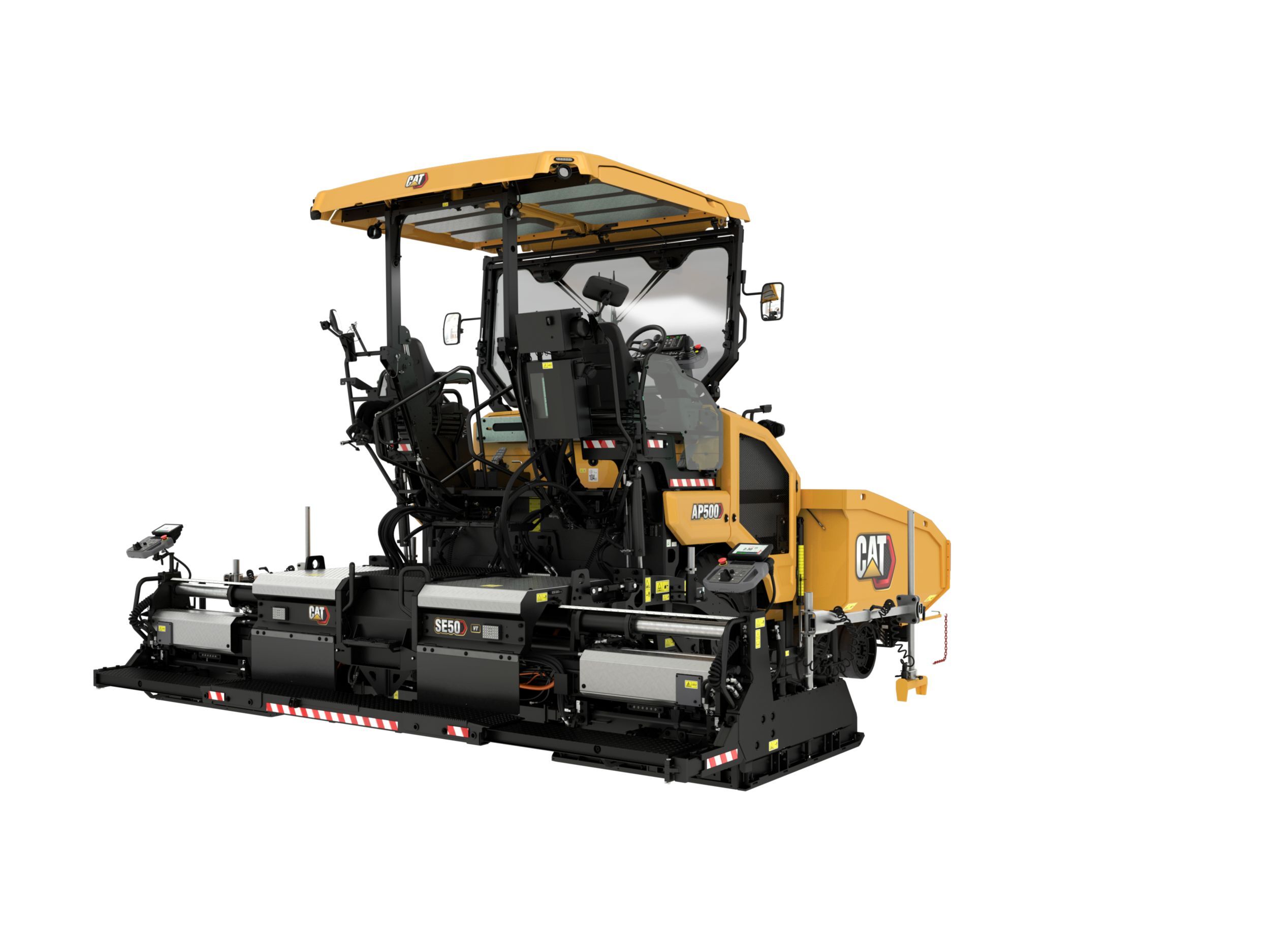

  • Standard paving range utilizing the the SE50 VT is 2.55 m - 5.0 m (8' - 15' 6") with a maximum width of 6.77 m (22' 3")
  • Paving depths up to 300 mm (12") supports aggregate paving applications

Transport Made Easy

  • Machine weight of less than 14.5 mt (32,000 lb) paver and screed combination enables easy transport on a variety of trailer types
  • Length of less than 5.7 m (18' 9") and width of 2.55 m (8' 4") when equipped with the SE47 VT accommodates machine transport without special permits
  • Length of less than 6.0 m (19' 6") and width of 2.55 m (8' 4") when equipped with the SE50 VT and folding end gates accommodates machine transport without special permits
  • The front-loading angle of 17º and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
  • Front, middle, and rear tie-down locations make securing the paver highly efficient for quick travel to the next job site

Exceptional Mobility

  • Wheel undercarriage provides exceptional mobility and fast travel speeds for unmatched maneuverability around the job site
  • Excellent traction is delivered through the 17.5 R25 radial drive tires
  • Front-wheel assist option provides power to the rear set of bogie wheels for excellent performance in tough conditions
  • All-wheel drive option utilizes a flow divider to deliver power to both sets of front bogie wheels for additional pulling power
  • High ground clearance of 197 mm (7.8") helps avoid storm drains, curbs, and other obstacles

Smooth Material Flow

  • Optimized hopper design with low truck entry height and short front apron enhances material flow while simplifying clean-out
  • Enhanced feeder system with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
  • Confined auger chamber keeps material moving and helps eliminate stagnate patches
  • Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for manual proportional feed control

More Comfort

  • Optional ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
  • The single sliding console provides operation from either side of the machine for optimal visibility to curbs, edges, and transverse joints
  • Dual independent seats swing out 40º beyond the platform for good visibility to curbs and obstacles
  • Optimized height and integrated exhaust provide unobstructed visibility around the machine
  • Optional screed and paver mounted umbrellas offer protection from direct sunlight
  • Heated seat option delivers comfort in cool weather
  • High visibility 76 mm (3") seat belt assists with crew safety compliance

Easy Viewing Displays

  • High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
  • High-visibility touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
  • Single-touch functions from main screen include screed heat, washdown system, vibratory activation, ventilation system, accessory panel
  • Cat® Grade Control or Basic Grade Control options available
  • Operating displays can be tailored to specific language requirements with multiple options available
  • Wash-down system includes level indication

Low Owning and Operating Costs

  • Durable Cat C4.4 engine provides 110 kW (148 hp) of power with variations that meet U.S. EPA Tier 4 Final and EU Stage V emission standards. The Cat C4.4 engine also meets Brazil MAR-1 and UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA and provides 106 kW (142 hp) of power.
  • Single source supplier of Cat engines and machine parts helps maximize uptime
  • Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
  • Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
  • Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems

Product Link™ Elite

  • Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
  • Easily track location, machine hours, fuel usage, and idle time in real time
  • Diagnostic codes are made available through online web applications
  • Remote flash for easy software updates
  • Scheduled maintenance and Scheduled Oil Sampling notifications
  • Remote disable deactivates the engine for enhanced security

Service and Repair Kits

  • Paver and screed service and repair kits include all the parts necessary to complete specific repairs
  • Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
  • Repair kits are identified by a single part number to make ordering easy
  • Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

Standard Equipment

Operating Environment
  • Single sliding console
  • Steering guide
Technology
  • Product Link™ Elite 643 (cellular)
Powertrain
  • Cat® C4.4, four-cylinder
  • Cooling fan, variable speed
  • Radial drive tires
Electrical System
  • 1400 CCA battery, maintenance-free
  • 150-amp alternator
  • 12-volt charging system
  • Automotive-type fuse system
  • Auto-reset breaker for material sensors
  • Cat® Electronic Technician (Cat ET)
Material Delivery
  • Auger extensions, 0.15 m (6")
  • Material feed sensors, contact
  • Push-roller, adjustable
Service and Maintenance
  • Hydraulic oil, Cat HYDO™ Advanced
  • Remote access drains
  • Remote flash
  • Service repair kits
  • Sampling ports for Scheduled Oil Sampling
  • Sight Gauges, engine coolant, hydraulic oil
Safety
  • Alarm, back-up
  • Horn, warning (front & rear)
  • Lights, LED Working
  • Mirror package

Additional information

Offering Type

Dimensions - Paving Range with SE47 VT

2.4 m – 6.0 m (7' 10" – 19' 8")

Engine Model (1)

Cat C4.4 (U.S. Tier 4 Final, EU Stage V)

Engine Power (1)

110 kW ( 148 HP )

Engine Model (2)

Cat C4.4 (UN ECE R96 Stage IIIA, equivalent to U.S. EPA Tier 3 and EU Stage IIIA)

Engine Power (2)

106 kW ( 142 HP )

Operating Specifications - Maximum Travel Speed

16 km/h ( 10 mile/h )

Operating Specifications - Maximum Paving Speed - With Tamper Bar Screed

25 m/min ( 82 ft/min )

Weights - Operating weight with SE47 VT

15351 kg ( 33843 lb )

Dimensions - Paving Range with SE50 VT

2.55 m – 6.77 m (8' 4" – 22' 3")

Operating Specifications - Maximum Throughput Capacity

1000 tonnes/hr ( 1100 ton(US)/h )

Weights - Operating weight with SE50 VT

15430 kg ( 34017 lb )

Weights - Shipping Weight - Paver Only

12026 kg ( 26,513 lb )

Dimensions - Truck Entry Height

537 mm ( 21 in )

Dimensions - Operating Length

5.9 m ( 19.5 ft )

Dimensions - Operating Width

3.3 m ( 10.75 ft )

Dimensions - Overall Height

3.9 m ( 12.75 ft )

Dimensions - Transport Length

5.7 m ( 18.75 ft )

Dimensions - Transport Width

2.5 m ( 8.3 ft )

Dimensions - Transport Height

2.9 m ( 9.9 ft )

Service Refill Capacities - Fuel Tank

200 l ( 53 gal (US) )

Service Refill Capacities - DEF Tank

19 l ( 5 gal (US) )

Service Refill Capacities - Cooling System - Total

24 l ( 6.3 gal (US) )

Service Refill Capacities - Hydraulic Oil Tank

121 l ( 32 gal (US) )

Service Refill Capacities - Washdown Spray Tank

32 l ( 8.5 gal (US) )
