Cat C2.2 Marine Generator Set

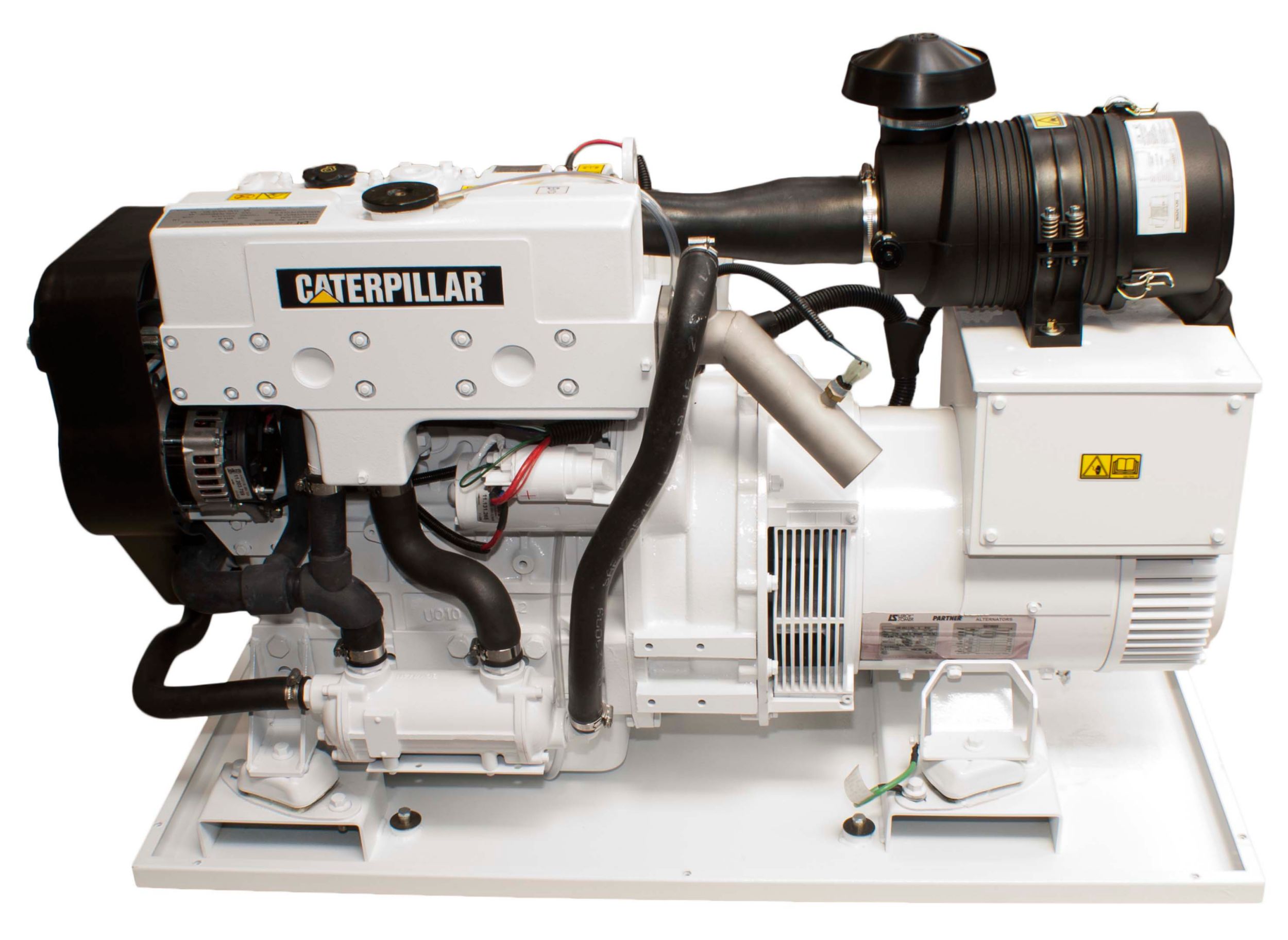

Cat® C2.2 Diesel Marine Generator Set

Key Features & Benefits

  • This compact unit provides required power on demand, operating very efficiently with optimum performance.
  • The 4 cylinder engine operates with little vibration and low sound levels.
  • Available as an open set or with a sound enclosure, this package is ideal for power requirements in any application.
  • Low operating and maintenance costs with excellent fuel economy.
  • Single side servicing with extended service intervals makes maintenance easy.

Documents & Brochures

Standard Equipment

Standard Equipment
  • Single element air cleaner
  • Water-cooled exhaust manifold
  • Single or Three phase brushless generator
  • 12 or 24 volt electric starting motor
  • 12 volt 55 amp alternator
  • Single sided service points
  • Anti-vibration mounts.
  • Electronic automatic safety shutdowns

Additional information

Offering Type

Generator Set Specifications - Maximum Rating

25 ekW (25 kVA)

Engine Specifications - Displacement

2.2 l ( 135 in³ )

Engine Specifications - Aspiration

Naturally Aspirated / Turbocharged

Engine Specifications - Governor Type

Electrical Ischronous

Engine Specifications - Bore

84 mm ( 3.31 in )

Engine Specifications - Stroke

90 mm ( 3.5 in )

Generator Set Specifications - Minimum Rating

15 ekW (15 kVA)

Engine Specifications - Rated Engine Speed

1500 / 1800 rpm

Engine Specifications - Emissions

U.S. EPA Tier 3

Engine Specifications - Configuration

Inline 4, 4-Stroke Cycle diesel

Engine Specifications - Refill Capacity

Lube Oil System w/oil filter change: 10.6 L (2.8 gal)

Engine Specifications - Oil Change Interval

500 hrs

Engine Specifications - Rotation from Flywheel End

Counterclockwise

Engine Specifications - Cooling

Hex or Single Circuit Keel

Generator Set Dimensions - Length

47.9 in / 1,219 mm (open) 50.7 in / 1,290 mm (enclosed)

Generator Set Dimensions - Width

22.3 in / 567 mm (open) 24.7 in / 628 mm (enclosed)

Generator Set Dimensions - Height

32.8 in / 835 mm (open) 31.0 in / 775 mm (enclosed)

Generator Set Dimensions - Engine Dry Weight

857-1,027 lb / 386-466 kg
