C32

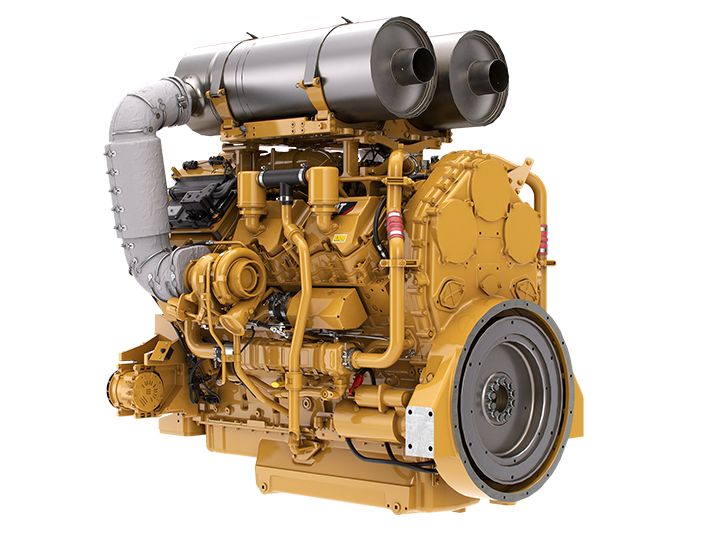

Cat® C32 Diesel Engine
The Cat® C32 Industrial Diesel Engine is offered in ratings ranging from 746-895 bkW (1000-1200 bhp) @ 1800 rpm. These ratings meet U.S. EPA Tier 4 Final emission standards.
Installation
When it comes to making the engine installation process smoother, look to the Cat C32. Using innovative technology solutions, the C32 was created to eliminate the need for thermal management and DEF, reducing the size of the overall engine package. And thanks to flexible aftertreatment mounting options, installing such a large engine just got a lot less complicated.
Advanced Features
The key to success for any machine is avoiding downtime as much as possible. Thanks to the DEF-free, the dual-can DOC Cat C32 with transparent regeneration, operators can stay focused on being productive for the long haul.
Ideal Applications
Industrial and construction applications such as: Dredges • Chippers • Grinders • Emergency water pumps • Rock drills
Total Cost of Ownership
Optimized to meet some of the most demanding operating cycles of just about any machine, the DEF-free Cat C32 can help owners and operators save on parts costs while also remaining maintenance-free for the engine's lifetime.
Cat Dealer Product Support
Bigger is better and that’s because the Cat C32 comes standard with a world-class global dealer network support and simplified service routines. Not to mention an included warranty. See your Cat dealer for details.
Safety
Built to meet Caterpillar's strict safety standards and customers' most demanding work sites throughout the world, the Cat C32 is tried and tested to be safe and secure no matter where the job site is.
Virtual Tours
Standard Equipment
Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
Control System
- Electronic control system
- Over-foam wiring harness
- Automatic altitude compensation
- Power compensated for fuel temperature
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels and Flywheel Housing
- Choice of SAE No. 0 or SAE No. 1 flywheel housing
Fuel System
- MEUI injection
- Fuel filter, secondary (2 micron)
- Electronic fuel priming
Lube System
- Open crankcase ventilation system
- Oil cooler
- Oil filler
- Lube oil filter
- Rear sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Paint: Caterpillar yellow, with optional colors available at request
Additional information
| Offering Type | |
|---|---|
| Power Rating - Maximum Power | 895 kW ( 1200 HP ) |
| Power Rating - Maximum Torque | 5499 Nm @ 1200 rpm ( 4056 lb-ft @ 1200 rpm ) |
| Power Rating - Rated Speed | 1800 rpm |
| Power Rating - Minimum Power | 746 kW ( 1000 HP ) |
| Emission Standards - Emissions | U.S. EPA Tier 4 Final |
| General - Engine Configuration | V-12 |
| General - Bore | 145 mm ( 5.7 in ) |
| General - Stroke | 162 mm ( 6.4 in ) |
| General - Displacement | 32.1 l ( 1958.9 in³ ) |
| General - Compression Ratio | 15.0:1 |
| General - Aspiration | Twin Turbocharged Aftercooled (TTA) |
| General - Combustion System | Direct Injection |
| General - Rotation from Flywheel End | Counterclockwise |
| General - Aftertreatment | DOC |
| Engine Dimensions - Approximate - Length | 1874 mm ( 73.8 in ) |
| Engine Dimensions - Approximate - Width | 1600 mm ( 63 in ) |
| Engine Dimensions - Approximate - Height | 1370 mm ( 53.9 in ) |
| Engine Dimensions - Approximate - Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 3004 kg ( 6625 lb ) |
