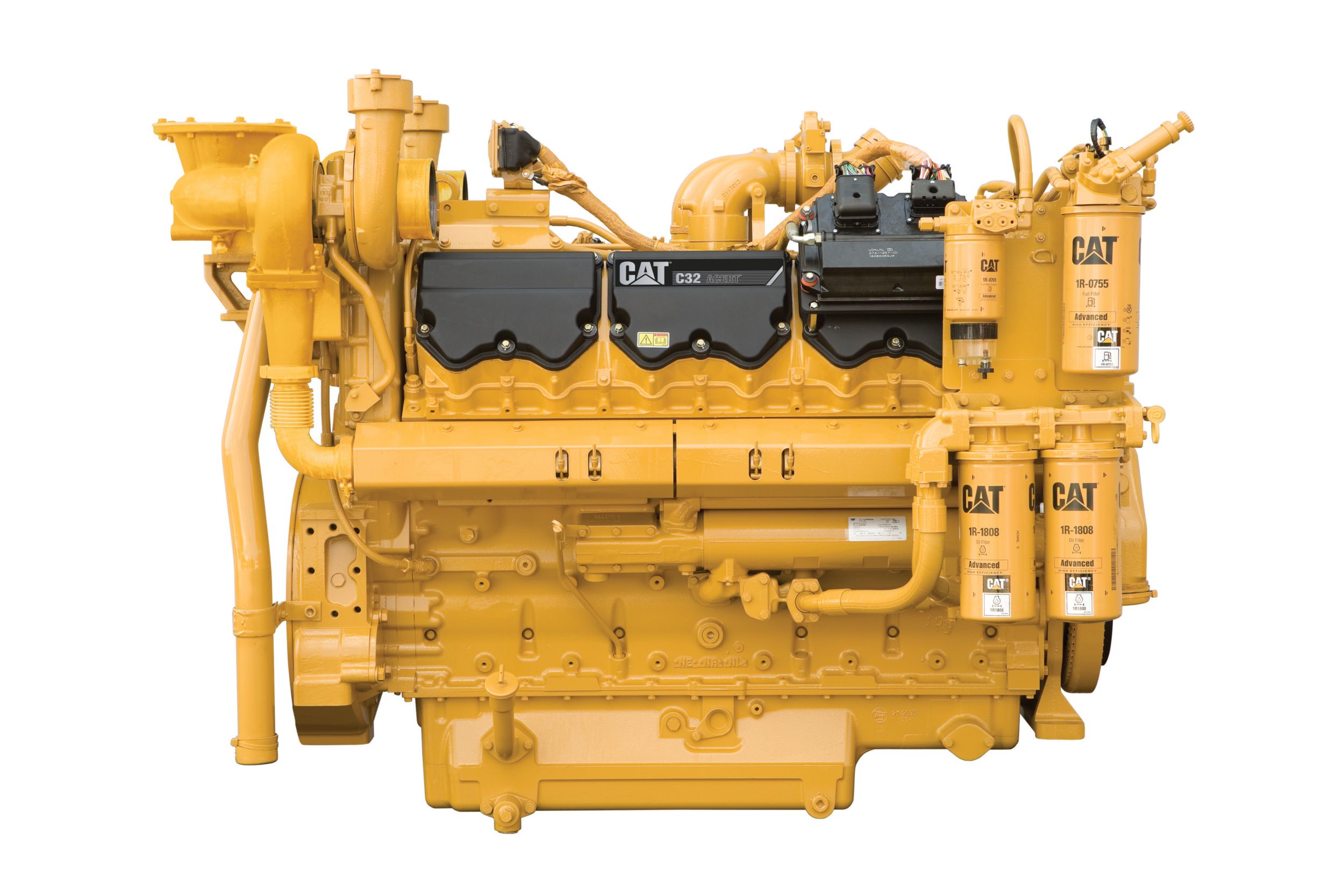

C32 ACERT Land Mechanical Drilling Engine

Cat C32 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C32 ACERT engines to deliver excellent performance with low operating costs and emissions.This is an ideal engine for land mechanical drilling applications such as mud pump drives.Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat C32 ACERT Diesel Engine. Ratings: 597-1119 bkW (800-1500 bhp) @ 1800-2100 rpm meet U.S. EPA Tier 2 equivalent emission standards.

Engine Design

- Proven reliability and durability- Robust diesel strength design prolongs life and lowersowning and operating costs- Broad operating speed range- High power density — lightweight engine for weightsensitive applications- PTO drive options provide flexible access to auxiliarypower for pumps and other needs

Advanced Digital Engine Management

ADEM A4 engine management system integrates speedcontrol, air/fuel ratio control and ignition/detonationcontrols into a complete engine management systemwith integrated digital ignition, engine protection andmonitoring.

Transmissions

Caterpillar has a full line of engine-transmission packagesthat can be fully integrated with your axle, hydraulics, andoperator interface. Cat®transmissions deliver continuousoperation under full load, smooth shifting at any speed,and maximum up time, with unmatched durability andeasy maintenance

Custom Packaging

For any petroleum application, trust Caterpillar to meetyour exact needs with a factory custom package. Catengines, generators, enclosures, controls, radiators,transmissions — anything your project requires — can becustom designed and matched to create a one-of-a kindsolution. Custom packages are globally supported andare covered by a one-year warranty after startup.

Full Range of Attachments

Large variety of factory-installed engine attachmentsreduces packaging time

Testing

Every engine is full-load tested to ensure proper engineperformance.

Product Support Offered Through Global Cat Dealer

More than 2,200 dealer outletsCat factory-trained dealer technicians service everyaspect of your petroleum engineCat parts and labor warrantyPreventive maintenance agreements available for repairbefore-failure optionsS•O•SSMprogram matches your oil and coolant samplesagainst Caterpillar set standards to determine:- Internal engine component condition- Presence of unwanted fluids- Presence of combustion by-products- Site-specific oil change interval

Over 80 Years of Engine Manufacturing Experience

Ownership of these manufacturing processes enablesCaterpillar to produce high quality, dependable products.- Cast engine blocks, heads, cylinder liners, and flywheelhousings- Machine critical components- Assemble complete engine

Web Site

For all your petroleum power requirements, visit www.catoilandgasinfo.com

Standard Equipment

Air Inlet System
  • Quad turbocharger — 3 cylinder exhaust to each turbo
  • Connections configured for ATAAC (Air-to-Air-Aftercooled)or remote heat exchanger
Control System
  • ADEM A4 electronic control module
  • Electronic governing, PTO speed control
  • Customer programmable ratings
  • Cold mode start strategy
  • Automatic altitude compensation
  • Automatic fuel temperature compensation
  • Programmable low and high idle, and top engine speedlimit
  • Electronic diagnostics and fault logging
  • Engine monitoring system
  • SAE J1939 broadcast (diagnostic and engine status)
Cooling System
  • Gear-driven centrifugal jacket water pump — RH
  • Integrated thermostat and housing
  • Engine oil cooler
  • Optional installed transmission oil cooler
Exhaust System
  • Exhaust manifold — dry
  • Two vertical exhaust outlets (front and rear)
Fuel System
  • MEUI
  • Fuel priming pump
  • Fuel transfer pump
  • Primary and secondary fuel filter — RH configured forremote mounting (installed RH on shipping plate)
Flywheels and Flywheel Housing
  • SAE No. 0 or SAE No. 1 flywheel iron housing
  • SAE No. 0 or SAE No. 1 flywheel
  • Optional transmission adapter
Lube System
  • Crankcase breather
  • Oil filter — RH standard, optional LH or remote mountservice
  • Oil level gauge — RH standard, optional LH or dualservice
  • Oil filler — RH standard, optional LH or dual service
  • Shallow oil pan, rear sump
Mounting System
  • Trunnion front support
  • Vertical and horizontal pads on rear flywheel housing
Protection System
  • 24V electronic
  • Engine overspeed with optional air shut-offs withindicators
  • Low engine oil pressure
  • Fuel filter restriction
  • Fuel temperature
  • High engine coolant temperature
  • Low engine coolant temperature
General
  • Vibration damper and optional guard
  • Lifting eyes
  • Optional customer wiring connector
  • Service tool connector
  • Paint — Cat yellow

Additional information

Offering Type

Engine Specifications - Maximum Rating

1119.0 bkW ( 1500.0 BHP )

Engine Specifications - Emissions

U.S. EPA Non-road Tier 2

Engine Specifications - Displacement

32.0 l ( 1953.0 in³ )

Engine Specifications - Minimum Rating

597.0 bkW ( 800.0 BHP )

Engine Specifications - Bore

145.0 mm ( 5.7 in )

Engine Specifications - Stroke

162.0 mm ( 6.4 in )

Engine Specifications - Rated Speed

1800.0 r/min ( 2100.0 r/min )

Engine Specifications - Aspiration

Turbocharged-Aftercooled

Engine Specifications - Governor and Protection

ADEM A3

Engine Specifications - Engine Weight - Net Dry

2286.0 kg ( 5040.0 lb )

Engine Specifications - Rotation from Flywheel End

Counterclockwise

Engine Specifications - Oil Change Interval

250

Engine Specifications - Flywheel and Flywheel Housing

SAE No. 0 or SAE No. 1

Engine Specifications - Flywheel Teeth

136 (SAE 0), 113 (SAE 1)

Capacity for Liquids - Minimum Cooling System - Engine Only

55.0 l ( 14.5 gal (US) )

Dimensions - Length

1918.0 mm ( 75.5 in )

Dimensions - Width

1473.0 mm ( 85.0 in )

Dimensions - Height

1321.0 mm ( 52.0 in )
