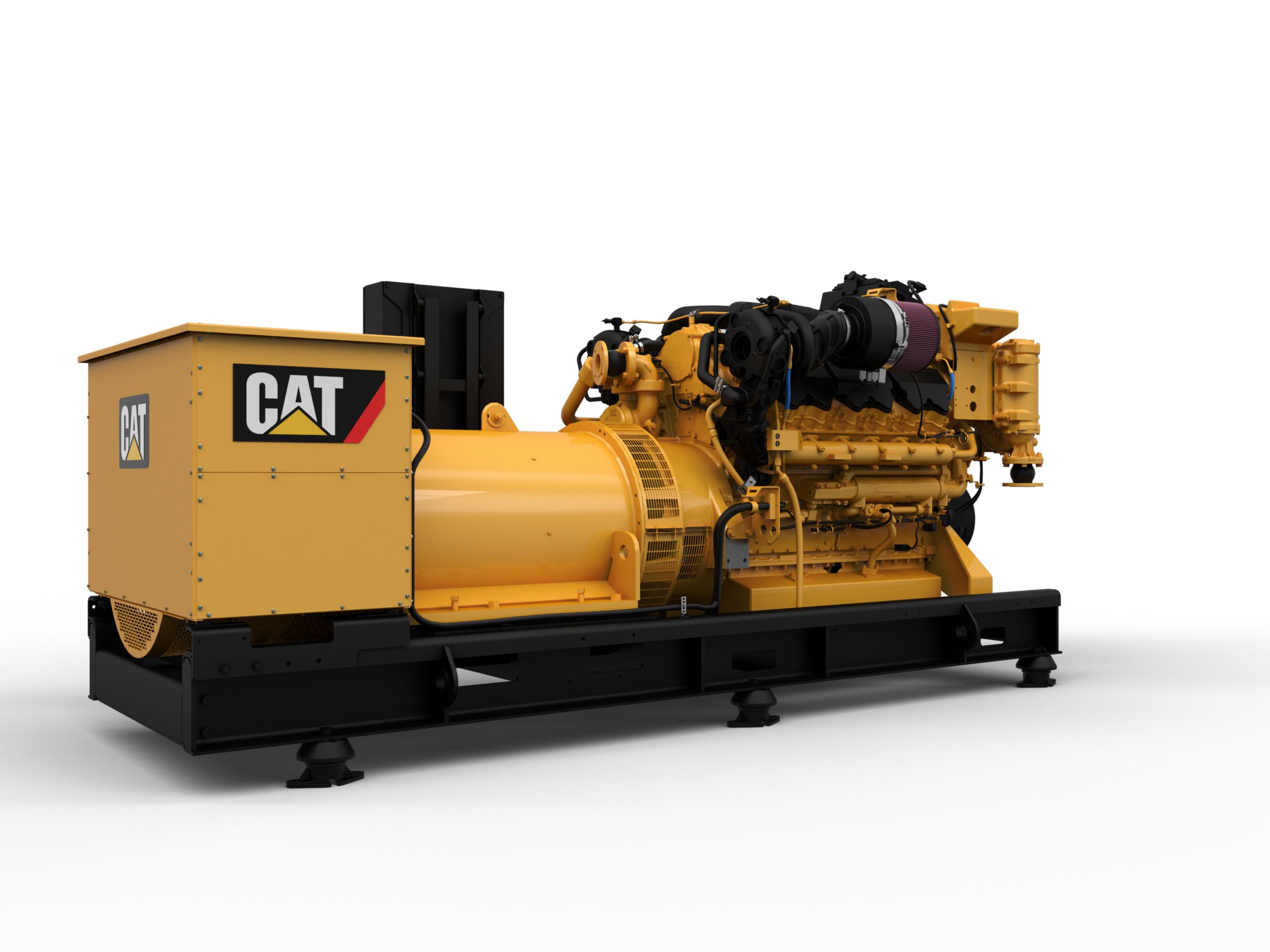

Cat C32 Generator Set (US EPA Tier 4 / IMO III)

Cat C32 Generator Set (US EPA Tier 4 / IMO III)

Emissions

Utilizes SCR Technology to enable U.S. EPA Tier 4 Final and IMO III emission regulations compliance while lowering operational costs

Control Strategy

Utilizes closed loop air assisted DEF dosing control strategy that delivers: Highest efficiency mixing and control to lower operational costs ; Extends emissions useful life ; Ensures compliance ; Flexible to urea quality

Fuel System

Enhanced control of fuel injection optimized through crank timing and the A5 ECM technology

Power Reserve

Industry leading power reserve

Certifications

Wide range of available Marine Society certifications

Warranty

Industry-leading warranty coverage for factory packaged components

Service

Global dealer network for service in any location

Standard Equipment

AIR INLET SYSTEM
  • Separate circuit aftercooled (SCAC)
  • Closed crankcase fumes disposal
CONTROL SYSTEM
  • 24V control system
COOLING SYSTEM
  • Heat exchanger or Keel Cooling
  • Watercooled exhaust manifold and turbocharger
  • Hard seawater lines – no flexible hoses
  • Flanges for cooling connections, ANSI or DIN
FUEL SYSTEM
  • Duplex fuel filters with hybrid fuel lines
  • Primary fuel filter with water separator installed on base frame
GENERATORS AND GENERATOR ATTACHMENTS
  • IP23, air cooled, form wound SR5 generator offered in 440, 480 and 690V
LUBE SYSTEM
  • Oil fill, simplex filter and dipstick
MOUNTING SYSTEM
  • Helical spring/rubber isolated mounting for vibration and structure borne noise reduction
GENERAL
  • Right or left hand service sides
  • Customer wiring and service tool connector

Additional information

Offering Type

Generator Set Specifications - Minimum Rating

282 ekW

Generator Set Specifications - Maximum Rating

940 ekW

Generator Set Specifications - Frequency

60hz

Engine Specifications - Rated Engine Speed

1800 rpm

Engine Specifications - Configuration

Vee-12, 4-stroke-Cycle-Diesel

Engine Specifications - Aspiration

Turbocharged-aftercooled aspiration

Engine Specifications - Bore

145.0 mm ( 5.71 in )

Engine Specifications - Stroke

162.0 mm ( 6.38 in )

Engine Specifications - Displacement

32.1 l ( 1959.0 in³ )

Engine Specifications - Governor

Electronic (A5 ECM)

Engine Specifications - Emissions

U.S. EPA Tier 4 Final certified / IMO III emissions certified (SCR required)

Generator Set Dimensions - Length

167.2 in/4245 mm (minimum), 226.1 in/5742 mm (maximum)

Generator Set Dimensions - Width

59.9 in/1521 mm (minimum), 89.8 in/2280 mm (maximum)

Generator Set Dimensions - Height

70.4 in/1747 mm (minimum), 92.8 in/2356 mm (maximum)

Generator Set Dimensions - Engine Dry Weight

15721 lb/7131 kg (minimum), 21998 lb/9978 kg (maximum)

Clean Emissions Module (CEM) - Dimensions - 6 Brick Z-Flow - Length

3751 mm ( 147.7 in )

Clean Emissions Module (CEM) - Dimensions - Dosing Cabinet - Weight

95 kg ( 209 lb )

Clean Emissions Module (CEM) - Dimensions - 6 Brick Z-Flow - Weight

565 kg ( 1246 lb )

Clean Emissions Module (CEM) - Dimensions - 6 Brick U-Flow - Weight

560 kg ( 1235 lb )

Clean Emissions Module (CEM) - Dimensions - Dosing Cabinet - Height

579 mm ( 22.8 in )

Clean Emissions Module (CEM) - Dimensions - 6 Brick U-Flow - Width

1445 mm ( 56.9 in )

Clean Emissions Module (CEM) - Dimensions - 6 Brick U-Flow - Length

2159 mm ( 85.0 in )

Clean Emissions Module (CEM) - Dimensions - Dosing Cabinet - Width

477 mm ( 18.8 in )

Clean Emissions Module (CEM) - Dimensions - 6 Brick Z-Flow - Width

1106 mm ( 43.5 in )

Clean Emissions Module (CEM) - Dimensions - 6 Brick U-Flow - Height

597 mm ( 23.5 in )

Engine Specifications - Generator

SR5 – Form Wound

Clean Emissions Module (CEM) - Dimensions - Dosing Cabinet - Length

949 mm ( 37.4 in )

Engine Specifications - Cooling

Heat exchanger, keel or radiator cooled

Engine Specifications - Oil Change Interval

750 hrs

Clean Emissions Module (CEM) - Dimensions - 6 Brick Z-Flow - Height

597 mm ( 23.5 in )

Engine Specifications - Refill Capacity

Lube Oil System w/ oil filter change: 146 L (38.5 gal)
