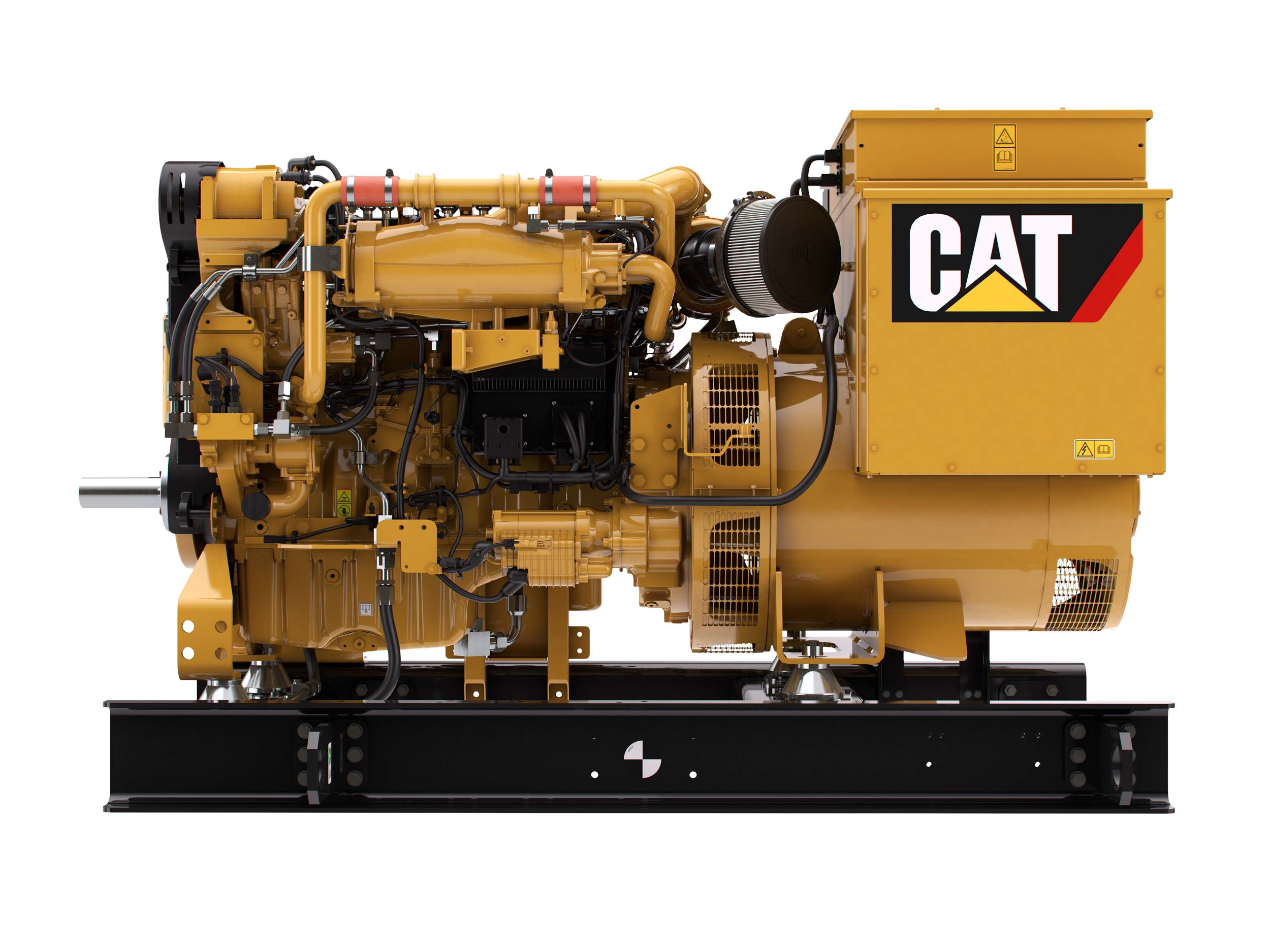

C9.3 Marine Generator Set
C9.3 Marine Generator Set
C9.3 Marine Generator Set
Key Features & Benefits
- Electronic control system provides industry-leading torque and throttle response at low speeds, while maintaining fuel efficiency at high speeds
- Common rail fuel system enables optimum combustion and low emissions
- RH and LH locations service options for fuel and oil filters, as well as dipstick location for easily accessible service
- Compatible with Cat® displays
- Available remote-mounted display panel with start, stop, and engine diagnostics
- 12V or 24V electrical system
- Certified by all marine classification societies
- Utilizes SCR technology enabling IMO III emissions compliance while lowering operational costs
Documents & Brochures
Standard Equipment
Standard Equipment
- Water-cooled turbocharger and exhaust manifold
- Electronic control system
- Thermostats and housing
- Gear-driven Sea water pump (self-priming)
- Common rail fuel system
- Shell and tube jacket water heat exchanger
- Corrosion-resistant Sea water aftercooler
- Engine oil cooler
- Vibration damper and guard
- Primary fuel filters
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Speed | 200 ekW – 274 ekW |
| Engine Specifications - Aspiration | Turbocharged-aftercooled |
| Engine Specifications - Bore | 115 mm ( 4.5 in ) |
| Engine Specifications - Stroke | 149 mm ( 5.8 in ) |
| Generator Set Specifications - Emissions/Fuel Strategy | IMO II, IMO III, U.S. EPA Tier 3, China Stage II |
| Engine Specifications - Rated Engine Speed | 1,500, 1,800 rpm |
| Engine Specifications - Cooling | Heat exchanger and separate or combined keel cooled options |
| Engine Specifications - Displacement | 9.3 l ( 567.5 in ) |
| Engine Specifications - Oil Change Interval | 500 hrs |
| Generator Set Dimensions - Width | 38.5 in / 978 mm |
| Generator Set Dimensions - Length | 57.2 in / 1,452 mm |
| Generator Set Dimensions - Engine Dry Weight | 2083 – 2474 lb / 945 – 1122 kg |
| Generator Set Dimensions - Height | 43.0 in / 1,093 mm |
| Engine Specifications - Configuration | Inline 6, 4-Stroke Cycle diesel |
| Engine Specifications - Refill Capacity | Lube Oil System w/oil filter change: 24.5 L (6.5 gal) |
| Engine Specifications - Governor | Electronic |
| Engine Specifications - Rotation from Flywheel End | Counterclockwise |
