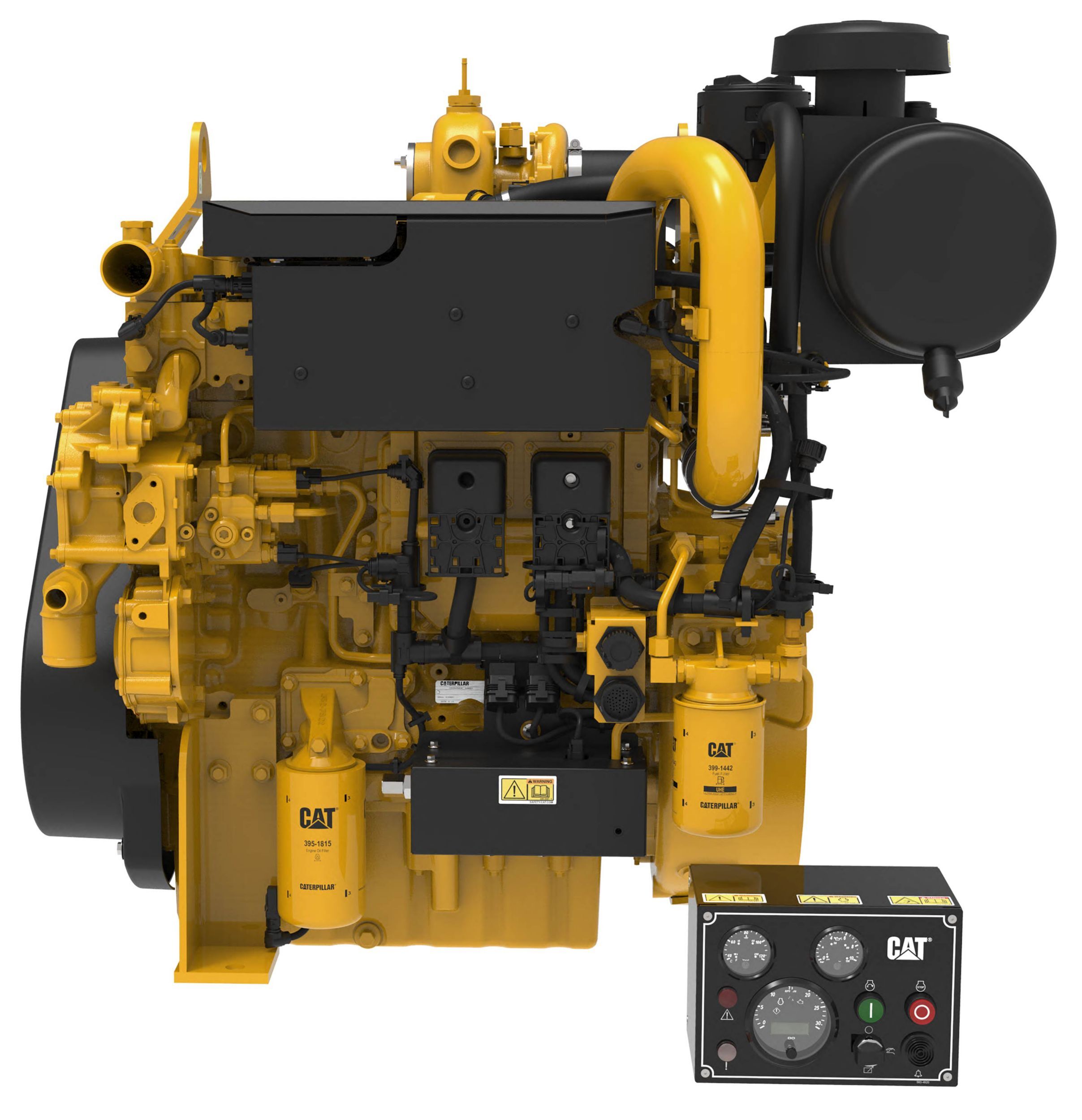

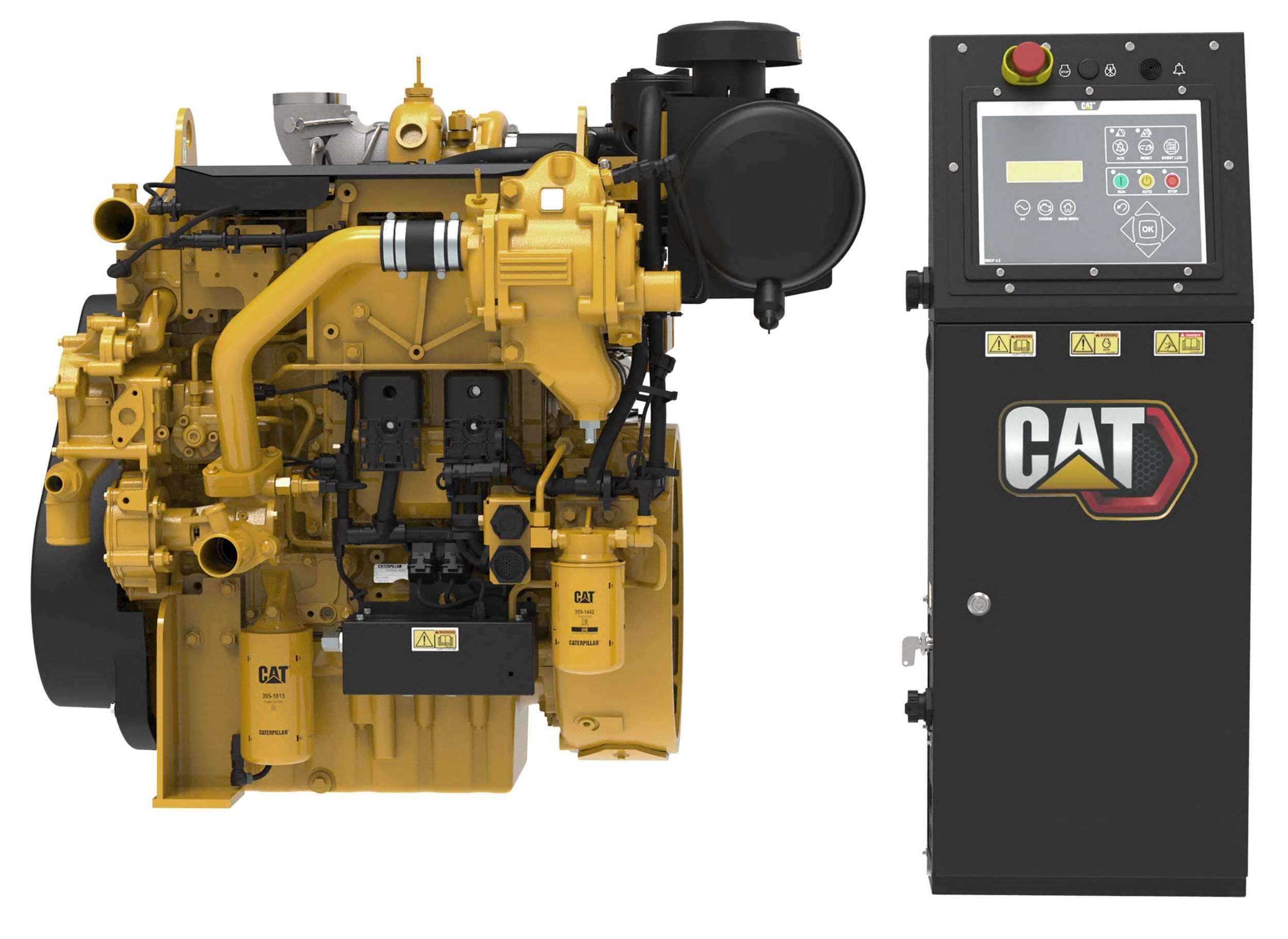

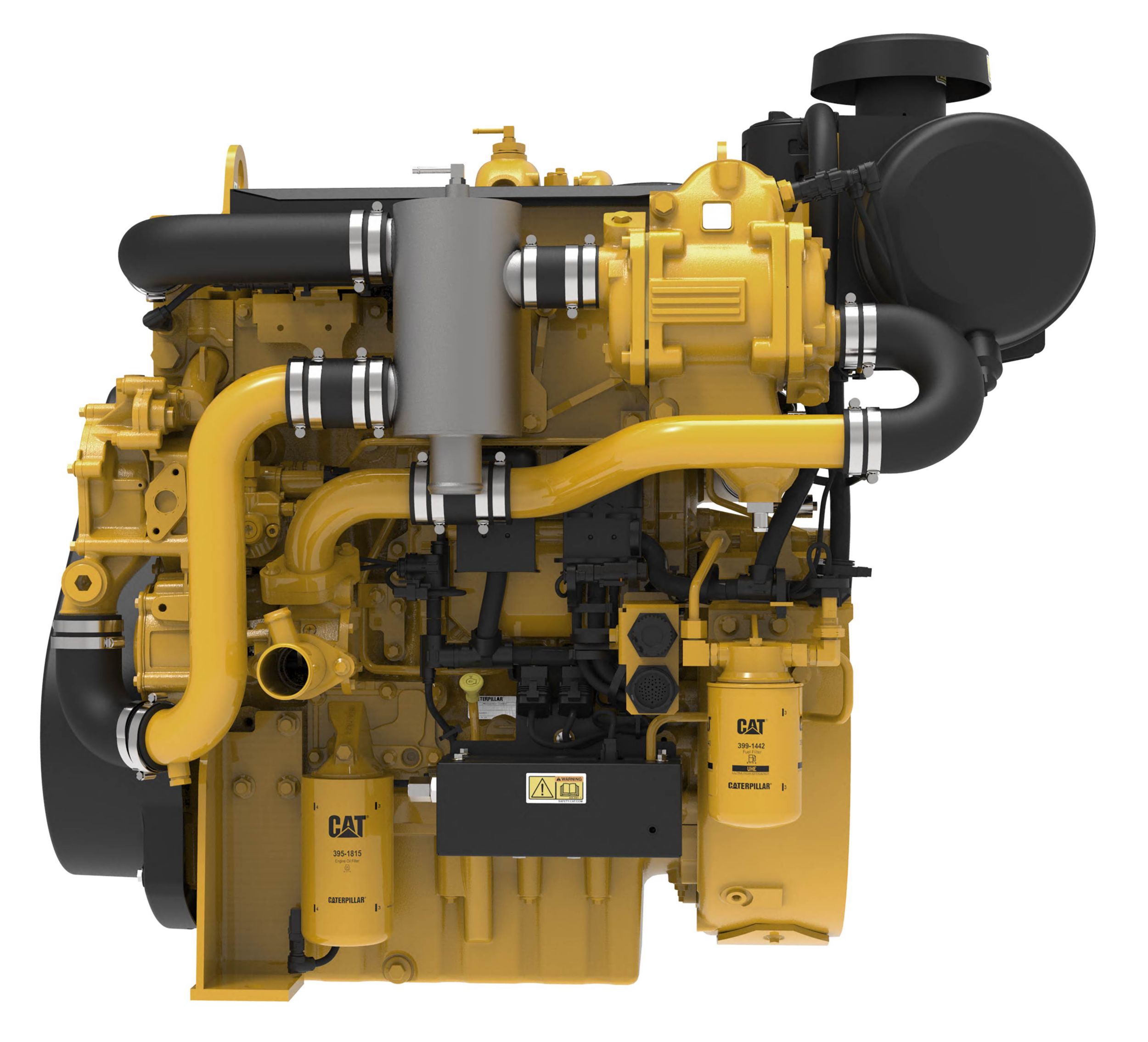

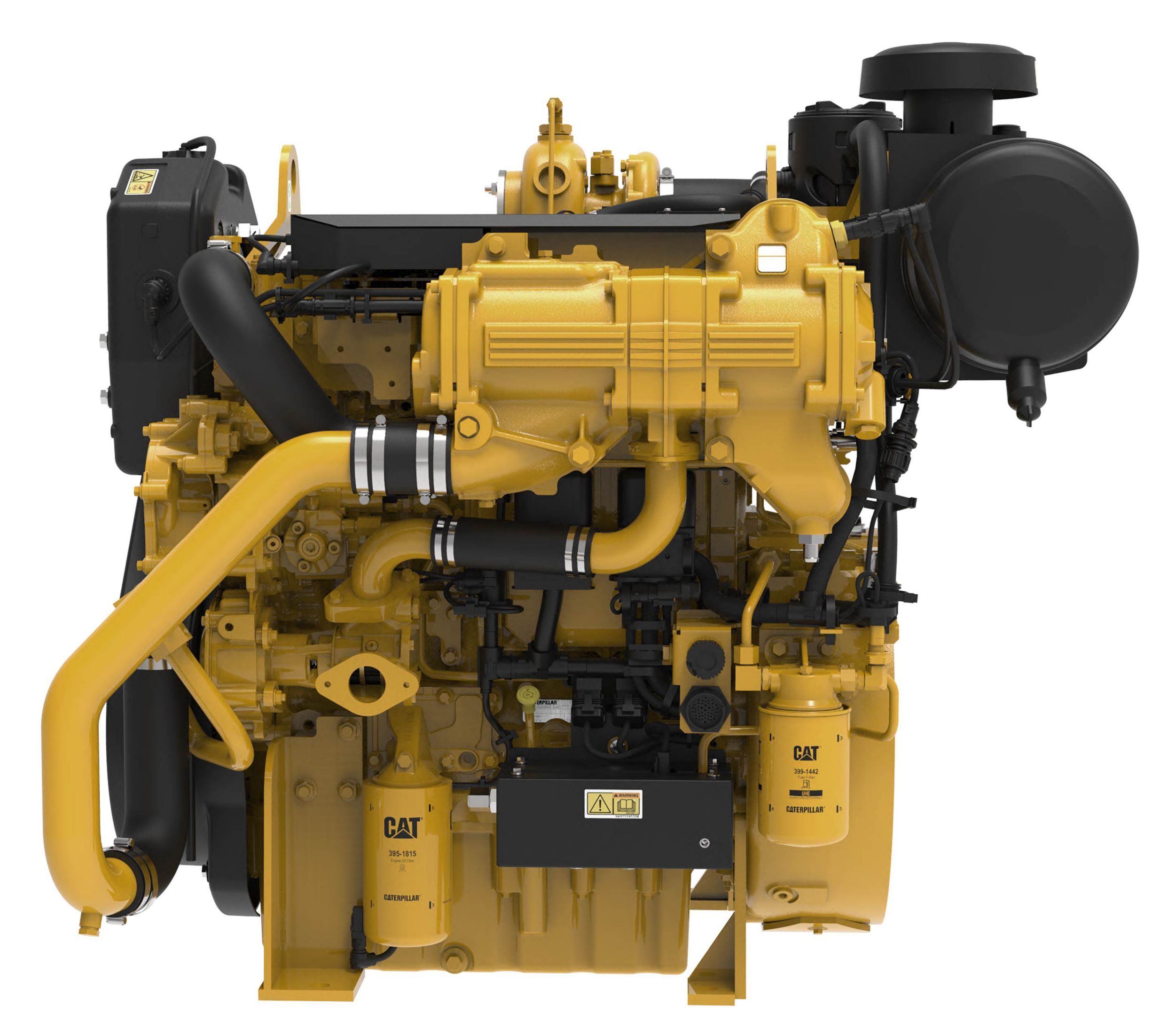

C4.4 (Electronic)

C4.4 (Electronic Control System)

C4.4 (Electronic Control System)

Category:

Easy to use

• Simplicity = Reliability
• Configure the engine how you want it, package it yourself
• Compact engine profile with high power density
• Ease of repower with multiple cooling system options: Single circuit keel cooling /Separate circuit keel cooling / Heat exchanger
• Clean, smooth, and quiet operations
• Advanced fuel system provides excellent fuel consumption and low smoke
• Proven core engine design with millions of operating hours
• Fewer maintenance touchpoints and longer service intervals
• Global dealer network for unparalleled support

Standard Equipment

COOLING SYSTEM
  • Gear-driven jacket-water and auxiliary water pumps
  • Engine mounted air cleaner and expansion tank
  • Integral plate-type oil cooler
EXHAUST SYSTEM
  • Watercooled exhaust manifold and turbocharger
FUEL SYSTEM
  • Common Rail fuel system
  • Electric fuel priming pump
GENERAL
  • Internal engine balancing shaft
  • Self-tensioning multi-vee belt drive
LUBE SYSTEM
  • Open crankcase ventilation system
MOUNTING SYSTEM
  • Engine mounted fuel and oil filter
  • Engine mounted customer interface and control relays
STARTING SYSTEM
  • 12V or 24V starter motor

Additional information

Offering Type

Power Rating - Power Range

71/81/108/129 bkW @ 1800 rpm, 71/86/108 bkW @ 1500 rpm

Dimensions & Weights - Length

856 mm ( 33.7 in )

Engine Specifications - Configuration

In-line 4, 4-stroke-cycle diesel

Dimensions & Weights - Height

1038.0 mm ( 40.9 in )

Dimensions & Weights - Minimum Width

778 mm ( 30.6 in )

Engine Specifications - Emissions

U.S. EPA Tier 3 certified, EU Stage V certified

Engine Specifications - Rated Engine Speed

1500/1800 rpm

Dimensions & Weights - Maximum Width

814.0 mm ( 32.0 in )

Dimensions & Weights - Minimum Engine Dry Weight

544.0 kg ( 1200.0 lb )

Engine Specifications - Bore

105 mm ( 4.13 in )

Engine Specifications - Stroke

127.0 mm ( 5.0 in )

Dimensions & Weights - Maximum Engine Dry Weight

580.0 kg ( 1278.0 lb )

Engine Specifications - Displacement

4.4 l ( 268 in³ )

Engine Specifications - Aspiration

Turbocharged-aftercooled and turbo only aspiration (Turbocharged aspiration only for 65ekW (71bkW))

Engine Specifications - Governor

Electronic (A5 ECM)

Engine Specifications - Refill Capacity

Lube Oil System w/Oil filter change: 11 L 2.8 gal)

Engine Specifications - Oil Change Interval

500 hrs

Engine Specifications - Cooling

Heat exchanger, combined circuit keel cooling, or separate circuit keel cooling

Engine Specifications - Flywheel Housing

SAE No. 03 with SAE 11.5 flywheel (126 teeth)
