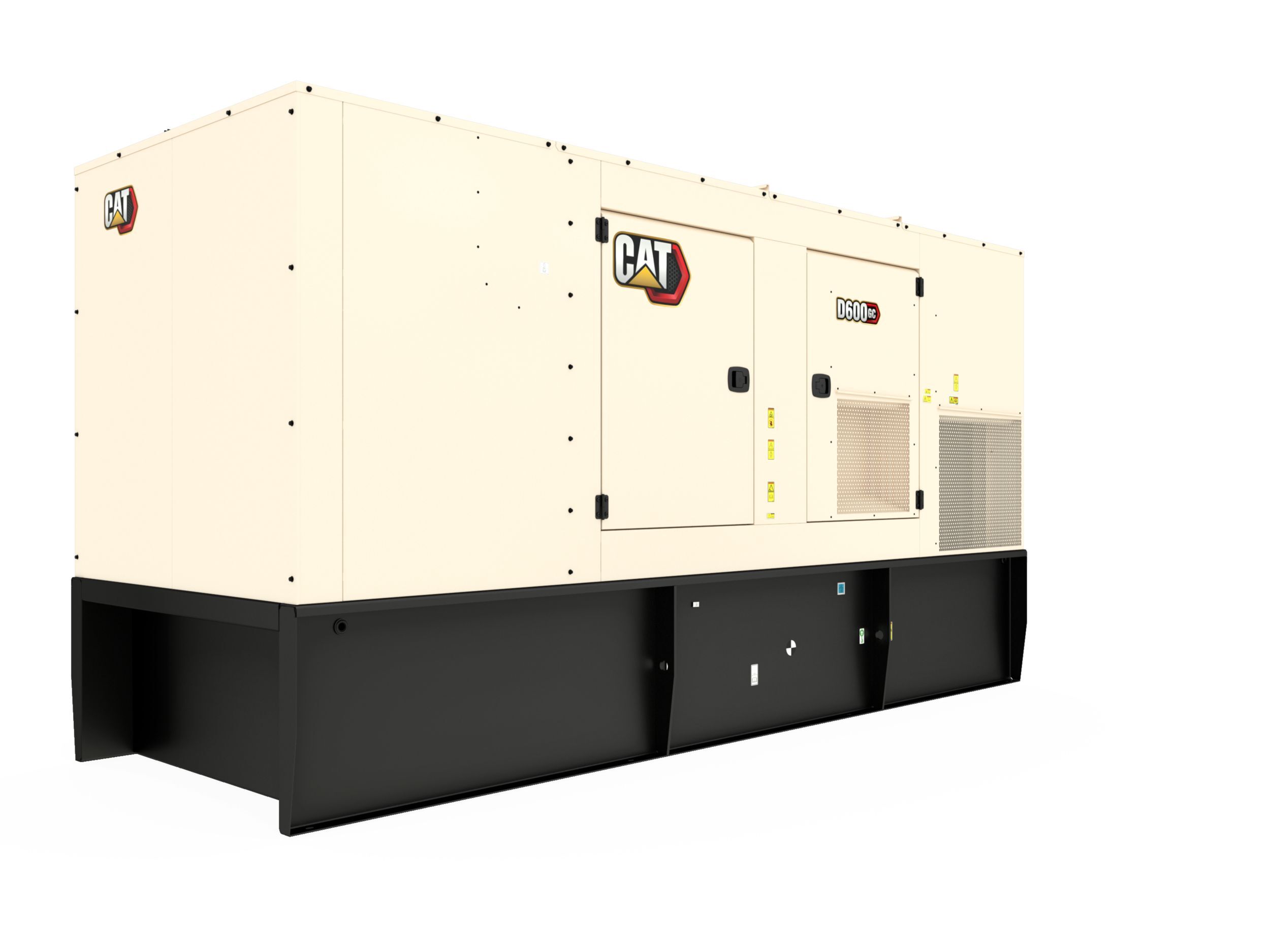

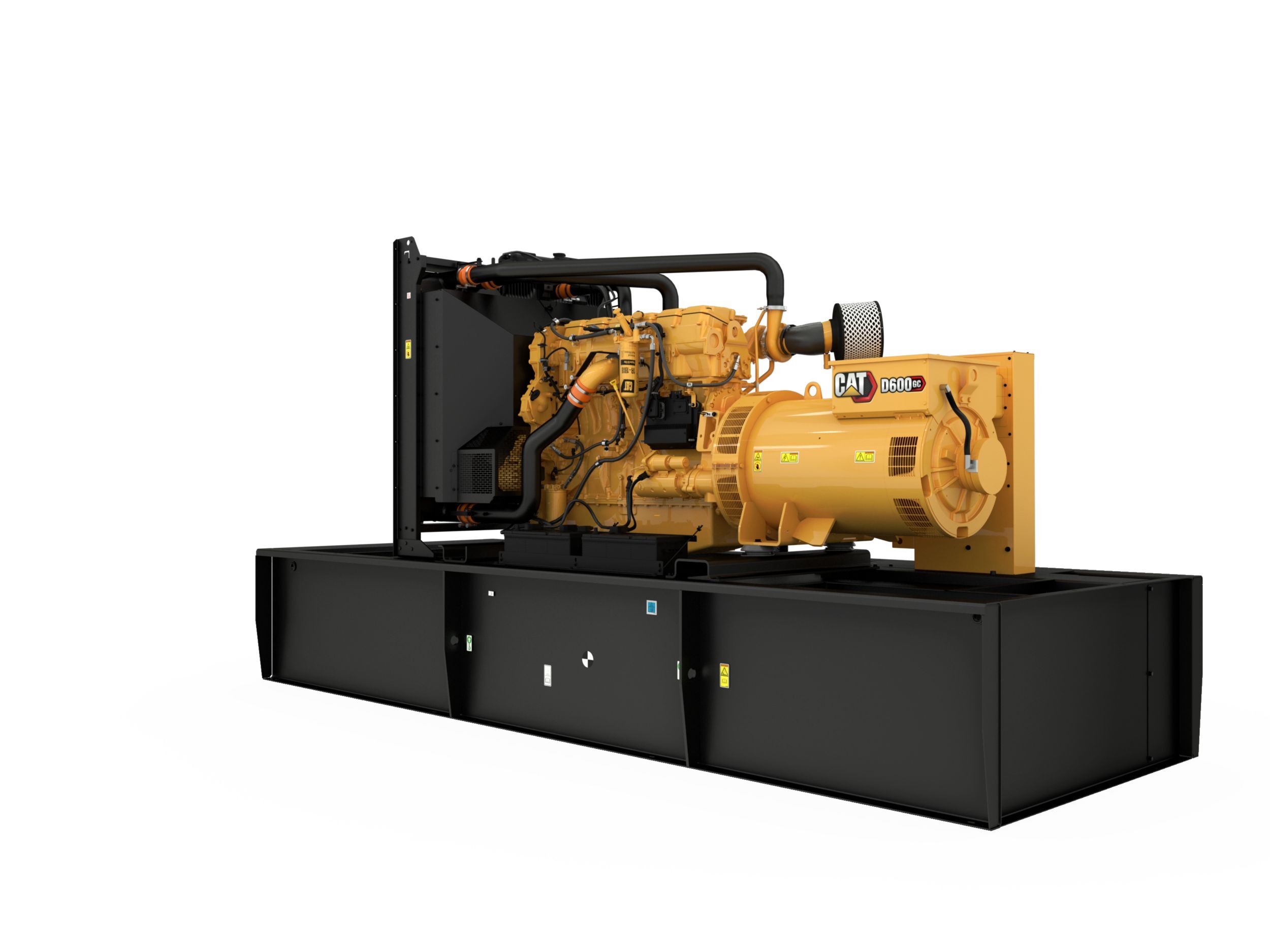

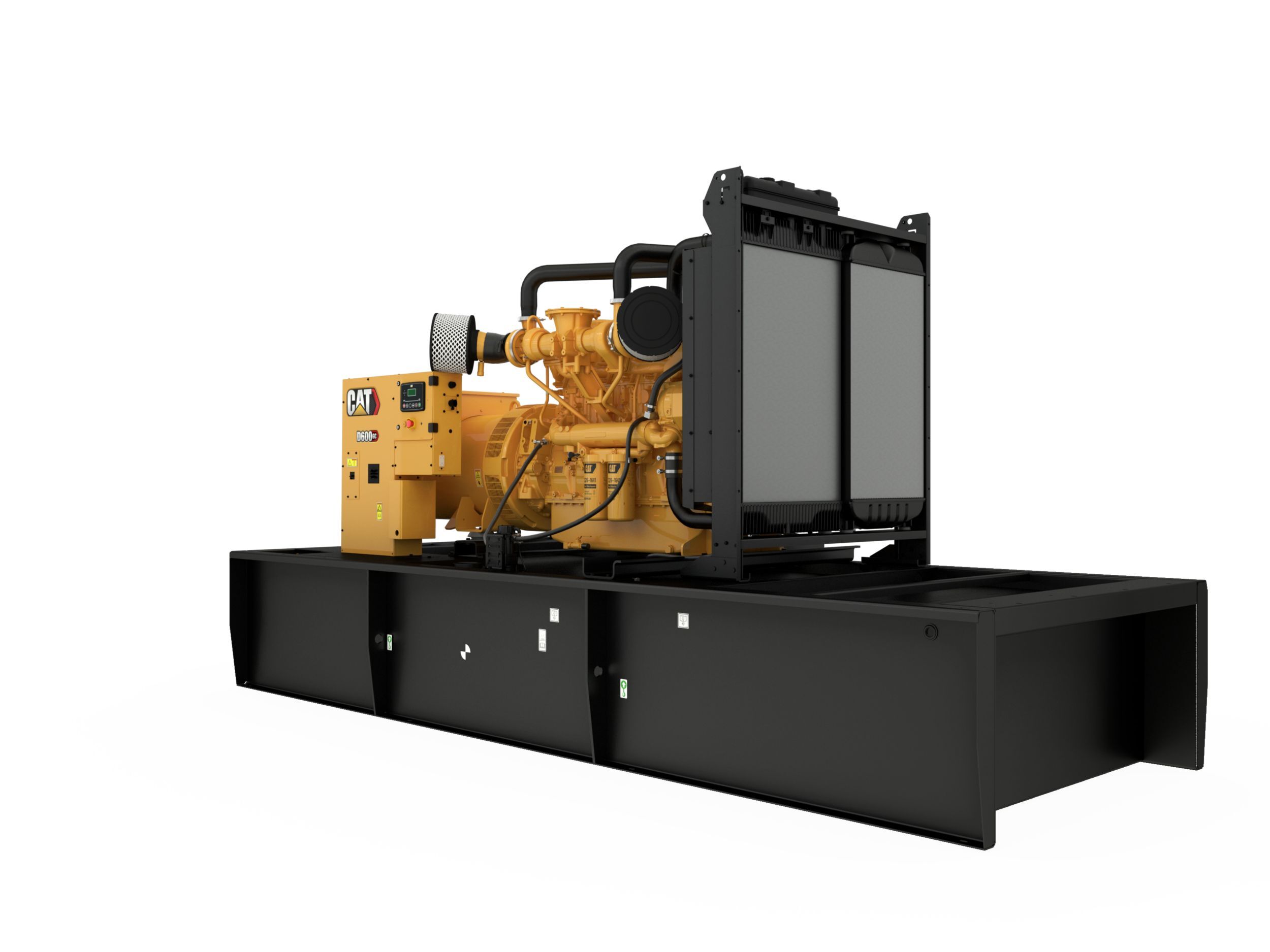

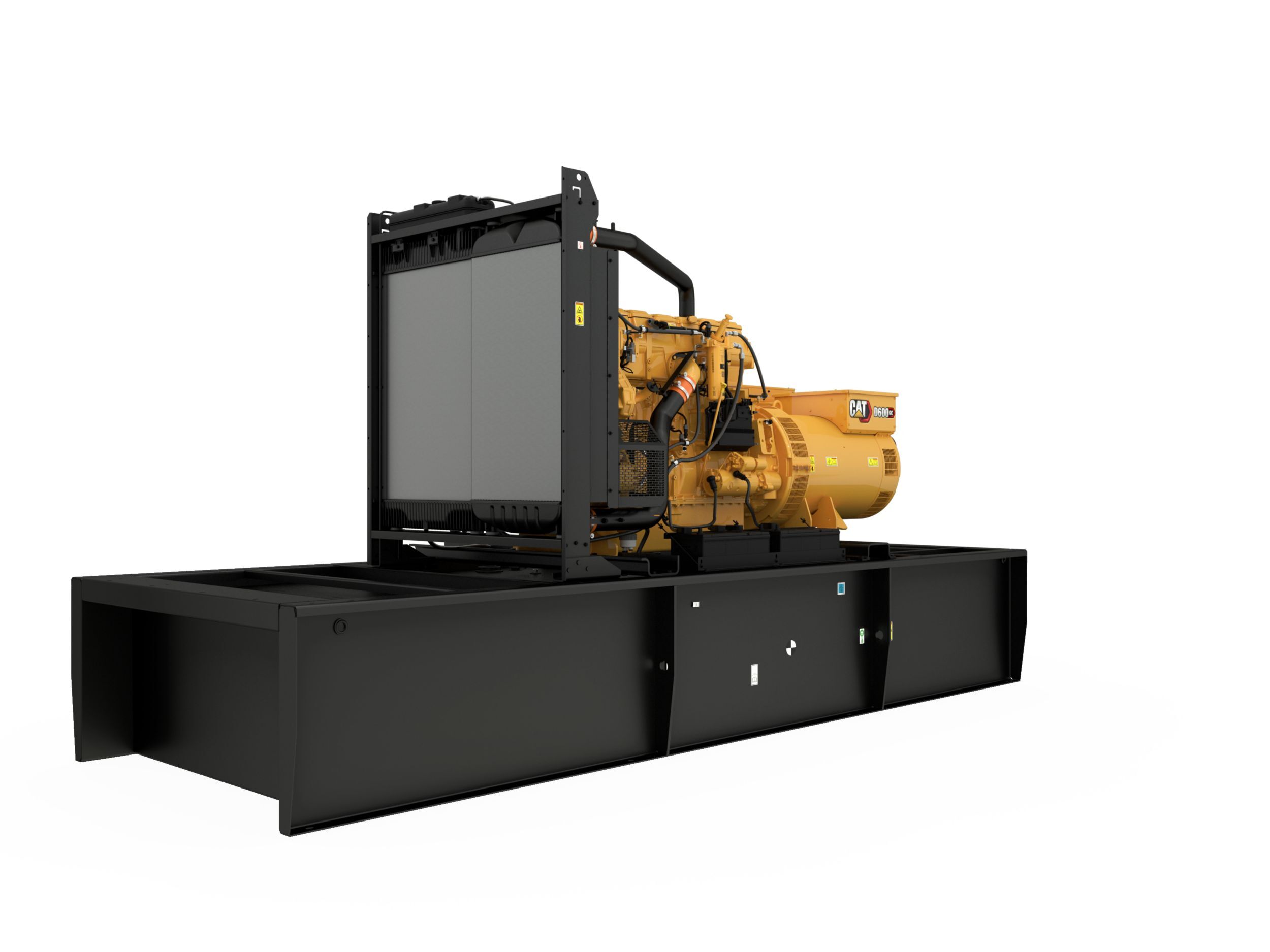

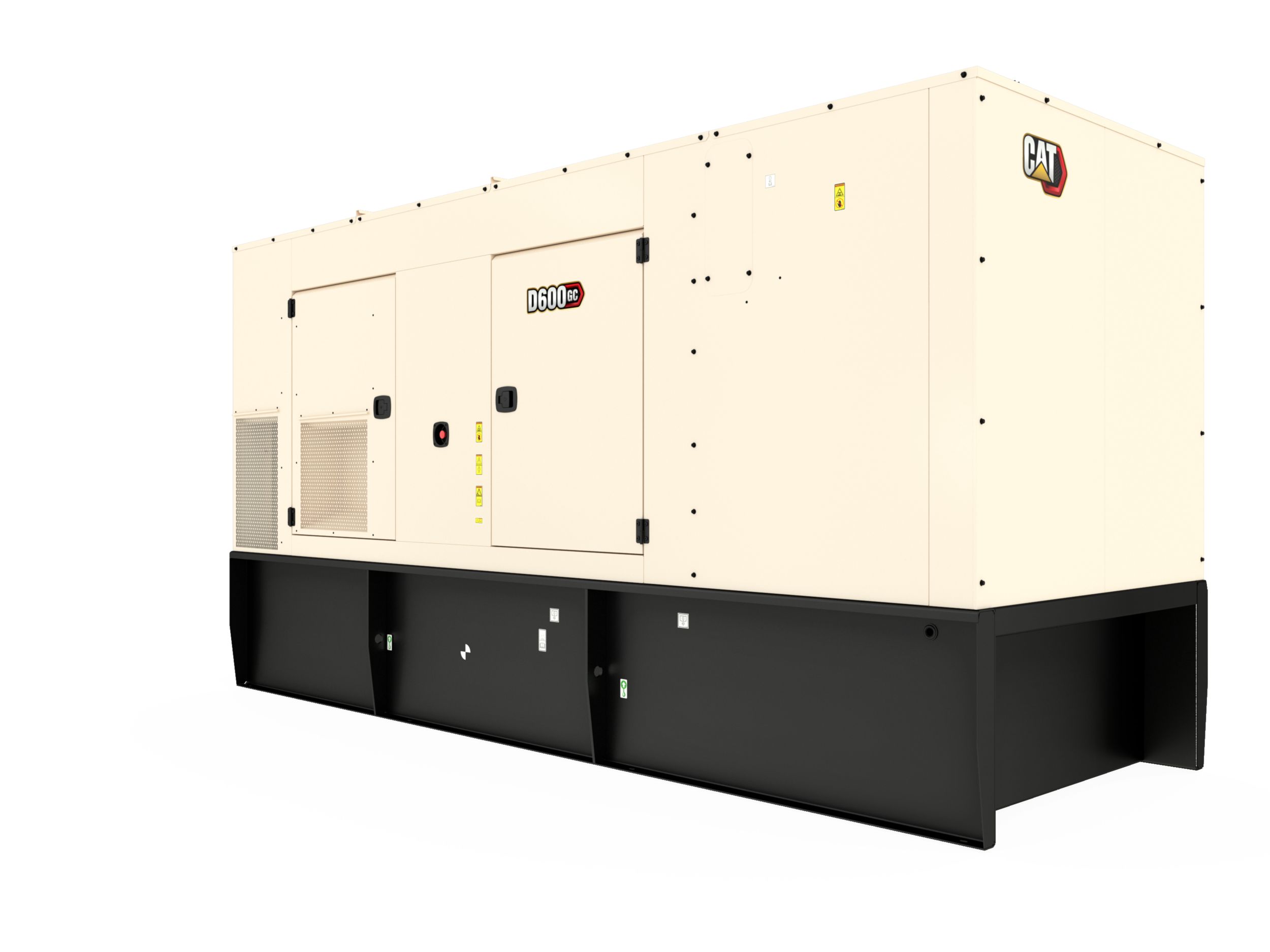

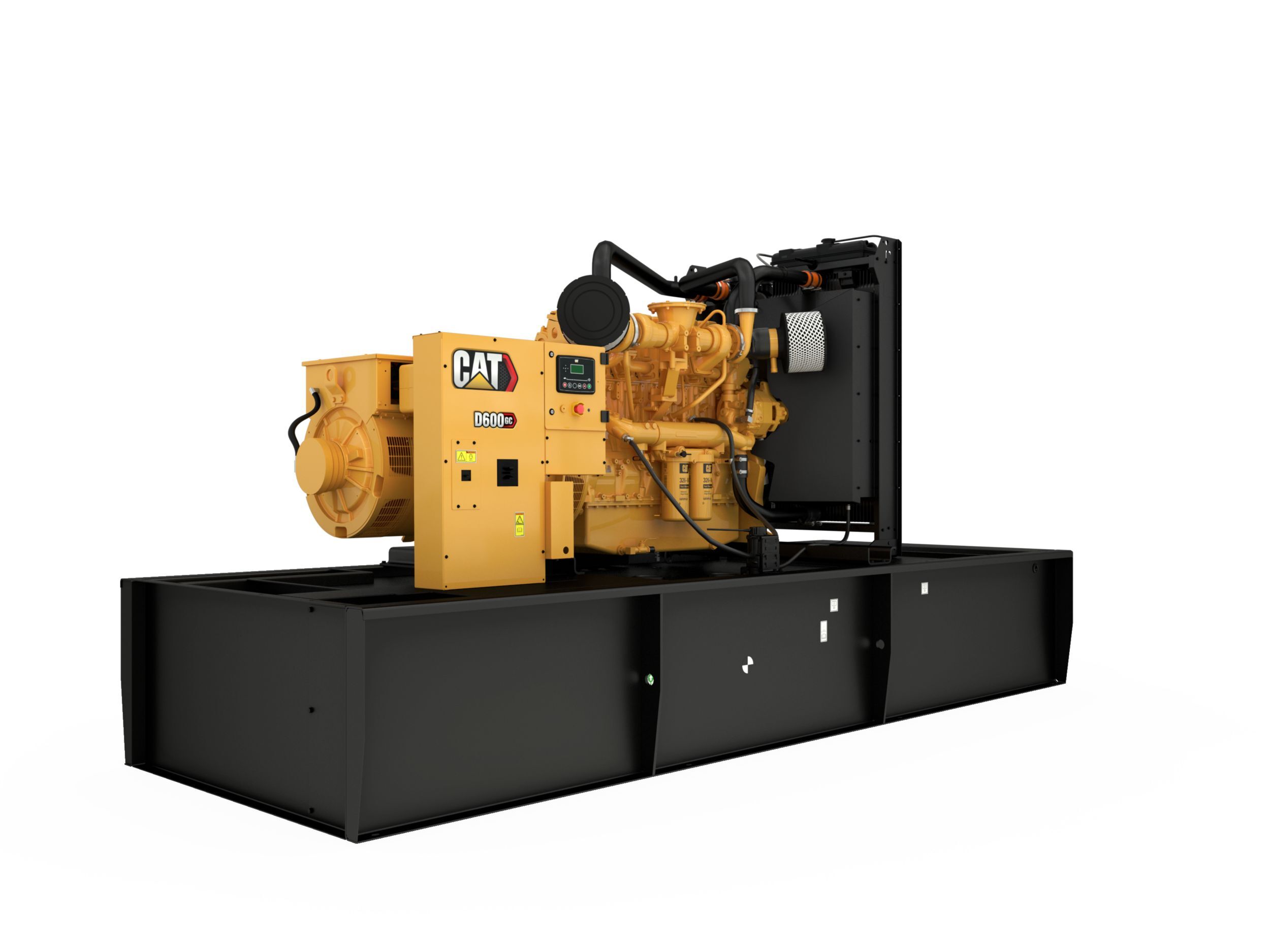

D600 GC (60 Hz) Generator Set

The D600 GC (60 Hz)diesel generator sets were developed to meet your needs in a standby application. Producing reliable power of 600 ekW at 60 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our D600 GC generator sets meet EPA Stationary Emergency (Tier 2) certified emissions requirements.

Cat Generator Set Package

Cat Diesel Engine

SR500 Alternator

GCCP 1.2 Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Standard Equipment

Air Inlet System
  • Turbocharger
  • Air cleaner - Non canister, disposable
  • Aftercooler core
Control Panel
  • GCCP 1.2
Cooling System
  • Radiator sight gauge
  • Thermostats and housing
  • Coolant drain valve
  • Jacket water pump, gear driven, centrifugal
  • Blower fan and fan drive with guards
  • Radiator, package mounted
Exhaust System
  • Exhaust manifold - dry
Fuel System
  • Fuel cooler
  • Primary fuel filter w/integral water separator and secondary filter, spin on
  • Integral tank base, 24 hours, UL142
  • Engine fuel transfer pump
  • Fuel priming pump
Generator Set
  • Complete system designed & built at ISO 9001:2000 certified facilities
  • Factory tested to design specifications at full load conditions
  • All protective devices and control functions simulated and checked
Generators and Generator Attachments
  • 6 Leads
  • Voltage regulator (single phase sensing)
  • Easy access to AVR and terminals
  • Insulation system, Class H
  • Brushless, self-excited 2/3 pitch (600V uses Internal excitation (IE))
  • Terminal box, IP22 RHS facing, bottom cable entry
  • Standard winding protection for non-harsh environments with relative humidity ? 95%
  • IP23 Protection
Governing System
  • Cat electronic governor (ADEM A4)
Lube System
  • Oil filler and dipstick
  • Shallow oil pan
  • Oil filter, spin on
  • Oil cooler
  • Lubricating oil, CK-4 (10W-30)
  • Oil drain with valve
  • Fumes disposal to front of radiator
Mounting System
  • Includes lifting provisions and termination points for coolant and lube oil drain lines
  • Captive linear vibration isolators between base and engine-generator
Protection
  • Safety shutoff - High water temperature
  • Safety shutoff - Overspeed
  • Safety shutoff - Low oil pressure
Starting/Charging System
  • 24V, 45 Amp Charging alternator
  • 24-volt electric starting motor
General
  • Parts book
  • Vibration damper
  • Lifting eyes

Additional information

Offering Type

Generator Set Specifications - Maximum Rating

600 ekW

Generator Set Specifications - Minimum Rating

600 ekW

Generator Set Specifications - Emissions/Fuel Strategy

EPA Stationary Emergency

Generator Set Specifications - Voltage

480 to 600 Volts

Generator Set Specifications - Frequency

60 Hz

Generator Set Specifications - Speed

1800 rpm

Generator Set Specifications - Duty Cycle

Standby

Engine Specifications - Engine Model

Cat® C18 In-line 6, 4-cycle Diesel

Engine Specifications - Bore

145 mm ( 5.7 in )

Engine Specifications - Stroke

183 mm ( 7.2 in )

Engine Specifications - Displacement

18.1 l ( 1106 in³ )

Engine Specifications - Compression Ratio

14.5:1

Engine Specifications - Aspiration

Turbocharged Air-to-Air Aftercooled

Engine Specifications - Fuel System

MEUI

Engine Specifications - Governor Type

ADEM™A4

Generator Set Dimensions - Length - Maximum

4980 mm ( 196.1 in )

Generator Set Dimensions - Width - Maximum

1865 mm ( 73.4 in )

Generator Set Dimensions - Height - Minimum

2009 mm ( 79.1 in )

Generator Set Dimensions - Height - Maximum

2563 mm ( 100.9 in )

Generator Set Dimensions - Dry Weight - Genset (minimum)

4064 kg ( 8959.6 lb )

Generator Set Dimensions - Dry Weight - Genset (maximum)

5283 kg ( 11647 lb )
