MD6200

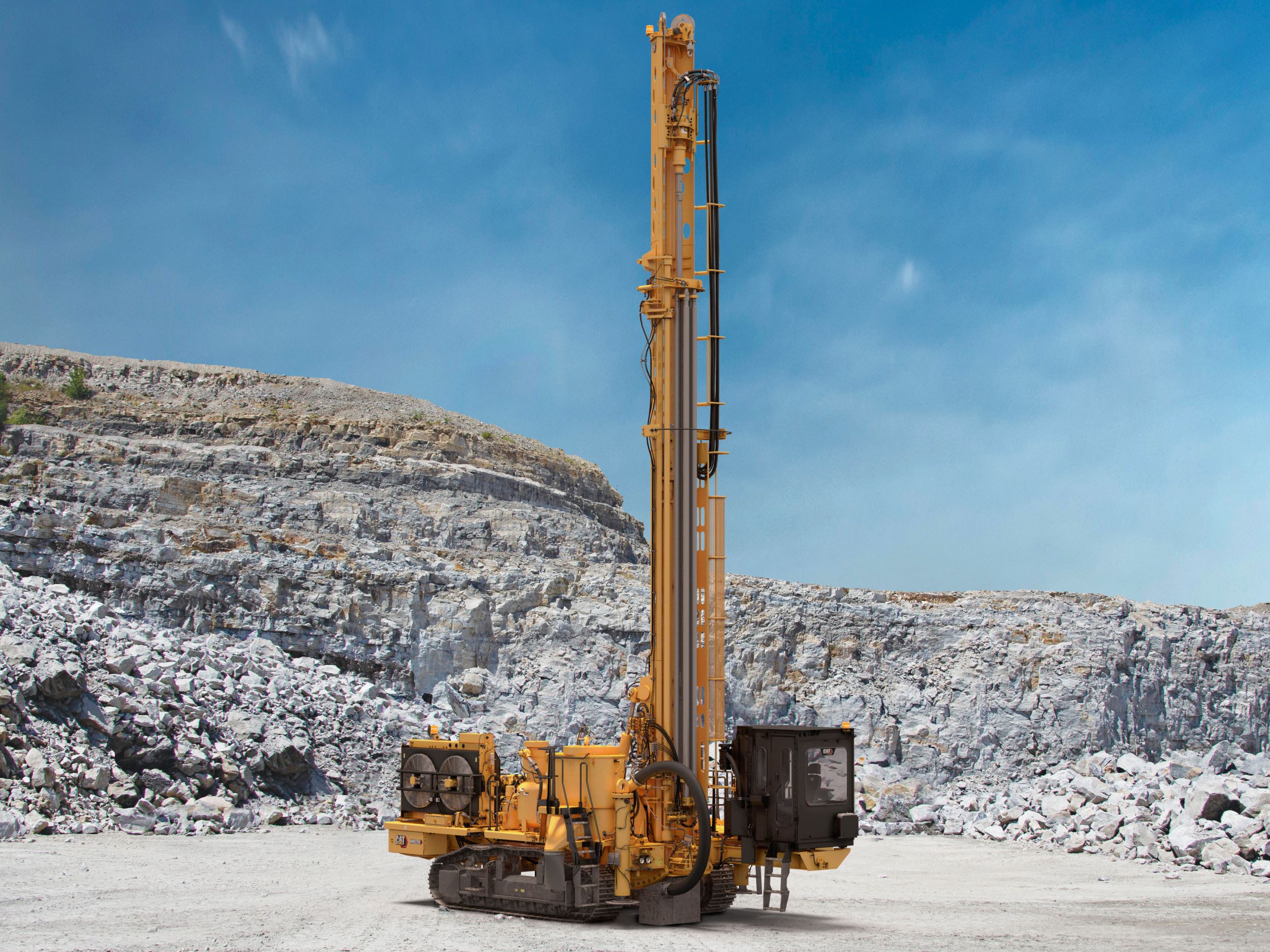

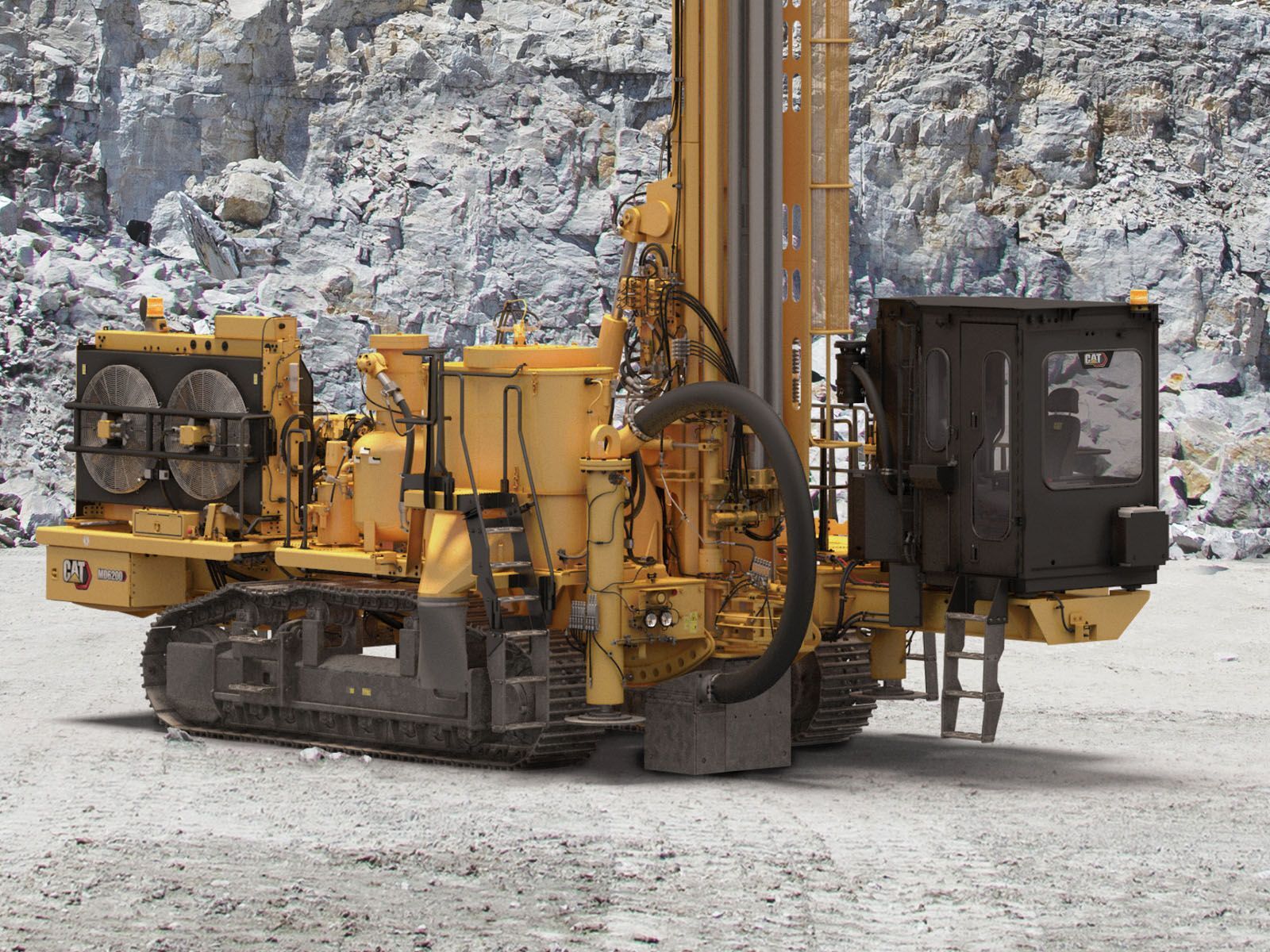

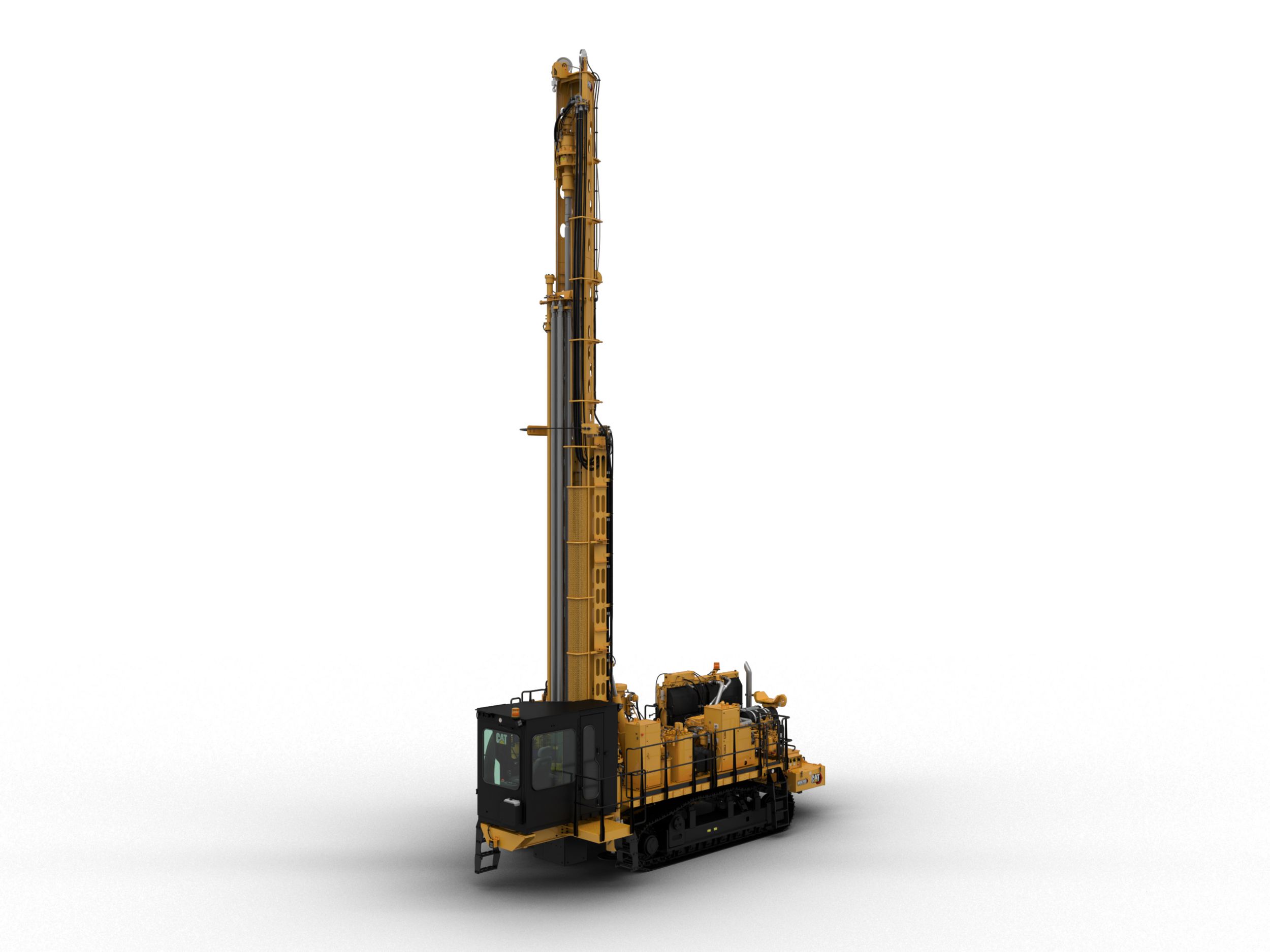

MD6200 Rotary Blasthole Drill Specifications
The Cat® MD6200 has the smallest shipping envelope of any drill in its class. It can be transported over the road with the mast on, so it can simply roll onto a truck when it’s time to move to another site. Additionally, its compact working envelope allows it to get it into position faster, reducing the time spent accessing drill patterns and moving between holes. Its oversized Cat 336 excavator-style undercarriage provides best-in-class tractive effort and drawbar pull and stands up to the toughest conditions on your site. Designed to drill holes from 127-200 mm (5.0-7.87 in) in diameter, the MD6200 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.
100% Cat Integration
- Cat to the core
- Common parts and components across all Cat drills and consistent design characteristics
- Shared software for autonomous features
- Cat Dealer Support
World-Class Operator Station
- Ergonomic controls to help operators stay alert and avoid fatigue

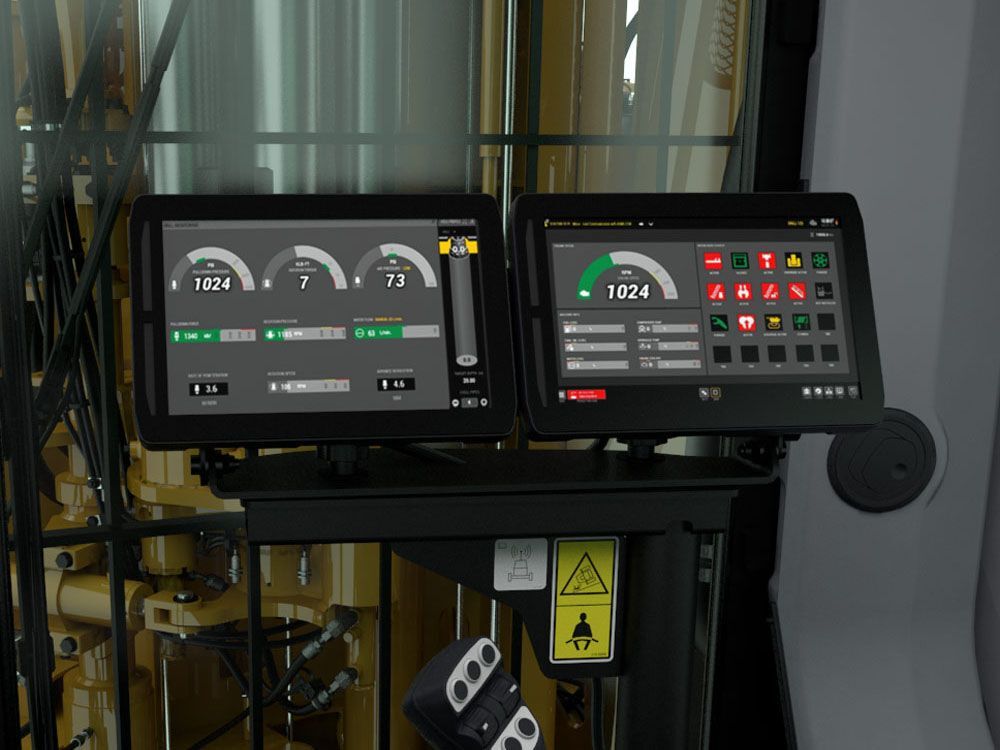

- Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
- Excellent visibility, thanks to multiple cameras and full-length windows
- Optional heated and ventilated seat for enhanced operator comfort
Superior Transportability
- Smallest shipping envelope in its class

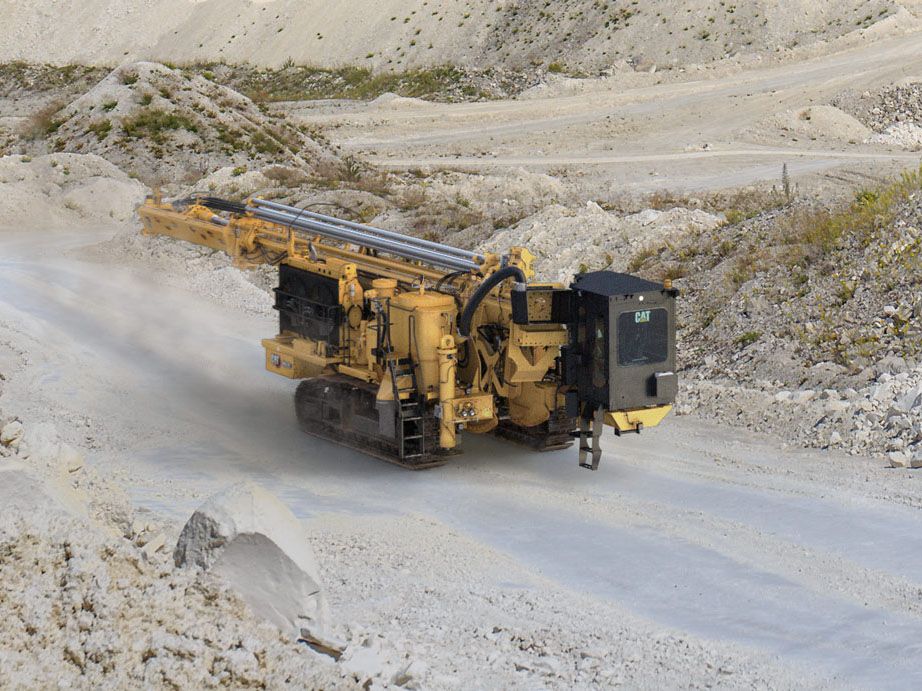

- Can be transported over the road with the mast on
- Cat 336 excavator-style undercarriage provides exceptional stability and maneuverability
- Compact working envelope increases productive drill time

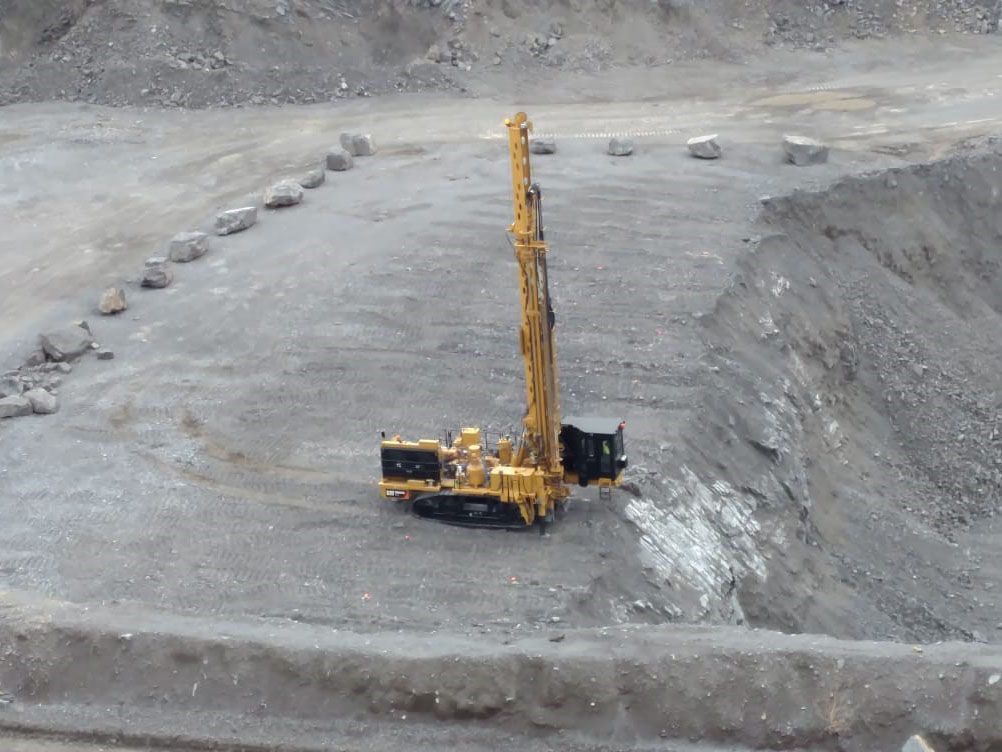

- Highly maneuverable from bench to bench or hole to hole
Cat Electronics: Backbone of Machine
- Common electronic architecture across all Cat machines to ensure technician familiarity
- Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
- Serves as common platform for integrating future autonomy solutions
- Product Link™ Elite provides real-time performance tracking
Technology and Automation
- Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
- Machine health and performance monitoring keep machine running productively
- Drill depth meter helps reduce over- and under-drilling
- Cat MineStar™ Terrain for drilling data is integrated into existing cab monitors (requires Terrain license purchase)
Matched Powertrain
- Variable air volume for reduced fuel consumption
- C18 engine matched to hydraulics and compressor for increased efficiency
- High- and low-pressure configurations offer variable volume air control
- Reduces stand-by pressures while machine idles
Positive - And Negative - Angle Drilling

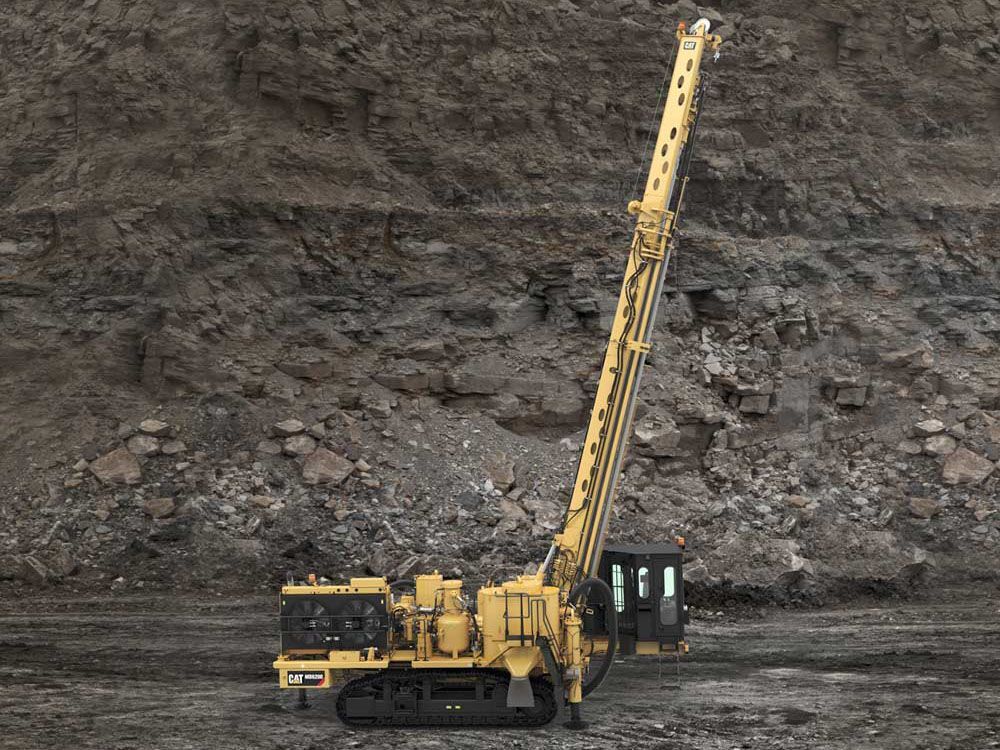

- Angle drill from 30 degrees to -15 degrees (in 5-degree increments)
- Negative-angle drilling (vertical to -15 degrees) helps you tackle such specialty projects as ramp and access development, sink shots and limited pre-split drilling
- Positive-angle (30 degrees to vertical) for production drilling
Safety
- Three standard cameras and large windows give the operator excellent visibility
- Slip-resistant surfaces for safer ingress/egress and service
- MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
- LED interior lights and backlit joysticks and keypads
- Spot and flood lights positioned to illuminate paths for ingress/egress and major service points
Sustainability
- Designed to use less fuel, which reduces engine emissions
- Tier 4 Final engines reduce NOx and particulate matter
- Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
- Longer maintenance intervals that decrease the amount of waste contributed to the environment
Videos
- MD6200 Walkaround Video - General Overview
- MD6200 Rotary Drill Technology
- Drill Tools Overview
- MD6200 Walkaround Video - Powertrain, Compressor and Cooling System
- Cat® MD6200 Rotary Drill Overview
- MD6200 Walkaround Video: Cab and Operator Station
- MD6200 Rotary Drill Transportability
- MD6200 Walkaround Video: Pipe Handling - Tricone BIts and DTH Hammers
- Drills Video Short - Technology
- MD6200 Walkaround Video: 100% Cat Components
Virtual Tours
Documents & Brochures
Standard Equipment
FRAME ACCESS
- Fixed access steps to cab area
- Small platform to the cab includes access steps
- Platform access to the cab with full-length service access walkway includes access steps (option) and self-closing gates
UNDERCARRIAGE
- Cat 336 Excator type
- Track chain guards and guides
ENGINE
- Cat C18 (Tier 4 final/EU Stage V)
- Cat C18 (U.S. EPA Tier 2 Equivalent)
Additional information
| Offering Type | |
|---|---|
| Dust Control Choices - Choices (1) | Static dust curtains, four sides boxed enclosed |
| Dust Control Choices - Choices (2) | Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector) |
| Dust Control Choices - Choices (3) | Tram off spray system (option) |
| Service Packages - Package (3) | Premium Package: Automated lubrication system, fast fill fuel and water, service center for lubricant drain and fill plus blowdown hose (option) |
| Operator Environment - Cameras | – Three (3) CC cameras (front, right and left sides) provide 360° visibility from operators seat; camera on the mast to view pipe carousel/top drive operation |
| Basic Specs - U.S. EPA Tier 4 Final - Engine | C18 @ 1,800 rpm |
| Dust Control Choices - High Volume Water Injection - Maximum - Tank Above Deck - Capacity | 757 l ( 200 gal (US) ) |
| Basic Specs - Hoist Capacity | Up to 11 907 kg (Up to 26,250 lb) |
| Compressor Choices - Rotary Drilling - 1150 cfm/125 psi | 32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi) |
| Dust Control Choices - Water Injection - Tank Mounted Below Front Deck - Components | Water flow meter, volume control, tank fill level indicator |
| Basic Specs - Hole Diameter Range | 140-200 mm (5.5-7.87 in) |
| Mast and Pipe Carousel Features - Features (5) | Drills strings configured for bit changes above deck |
| Drill Pipe - 9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 2 | 114 mm ( 4.5 in ) |
| Receiver Tank Choices - Choice (2) | High pressure 24.1 bar (350 psi) |
| Mast and Pipe Carousel Features - Features (7) | Sliding deck wrench assembly |
| Compressor Choices - DTH Drilling | Includes tool lubrication system |
| Basic Specs - Hoist Speed | 1.32 m/s ( 4.3 ft/s ) |
| Mast Packages - Multi-Pass Depth | Down to 47.58 m (Down to 156 ft) |
| Mast and Pipe Carousel Features - Features (12) | Closed circuit camera mounted in mast to view pipe carousel/top drive operation |
| Receiver Tank Choices - Choice (1) | Low pressure 8.6 bar (125 psi) |
| Mast and Pipe Carousel Features - Features (8) | Configured with roller deck bushing (for low pressure/tricone drilling) |
| Mast Packages - Pulldown - Rated Single Cylinder Pull-Down/Hoist System | Up to 15 876 kg (Up to 35,000 lb) |
| Undercarriage - Travel Speed - Low | 2.1 km/h ( 1.3 mile/h ) |
| Safety and Security - Feature (1) | Approach angle of 15-degrees facilitates loading and unloading on a lowboy |
| Mast Packages - Hoist | Up to 11 907 kg (Up to 26,250 lb) |
| Dust Control Choices - High Volume Water Injection - Maximum - Tank Below Deck - Capacity | 757 l ( 200 gal (US) ) |
| Undercarriage - Drawbar Pull | 262 000 Nm (193,241 lbf-ft) |
| Dust Control Choices - Water Injection - Tank Mounted Below Front Deck | 757 l ( 200 gal (US) ) |
| Basic Specs - U.S. EPA Tier 4 Final - Emissions | U.S. EPA Tier 4 Final |
| Mast and Pipe Carousel Features - Features (6) | Single cylinder pulldown/hoist system |
| Mast and Pipe Carousel Features - Features (14) | Manual pipe catcher: One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket |
| Basic Specs - Angle Drilling Available | 30 degrees to 0 degrees in 5-degree increments |
| Engine Features - Feature (1) | Dual starter motors |
| Mast and Pipe Carousel Features - Features (3) | Optional negative angle drilling package (0 to �15 degrees, in 5-degree increments) for a total range of (30 to �15 degrees) |
| Basic Specs - Hole Depth Range - Single-Pass Depth | 11 m ( 36 ft ) |
| Engine Features - Feature (2) | Ether starting aid |
| Climate Choices - Climate Level 2 Arctic Fluids and Lubricants, Engine Block and Manifold Heater 120V or 240V | Rated down to -18 C (0 F) |
| Mast and Pipe Carousel Features - Features (10) | Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating |
| Dust Control Choices - Water Injection plus Dust Collector (2) | Self-cleaning filters, dust chute clean-out door |
| Compressor Choices - DTH Drilling - 1050 cfm/350 psi | 29.7 cmm (1,050 cfm) @ 24.1 bar (350 psi) with 113.5 L (30 gal) tool oiler |
| Drill Pipe - 9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 3 | 127 mm ( 5 in ) |
| Engine Features - Feature (3) | Tier 4 Final package complete with DEF/Engine Shutdown Control Package |
| Dimensions (Approximate) - Width cab end* | 4.18 m ( 13.7 ft ) |
| Basic Specs - Pull-DownCapacity | Up to 15 876 kg (Up to 35,000 lb) |
| Mast Packages - Single-Pass Depth | 11 m ( 36 ft ) |
| Drill Pipe - 9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 5 | 152 mm ( 6 in ) |
| Drill Pipe - 9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 4 | 140 mm ( 5.5 in ) |
| Basic Specs - Compressor - Rotary Drilling | 32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi) |
| Compressor Choices - Rotary Drilling | Optional tool lubrication system |
| Dimensions (Approximate) - Width non-cab end | 3.57 m ( 11.7 ft ) |
| Dust Control Choices - High Volume Water Injection - Maximum - Tanks Total Capacity | 1514 l ( 400 gal (US) ) |
| Drill Deck Misc. - Components (1) | Drill pipe thread greaser with remote fill tank that also accommodates disposable grease bucket |
| Basic Specs - Bit Load (single-Pass) | 16964 kg ( 37400 lb ) |
| Dimensions (Approximate) - Body Length | 9.44 m ( 31 ft ) |
| Drill Pipe - 9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 1 | 101 mm ( 4 in ) |
| Basic Specs - U.S. EPA Tier 2 Equivalent - Engine | C18 @ 1,800 rpm |
| Basic Specs - U.S. EPA Tier 4 Final - Power Rating (ISO 14396) | 439 kW ( 589 HP ) |
| Basic Specs - U.S. EPA Tier 2 Equivalent - Power Rating (ISO 14396) | 438 kW ( 587 HP ) |
| Mast and Pipe Carousel Features - Features (4) | Hydraulically actuated, self-indexing pipe carousel accepts pipe diameters up to 152 mm (6.0 in) |
| Mast and Pipe Carousel Features - Features (11) | Variable grip hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in) |
| Basic Specs - Hole Depth Range - Multi-Pass Depth | Down to 47.58 m (Down to 156 ft) |
| Undercarriage - Travel Speed - High | 3.3 km/h ( 2 mile/h ) |
| Basic Specs - U.S. EPA Tier 2 Equivalent - Emissions | U.S. EPA Tier 2 equivalent |
| Mast and Pipe Carousel Features - Features (9) | Two-piece deck bushing (for high pressure DTH drilling) |
| Dimensions (Approximate) - Mast only length | 15.89 m ( 52.1 ft ) |
| Mast and Pipe Carousel Features - Features (13) | Pipe positioner for angle drilling, multi-pass pipe handling |
| Mast and Pipe Carousel Features - Features (2) | Standard angle drilling package (0 to 30 degrees, in�5-degree�increments) |
| Dust Control Choices - Water Injection plus Dust Collector (1) | 76.5 cmm (2,700 cfm) dust collector; includes standard water injection |
| Dimensions (Approximate) - Length mast down | 17.54 m ( 57.5 ft ) |
| Dimensions (Approximate) - Height mast up | 16.54 m ( 54.3 ft ) |
| Dimensions (Approximate) - Height mast down | 3.58 m ( 11.75 ft ) |
| Dimensions (Approximate) - Note | *Contact the factory for width with platform access to cab or service platform walkway. |
| Pull-Down/Hoisting Capacity - Pull-Down Capacity | Up to 15 876 kg (Up to 35,000 lb) |
| Specifications - Hole Diameter | 140-200 mm (5.5-7.87 in) |
| Specifications - Engine | Cat© C18 |
| Specifications - Bit Load | Up to 16 964 kg (37,400 lb) |
| Compressor Choices - Note | With the compressor's electronic controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both high and low pressure compressors contain this feature. |
| Cooling - Components (1) | Coolers with easy cleaning access |
| Cooling - Components (2) | All cooler core sections are replaceable |
| Cooling - Components (3) | Functional in ambient temperature of up to 52� C (125� F) |
| Cooling - Components (4) | Automatic variable speed fan control |
| Climate Choices - Climate Level 1 Standard Fluids and Lubricants (1) | Rated down to -1C (30 F) |
| Climate Choices - Climate Level 1 Standard Fluids and Lubricants (2) | Withstands high heat up to 52 C (125 F) |
| Frame and Work Deck - Features (1) | Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life |
| Frame and Work Deck - Features (2) | Slip resistant surfaces |
| Frame and Work Deck - Features (3) | Fuel tank capacity 833 L (220 gal) |
| Frame and Work Deck - Components (1) | Three leveling jacks provide leveling on a 7� bench (any orientation) |
| Frame and Work Deck - Components (2) | Heavy duty tow hooks (non-drill end) |
| Frame and Work Deck - Components (3) | Four (4) lift lugs, for use with cables or chains |
| Frame Access Choices - Choice (1) | Fixed access steps to the cab area |
| Frame Access Choices - Choice (2) | Small platform to the cab includes fixed access steps |
| Undercarriage - Model | Cat® 336 Excavator type |
| Undercarriage - Carrier Rollers | Three (3) |
| Undercarriage - Triple Grousers (1) | 600 mm (23.6 in); 0.89 bar (12.6 psi) ground pressure |
| Hydraulics - Components (1) | Two (2) main pumps: 85 cc (piston with proportional electronic controls) |
| Hydraulics - Components (2) | One (1) auxiliary circuit pump: 45 cc (piston, load sensing) |
| Hydraulics - Components (3) | One (1) fan pump: 45 cc (piston with proportional electronic controls) |
| Hydraulics - Components (4) | One (1) charge pump: 73.8 cc (gear, fixed displacement) |
| Tool Package Rotary - Components (7) | Drill tool lubricator (optional) |
| Tool Package DTH - Components (8) | Top sub |
| Tool Package DTH - Components (7) | Drill tool lubricator is included with selection of DTH Compressor |
| Basic Specs - Compressor - DTH Drilling | 29.7 m_/min (1,050 ft_/min) @ 24.1 bar (350 psi) |
| Undercarriage - Components (1) | Track chain guards and guides |
| Frame Access Choices - Choice (3) | Platform access to the cab with full length service access walkway includes fixed access steps and self-closing gates |
| Hydraulics - Components (5) | Scheduled Oil Sampling (S-O-S SM) ports |
| Undercarriage - Lower rollers | Eight (8) |
| Mast and Pipe Carousel Features - Features (1) | Pipe carousel:<br>Accepts quantity of four (4) 9.14 m (30 ft) pipes |
| Tool Package Rotary - Components (1) | One-piece roller deck bushing |
| Tool Package Rotary - Components (2) | Pipe positioner clamps |
| Tool Package Rotary - Components (3) | Deck wrench |
| Tool Package Rotary - Components (4) | Bit sub |
| Tool Package Rotary - Components (5) | Top sub |
| Tool Package Rotary - Components (6) | Pipe wiper seal |
| Tool Package DTH - Components (1) | Two-piece bushing |
| Tool Package DTH - Components (2) | Pipe positioner clamps |
| Tool Package DTH - Components (3) | Deck wrench |
| Tool Package DTH - Components (4) | Shock sub |
| Tool Package DTH - Components (5) | Cross over subs |
| Tool Package DTH - Components (6) | Pipe wiper seal |
| Rotary Head Top Drive System - Torque - Single Motor | 8360 N·m ( 6166 lb/ft ) |
| Rotary Head Top Drive System - Rotation Speed | 0-150 rpm |
| Rotary Head Top Drive System - Components (1) | Rotary torque control |
| Rotary Head Top Drive System - Components (2) | Virtual rotary head travel interlocks |
| Rotary Head Top Drive System - Components (3) | Virtual rotary head travel interlocks |
| Operator Environment - Cab Design | Falling Object Protective Structure (FOPS) certified cab includes:<br>- Rubber shock-mounts to absorb mechanical vibration<br>- Operator station design that integrates an ergonomic seat, joystick controls with full instrumentation, dual 254 mm (10 in) high-definition color screens and 12 volt power port<br>- Additional display screen for cc cameras; color, high-definition 254 mm (10 in)<br>- Power convertor 24V to 12V<br>- Radio-ready for communication and entertainment stereo<br>- Two swing out doors and Cat keyed locks<br>- Literature holder<br>- Storage area suitable for lunchbox |
| Operator Environment - Cab Packages | <b>Standard configuration</b> includes a fabric seat, removable floor mat, single pane window glass and driller window guard<br><b>Premium configuration</b> includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard. |
| Operator Environment - Seating | – Swivel seat is fully ergonomic, with tilt (5° adjustment), lumbar support, and fore/aft seat adjustment 80 mm (3.1 in)<br>- Seat locks and has two point retractable, 76 mm (3 in) seat belt |
| Operator Environment - Windows | – Large windows on the front, rear and right cab side; full length drill window with guard<br>- Window shades (option)<br>- Windshield wiper with a common washer tank<br>- Manometer Pressure Gauge (option) |
| Operator Environment - Lighting | – LED interior lights, backlit joysticks and keypads<br>- Flood lights for the drill perimeter; area spotlights<br>- Mast beacon and tram flashing strobe light (option) |
| Operator Environment - HVAC | – Floor heating vent<br>- Filter access from deck, 500 hour service interval<br>- Defogging HVAC vents on main window |
| Operating System Controls - Standard - Components (1) | Electric controls for drilling, tramming, leveling plus auxiliary functions |
| Operating System Controls - Standard - Components (2) | Rotary torque control |
| Operating System Controls - Standard - Components (3) | Virtual rotary head travel stops |
| Operating System Controls - Standard - Components (4) | Pipe positioner engaged/disengaged indicator |
| Operating System Controls - Standard - Components (5) | Drill depth meter |
| Operating System Controls - Standard - Components (6) | Drill performance and display system |
| Operating System Controls - Standard - Components (7) | Delayed engine shut down |
| Operating System Controls - Standard - Components (8) | Filter indicators for hydraulic, fuel, compressor and engine |
| Operating System Controls - Standard - Components (9) | Jack pressure sensors |
| Operating System Controls - Standard - Components (10) | Data logging of machine health with warnings and fault code records with export capability |
| Operating System Controls - Standard - Components (11) | Dust suppression control |
| Operating System Controls - Standard - Components (12) | Mast lock indicator |
| Operating System Controls - Standard - Components (13) | ECM proportional fan speed control system |
| Operating System Controls - Standard - Components (14) | Tram interlock, machine stability limits |
| Operating System Controls - Standard - Components (15) | Tram interlock, pipe in hole |
| Operating System Controls - Standard - Components (16) | Tram interlock, mast up and locked or down and parked |
| Operating System Controls - Standard - Components (17) | Tram interlock, jacks retracted |
| Operating System Controls - Standard - Components (18) | Tram interlock, winch parked |
| Operating System Controls - Standard - Components (19) | Cab environment controls (AC, heat, fan speeds) |
| Operating System Controls - Standard - Components (20) | Pre wired for Terrain and Autonomous Operation |
| Automation and Technology - Type (1) | Autonomous ready |
| Automation and Technology - Components (1) | Drill depth meter |
| Automation and Technology - Components (2) | Drill Assist Automated Functionality (onboard technology):<br>- Auto Level (with auto retract jacks)<br>- Auto Mast (raise, lower and lock into place)<br>- Auto Dril (single pass) |
| Automation and Technology - Components (3) | Cat Terrain ready |
| Automation and Technology - Components (4) | Product Link™ Elite |
| Safety and Security - Components (1) | Seven (7) emergency stop buttons |
| Safety and Security - Components (2) | Hinged window guard over the full length of the front drill window |
| Safety and Security - Components (3) | Conditional safety interlocks |
| Safety and Security - Components (4) | Self-closing gates |
| Safety and Security - Components (5) | Electric horn activated by push button in the cab |
| Safety and Security - Components (6) | Automatic, audible tram alarm |
| Safety and Security - Components (7) | Battery disconnect and starter switches can be locked out |
| Safety and Security - Components (8) | Air hose retention devices |
| Safety and Security - Components (9) | Slip resistant platform surfaces |
| Safety and Security - Components (10) | Machine lifting provisions |
| Safety and Security - Components (11) | FOPS Certified Operator Cab |
| Service Packages - Package (1) | Basic Package: Centralized manual lubrication for all pivot points, gravity fill for fuel and water |
| Service Packages - Package (2) | Standard Package: Automated lubrication system, fast fill for fuel and water (option) |
| Weights - Working Weight Range | 40 823 – 45 359 kg (90,000 – 100,000 lb) |
Related products
-
Rotary Drills
MD6380
View Details -
Rotary Drills
MD6250
View Details -
Rotary Drills
MD6310
View Details
