MD6310

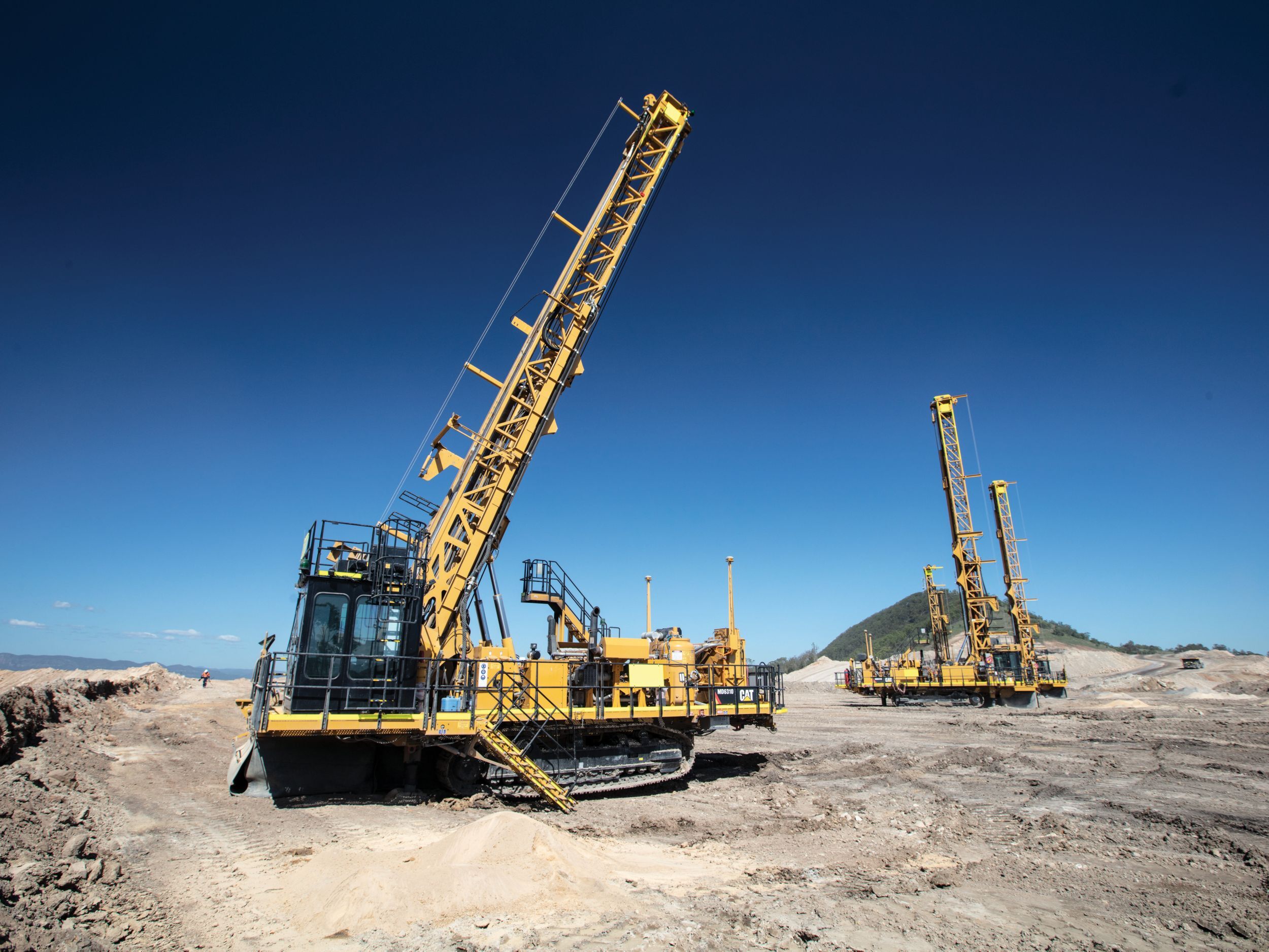

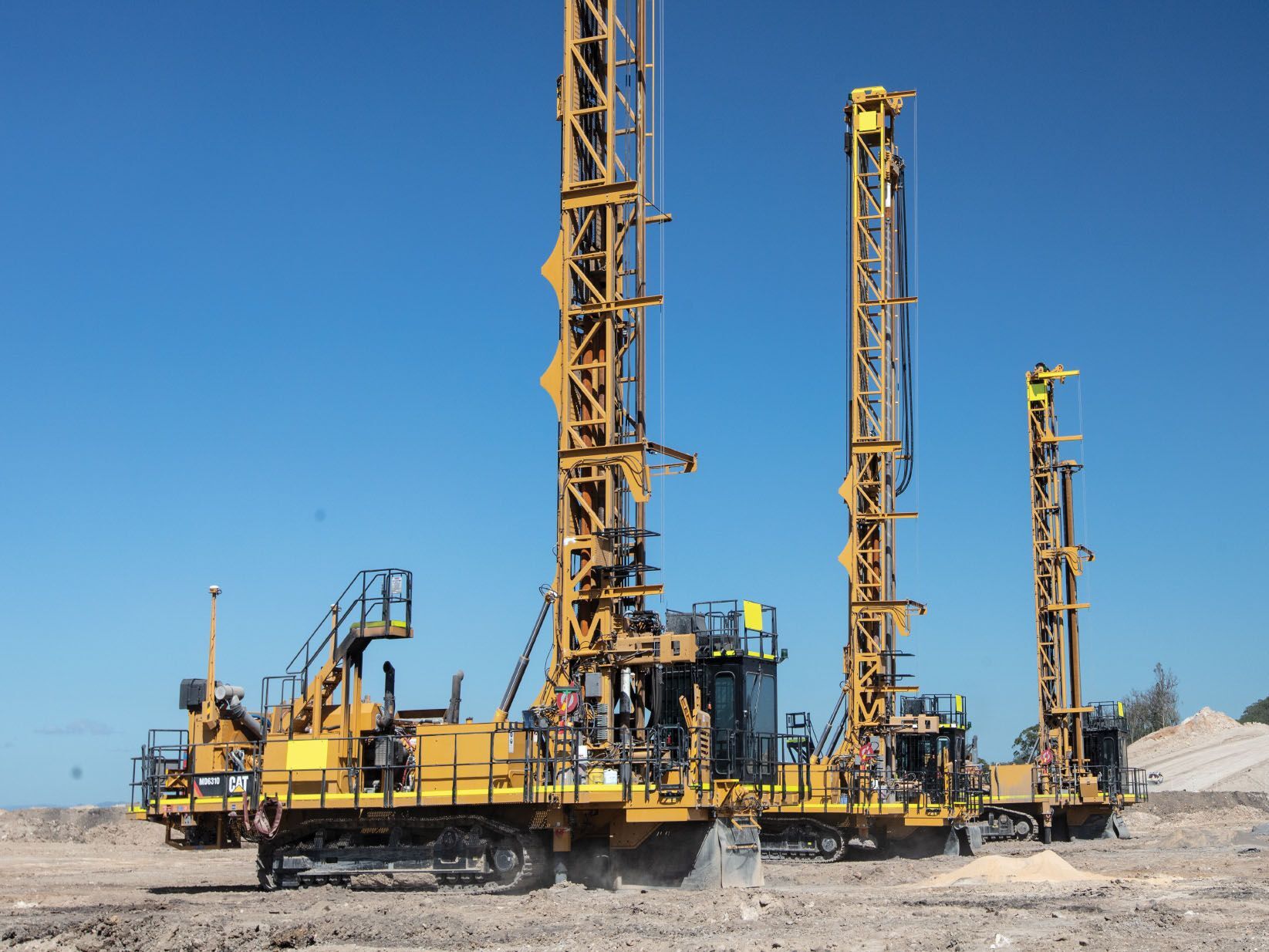

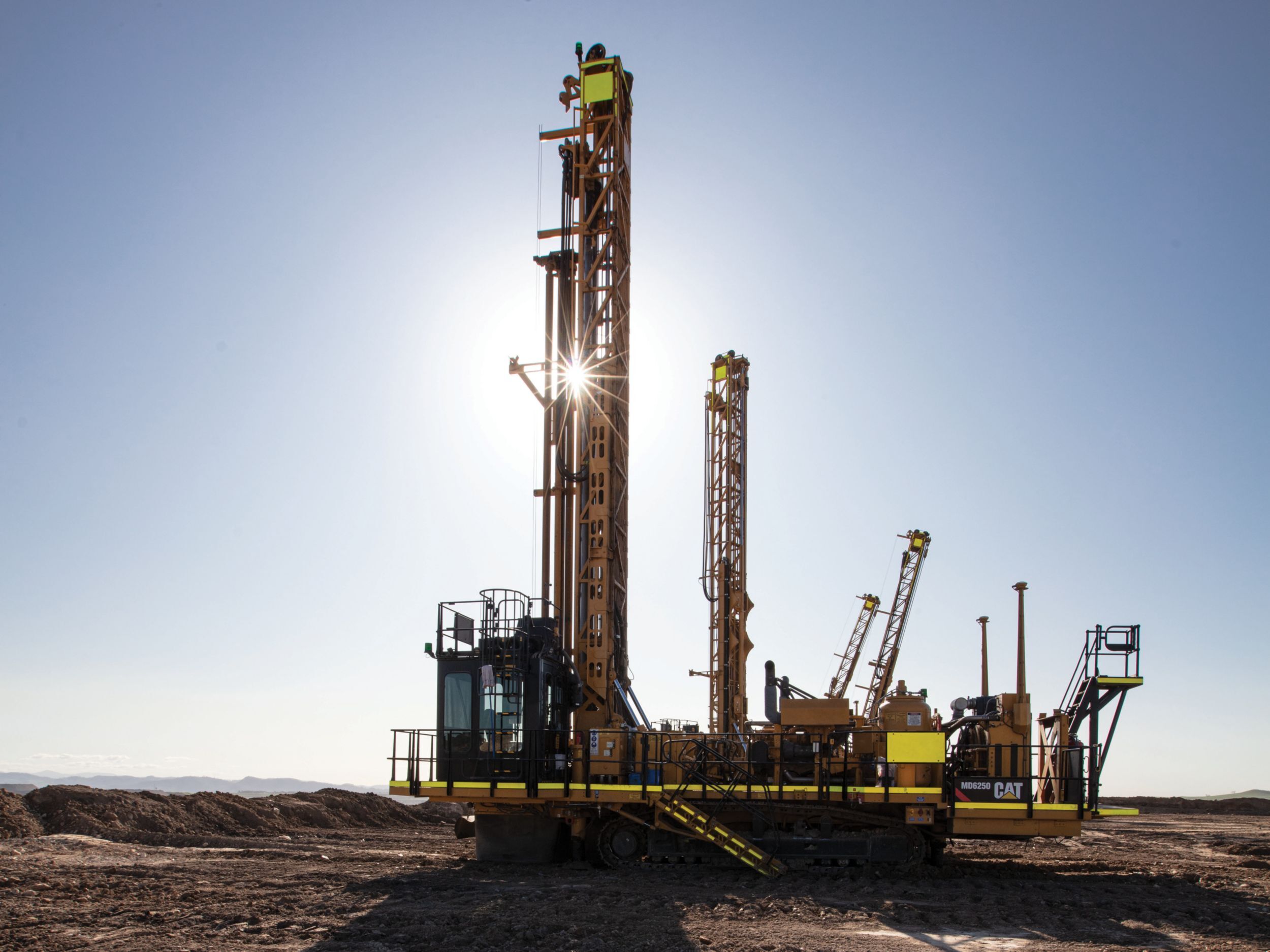

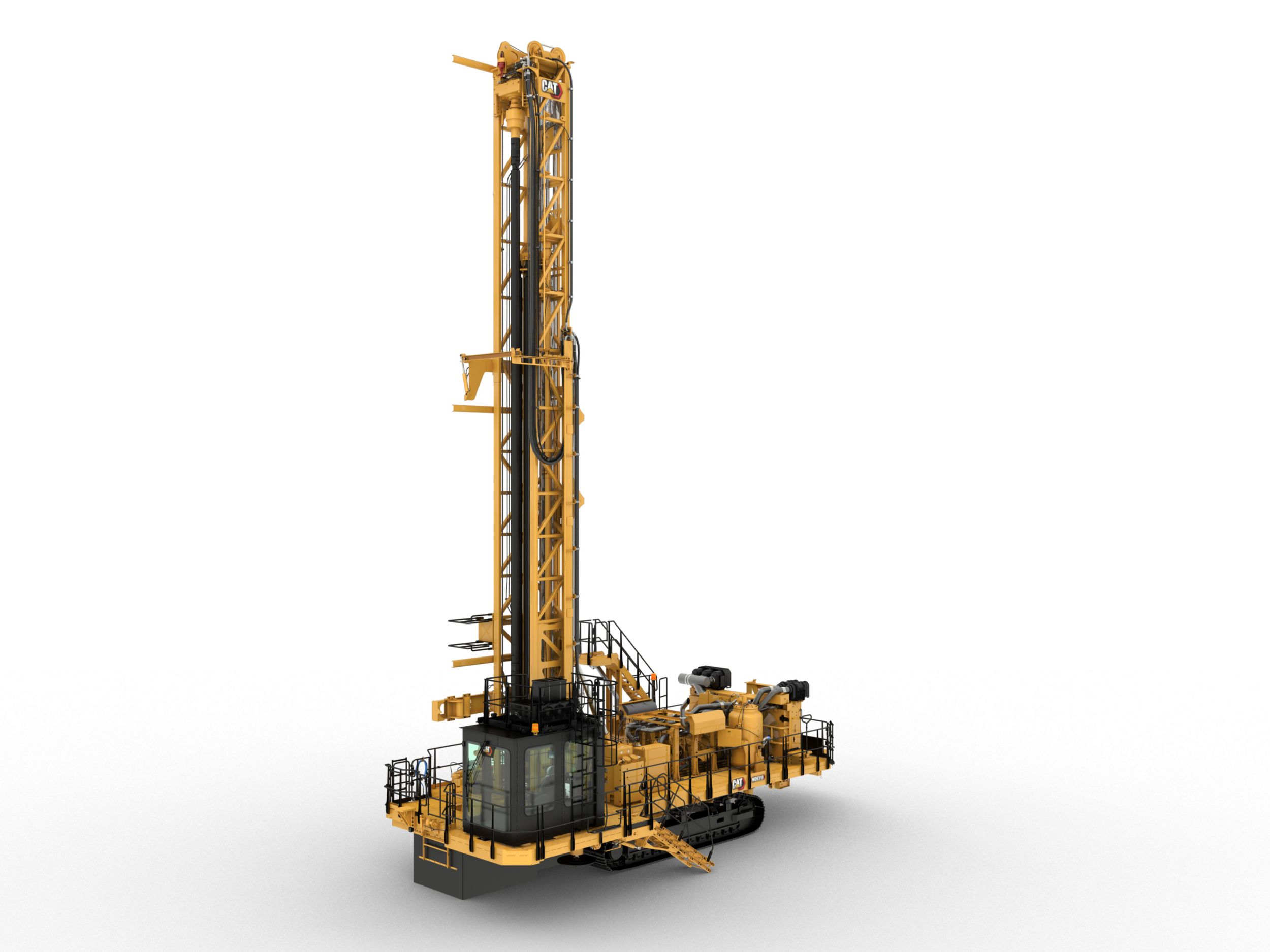

MD6310 Rotary Blasthole Drill 13.7 m or 17.5 m (44.9 ft or 57.4 ft) Mast Configuration
The Cat® MD6310 drill rig is a powerful, flexible tool that can help you get the most out of your drilling operation. It offers a wide variety of features and options designed to meet your site’s specific needs and challenges, with an updated cab that keeps operators safe and comfortable while increasing performance and productivity. Infused with the latest technologies, the MD6310 not only increases productivity and allows for automated drilling, but also improves the efficiency of all downstream operations. Designed to drill holes from 203-311 mm (8-12.25 in) in diameter, the MD6310 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.
WORLD-CLASS OPERATOR STATION
- Ergonomic controls to help operators stay alert and avoid fatigue
- Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
- Excellent visibility, thanks to multiple cameras and full-length windows
- Optional heated and ventilated seat for enhanced operator comfort
100% CAT INTEGRATION
- Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
- Shared software for autonomous features
- Backed by the world-class support of the Cat dealer network
CAT ELECTRONICS: BACKBONE OF THE MACHINE
- Common electronic architecture across all Cat machines to ensure technician familiarity
- Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
- Serves as common platform for integrating future autonomy solutions
- Product Link™ Elite provides real-time performance tracking
MATCHED POWERTRAIN
- Variable air volume for reduced fuel consumption and powerful performance
- C32B engine matched to largest “standard” compressor in this class for fast cycle times
- Powertrain optimized to withstand rigorous drilling applications
- High- and low-pressure configurations offer variable volume air control
- Optimal feed force, rotary torque and air, helping to reduce fuel consumption
TECHNOLOGY AND AUTOMATION
- Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
- Machine health and performance monitoring keep machine running productively
- Drill depth meter helps reduce over- and under-drilling
- Ready to connect with the Cat MineStar™ suite of technologies, including Terrain for drilling and Command for drilling
SAFETY
- Three standard cameras and large windows give the operator excellent visibility
- MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
- Seven engine shut-down buttons
- Slip-resistant surfaces for safer ingress/egress and service
- LED interior lights and backlit joysticks and keypads; exterior spot and flood lights illuminate paths for ingress/egress
SUSTAINABILITY
- Designed to use less fuel, which reduces engine emissions
- Tier 4 Final engines reduce NOx and particulate matter
- Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
- Longer maintenance intervals that decrease the amount of waste contributed to the environment
Videos
Additional information
| Offering Type | |
|---|---|
| Mast - Note (1) | Hydraulic, indexing pipe carousels accept various pipe diameters |
| Mast - Note (2) | Configuration choices include single pass, multi pass, vertical out to 30 degree angle drilling |
| Overhead Winch System (optional) - Note | Variable speed control |
| Basic Specs - 17.5 m (57.4 ft) Mast - Pulldown Capacity | Up to 39 009 kg (Up to 86,000 lb) |

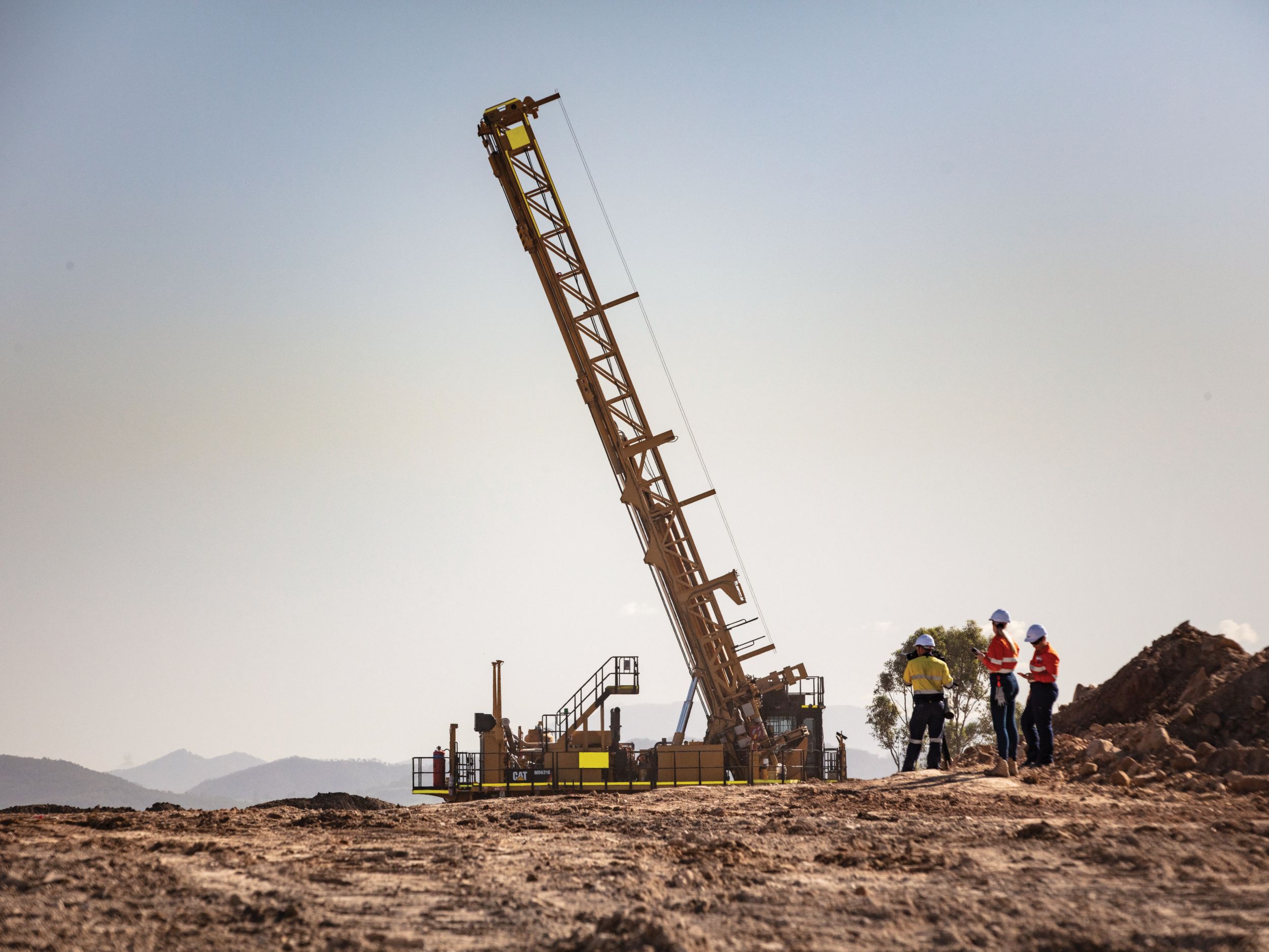

| Basic Specs - Angle Drilling | Vertical to 30° (in 5° increments) |
| Operator Environment - Components (4) | Drill performance touchscreen display |
| Automation and Technology - Type | Autonomy ready |
| Dust Suppression Choices - Choices (1) | Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dust collector) |
| Frame and Work Deck - Components (8) | DTH hammer storage on drill deck with high pressure configuration (option) |
| Operator Environment - Components (8) | Additional display screen for cc cameras; color, high-definition 254 mm (10 in) |
| Dimensions (Approximate) - 17.5 m (57.4 ft) Mast - Length - Mast Down - Extended Cab | 25.43 m ( 83.33 ft ) |
| Basic Specs - 17.5 m (57.4 ft) Mast - Hole Diameter Range | 203-311 mm (8-12.25 in) |
| Mast - Features (9) | Drill pipe positioner |
| Overhead Winch System (optional) - Capacity Rating | 1814 kg ( 4000 lb ) |
| Operator Environment - Components (11) | Cab roof access ladder (option) |
| Operator Environment - Components (1) | Spacious FOPS cab has 3 m² (32.4 ft²) floor space with an integrated operator station |
| Frame and Work Deck - Features (5) | Bolt-on platform for cold weather generator or fire suppression bottles (option) |
| Climate Choices - Climate Level 4 Arctic Fluids and Lubricants, Heating Package (1) | Rated down to –40° C (–40° F) temperatures |
| Dimensions (Approximate) - 13.7 m (44.9 ft) Mast - Body Length - Standard Cab | 13.27 m ( 43.54 ft ) |
| Dimensions (Approximate) - 13.7 m (44.9 ft) Mast - Width - Rear | 6.32 m ( 20.74 ft ) |
| Dimensions (Approximate) - 17.5 m (57.4 ft) Mast - Length - Mast Down - Standard Cab | 24.9 m ( 81.69 ft ) |
| Basic Specs - 17.5 m (57.4 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Single Pass Depth | 17.5 m ( 57.4 ft ) |
| Overhead Winch System (optional) - Winch Reach - Past The Drill Deck | 6.1 m ( 20 ft ) |
| Basic Specs - 17.5 m (57.4 ft) Mast - Bit Load - Single Pass | Up to 42 149 kg (Up to 92,922 lb) |
| Operator Environment - Components (13) | Seat swivels, locks and has two point/76 mm (3 in) seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in) |
| Operator Environment - Components (2) | Extended cab option 4.2 m² (45.2 ft²); prewired and dedicated space for refrigerator and microwave |
| Dust Suppression Choices - Choices (3) | Static dust curtains, four sides boxed in (standard) |
| Dimensions (Approximate) - 17.5 m (57.4 ft) Mast - Width - Rear | 6.32 m ( 20.73 ft ) |
| Operator Environment - Components (14) | Trainer’s seat that folds away and has retractable seat belt (optional) |
| Weights - 13.7 m (44.9 ft) Mast - Working Weight Range - Minimum/Maximum | 75 800/97 000 kg (167,110/213,848 lb) |
| Climate Choices - Climate Level 4 Arctic Fluids and Lubricants, Heating Package (3) | Full arctic lubricant package includes: engine oil, compressor oil and hydraulic oil |
| Drill Pipe - 12.19 m (40 ft) pipes - pipe rack carousel holds a quantity of four (4) or five (5) pipes, 13.7 m (44.9 ft) Mast: Rotary or DTH | 194 mm ( 7.625 in ) |
| Basic Specs - 17.5 m (57.4 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Multi Pass Depth | Down to 47.9 m (Down to 157.4 ft) |
| Mast - Features (13) | Tool oiler 113.5 L (30 gal) oil injection system (Rotary drilling only) |
| Compressor/Receiver Choices - DTH Drilling - Includes Tool Lubrication and Hammer Storage | 42.2 m³/min (1,500 ft³/min) @ 34.4 bar (500 psi) |
| Mast Packages - Mast Accessories Hydraulic (2) | One hydraulic pipe catcher, plus one wire rope, hydraulically actuated pipe positioner, hydraulic bit basket |
| Mast Packages - Mast Accessories Hydraulic (1) | One hydraulic pipe catcher, hydraulically actuated pipe positioner, hydraulic bit basket |
| Dimensions (Approximate) - 13.7 m (44.9 ft) Mast - Body Length - Extended Cab | 13.79 m ( 42.24 ft ) |
| Basic Specs - 13.7 m (44.9 ft) Mast - Hole Diameter Range | 203-311 mm (8-12.25 in) |
| Mast - Features (10) | Overhead winch with remote; variable speed drive with ≥ 1818 kg (4,000 lb) rating, length to reach 6.1 m (20 ft) past drill deck (option) |
| Mast - Features (7) | Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH |
| Carousel (Mast size and pipe diameter dependent) - 17.5 m (57.4 ft) Mast Carousel; holds quantity of 2 × 7.62 m (25 ft) pipes; total depth 32.7 m (107.4 ft): Pipe diameter | 235 mm ( 9.25 in ) |
| Dimensions (Approximate) - 13.7 m (44.9 ft) Mast - Height - Mast Up | 19.93 m ( 65.39 ft ) |
| Operator Environment - Components (10) | Radio-ready for communication and entertainment radio |
| Drill Pipe - 12.19 m (40 ft) pipes - pipe rack carousel holds a quantity of four (4) or five (5) pipes, 13.7 m (44.9 ft) Mast: Rotary (1) | 203 mm ( 8 in ) |
| Operator Environment - Components (7) | Operator station design integrates an ergonomic seat, armchair joystick controls with full instrumentation, and two 254 mm (10 in) color, high definition touchscreens and 12 volt power port |
| Mast - Features (3) | Auto tensioning of pull down and hoist cables |
| Operator Environment - Components (9) | Power convertor 24V to 12V |
| Service Tool Options - Option | Bushing Retention Tool 178 to 235 mm (7.00 to 9.25 in) pipe diameter |
| Mast - Features (5) | Variable grip hydraulic break out wrench (HOBO) for range of pipe diameters |
| Basic Specs - 17.5 m (57.4 ft) Mast - Hoist Speed | 37.4 m/min ( 122.7 ft/min ) |
| Operator Environment - Components (12) | Literature holder |
| Dimensions (Approximate) - 13.7 m (44.9 ft) Mast - Length - Mast Down - Extended Cab | 21.62 m ( 70.87 ft ) |
| Mast - Features (1) | 13.7 m (44.9 ft) or 17.5 m (57.4 ft) Mast configurations complete with pipe rack carousel |
| Dimensions (Approximate) - 13.7 m (44.9 ft) Mast - Width - Front | 5.39 m ( 17.68 ft ) |
| Basic Specs - 13.7 m (44.9 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Single Pass Depth | 13.7 m ( 44.9 ft ) |
| Mast - Features (15) | Mast access ladder and grating (option) |
| Dimensions (Approximate) - 17.5 m (57.4 ft) Mast - Width - Front | 5.39 m ( 17.68 ft ) |
| Drill Pipe - 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: DTH | 178 mm ( 7 in ) |
| Basic Specs - Compressor - Rotary Drilling (2) | 73.6 m³/min (2,600 ft³/min) @ 7.6 bar (110 psi) |
| Mast - Features (8) | Angle drilling 0-30°; in 5° increments |
| Climate Choices - Climate Level 4 Arctic Fluids and Lubricants, Heating Package (2) | Diesel fired heating system that heats and circulates engine coolant through the: engine block, primary water tank, heating elements for battery trays with a provision for fuel tanks |
| Mast - Features (4) | Feed system accommodates multiple pipe diameters |
| Basic Specs - 13.7 m (44.9 ft) Mast - Pulldown Capacity | Up to 39 009 kg (Up to 86,000 lb) |
| Climate Choices - Climate Level 4 Arctic Fluids and Lubricants, Heating Package (6) | Breaker panel includes five (5) additional breakers for locally supplied heating elements, if needed |
| Drill Pipe - 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: Rotary (2) | 219 mm ( 8.625 in ) |
| Weights - 17.5 m (57.4 ft) Mast - Working Weight Range - Minimum/Maximum | 75 500/97 500 kg (166,449/214,950 lb) |
| Operator Environment - Components (5) | Cab rubber shock-mounts absorb mechanical vibration and restrict exterior noise |
| Undercarriage - Triple grousers for soft rock ground bearing pressure 1.28 bar (18.5 psi) | 750 mm ( 29.5 in ) |
| Operator Environment - Components (6) | Two swing-out hinged doors with windows and Cat keyed locks |
| Compressor/Receiver Choices - Choice | Electronic compressor control and regulation with purged air lines |
| Basic Specs - Emissions (Equivalent to Tier 2): Power Rating ISO 14396 | 769 kW ( 1031 HP ) |
| Engine Choices - Components (4) | Ether starting aid; ether bottle supplied locally |
| Carousel (Mast size and pipe diameter dependent) - 13.7 m (44.9 ft) Mast Carousel; holds quantity of 4 × 12.19 m (40 ft) pipes; total depth 62.5 m (204.9 ft): Pipe diameters | 178 mm (7 in), 194 mm (7.625 in), 203 mm (8 in), 219 mm (8.625 in) |
| Drill Pipe - 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: Rotary | 235 mm ( 9.25 in ) |
| Engine Choices - Components (3) | Common air intake filters provide +500 hour service interval in normal operating conditions |
| Climate Choices - Climate Level 4 Arctic Fluids and Lubricants, Heating Package (5) | Shore power connection box with switchable 240-600V (50 amp) connection; diesel genset and or plug, sold separately |
| Dimensions (Approximate) - 17.5 m (57.4 ft) Mast - Body Length - Standard Cab | 13.27 m ( 43.54 ft ) |
| Dimensions (Approximate) - 13.7 m (44.9 ft) Mast - Length - Mast Down - Standard Cab | 21.1 m ( 69.23 ft ) |
| Operator Environment - Components (3) | Cab perimeter walkway available for both cab sizes |
| Mast - Features (6) | Sliding deck wrench assembly |
| Frame and Work Deck - Components (9) | Hydraulically operated viewing hatch in drill deck with spotlight (option) |
| Mast Packages - Mast Accessories Manual, 17.5 m (57.4 ft) Mast | Two wire rope pipe catchers, hydraulically actuated pipe positioner, manual bit basket |
| Basic Specs - 13.7 m (44.9 ft) Mast - Hoist Capacity | Up to 22 113 kg (Up to 48,750 lb) |
| Dimensions (Approximate) - 17.5 m (57.4 ft) Mast - Body Length - Extended Cab | 13.79 m ( 42.24 ft ) |
| Frame and Work Deck - Components (7) | Bit storage box in-deck with hinged cover (option) |
| Frame and Work Deck - Features (6) | Three egress points on deck areas in addition to main access |
| Frame and Work Deck - Features (7) | Sturdy guardrails, toe guards, self closing gates |
| Basic Specs - 17.5 m (57.4 ft) Mast - Hoist Capacity | Up to 22 113 kg (Up to 48,750 lb) |
| Mast Packages - Mast Accessories Manual, 13.7 m (44.9 ft) Mast | One wire rope pipe catcher, hydraulically actuated pipe positioner, manual bit basket |
| Operating System Controls - Standard - Components (23) | Data logging of machine health with warnings, and fault code records; export capability |
| Drill Pipe - 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: Rotary (1) | 203 mm ( 8 in ) |
| Rotary Head Top Drive System - Components (4) | Virtual rotary head travel stops and interlocks |
| Frame and Work Deck - Components (10) | Drill pipe thread greaser with remote fill tank or disposable grease bucket (option) |
| Carousel (Mast size and pipe diameter dependent) - 17.5 m (57.4 ft) Mast Carousel; holds quantity of 4 × 7.62 m (25 ft) pipes; total depth 48 m (157.5 ft): Pipe diameters | 178 mm (7 in), 194 mm (7.625 in), 203 mm (8 in), 219 mm (8.625 in) |
| Overhead Winch System (optional) - Cable Diameter | 13 mm ( 0.5 in ) |
| Basic Specs - Emissions (U.S. EPA Tier 4 Final): Engine | C32B @ 1,800 rpm |
| Mast - Features (11) | Rotation Gear Box with dual motor arrangement, up to 160 rpm, and 16,000 N∙m of torque (11,800 ft-lb) |
| Basic Specs - Compressor - Rotary Drilling (1) | 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi) |
| Dust Suppression Choices - Water Injection - Standard | – Water tank capacity 1514 L (400 gal) |
| Compressor/Receiver Choices - Rotary Drilling (1) | 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi) |
| Drill Pipe - 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: Rotary or DTH | 194 mm ( 7.625 in ) |
| Carousel (Mast size and pipe diameter dependent) - 13.7 m (44.9 ft) Mast Carousel; holds quantity of 5 × 12.19 m (40 ft) pipes; total depth 74.6 m (244.9 ft): Pipe diameters | 194 mm (7.625 in), 219 mm (8.625 in) |
| Basic Specs - Emissions (Equivalent to Tier 2): Engine | C32B @ 1,800 rpm |
| Compressor/Receiver Choices - Rotary Drilling (2) | 73.6 m³/min (2,600 ft³/min) @ 7.6 bar (110 psi) |
| Mast - Features (2) | Pulldown/hoist system is a single cylinder |
| Dimensions (Approximate) - 17.5 m (57.4 ft) Mast - Height - Mast Up | 23.77 m ( 77.99 ft ) |
| Mast - Features (14) | Mast lanyard mounting provisions (option) |
| Basic Specs - Emissions (U.S. EPA Tier 4 Final): Power Rating ISO 14396 | 751 kW ( 1007 HP ) |
| Basic Specs - 13.7 m (44.9 ft) Mast - Hoist Speed | 37.4 m/min ( 122.7 ft/min ) |
| Basic Specs - 13.7 m (44.9 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Multi Pass Depth | Down to 74.6 m (Down to 244.9 ft) |
| Drill Pipe - 12.19 m (40 ft) pipes - pipe rack carousel holds a quantity of four (4) or five (5) pipes, 13.7 m (44.9 ft) Mast: Rotary (2) | 219 mm ( 8.625 in ) |
| Drill Pipe - 12.19 m (40 ft) pipes - pipe rack carousel holds a quantity of four (4) or five (5) pipes, 13.7 m (44.9 ft) Mast: DTH | 178 mm ( 7 in ) |
| Mast - Features (12) | Pipe catcher; manual or optional hydraulically actuated |
| Basic Specs - 13.7 m (44.9 ft) Mast - Bit Load - Single Pass | Up to 41 165 kg (Up to 90,753 lb) |
| Dust Suppression Choices - Choices (2) | Tram off spray to wet the ground around the cuttings pile (not recommended for cold weather applications) |
| Automation and Technology - Components (5) | Optional Command for Drilling enables each operator to manage more than one machine |
| Automation and Technology - Components (6) | Wiring for third party interface |
| Pull-Down/Hoisting Capacity - Pull-Down Capacity | Up to 39 009 kg (86,000 lb) |
| Specifications - Hole Diameter | 229-311 mm (9-12.25 in) |
| Specifications - Engine | Cat® C32B |
| Specifications - Bit Load | Up to 42 149 kg (Up to 92,922 lb) |
| Undercarriage - Drawbar Pull | 547000 N ( 122971 lbf ) |
| Safety and Security - Components (10) | In-deck mounted battery box |
| Operating System Controls - Standard - Components (10) | Filter indicators for hydraulic, compressor and engine |
| Service Packages - Package (1) | Basic/Manual – Centralized Manual Lube; Gravity Fill for fuel and water |
| Dust Suppression Choices - Water injection and dry dust collector (option) | – Water tank capacity 1514 L (400 gal)<br>– 204 m³/min (7,200 cfm) dry dust collector<br>– Self-cleaning filters, with auto-eject dust chute |
| Safety and Security - Components (9) | Self-closing, gates secure egress ladder locations |
| Tool Package Rotary - Components (4) | Top Sub, or Shock sub and cross over adapter (option) |
| Undercarriage - Track chain guards and guides | Level two |
| Frame and Work Deck - Components (5) | Four (4) lift lugs, for use with cables or chains |
| Operating System Controls - Standard - Components (14) | ECM controlled proportional fan speed control system |
| Cooling - Components (2) | Separate engine cooling module |
| Cooling - Components (1) | Coolers with easy cleaning access |
| Tool Package Rotary - Components (3) | Deck wrench, sliding |
| Frame and Work Deck - Components (6) | Walkway around cab to drill deck (option) |
| Climate Choices - Climate Level 2 Arctic Fluids and Lubricants | Rated down to –18° C (–0.4° F) temperatures |
| Automation and Technology - Components (3) | Drill assist (single or multipass auto drill) (options) |
| Compressor/Receiver Choices - Receiver Tank Choice (1) | Low pressure 8.6 bar (125 psi) for ASME/CR N/AU or CE |
| Operator Environment - Lighting | – LED interior lights; separate reading light, and backlit joysticks and keypads<br>– Zone controls for area lights and spot lighting for night drilling<br>– Flood lights for the drill perimeter<br>– Spot lights for power group area; drill deck; mast carousel; access ladder and walkways<br>– Standard lighting is Halogen, 1,300 lumens flood light on perimeter, area spot lights have 1,950 lumens<br>– Premium lighting is LED, 4,200 lumens flood light on perimeter (option)<br>– Mast clearance lights, cab mounted strobe, front mounted tram beacon (option) |
| Safety and Security - Components (12) | Air hose retention devices |
| Undercarriage - Travel Speed | 2.45 km/h ( 1.5 mile/h ) |
| Service Packages - Package (2) | Standard – Fast Fill for fuel and water; Automatic Lubrication System |
| Climate Choices - Climate Level 1 Standard Fluids and Lubricants (1) | Rated down to –1° C (30° F) temperatures |
| Safety and Security - Components (2) | Seven (7) engine shut down buttons: in cab, at drill deck, on deck at power train, ground accessible by main access point and each side of the drill front and left |
| Safety and Security - Components (6) | Guards for exhaust pipes and turbo lines |
| Tool Package Rotary - Components (5) | Bit sub |
| Tool Package Rotary - Components (1) | Roller deck bushing |
| Frame and Work Deck - Features (2) | Slip resistant surface |
| Frame and Work Deck - Features (3) | Fuel tank capacity 1609 L (425 gal) |
| Tool Package Rotary - Components (6) | Pipe wiper seal |
| Cooling - Components (3) | Replaceable cooler core sections |
| Undercarriage - Lower rollers | Fourteen (14) |
| Frame and Work Deck - Components (1) | Stationary rear deck; for vertical and angle drilling |
| Operating System Controls - Standard - Components (20) | Cabin pressure manometer with indicator (option) |
| Automation and Technology - Components (2) | Auto level, auto retract, auto mast |
| Engine Choices - Components (2) | Scheduled oil sampling (S∙O∙SSM) ports |
| Hydraulics - Components (2) | One (1) auxiliary circuit pump – 110 cc (piston, load sensing) |
| Tool Package DTH - Components (1) | Two piece bushing |
| Rotary Head Top Drive System - Components (3) | Rotary torque control |
| Frame and Work Deck - Components (2) | Four leveling jacks to provide leveling on a 7° bench (any orientation) |
| Frame Access Choices - Choice (1) | Fixed access ladder to the cab area |
| Tool Package Rotary - Components (2) | Pipe positioner inserts |
| Safety and Security - Feature | Approach angle of 14 degrees facilitates loading and unloading on a lowboy |
| Safety and Security - Components (7) | Mast access ladder with mast grating (option) |
| Automation and Technology - Components (1) | Drill depth indicator and interlocks |
| Safety and Security - Components (4) | Tram alarm is automatic and audible |
| Tool Package DTH - Components (6) | Pipe wiper seal |
| Safety and Security - Components (11) | Ground level keyed battery disconnect/starter lockout with remote jump start terminals |
| Frame Access Choices - Choice (3) | Cab perimeter walkway available with either choice |
| Frame Access Choices - Choice (2) | Cascading, hydraulic stairs to cab area (option) – includes jack and tram interlock that activates when the stairs are down |
| Operating System Controls - Standard - Components (3) | Rotation torque control |
| Undercarriage - Model | Cat® 349E EL Excavator type |
| Tool Package DTH - Components (4) | Shock sub and top sub adapter |
| Operating System Controls - Standard - Components (12) | Dust suppression control |
| Operating System Controls - Standard - Components (17) | Tram interlock, mast up and locked or down and parked |
| Operating System Controls - Standard - Components (1) | All electric controls for drilling, tramming, leveling plus auxiliary functions |
| Operating System Controls - Standard - Components (22) | Prewired for Terrain and autonomous operation |
| Tool Package DTH - Components (5) | Cross over hammer adapter |
| Climate Choices - Climate Level 1 Standard Fluids and Lubricants (2) | Withstands high heat to 52° C (125° F) |
| Rotary Head Top Drive System - Components (2) | Rotation gear box with dual motor arrangement, up to 160 rpm, and 16 000 N∙m (11,800 lbf-ft) of torque |
| Operator Environment - HVAC | – Floor vents in the foot rest area<br>– Roof-mounted air conditioner/heating/pressurizing unit<br>– Filter access from deck, does not require roof access, and has approximately 500 hour service interval<br>– Defogging HVAC vents on driller window |
| Operating System Controls - Standard - Components (8) | Delayed engine shut down |
| Basic Specs - Compressor - DTH Drilling | 42.2 m³/min (1,500 ft³/min) @ 34.4 bar (500 psi) |
| Operating System Controls - Standard - Components (19) | Cab environment controls (AC, filter, heat, fan speeds) |
| Compressor/Receiver Choices - Note | With the compressors variable volume control, the operator can limit air output resulting in reduced fuel consumption<br>– Both high and low pressure compressors contain this feature |
| Operating System Controls - Standard - Components (7) | Drill performance and display system |
| Tool Package DTH - Components (3) | Deck wrench, sliding |
| Rotary Head Top Drive System - Components (1) | Spindle with 168 mm (6.625 in) API regular thread and splined collar |
| Variable Grip Hydraulic Break Out Wrench Grip Ranges (2) | 235 mm (9.25 in) |
| Hydraulics - Components (3) | Two (2) fan pumps – 1,000 cc (piston, with proportional electronic controls) |
| Cooling - Components (4) | Automatic variable speed fan control |
| Compressor/Receiver Choices - Receiver Tank Choice (2) | High pressure 34.4 bar (500 psi) for ASME/CR N/AU or CE |
| Operating System Controls - Standard - Components (13) | Mast lock indicator |
| Service Packages - Package (3) | Premium – Service center for lubricant drain and fill (compressor oil, hydraulic oil, gearbox oil, engine oil, tool lubrication and grease), Automatic Lubrication System, Fast Fill for fuel and water, blowdown hose |
| Safety and Security - Components (1) | Alloy drill deck covers, with storage provision |
| Dust Suppression Choices - High Volume Water Injection System - Not Compatible with Basic Service Package | – Water tanks total capacity 3785 L (1,000 gal) maximum<br>– Primary tank above deck – 1514 L (400 gal) capacity (heated for extreme cold weather)<br>– Secondary tank above deck – 2271 L (600 gal) capacity deck |
| Operator Environment - Cameras | – Mounted on the front and left sides to provide 360° view from operator's seat<br>– Camera on the mast to view pipe carousel/top drive operation |
| Hydraulics - Components (1) | Two (2) primary pumps – 210 cc (piston, with proportional electronic controls) |
| Operator Environment - Cab - Premium | – Leather seat with heat and ventilation<br>– Dual pane window glass<br>– Front window guard<br>– Additional in-cab storage box<br>– Additional windshield wipers on front and rear windows<br>– Window shades (option)<br>– Foldaway trainer’s seat (option)<br>– Removable floor mat |
| Operating System Controls - Standard - Components (6) | Drill depth meter |
| Frame and Work Deck - Components (4) | Heavy duty tow hooks (front end) |
| Operating System Controls - Standard - Components (2) | Electronic compressor control |
| Cooling - Features | Functional in ambient temperature of 52° C (125° F) |
| Operating System Controls - Standard - Components (4) | Virtual rotary head travel stops and interlocks |
| Frame and Work Deck - Components (3) | Manual, centralized, lubrication banks for all pivot points on drill, or automated lubrication system (option) |
| Operating System Controls - Standard - Components (11) | Jack pressure sensors in the display |
| Operating System Controls - Standard - Components (5) | Pipe positioner engaged/disengaged indicator |
| Hydraulics - Components (4) | Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement) |
| Operator Environment - Cab - Standard | – Fabric seat<br>– Single pane window glass<br>– Windshield wiper for driller window<br>– Window shades (option)<br>– Foldaway trainer’s seat (option)<br>– Removable floor mat |
| Undercarriage - Carrier Rollers | Three (3) |
| Operating System Controls - Standard - Components (18) | Tram interlock, jacks retracted |
| Safety and Security - Components (5) | Hinged protective guard for full front drill window |
| Engine Choices - Components (1) | Dual starter motors |
| Operating System Controls - Standard - Components (16) | Tram interlock, pipe in hole |
| Automation and Technology - Optional Cat Terrain for Drills - Mining System Interface | – Production<br>– Navigation |
| Safety and Security - Components (3) | Electric horn activated by push button in the cab |
| Safety and Security - Components (8) | Three egress points on deck areas in addition to main access |
| Frame and Work Deck - Features (4) | Fuel capacity expansion for additional +1609 L (425 gal) |
| Operating System Controls - Standard - Components (21) | Dust curtain lifting system – auto hydraulic raise front and rear (option) |
| Automation and Technology - Components (4) | Product Link Elite (hardware from factory, subscription package via dealer) |
| Variable Grip Hydraulic Break Out Wrench Grip Ranges (1) | 178-219 mm (7.0-8.625 in) |
| Hydraulics - Components (5) | Scheduled Oil Sampling (S∙O∙S) ports |
| Tool Package DTH - Components (2) | Pipe positioner inserts |
| Operating System Controls - Standard - Components (15) | Tram interlock, machine stability limits |
| Mast Packages - Angle Drilling | Included with either mast |
| Operating System Controls - Standard - Components (9) | Rotary head rpm gauge – (digital display in screen) |
| Frame and Work Deck - Features (1) | Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life |
| Service Tool Options - Lifting Bails (Available on Request) | – 114 mm (4.5 in) API reg thread<br>– 140 mm (5.5 in) API reg thread<br>– 168 mm (6.625 in) for top sub/shock sub API thread<br>– 114 mm (4.5 in) for 178 mm (7 in) pipe BECO thread<br>– 152 mm (6 in) for 194 mm (7.625 in) up to 235 mm (9.25 in) pipe BECO thread |
| Climate Choices - Climate Level 4 Arctic Fluids and Lubricants, Heating Package (4) | Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, compressor control box, heat trace for compressor control lines, heat trace for housing from water tank to water pump and water fast-fill assembly plus tank |
| Carousel (Mast size and pipe diameter dependent) - Note | 13.7 m (44.9 ft) Mast Carousel, dual purpose; holds quantity of two (2) 12.19 m (40 ft) pipes and quantity of two (2) 9.14 m (30 ft) pipes, and adapters to connect to DTH hammer and tricone bit (DTH hammer and tricone not included)<ul><li>Accepts 194 mm (7.625 in) pipe – contact factory for additional pipe diameters</li></ul> |
| Drill Pipe - Note | Dual purpose carousel pipe: 13.7 m (44.9 ft) Mast; holds quantity of two (2) 12.19 m (40 ft) pipes and quantity of two (2) 9.14 m (30 ft) pipes, and adapters to connect to DTH hammer and tricone bit (DTH hammer and tricone not included)<ul><li>Dual purpose pipe carousel accepts 194 mm (7.625 in) pipe – contact factory for additional pipe diameters</li></ul> |
Related products
-
Rotary Drills
MD6250
View Details -
Rotary Drills
MD6380
View Details -
Rotary Drills
MD6200
View Details
