MD6380

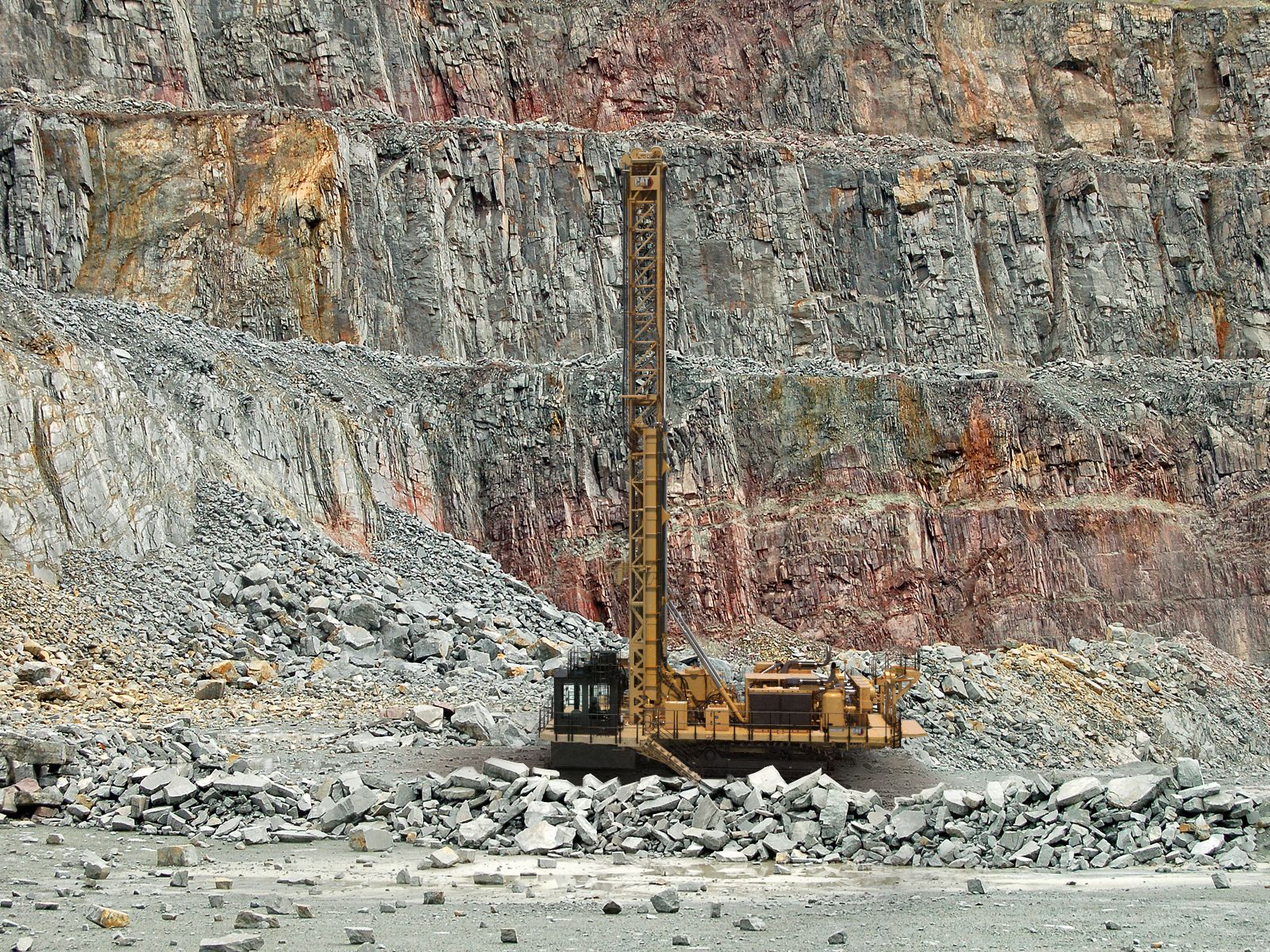

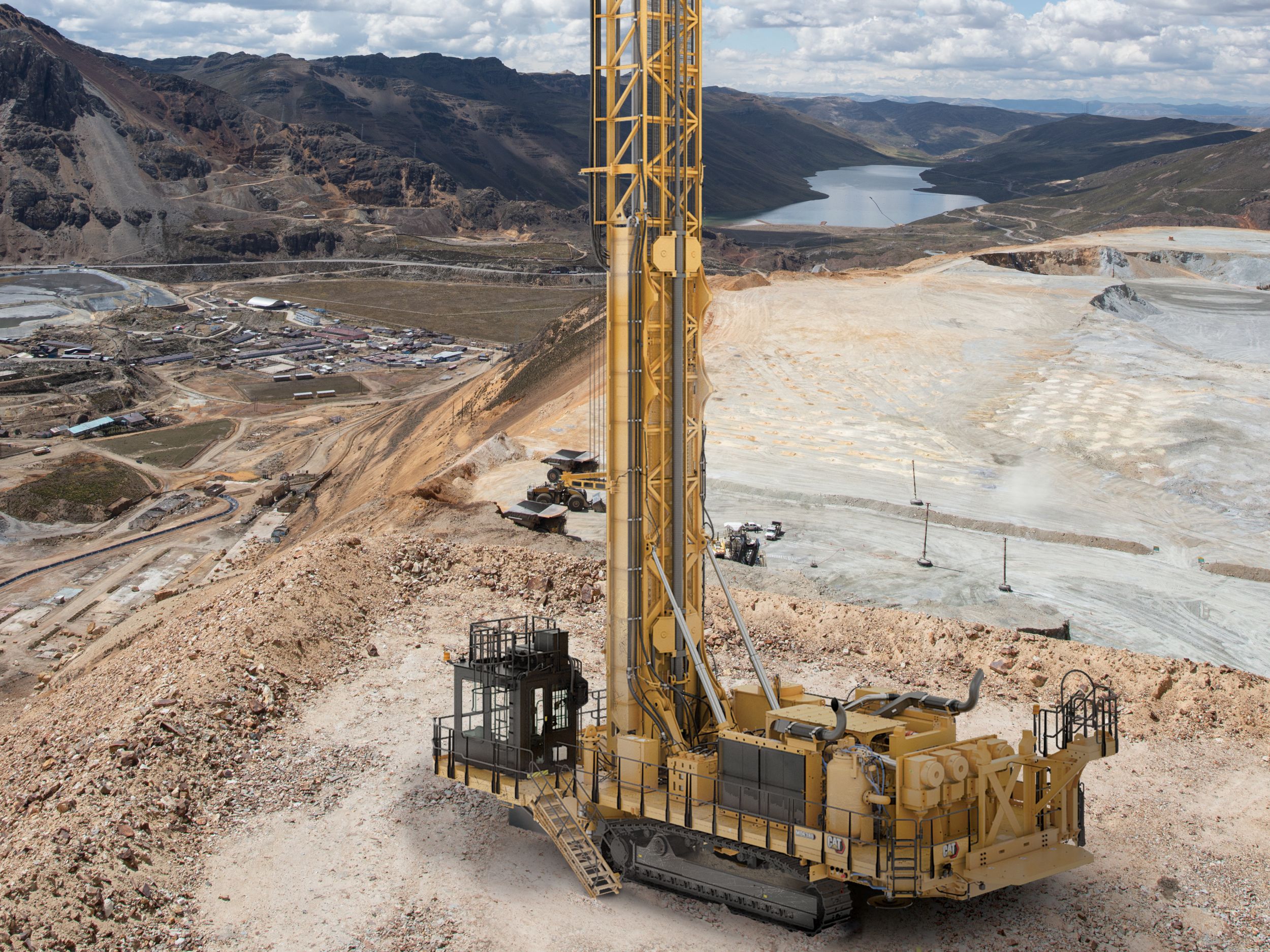

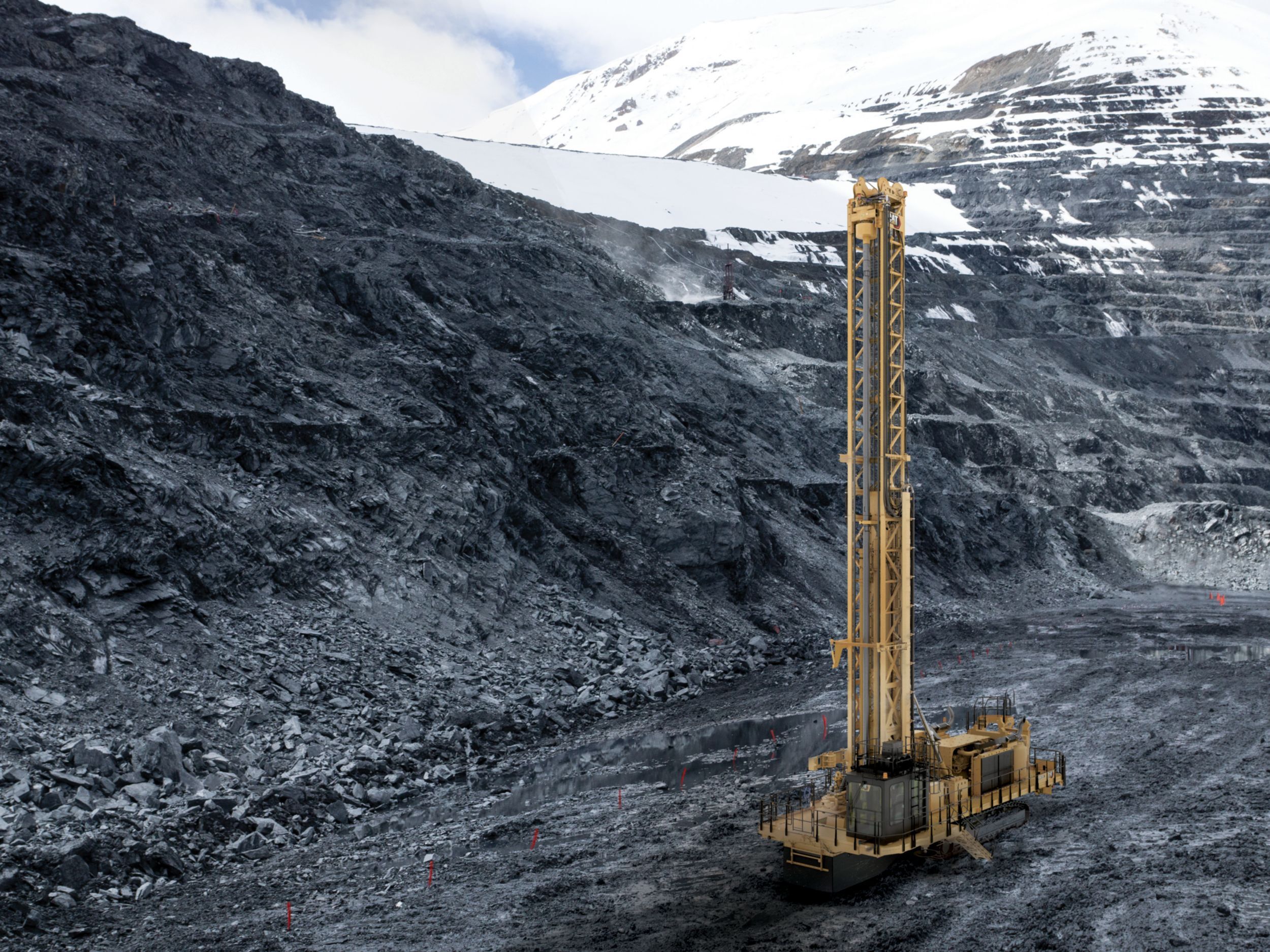

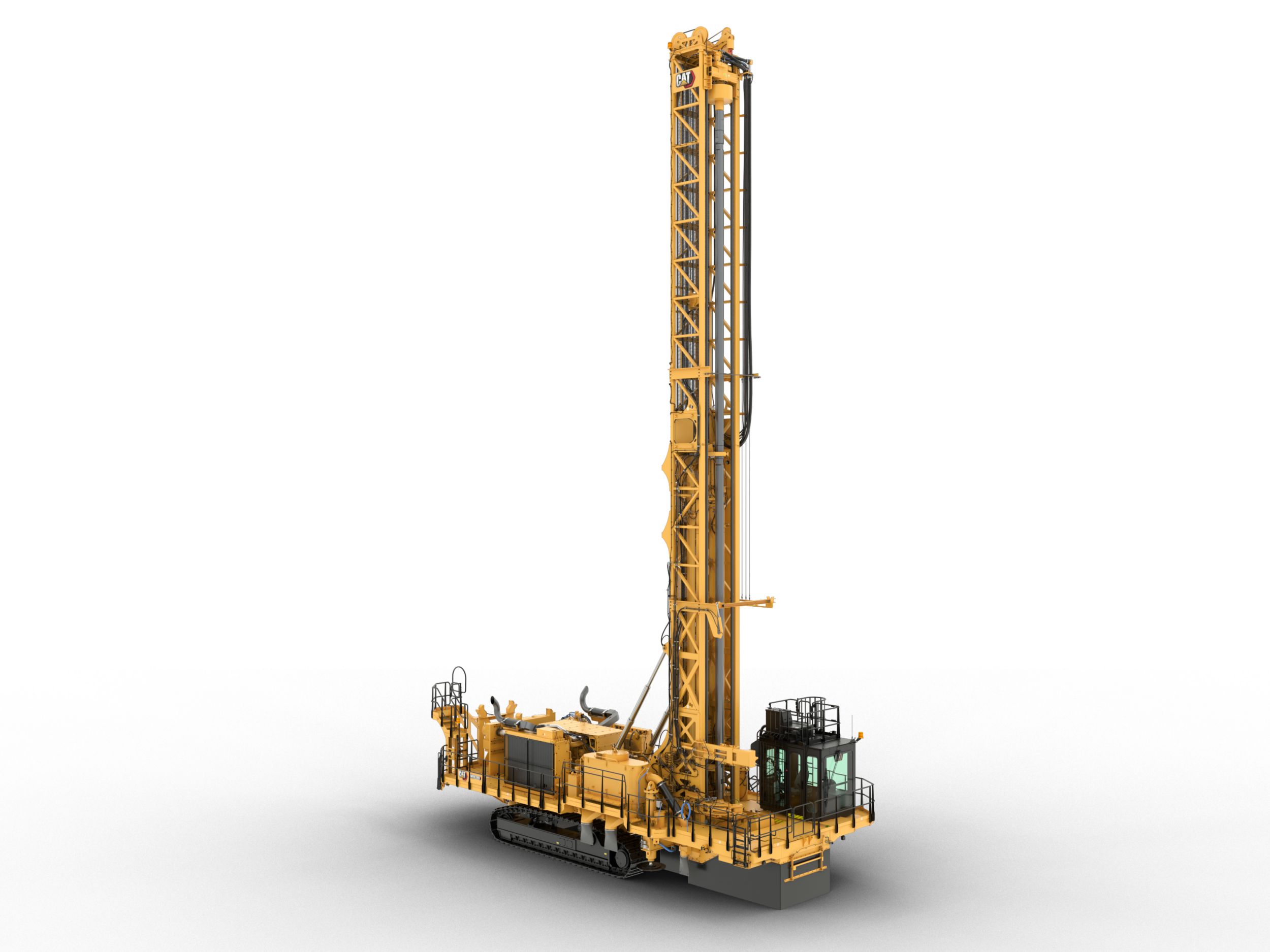

MD6380 Rotary Blasthole Drill

Designed for large bore hole production drilling in very hard rock, the ultra-class Cat® MD6380 provides the optimal mix of on-board air, feed force, rotary torque and machine mobility. It’s a powerful, rugged machine that can stand up to the conditions of any site and deliver reliable performance with high availability. Robust structures and mast with an integral a-frame allow it to stand up to the toughest conditions, so it delivers long life and reliable performance. With a next-generation cab and operator station, the MD6380 is designed to keep operators comfortable and productive all shift long. Designed to drill holes from 251-381 mm (9.875-15 in) in diameter, the MD6380 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.

Category:

WORLD-CLASS OPERATOR STATION

  • Ergonomic controls to help operators stay alert and avoid fatigue
  • Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
  • Excellent visibility, thanks to multiple cameras and full-length windows
  • Optional heated and ventilated seat for enhanced operator comfort

100% CAT INTEGRATION

  • Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
  • Shared software for autonomous features
  • Backed by the world-class support of the Cat dealer network

CAT ELECTRONICS: BACKBONE OF THE MACHINE

  • Common electronic architecture across all Cat machines to ensure technician familiarity
  • Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
  • Serves as common platform for integrating future autonomy solutions
  • Product Link™ Elite provides real-time performance tracking

MATCHED POWERTRAIN

  • Variable air volume for reduced fuel consumption and powerful performance
  • C27 engine matched to largest “standard” compressor in this class for fast cycle times
  • Powertrain optimized to withstand rigorous drilling applications
  • High- and low-pressure configurations offer variable volume air control
  • Optimal feed force, rotary torque and air, helping to reduce fuel consumption

TECHNOLOGY AND AUTOMATION

  • Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
  • Machine health and performance monitoring keep machine running productively
  • Drill depth meter helps reduce over- and under-drilling
  • Ready to connect with the Cat MineStar™ suite of technologies, including Terrain for drilling and Command for drilling

SAFETY

  • Four standard cameras give the operator excellent visibility: left, right and front view when tramming; carousel view when pipe handling; all three view simultaneously
  • Exterior lighting packages have spot and flood lights positioned to illuminate paths for ingress/egress and major service points
  • MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine

SUSTAINABILITY

  • Designed to use less fuel, which reduces engine emissions
  • Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
  • Longer maintenance intervals that decrease the amount of waste contributed to the environment.

Standard Equipment

POWER TRAIN
  • Receiver tank for ASME/CRN/AU or CE receiver tank
CAB
  • Standard cab
    – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat
  • Viewing hatch to spot over the hole
  • LED lighting
CONTROLS
  • Basic drill depth indicator and interlocks
PRODUCT LINK/TERRAIN
  • Product Link (Cellular)
MAST
  • No mast access/handrail only
PIPE LOADER (SELECT ONE)
  • 219 mm (8.625 in) diameter
    – Two pipe rack
    – Capable of single and multi-pass
  • 235 mm (9.25 in) diameter
    – Two pipe rack
    – Capable of single and multi-pass
  • 273 mm (10.75 in) diameter
    – Two pipe rack
    – Capable of single and multi-pass
  • 324 mm (12.75 in) diameter
    – Single pipe rack
    – Dust collector side only
    – Single pass only
  • 340 mm (13.375 in) diameter
    – Single pipe rack
    – Dust collector side only
    – Single pass only
TOP SUB/SHOCK SUB (SELECT ONE)
  • 219 mm (8.625 in) standard
  • 235 mm (9.25 in) standard
  • 273 mm (10.75 in) standard
  • 324 mm (12.75 in) standard
  • 340 mm (13.375 in) standard
TOOL GROUPS (SELECT ONE)
  • 219 mm (8.625 in)
    – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
  • 235 mm (9.25 in)
    – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
  • 273 mm (10.75 in)
    – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
  • 324 mm (12.75 in)
    – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
  • 340 mm (13.375 in)
    – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
VARIABLE GRIP HYDRAULIC BREAKOUT WRENCH (SELECT ONE)
  • Grip range
    – 219, 235, 273 mm (8.625, 9.25, 10.75 in)
  • Grip range
    – 324, 340 mm (12.75, 13.375 in)
DRILL PIPE – 9.9 M (32.5 FT) LENGTH
  • No pipe thread greaser
TRICONE BITS GROUP (SELECT ONE)
  • Hydraulic bit basket
SERVICE PACKAGES/FLUID SYSTEM
  • Standard fast fill for fuel and water only, automated lubricant system
CLIMATE/REGIONAL CONSIDERATIONS
  • Air receiver tank low pressure (ASME/CRN/AU) or
  • Air receiver tank low pressure (CE)
  • Four (4) batteries
  • Climate Level 1
    – Standard fluids and lubricants
    – With a temperature range of –1° C (30° F) to 52° C (125° F)
  • Certifications CE
FRAME/DECK
  • No tool storage box (cover only)
  • No jib crane (cover only)
DUST SUPPRESSION
  • Water injection only (no dust collector)
    – 2271 L (600 gal) tank below deck
UNDERCARRIAGE (SELECT ONE)
  • 750 mm (29.5 in) double grousers for hard rock applications or
  • 900 mm (35.4 in) double grousers for soft rock applications

Additional information

Mast - Note (1)

Vertical or angle drilling

Batteries - Note (1)

Four (4) each batteries, sealed

Dust Suppression - Water Injection/Dry Dust Collection (Note 3)

204 m³/min (7,200 ft³/min) dry dust collection

Dust Suppression - Water Injection/Dry Dust Collection (Note 2)

Fast fill

Dust Suppression - Water Injection System, High Volume Total Tank Capacity (Note 1)

2271 L (600 gal) below deck mounted tank

Dust Suppression - Water Injection System (Note 2)

Fast fill

Dust Suppression - Water Injection System (Note 1)

Tank below deck

Dust Suppression - Water Injection/Dry Dust Collection (Note 1)

Tank below deck

Dust Suppression - Water Injection System, High Volume Total Tank Capacity (Note 3)

Fast fill

Dust Suppression - Water Injection System, High Volume Total Tank Capacity (Note 2)

3028 L (800 gal) above deck mounted tank

Operator Environment - Cab - Standard

– Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat

Dimensions (Approximate) - Working Width (non-drill end)

6.06 m ( 19.9 ft )

Weights - Mast Only

40000 kg ( 88184 lb )

Undercarriage - Cat 374 EEL - Double Grousers for Hard Rock Applications

750 mm ( 29.5 in )

Mast Accessories - Accessory (1)

Pipe positioner (stabilizer) engaged/disengaged indicator, and interlock

Mast - Multi-Pass Hole Depth Down To

39.5 m ( 129 ft )

Dust Suppression - Water Injection System, High Volume Total Tank Capacity

5299 l ( 1400 gal (US) )

Mast - Bit Load Up To

53845 kg ( 118719 lb )

Undercarriage - Cat 374 EEL - Drawbar Pull

980686 N·m ( 723316 lbf )

Mast - Rotation Torque Up To

20880 N·m ( 15400 lbf )

Dust Suppression - Water Injection/Dry Dust Collection

2271 l ( 600 gal (US) )

Engine

Cat® 3512C @ 1,800 rpm

Engine - Power Rating (ISO 14396)

949 kW ( 1273 HP )

Mast - Single Pass Hole Depth Down To

19.8 m ( 65 ft )

Mast Accessories - Accessory (2)

One hydraulic pipe catcher

Undercarriage - Cat 374 EEL - Double Grousers for Soft Rock Applications

900 mm ( 35.4 in )

Pipe Loader - Feature

LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe

Compressor/Receiver Tank - Choice

Rotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE

Weights - Without Mast

102300 kg ( 225533 lb )

Dimensions (Approximate) - Working Length Mast Up*

14.7 m ( 48.1 ft )

Dimensions (Approximate) - Mast Only Shipping Length

25.24 m ( 82.8 ft )

Mast - Pull Down Capacity Up To

49895 kg ( 110000 lb )

Dimensions (Approximate) - Working Width (drill end)

6.89 m ( 22.6 ft )

Engine - Power Rating (J1995)

960 kW ( 1287 HP )

Mast Accessories - Accessory (3)

Hydraulic pipe support in the upper section of the mast

Mast - Hole Diameter Range

251-381 mm (9.875-15 in)

Dust Suppression - Water Injection System

2271 l ( 600 gal (US) )

Pull-Down/Hoisting Capacity - Pull-Down Capacity

Up to 49 895 kg (110,000 lb)

Specifications - Hole Diameter

251-381 mm (9.875-15 in)

Specifications - Engine

Cat® 3512C

Specifications - Bit Load

Up to 53 845 kg (118,719 lb)

Engine - Emissions (1)

U.S. EPA Tier 2/EU Stage II equivalent

Cooling - Features

Functional in ambient temperature of 52° C (125° F)

Hydraulics - Components (1)

Two (2) primary pumps – 280 cc (piston with proportional electronic controls)

Hydraulics - Components (2)

One (1) auxiliary circuit pump – 145 cc (piston, load sensing)

Hydraulics - Components (3)

Two (2) fan pumps – 100 cc (piston with proportional electronic controls)

Hydraulics - Components (4)

Two (2) charge pumps – 74 cc (fixed displacement)

Hydraulics - Components (5)

Scheduled Oil Sampling (S·O·SSM) ports

Pipe Loader - 324 mm (12.75 in) diameter

– Single pipe rack<br>– Dust collector side only<br>– Single pass only

Pipe Loader - 340 mm (13.375 in) diameter

– Single pipe rack<br>– Dust collector side only<br>– Single pass only

Pipe Loader - 219 mm (8.625 in) diameter

– LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft)

Pipe Loader - 273 mm (10.75 in) diameter

– LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft)

Pipe Loader - 235 mm (9.25 in) diameter

– LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft)

Break Out Wrench - Variable Grip

– 219, 235, 273 mm (8.625, 9.25, 10.75 in)<br>– 324, 340 mm (12.75, 13.375 in)

Drill Tool Package - One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal

– 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in)

Subs - Shock absorber with top sub adapter - available in Standard or Premium

– 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in)

Operator Environment - Cab - Premium

– Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass<br>– Additional storage plus windshield wipers on front and rear windows<br>– Removable driller window guard plus front window guard and trainer seat

Fluids - Service Package - Standard

– Fast fill fuel and water only<br>– Automated lubricant system

Fluids - Service Package - Premium

– Service center for lubricant drain and fill<br>– Fast fill fuel and water<br>– Automated lubricant system

Batteries - Note (2)

Six (6) each batteries, sealed<br>– Required for semi/full autonomy packages

Climate Choices - Climate Level 1 Standard Fluids and Lubricants (1)

– Temperature range of –1° C (30° F) to 52° C (125° F)

Climate Choices - Climate Level 2 Arctic Fluids and Lubricants

– Temperatures down to –18° C (–0.4° F)

Automation and Technology - Components (6)

Product Link™

Automation and Technology - Components (5)

Electric controls for drilling, tramming, leveling plus auxiliary functions

Automation and Technology - Type (1)

Radio-ready for communication and entertainment radio

Automation and Technology - Type (2)

Integrated Terrain for Drilling complete with wiring and harnesses

Automation and Technology - Components (1)

Single pass auto drill/drill assist

Automation and Technology - Components (2)

Multi pass auto drill/drill assist

Automation and Technology - Components (3)

Drill depth meter

Automation and Technology - Components (4)

Auto level, auto retract jacks, auto raise and lower mast

Dimensions (Approximate) - Height mast up

26.7 m ( 87.6 ft )

Dimensions (Approximate) - Height mast down

6.6 m ( 21.7 ft )

Dimensions (Approximate) - Length mast down

28.3 m ( 92.9 ft )

Dimensions (Approximate) - Note

*Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft)

Weights - Working Weight Range

142 300 kg (313,717 lb)
