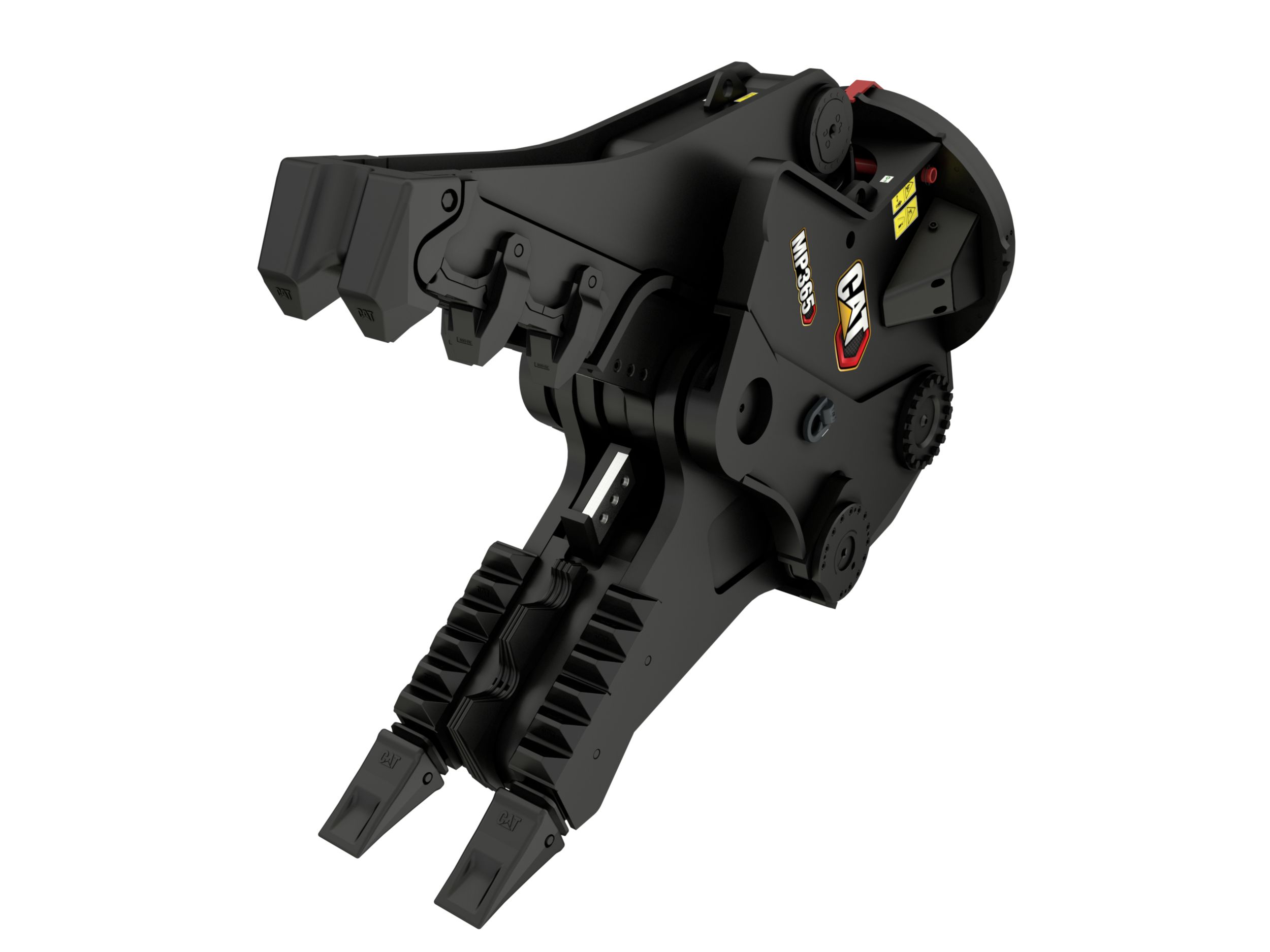

MP365 Pulverizer Jaw

MP324 Pulverizer Jaw

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Category:
Add to Quote

Cycle Times are 50 Percent Faster

  • New speed booster technology dynamically shifts hydraulic force from speed to boost mode, automatically as you operate.
  • You’ll spend less time waiting for the jaw to open or close to contact, as the speed valve automatically adjusts to fast flow when there’s no load.
  • Maximum crushing/cutting force is applied as soon as the jaw contacts material.

Up to 19 Percent More Force

  • Process more per hour, ship more per shift, make more every day. Speed booster magnifies hydraulic force when the jaw contacts material, quickly making the cut.
  • Mount more power even on smaller excavators. Compact design keeps the center of gravity as close as possible to the machine.
  • Get maximum performance and total support with a complete Cat demolition solution. Programs for the MP are built into the Next Gen Cat operator display. Single point of support your entire system by your local Cat dealer.

Change Jaws in 15 Minutes

  • Innovative jaw locking enables a single operator to easily change jaws in 15 minutes or less. Requires only standard hand tools.
  • Simple and safe jaw changes are part of the design. Every jaw sits stable, even on the roughest work site, on the included jaw stand.
  • MP332 accepts these jaw types:
    • Concrete Cutter – outer jaw cracks concrete; inner shear jaw cuts steel
    • Demolition – opens wide to crack the largest concrete structures
    • Pulverizer – crushes concrete, separating the rebar
    • Shear – cuts structural steel, pipe, and cable

Durable and Maintainable

  • Protect your investment and maintain performance, quickly and economically. Jaws are protected with easily changed, individually replaceable wear parts.
  • Get more production time per cutter before replacement. Most cutting blades can be flipped in two ways, to use four different cutting edges.
  • Even when deep into debris, the cylinder rod is armored to prevent damage and the main cylinder body is protected inside the housing.

Videos

Documents & Brochures

Additional information

الأداء - وقت الدورة - في حالة الفتح

2.1 s ( 2.1 s )
الأداء - وقت الدورة - في حالة الإغلاق

1.6 s ( 1.6 s )
الأداء - قوة السحق، - القاطع الابتدائي

7193 kN ( 557 Sh Ton )
الأداء - قوة السحق - طرف القاطع

3655 kN ( 411 Sh Ton )
الأداء - قوة السحق - طرف السن

1977 kN ( 222 Sh Ton )
المتطلبات الهيدروليكية - دائرة الفك - الحد الأقصى لتدفق الزيت

450 لتر/دقيقة ( 119 جالون/دقيقة )
المتطلبات الهيدروليكية - دائرة الدوران - الحد الأقصى لتدفق الزيت

50 لتر/دقيقة ( 13 جالون/دقيقة )
الأبعاد - الفك - عمق الفك

1089 مم ( 43 بوصة )
الأبعاد - الفك - طول القاطع

225 مم ( 9 بوصة )
الأبعاد - الفك - فتحة الفك - الحد الأقصى

1260 مم ( 50 بوصة )
الأبعاد - الفك - عرض الفك - الثابت

659 مم ( 26 بوصة )
الأبعاد - الفك - عرض الفك - قابل للحركة

427 مم ( 17 بوصة )
الأبعاد - المبيت + الفك - الطول

2869 مم ( 113 بوصة )
الأبعاد - المبيت + الفك - الارتفاع

2491 مم ( 98 بوصة )
الأبعاد - المبيت + الفك - العرض

1100 مم ( 43 بوصة )
الوزن - المبيت، والفك، والكتيفة

6145 كجم ( 13547 رطل )
الوزن - الفك فقط

3382 كجم ( 7456 رطل )
وزن الحامل الموصى به - الحد الأدنى للحفار

65 طنًا
وزن الحامل الموصى به - الحد الأقصى للحفار

90 طنًا
