395 – Tier 3

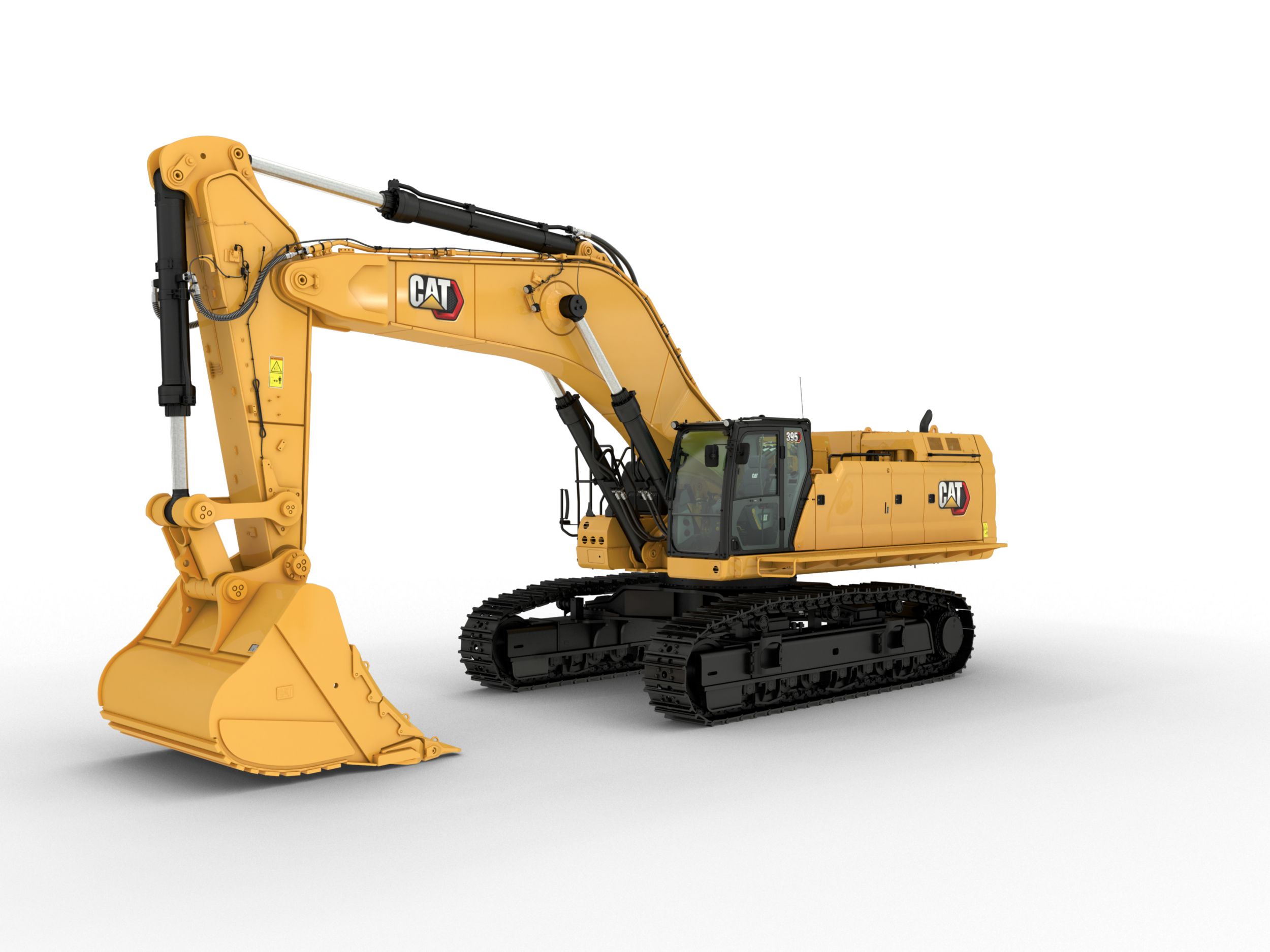

395 Excavator
The Cat® 395 Excavator is a 95-tonne large excavator that brings faster cycle times, greater groundbreaking power and longer service intervals to your jobsite. The 395 excavator has 10% more swing torque and stick force, two times more structural durability and 20% lower maintenance costs than the 395F.
Latest Features
- Cab Monitor Improvements
- Continuously improved user interface allows intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
- Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
- A notification center keeps important information visible to the operator and displays messages without shrinking the camera view.
- Color-coded notifications set critical messages apart from the rest.
- Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
- Operator Coaching – Empower Operators. Exceed Targets.
- Operator Coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.
- After detecting inefficient or restricted actions, the system alerts the operator and provides insight into the inefficiency and steps to improve.
- Paired with a VisionLink Productivity subscription, this information and other Operator Coaching insights can be viewed anywhere.
- Standard integrated vehicle health management system alerts operators with service guidance and parts needed to enhance uptime.
Not all features are available in all regions. Please check with your local Cat® Dealer for specific offering availability in your area. Build Number: 07D
High Performance
- Work up to 3000 m (9,840 ft) above sea level without de-rating.
- Match the excavator to the job with three operating modes: Power, Smart, and ECO.
- The Cat® C18 engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
- VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. Review equipment data from your desktop or mobile device to maximize uptime and optimize assets.
- Three levels of fuel filtration protect the engine from dirty diesel fuel.
- Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
- The center track guiding guard helps align the excavator track when traveling and working on slopes.
- The sloped track frame prevents mud and debris accumulation, helping reduce the risk of track damage.
- Swing torque increase of 10% makes cycle times faster than the previous series.
- Multifunctioning is smoother and more efficient with the hydrostatic swing circuit.
- Auxiliary hydraulic options allow you to use a wide range of Cat® attachments.
- Enhanced heavy lift mode increases system pressure to help you easily pick and place heavy material.
- Booms, sticks, and frames are up to two times more durable than the previous series, giving you years of reliable performance in the harshest environments.
- Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
- Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
- Don’t let the temperature stop you from working. This excavator has a high-ambient capability of 52° C (125° F) and a standard cold start capability of –18° C (-0.4° F).
Efficiency Through Technology
- Boost productivity up to 45% versus traditional grading with standard Cat® Grade with 2D system – includes indicate-only and laser capability.
- Operator Coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.
- Automatically stop excavator swing at operator-defined set points in truck loading and trenching applications with Swing Assist.
- Cat® Payload helps you achieve precise load targets to improve operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.
- Combine Payload with VisionLink® and remotely manage your production targets.
- Want a 3D system to improve your digging results? Caterpillar's single antenna global navigation satellite system (GNSS) makes it easy by giving you visual and auditory guidance to grade. Plus, you can create and edit designs on the touchscreen monitor while on the job. If your application calls for a dual antenna system, it’s easy to upgrade.
- Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. You also benefit from avoidance zones, cut and fill mapping, lane guidance, augmented reality, and advanced positioning capability.
- Standard Grade Assist helps you stay on grade –and effortlessly – with single-lever digging.
- All Cat® Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica. Already invested in a grade infrastructure? You can install Trimble, Topcon, and Leica grade systems onto the machine.
- Dig with guidance to grade depth, slope, and horizontal distance. You can set up four different depth and slope targets to help save time and money.
Take the Guesswork Out of Managing Your Equipment
- VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. * Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
- VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacture.*
- View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.
- Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat® data systems like VisionLink so you can keep a close eye on your fleet.
- Remote Troubleshoot is a mobile application that allows your Cat® dealer to perform diagnostic testing on your connected machine remotely to help resolve issues quickly and with less downtime.
- Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
- The Cat® PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition feature automatically adjusts machine settings based on the selected tool.
* Data field availability can vary by equipment manufacturer.
Less Maintenance
- Extended, synchronized maintenance intervals and a reduced hydraulic oil capacity save up to 20% in maintenance costs on the 395.
- Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance and parts needed so you don't experience unnecessary downtime.
- Check engine oil level quickly and safely with the engine oil dipstick on ground level.
- Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
- The latest hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3000-hour replacement interval – 50% longer than previous filter designs.
- The excavator is auto-lube ready with built-in mounting points; an available auto-lube retrofit kit provides additional hardware to mount a grease pump and line guards.
- Using Cat® genuine oil and filters and doing typical S∙O∙S monitoring will double the current service interval to 1,000 hours, giving you greater uptime to do more work.
- S·O·S ports with extended sampling intervals are on ground level, simplifying maintenance and allowing for quick easy extraction of samples for fluid analysis.
- The high-efficiency hydraulic fan has an automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
- The advanced air intake filter with pre-cleaner has double the dust holding capacity of the previous air intake filter.
- The latest engine air cleaners with an integrated pre-cleaner have twice the life of radial seal air cleaners.
Work In Comfort
- Two cab options – Deluxe, and Premium – let you choose the level of comfort you need.
- Stay warm with the Deluxe heated seat; stay warm and cool with the Premium heated and ventilated seat.
- Standard automatic climate control keeps you at the right temperature throughout your shift.
- Get in and out of the cab more easily using the tip-up left console.
- Advanced viscous mounts reduce cab vibration up to 50% over previous excavator models.
- Control the excavator comfortably with easy-to-reach controls located in front of you.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.
- Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.
Safety
- Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.
- Enhance operator safety by adding Cat® Command to your fleet. The remote-control system keeps you away from potential hazards. The non-line-of-site kit has a Wi-Fi radio, cameras, and a microphone to work anywhere.
- Standard 2D E-Fence is integrated right out of the factory, preventing the excavator from moving outside operator-defined set points; the system works with thumb and bucket combinations, hammer, grapple, and clamshell attachments.
- A travel direction indicator helps operators know which way to activate the travel levers.
- Access 100% of daily maintenance points from ground level – no need for you to climb on top of the excavator.
- A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- The right-hand service platform design provides easy, safe, and quick access to the upper service platform; the service platform steps use serrated steps and an anti-skid punch plate to prevent slipping. The handrails comply with ISO 2867 requirements.
- Lift Assist helps you avoid tipping by letting you know if your load is within the excavator’s safe working range limits.
- The standard ROPS meets ISO 12117-2 2008 requirements.
- Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
- Enhance jobsite safety. Add a swing alarm to alert people when rotating from the trench to the stockpile.
- Rear and right-hand-sideview cameras are standard. Upgrade to 360° visibility, and you’ll easily visualize objects and personnel around the excavator in a single view.

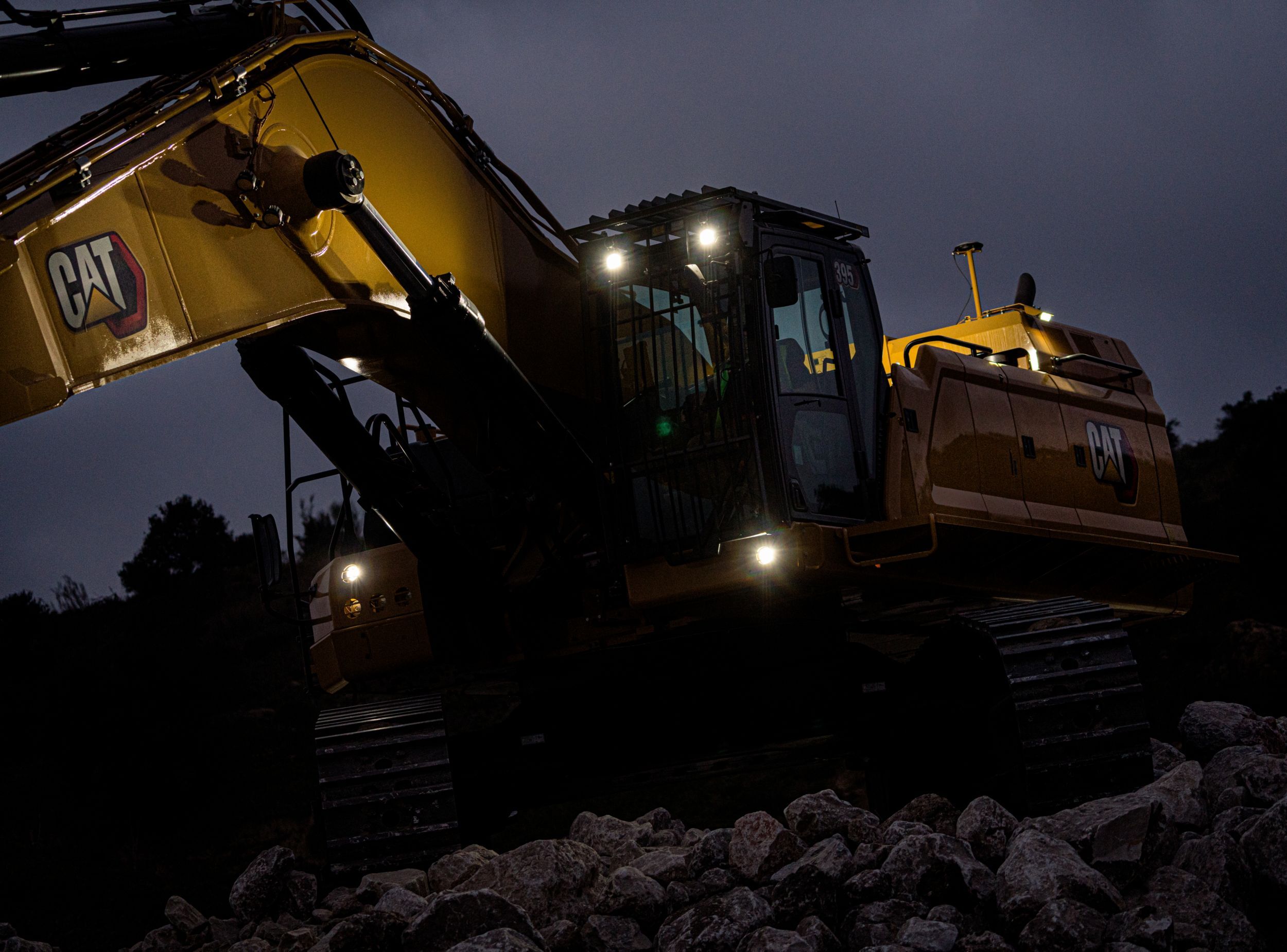

- See all around the machine with the premium 360° lighting package and its 1800 lm lights on the chassis, cab, boom, sides, and rear.
Simple to Operate
- Start the engine with a push button; use a Bluetooth key fob or the unique Operator ID function.
- Automatic hydraulic oil warmup gets you to work faster in cold temperatures and helps prolong the life of components.
- Make operating easier with the touch of a joystick button. Additional auxiliary relays allow you to power on or turn off a CB radio, beacon light, and even a dust suppression watering system without taking your hands off the joysticks.
- Make moving the excavator much easier with Cat® Stick Steer. Push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
- Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
- Program up to four depth and slope offsets so you can easily get to grade without a grade checker – saving time and enhancing safety on the jobsite.
- Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips on the touchscreen monitor.
- Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
- Navigate quickly on the standard high-resolution 254 mm (10 in) touchscreen monitor or with jog dial control.
- A second 254 mm (10 in) monitor is available for Cat® Grade and Cat® Grade with 3D.
- The Cat PL161 attachment locator is a Bluetooth device designed to let users know where their attachments are across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The PL161 integrates easily into VisionLink® for full fleet management of machines and attachments from one smartphone or tablet dashboard to view location and tracking details.
- Save more time and energy with the available work tool recognition feature. A simple shake of the attached tool confirms its identity and ensures all the attachment settings (pressure, flow, and dimensions) are correct so you can work quickly and efficiently.
395 Long Reach Excavator
- The Cat® 395 Long Reach Excavator (LRE) combines premium performance and simple-to-use technology.
- The 395 LRE has a steep slope capability reaching out to 28 meters (91’10") and a dig depth of 21 700 mm (71’2”).
- The long undercarriage and 21.6 mt (47,600 lb) counterweight provide a stable platform for long-reach digging.
- This machine excels in ultimate long-distance dredging, ditch cleaning, settling pond clean-out, waterway and canal maintenance, and vegetation control.
Videos
Virtual Tours
Documents & Brochures
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- High-resolution 254 mm (10") LCD touchscreen monitor (Premium cab)
- High-resolution 203 mm (8") LCD touchscreen monitor (Deluxe cab)
- Heated seat with air-adjustable suspension (Deluxe only)
- Heated and cooled seat with auto adjustable suspension (Premium only)
- Sound suppressed cab with viscous mounts
- Automatic bi-level air conditioner
- Jog dial and shortcut keys for monitor control
- Keyless push-to-start engine control
- Height-adjustable console, infinite with no tool
- Tilt-up left-side console
- 51 mm (2") orange seat belt
- Bluetooth integrated radio (including USB, aux port and microphone)
- 2 x 12V DC outlets
- Document storage
- Rear head storage net and lunchbox storage net
- Cup and bottle holders
- Openable two-piece front window
- Upper radial wiper with washer
- Parallel wiper with washer (Premium only)
- Openable polycarbonate skylight hatch
- LED dome light
- Floor welcome light
- Roller front sunscreen
- Roller rear sunscreen (Premium standard)
- Rear window emergency exit
- Washable floor mat
- Beacon Ready
CAT TECHNOLOGY
- VisionLink
- Remote Flash
- Remote Troubleshoot
- Operator Coaching
- Compatibility with radios and base stations from Trimble, Topcon, and Leica
- Capability to install 3D grade systems from Trimble, Topcon, and Leica
- Cat Grade 2D
- Cat Assist (Grade, Boom, Bucket, Swing, Lift)
- Cat Payload (Static Weigh, Semiautomatic Calibration, Payload/Cycle Information, USB Reporting Capability)
- Work tool recognition (Requires PL161 attachment locator on work tool and Bluetooth receiver on machine)
- Work tool tracking (Requires PL161 attachment locator on work tool and Bluetooth receiver on machine)
ELECTRICAL SYSTEM
- Maintenance-free 1,400 CCA batteries (x2)
- Centralized electrical disconnect switch
- Chassis light
ENGINE
- Remote disable
- Three selectable modes: Power, Smart, and Eco
- Auto engine speed control
- Up to 4500m (14,760 ft) altitude capability
- 52°C (126°F) high-ambient cooling capacity
- -18°C (-0.4°F) cold start capability
- Hydraulic reverse fan
- Double element air filter with integrated pre-cleaner
- 3 vertical side-by-side cooling system
- 95 Amp alternator
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Electronic main control valve
- Dedicated closed loop swing circuit
- Auto heavy lift
- Auto hydraulic oil warmup
- Auto swing parking brake
- High performance hydraulic return filter
- Two speed travel
- Bio hydraulic oil capability
SAFETY AND SECURITY
- Caterpillar One Key security system
- Lockable external tool / storage box
- Lockable door, fuel, and hydraulic tank locks
- Lockable fuel drain compartment
- Lockable disconnect switch
- Service platform with anti-skid plate & recessed bolts
- Right hand handrail and hand hold (ISO 2867:2011 compliant)
- Visibility mirror package
- Signaling/warning horn
- Ground-level secondary engine shutoff switch
- Rear and right-hand-sideview cameras
- Rearview camera
- Walkway
- 2D E-Fence (E-ceiling, E-floor, E-swing, E-wall, E-cab avoidance)
- Auto hammer stop
SERVICE AND MAINTENANCE
- Integrated vehicle health management system
- Auto lube ready
- Grouped location of engine oil & fuel filters
- Scheduled Oil Sampling (S·O·S) ports
UNDERCARRIAGE AND STRUCTURES
- Long variable gauge undercarriage
- Swivel guard
- Grease lubricated track
- Standard counterweight
- HD bottom guard
- HD travel motor guard
- Towing eye on base frame
Additional information
Offering Type | |
---|---|
Engine - Net Power - ISO 9249 | 404 kW ( 542 HP ) |
Engine - Net Power - ISO 9249 (DIN) | 550 hp (metric) ( 550 hp (metric) ) |
Engine Model | Cat C18 |
Engine Power - ISO 14396 | 405 kW ( 543 HP ) |
Engine Power - ISO 14396 (DIN) | 551 hp (metric) ( 551 hp (metric) ) |
Engine - Bore | 145 mm ( 6 in ) |
Engine - Stroke | 183 mm ( 7 in ) |
Engine - Displacement | 18.1 l ( 1105 in³ ) |
Engine - Biodiesel Capability | B20¹ |
Engine - Emissions | Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
Engine - Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
Engine - Note (2) | ¹Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: 100% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *For use of blends higher than 20% biodiesel, consult your Cat dealer. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Hydraulic System - Main System - Maximum Flow - Implement | 1064 l/min ( 281 gal/min ) |
Hydraulic System - Maximum Pressure - Equipment | 37000 kPa ( 5366 psi ) |
Hydraulic System - Maximum Pressure - Equipment - Lift Mode | 38000 kPa ( 5511 psi ) |
Hydraulic System - Maximum Pressure - Travel | 35000 kPa ( 5076 psi ) |
Hydraulic System - Maximum Pressure - Swing | 31000 kPa ( 4496 psi ) |
Swing Mechanism - Swing Speed | 6.26 r/min ( 6.26 r/min ) |
Swing Mechanism - Maximum Swing Torque | 362 kN·m ( 267333 ft·lbf ) |
Weights - Operating Weight | 94100 kg ( 207400 lb ) |
Weights - Note (1) | Long Variable Gauge undercarriage, Mass boom, M2.92JC (9'7") stick, 6.5 m³ (8.5 yd³) SDV bucket, 650 mm (26") double grouser shoes and standard counterweight. |
Service Refill Capacities - Fuel Tank Capacity | 1220 gal (US) ( 322 l ) |
Service Refill Capacities - Cooling System | 71 l ( 19 gal (US) ) |
Service Refill Capacities - Engine Oil | 67 l ( 18 gal (US) ) |
Service Refill Capacities - Swing Drive | 24 l ( 6 gal (US) ) |
Service Refill Capacities - Final Drive - Each | 20 l ( 5 gal (US) ) |
Service Refill Capacities - Hydraulic System - Including Tank | 740 l ( 196 gal (US) ) |
Service Refill Capacities - Hydraulic Tank | 372 l ( 98 gal (US) ) |
Dimensions - Boom | Mass 7.25 m (23'9") |
Dimensions - Stick | Mass 2.92 m (9'7") |
Dimensions - Bucket | SDV 6.5 m3 (8.5 yd3) |
Dimensions - Shipping Height - Top of Cab | 3670 mm ( 12 ft ) |
Dimensions - Handrail Height | 3750 mm ( 12.4 ft ) |
Dimensions - Shipping Length | 13980 mm ( 45.1 ft ) |
Dimensions - Tail Swing Radius | 4840 mm ( 15.11 ft ) |
Dimensions - Counterweight Clearance | 1640 mm ( 5.5 ft ) |
Dimensions - Ground Clearance | 830 mm ( 2.9 ft ) |
Dimensions - Track Length | 20.1 ft ( 6350 mm ) |
Dimensions - Track Length to Center of Rollers | 5120 mm ( 16.1 ft ) |
Dimensions - Track Gauge | 3510 mm ( 11.6 ft ) |
Dimensions - Transport Width | 3690 mm ( 12.1 ft ) |
Dimensions - Note | Track gauge undercarriage extended with 650 mm (26") shoes; transport width undercarriage retracted with 650 mm (26") shoes and no steps |
Working Ranges & Forces - Maximum Digging Depth | 7190 mm ( 23.7 ft ) |
Working Ranges & Forces - Boom | Mass 7.25 m (23'9") |
Working Ranges & Forces - Stick | Mass 2.92 m (9'7") |
Working Ranges & Forces - Bucket | SDV 6.5 m3 (8.5 yd3) |
Working Ranges & Forces - Maximum Reach at Ground Level | 12260 mm ( 40.3 ft ) |
Working Ranges & Forces - Maximum Cutting Height | 12370 mm ( 40.7 ft ) |
Working Ranges & Forces - Maximum Loading Height | 7960 mm ( 26.1 ft ) |
Working Ranges & Forces - Minimum Loading Height | 3660 mm ( 12 ft ) |
Working Ranges & Forces - Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 7050 mm ( 23.2 ft ) |
Working Ranges & Forces - Maximum Vertical Wall Digging Depth | 4580 mm ( 15 ft ) |
Working Ranges & Forces - Bucket Digging Force - ISO | 497 kN ( 111820 ft·lbf ) |
Working Ranges & Forces - Stick Digging Force - ISO | 394 kN ( 88570 ft·lbf ) |
Air Conditioning System - Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.00 kg (2.2lb) of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). |
-
Technology Kits
Cat® Detect with Smart Camera
View Details -
Technology Kits
Cat® Detect with Surround Cameras
View Details -
CW Series Couplers
CW-70
View Details -
Extreme Duty
Extreme Duty Bucket 2200 mm (87 in): 519-5476
View Details -
Extreme Duty
Extreme Duty Bucket 2350 mm (93 in): 519-5477
View Details -
Extreme Duty
Extreme Duty Bucket 2500 mm (98 in): 519-5478
View Details -
Extreme Duty
Extreme Duty Bucket 2500 mm (98 in): 589-8725
View Details -
Extreme Duty
Extreme Duty Bucket 2550 mm (100 in): 588-1489
View Details -
Extreme Duty
Extreme Duty Bucket 2550 mm (100 in): 588-1490
View Details -
Extreme Duty
Extreme Duty Bucket 2800 mm (110 in): 588-1662
View Details -
General Duty
General Duty Bucket 1150 mm (45 in): 519-5303
View Details -
General Duty
General Duty Bucket 1450 mm (57 in): 519-5304
View Details -
General Duty
General Duty Bucket 1750 mm (69 in): 519-5305
View Details -
General Duty
General Duty Bucket 2050 mm (81 in): 519-5307
View Details -
General Duty
General Duty Bucket 2050 mm (81 in): 528-8162
View Details -
General Duty
General Duty Bucket 2800 mm (110 in): 588-7528
View Details -
General Duty
General Duty Bucket 2800 mm (110 in): 588-7529
View Details -
Performance Hammers
H215 S
View Details -
Heavy Duty
Heavy Duty Bucket 1800 mm (71 in): 528-8164
View Details -
Heavy Duty
Heavy Duty Bucket 2050 mm (81 in): 528-8161
View Details -
Heavy Duty
Heavy Duty Bucket 2650 mm (104 in): 592-0656
View Details -
Multi-Processor with Concrete Cutter Jaws
MP365 Concrete Cutter Jaw
View Details -
Multi-Processor with Demolition Jaws
MP365 Demolition Jaw
View Details -
Multi-Processor with Pulverizer Jaws
MP365 Pulverizer Jaw
View Details -
Multi-Processor with Shear Jaws
MP365 Shear Jaw
View Details -
Mobile Scrap & Demolition Shears
S3070 Rotating Scrap & Demolition Shear
View Details -
Mobile Scrap & Demolition Shears
S3090 Rotating Scrap & Demolition Shear
View Details -
Severe Duty
Severe Duty Bucket 2300 mm (91 in): 519-5471
View Details -
Severe Duty
Severe Duty Bucket 2400 mm (94 in): 519-5472
View Details -
Severe Duty
Severe Duty Bucket 2400 mm (94 in): 519-5474
View Details -
Severe Duty
Severe Duty Bucket 2400 mm (94 in): 573-5014
View Details -
Severe Duty
Severe Duty Bucket 2500 mm (98 in): 519-5467
View Details -
Severe Duty
Severe Duty Bucket 2650 mm (104 in): 543-2823
View Details -
Severe Duty
Severe Duty Bucket 2650 mm (104 in): 552-8359
View Details
