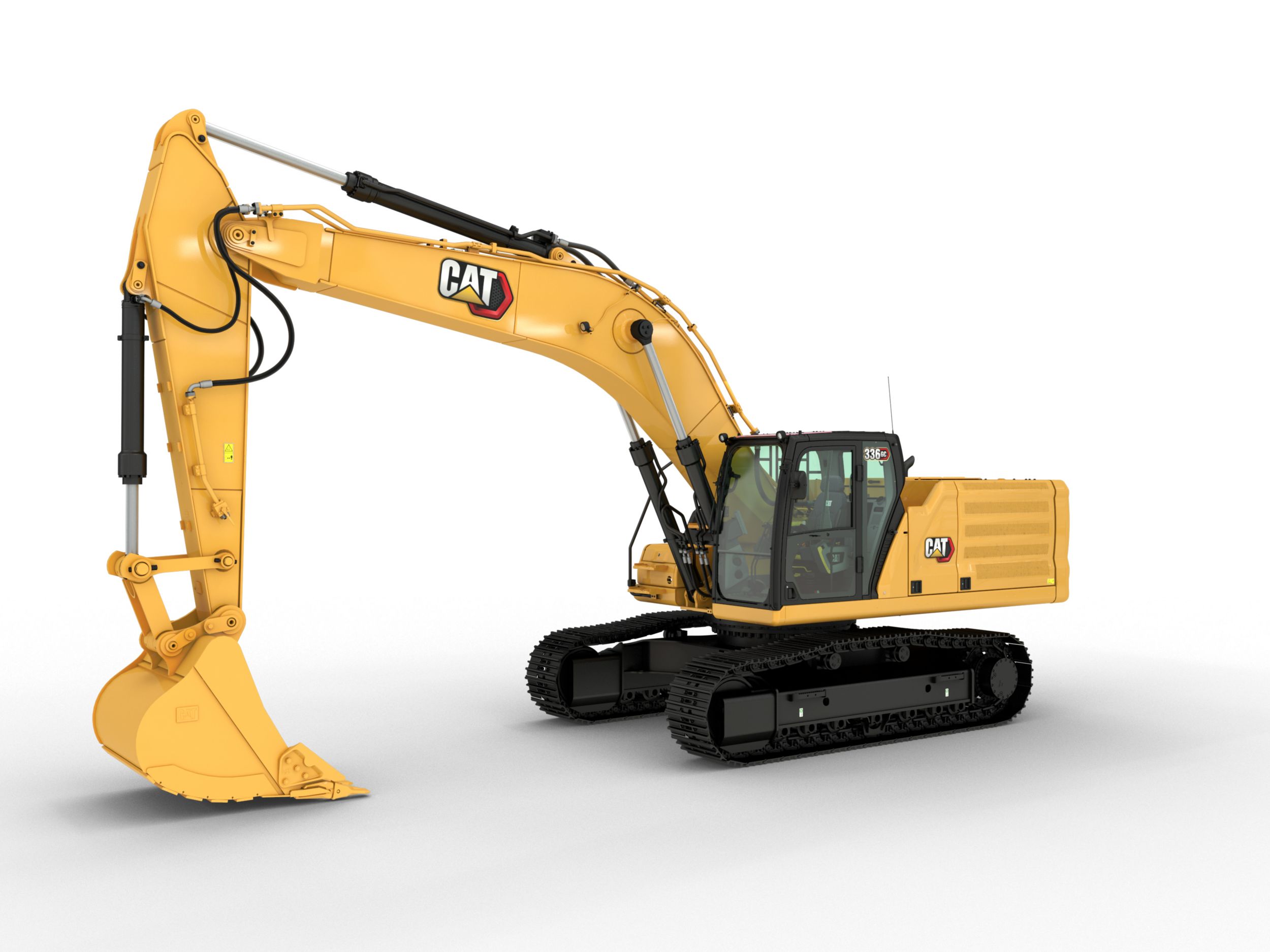

336 GC
MOVE MORE WITH LESS FUEL
- The excavator is 5 percent more fuel efficient than the 336D2 in similar applications.
- The C7.1 engine meets China Nonroad Stage III emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
- Match the excavator to the job with two power modes. Smart mode automatically matches engine and hydraulic power to digging conditions, providing max power when needed and reducing power when it isn’t to help save fuel.
- The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
- Valve priority puts hydraulic pressure and flow where you command it to go for fast light- to medium-load cycle times.
- Advansys™ bucket tips increase penetration and improve cycle times.Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
- Add auxiliary hydraulics to do more work with various Cat attachments.
- Product Link™ comes standard so you can remotely monitor machine health, location, hours, and fuel consumption on demand through the VisionLink® online interface.
BUILT TO PERFORM
- Work up to 3300 m (10,830 ft) above sea level.
- Standard high-ambient temperature capability is 52° C (125° F) with cold start capability at –18° C (0° F).
- Automatic hydraulic oil warm up gets you to work faster in cold temperatures and helps prolong the life of components.
- Two levels of filtration protect the engine from dirty diesel fuel.
- Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
- The center track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
- The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.
DESIGNED FOR OPERATORS
- The Comfort cab has a wide seat that adjusts for operators of all sizes.
- Control the excavator comfortably with easy-to-reach controls all located in front of you.
- Standard automatic climate control keeps you at the right temperature all shift long.
- Advanced viscous mounts reduce cab vibration by up to 50 percent over previous excavator models.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.
- Use the standard radio’s USB ports and Bluetooth® technology to connect to personal devices.
SIMPLE TO OPERATE
- Start the engine with a push button; use a Bluetooth key fob, smartphone app, or Operator ID passcode.
- Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
- Navigate quickly on the standard high-resolution 203 mm (8 inch) touchscreen monitor or with the aid of the jog dial control.
- Protect your hammer from overworking. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds — all to prevent wear and tear on the attachment and excavator.
- Not sure how a function works or how to maintain the excavator? Always have the operator's manual at your fingertips in the touchscreen monitor.
- The Cat Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy. The excavator's onboard Bluetooth reader or Cat App on your phone will locate the device automatically.
REDUCED MAINTENANCE COSTS
- Expect up to 20 percent less maintenance cost than the 336F due to extended service intervals (savings calculated over 12,000 machine hours).
- Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
- Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
- Using Cat genuine oil and filters and doing your typical S∙O∙S monitoring will double the current service interval to 1,000 hours, giving you greater uptime to do more work.
- Oil and fuel filters are grouped and located on right-hand side of machine for easy maintenance.
- The new air intake filter with pre-cleaner has double the dust holding capacity of the previous air intake filter.
- The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000 hour replacement interval – 50 percent longer than previous filter designs.
- S·O·S ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.
BUILT-IN SAFETY FEATURES
- Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the push button starting feature.
- The standard ROPS cab meets ISO 12117-2:2008 requirements.
- A travel direction indicator helps operators know which way to activate the travel levers.
- A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab posts and larger windows.
- Serrated steps and anti-skid punch plate on the service platform help prevent slipping.
- A rearview camera is standard.
Documents & Brochures
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- ROPS, sound suppression
- High-resolution 203 mm (8") LCD touch screen monitor
- Mechanically adjustable seat
ENGINE
- Two selectable modes: Power, Smart
- Auto engine speed control
- Up to 3300m (10,830 ft) altitude capability
- 52° C (126° F) high-ambient cooling capacity
- -18° C (0° F) cold start capability
- Double element air filter with integrated pre- cleaner
- Remote disable
- Biodiesel capability up to B20
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Electronic main control valve
- Auto hydraulic oil warm up
- Reverse swing damping valve
- Auto swing parking brake
- High performance hydraulic return filter
- Two speed travel
- Bio hydraulic oil capability
- Long undercarriage (Indonesia only)
- Standard undercarriage
UNDERCARRIAGE AND STRUCTURES
- Towing eye on base frame
- 6.8 mt (14, 991 lb) counterweight
BOOMS AND STICKS
- 6.5m (21'4") reach boom
ELECTRICAL SYSTEM
- Maintenance-free 1000 CCA batteries (x2)
- Centralized electrical disconnect switch
- LED chassis light, left hand and right hand boom lights, cab lights
CAT TECHNOLOGY
- Cat Product Link
CAT TECHNOLOGY
- Auto hammer stop
SERVICE AND MAINTENANCE
- Grouped location of engine oil & fuel filters
- Scheduled Oil Sampling (S.O.S) sampling ports
SAFETY AND SECURITY
- Caterpillar One Key security system
- Lockable external tool / storage box
- Lockable door, fuel, and hydraulic tank locks
- Lockable fuel drain compartment
- Service platform with anti-skid plate & recessed bolts
- Right hand handrail & hand hold (ISO 2867:2011 Compliant)
- Standard visibility mirror package
- Signaling / warning horn
- Ground-level secondary engine shutoff switch
- Rearview camera
Additional information
Offering Type | |
---|---|
Engine - Net Power - ISO 9249 | 195 kW ( 259 HP ) |
Engine Power - ISO 14396 | 195 kW ( 261 HP ) |
Engine Model | Cat C7.1 |
Engine - Bore | 105 mm ( 4 in ) |
Engine - Stroke | 135 mm ( 5 in ) |
Engine - Displacement | 7.1 l ( 433 in³ ) |
Hydraulic System - Main System - Maximum Flow | 559 l/min (148 gal/min) |
Hydraulic System - Maximum Pressure - Equipment | 35000 kPa ( 5076 psi ) |
Hydraulic System - Maximum Pressure - Travel | 35000 kPa ( 5076 psi ) |
Hydraulic System - Maximum Pressure - Swing | 28000 kPa ( 4061 psi ) |
Swing Mechanism - Swing Speed | 8.74 r/min ( 8.74 r/min ) |
Swing Mechanism - Maximum Swing Torque | 137 kN·m ( 101168 ft·lbf ) |
Weights - Operating Weight | 33900 kg ( 74800 lb ) |
Service Refill Capacities - Fuel Tank Capacity | 600 l ( 158.5 gal (US) ) |
Service Refill Capacities - Cooling System | 19 l ( 4.9 gal (US) ) |
Service Refill Capacities - Engine Oil | 20 l ( 5.3 gal (US) ) |
Service Refill Capacities - Swing Drive - Each | 18 l ( 4.8 gal (US) ) |
Service Refill Capacities - Final Drive - Each | 8 l ( 2.1 gal (US) ) |
Service Refill Capacities - Hydraulic System - Including Tank | 373 l ( 98.5 gal (US) ) |
Service Refill Capacities - Hydraulic Tank | 161 l ( 42.5 gal (US) ) |
Dimensions - Boom | Reach 6.5 m (21'4") |
Dimensions - Stick | Reach 3.2 m (10'6") |
Dimensions - Bucket | HD 1.88 m³ (2.46 yd³) |
Dimensions - Shipping Height - Top of Cab | 3170 mm ( 10.4 ft ) |
Dimensions - Handrail Height | 3160 mm ( 10.4 ft ) |
Dimensions - Shipping Length | 11170 mm ( 36.6 ft ) |
Dimensions - Tail Swing Radius | 3530 mm ( 11.6 ft ) |
Dimensions - Counterweight Clearance | 1250 mm ( 4.1 ft ) |
Dimensions - Ground Clearance | 510 mm ( 1.7 ft ) |
Dimensions - Track Length | 4590 mm ( 15.1 ft ) |
Dimensions - Track Length to Center of Rollers | 3610 mm ( 11.8 ft ) |
Dimensions - Track Gauge | 2590 mm ( 8.5 ft ) |
Dimensions - Transport Width | 3190 mm ( 10.5 ft ) |
Working Ranges & Forces - Maximum Digging Depth | 7520 mm ( 24.7 ft ) |
Working Ranges & Forces - Boom | Reach 6.5 m (21'4") |
Working Ranges & Forces - Stick | Reach 3.2 m (10'6") |
Working Ranges & Forces - Bucket | HD 1.88 m³ (2.46 yd³) |
Working Ranges & Forces - Maximum Reach at Ground Level | 11050 mm ( 36.3 ft ) |
Working Ranges & Forces - Maximum Cutting Height | 10300 mm ( 33.8 ft ) |
Working Ranges & Forces - Maximum Loading Height | 7080 mm ( 23.2 ft ) |
Working Ranges & Forces - Minimum Loading Height | 2580 mm ( 8.5 ft ) |
Working Ranges & Forces - Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 7360 mm ( 24.1 ft ) |
Working Ranges & Forces - Maximum Vertical Wall Digging Depth | 5660 mm ( 18.6 ft ) |
Working Ranges & Forces - Bucket Digging Force - ISO | 197 kN ( 44350 lbf ) |
Working Ranges & Forces - Stick Digging Force - ISO | 148 kN ( 33160 lbf ) |
-
