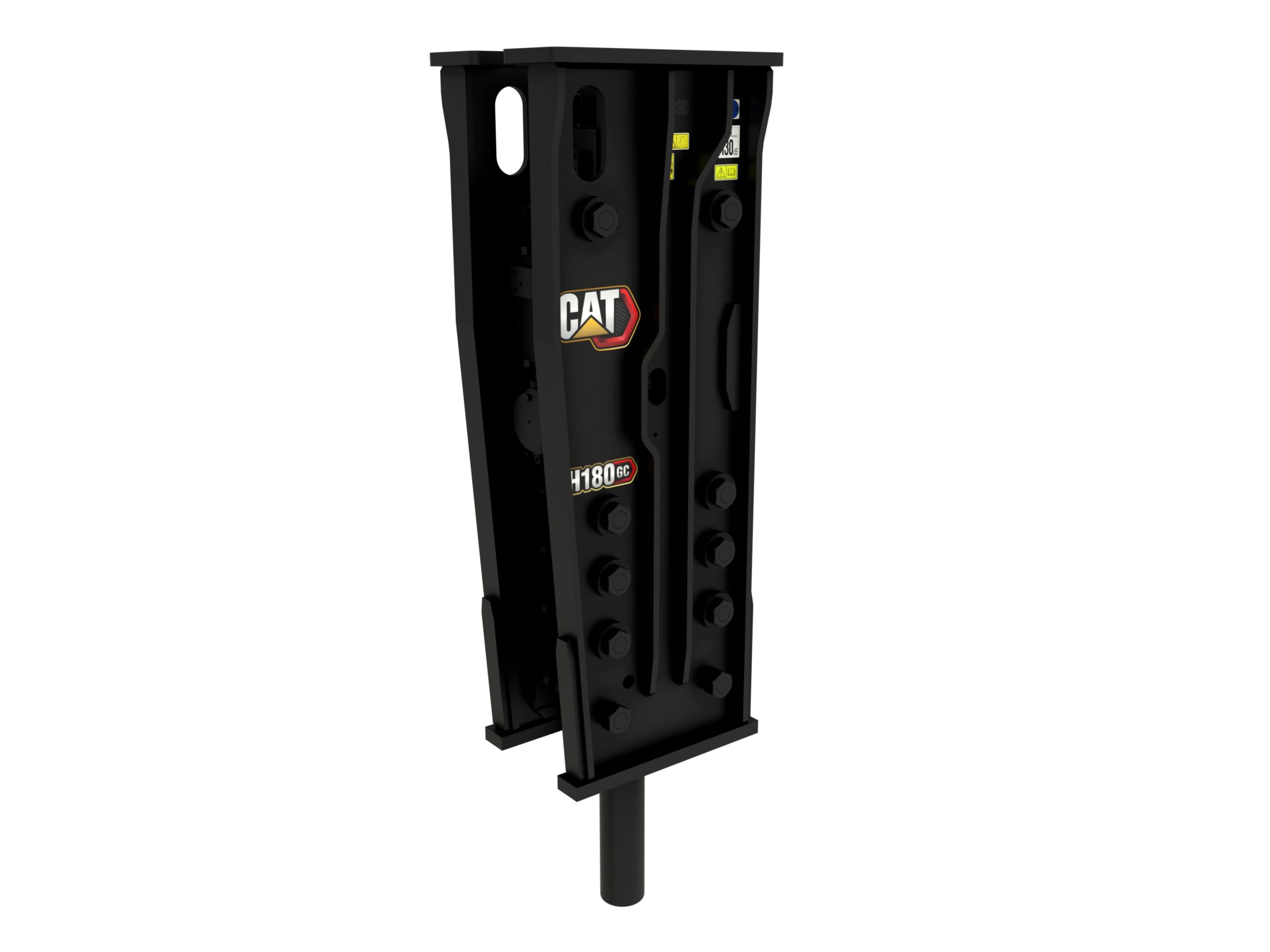

H180 GC Hammer

Cat® Hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Category:
Add to Quote

Reliable and Durable Design

  • Cat� Hammers use up to 25 percent less fuel and are up to 27 percent more efficient.
  • Enjoy fast service times and lower owning and operating costs with the simplified design.
  • Choose between top and side mount options to match your application.
  • Achieve consistent power and production over time with the gas fired design.
  • Cat Hammers are designed to work with our machines, as a total solution, and provide seamless hydraulic connectivity for maximum performance.

    • Easy to Maintain

  • Achieve up to 18 percent lower maintenance costs with Cat� Hammers.
  • Easy and quick access to maintenance areas ensures the hammer always operates at its peak.
  • Spend more time working and less time servicing.

    • Greasing can be performed quickly from one standing-height grease point.

  • Service the lower bushing in the field using simple hand tools.
  • Verify the gas charge of the hammer without removing it from your machine.

    • tough applications.

  • All breakers are tested in accordance with ISO Quality Control System before delivery.

    • Easy to Operate

  • Operator feel, and control is improved with an interlocking quad wear system which guides and supports the front head.
  • Select between high blow frequency and maximum power to get the performance you need to suit your application.
  • Easily adjust the piston stroke between piston frequency and more impact power positions to match application requirements.

    • You Are Supported

  • Go where the job takes you. The Cat Dealer Network is there to help when you need it.
  • Rely on Caterpillar for complete system support. Receive parts, service, and technical assistance for your machine, hammer, and hydraulics from a single source.

    • Videos

    Virtual Tours

    Documents & Brochures

    Additional information

    فئة طاقة التصادم

    14578 J ( 10750 قدم-رطل )
    للضربات في الدقيقة

    200-450
    أقصى وزن للتشغيل

    3074 كجم ( 6762,8 رطل )
    أدنى وزن للتشغيل

    4200 كجم ( 9260 رطل )
    أقصى وزن للحامل

    55 t ( 121200 رطل )
    أدنى وزن للحامل

    40 t ( 88100 رطل )
    قطر عمود الأداة

    150 مم ( 5.9 بوصة )
    أقصى ضغط للتشغيل

    18000 كيلو باسكال ( 2,610 رطل لكل بوصة مربعة )
    أدنى ضغط تشغيل

    16000 كيلو باسكال ( 2,320 رطل لكل بوصة مربعة )
    التدفق المُقدَّر ـ الحد الأقصى

    300 لتر/دقيقة ( 79 جالون/دقيقة )
    التدفق المُقدَّر ـ الحد الأدنى

    250 لتر/دقيقة ( 68 جالون/دقيقة )
