333 – Tier 3

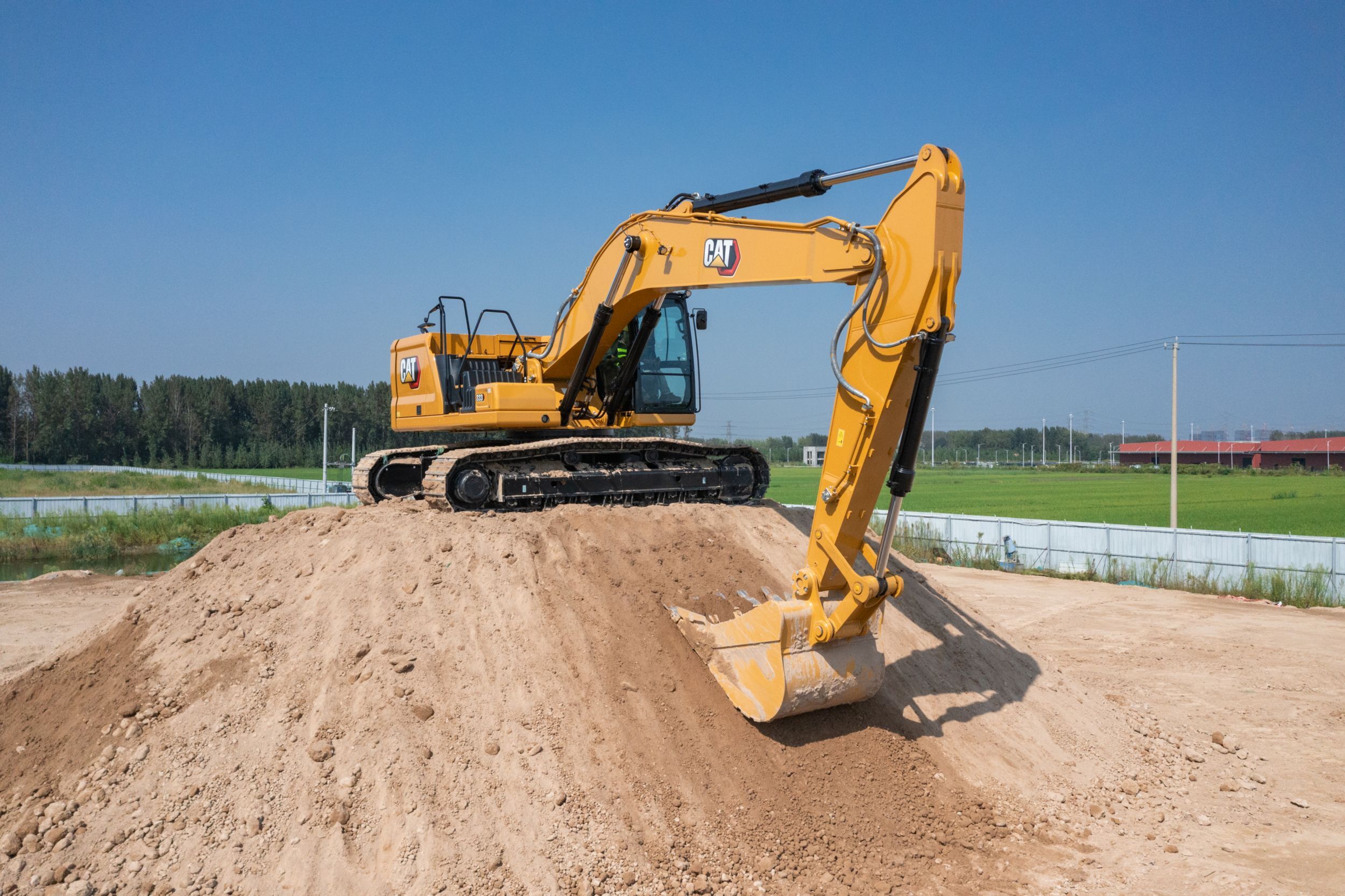

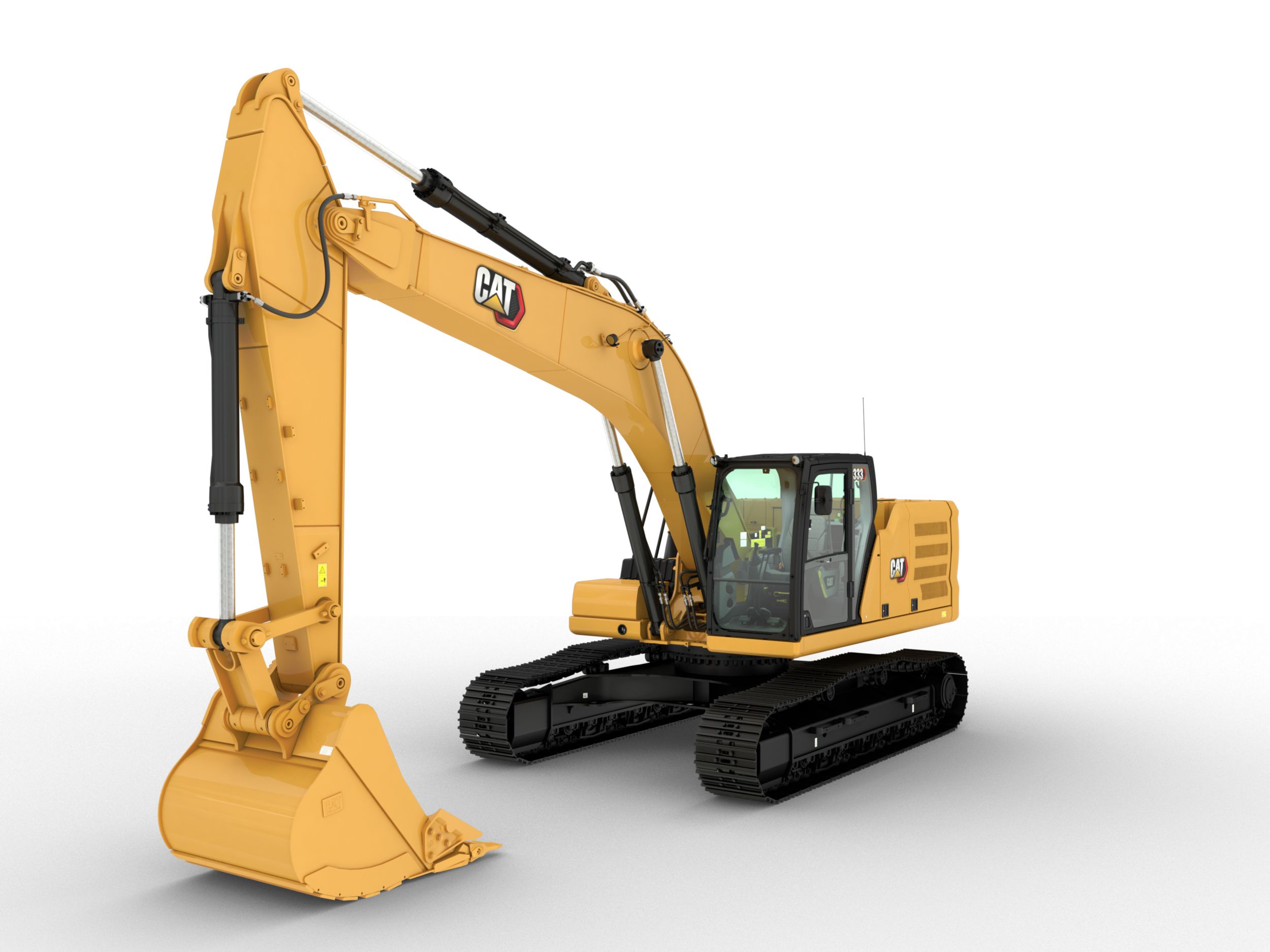

333 Excavator | 30 Ton Excavator / Digger
The Cat® 333 Excavator gives you more digging force and increased bucket size, so you can tackle any job. A fuel-efficient hydraulic system and extended maintenance intervals help to keep your overall costs down. Reinforced structures and increased track width offer more stability and durability when working in tough applications.
LATEST FEATURES
- Cab Monitor Improvements
- Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
- Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
- A notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.
- Color coded notifications set critical messages apart from the rest.
- Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 07F
HIGH PERFORMANCE WITH LOWER FUEL CONSUMPTION
- The high fuel efficiency keeps you focused on the job and budget.
- The Cat C7.1 engine gives you powerful hydraulic power to work with different types of material.

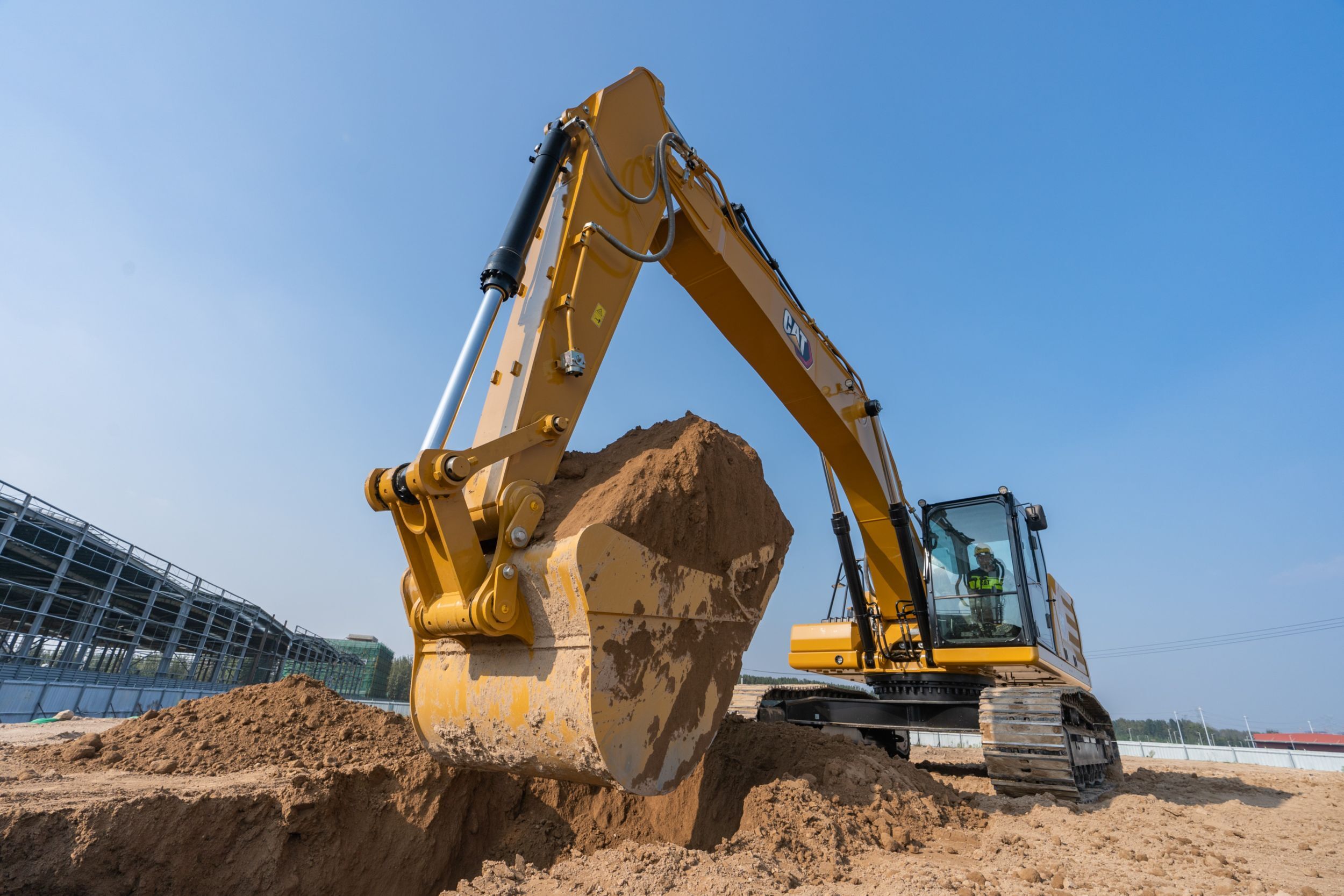

- Large bucket capacity means fewer passes to move material faster.
- Get up to 7% more productivity with increased bucket and stick forces and larger bucket compared to the 330.
- Match the excavator to the job with two power modes – Power and Smart. Smart mode automatically matches engine and hydraulic power to digging conditions, providing max power when needed and reducing power when it isn’t to help save fuel.
- The high-efficiency hydraulic fan cools the engine on demand to help reduce fuel consumption; available reverse function makes it easy to keep cores clean.
- Self-sharpening Advansys™ bucket tips option increase production and lower costs.
- Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
- Don’t let the temperature stop you from working. The excavator has a high-ambient capability of 50°C (122°F) and cold start capability of -18°C (0°F).

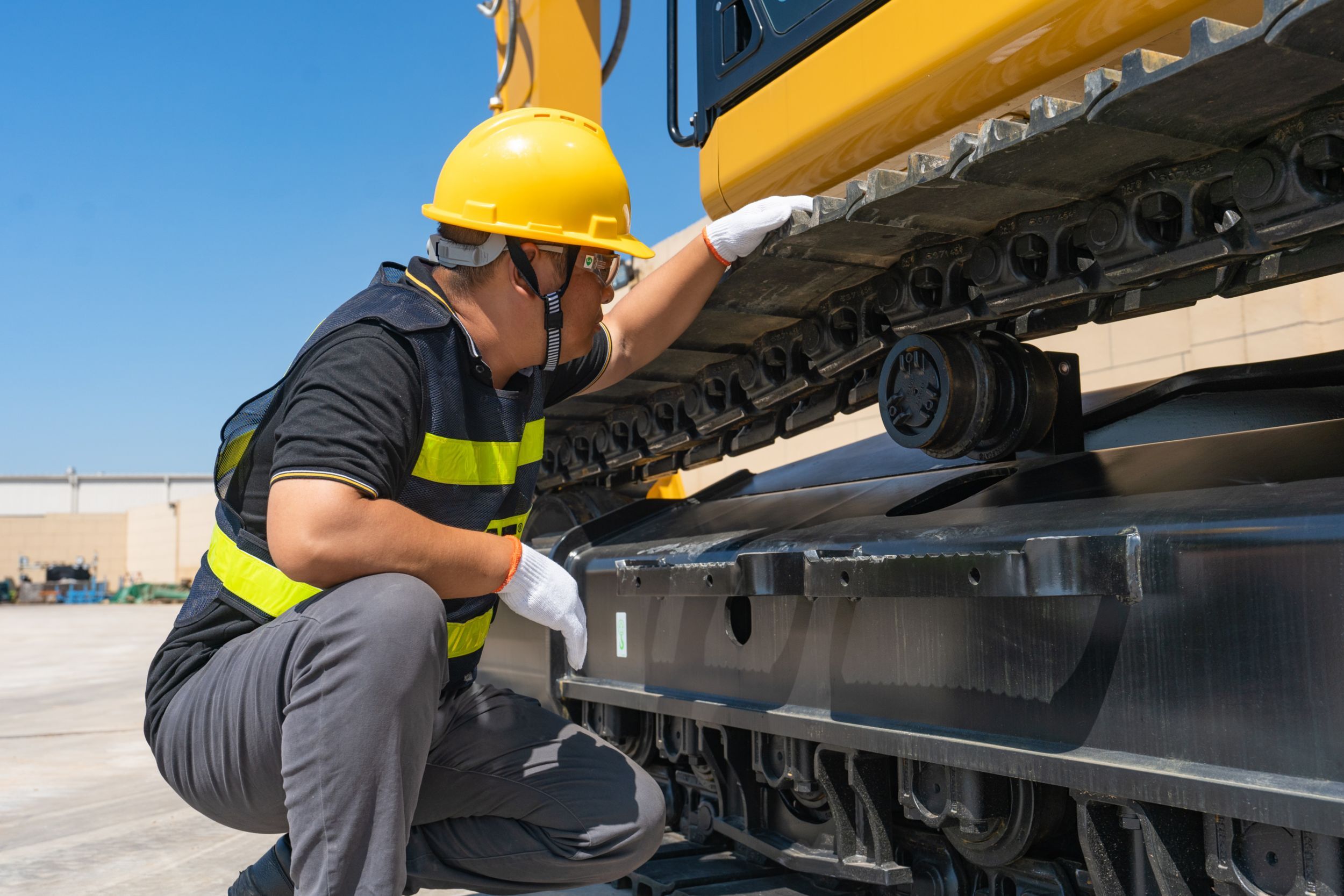

RELIABLE IN TOUGH CONDITIONS
- Reinforced booms, sticks, and linkage keep you moving from job to job. The reinforced frame makes the machine more durable and built to last.
- The increased track width of +150 mm (6 in) gives you more critical stability to work with large buckets or on uneven surfaces while still being within transport width requirements.
- Automatic hydraulic oil warm up gets you to work faster in cold temperatures and helps prolong the life of components.
- Two levels of filtration protect the engine from diesel fuel.
- Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
- The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.
- Work up to 4500 m (14,760 ft) above sea level with engine power derate above 3000 m (9,840 ft).
SIMPLE TO OPERATE
- Start the engine with the push-to-start button.
- Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
- Make moving the excavator much easier with Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
- Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
- Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
WORK COMFORTABLY IN CAB
- The comfort cab offers a mechanically adjustable seat suspension and an automatic heating/air conditioning system.
- Navigate quickly with the high-resolution 203 mm (8 in) touchscreen monitor to view machine information.
- Control the excavator comfortably with easy-to-reach controls all located in front of you.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.
- Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.
EASY TO MAINTAIN
- Long life for fuel, oil and air filters keeps you out of the shop and working on the job longer.
- Oil and fuel filters are grouped together and located on the righthand side of the machine for easy maintenance.
- The air intake filter with precleaner has double the dust holding capacity of the previous air intake filter.
- Check the hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
- Track your excavator’s filter life and maintenance intervals via the in-cab monitor. The optional engine oil sensor tracks your oil levels, which helps to speed up your daily maintenance routine.
- The hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50% longer than previous filter designs.
- The high-efficiency hydraulic fan has an optional automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
- Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.
- S·O·SSM ports simplify maintenance and allow for quick, easy extraction of samples for fluid analysis.
SAFELY HOME EVERY DAY
- The Rollover Protective Structure (ROPS) cab meets ISO12117-2:2008 requirements.
- Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
- A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- Add optional rear- and right-hand-side cameras for added visibility to your surroundings.
- Serrated steps and anti-skid punch plate on the service platform help prevent slipping.
- Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.
Documents & Brochures
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- Rollover protective structure (ROPS)
- High-resolution touchscreen monitor
- Mechanically adjustable seat suspension
CAT TECHNOLOGY
- VisionLink®
- Remote Flash
ELECTRICAL SYSTEM
- Maintenance-free 1,000 CCA batteries
- Centralized electrical disconnect switch
- Programmable time-delay working lights
- Chassis, boom, and cab lights
ENGINE
- Cat C7.1 single turbo diesel engine
- Power and Smart mode
- Automatic engine speed control
- Up to 4500 m (14,760 ft) altitude capability with engine power derate above 3000 m (9,840 ft)
- 50°C (122°F) high-ambient cooling
- -18°C (0°F) cold start capability
- Double element air filter with integrated precleaner
- Electric cooling fans with auto reverse function
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Electronic main control valve
- Automatic hydraulic oil warm up
- Automatic two-speed travel
SAFETY AND SECURITY
- Service platform with anti-skid plate and recessed bolts
- Rearview camera
- Lockable disconnect switch
SERVICE AND MAINTENANCE
- Grouped location of engine oil and fuel filters
- Scheduled Oil Sampling (S·O·S℠) ports
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- Grease lubricated track link
- 7700 kg (16,980 lb) counterweight
Additional information
محرك - صافي القدرة - ISO 9249 | 193.8 كيلووات ( 260 حصان ) |
---|---|
محرك - صافي القدرة - ISO 9249 (DIN) | 263 hp (متري) ( 263 hp (متري) ) |
موديل المحرك | Cat C7.1 |
قدرة المحرك - ISO 14396 | 195 كيلووات ( 261 حصان ) |
قدرة المحرك - ISO 14396 (DIN) | 265 hp (متري) ( 265 hp (متري) ) |
محرك - التجويف | 105 مم ( 4 بوصة ) |
محرك - الشوط | 135 مم ( 5 بوصة ) |
محرك - الإزاحة | 7.01 l ( 428 بوصة³ ) |
محرك - إمكانية استخدام الديزل الحيوي | حتى B20¹ |
محرك - الانبعاثات | انبعاثات المحرك Cat C7.1 تكافئ معايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 3 أو معايير الاتحاد الأوروبي من المرحلة IIIA. |
محرك - ملاحظة (1) | تم اختبار صافي القدرة وفقًا للمعيار عند الحدافة عندما يكون المحرك مزودًا بمروحة، ونظام سحب هواء ونظام عادم ومولد تيار متردد، مع دوران المحرك بسرعة مقدرة تبلغ 2000 دورة في الدقيقة. يتم اختبار القدرة المعلنة وفقًا للمعيار المحدد الساري وقت التصنيع. |
محرك - ملاحظة (2) | ¹تتوافق محركات Cat مع وقود الديزل الممزوج بأنواع الوقود التالية منخفضة الكثافة الكربونية** حتى: 100% من الديزل الحيوي FAME (إسترات ميثيل أحماض دهنية)* أو 100% من أنواع وقود الديزل المتجدد، HVO (الزيت النباتي المهدرج) وGTL (غاز إلى سائل). ارجع إلى الإرشادات لمعرفة الوقود المناسب. يرجى الرجوع إلى وكيل Cat أو "توصيات سوائل ماكينات Caterpillar" (SEBU6250) لمعرفة التفاصيل. *لاستخدام المخاليط الأعلى من الديزل الحيوي بنسبة 20%، ارجع إلى وكيل Cat لديك. **إن انبعاثات غازات الاحتباس الحراري من أنابيب العادم، والناتجة من أنواع الوقود منخفض الكثافة الكربونية هي في الأساس نفس الانبعاثات الناتجة من أنواع الوقود التقليدي. |
النظام الهيدروليكي - النظام الرئيسي - التدفق الأقصى | 560 لتر/دقيقة (148 جالون دقيقة) |
النظام الهيدروليكي - أقصى ضغط - المعدات | 35000 كيلو باسكال ( 5075 رطل لكل بوصة مربعة ) |
النظام الهيدروليكي - أقصى ضغط - السير | 35000 كيلو باسكال ( 5075 رطل لكل بوصة مربعة ) |
النظام الهيدروليكي - أقصى ضغط - التأرجح | 29800 كيلو باسكال ( 4321 رطل لكل بوصة مربعة ) |
آلية التأرجح - سرعة التأرجح | 11.5 دورة في الدقيقة ( 11.5 دورة في الدقيقة ) |
آلية التأرجح - أقصى عزم للتأرجح | 111 kN·m ( 81869 رطل-قوة-قدم ) |
الأوزان - الوزن أثناء التشغيل | 32600 كجم ( 71800 رطل ) |
الأوزان - ملاحظة | الهيكل السفلي الطويل، وذراع الوصول للخدمة الشاقة (HD)، والذراع الطرفية R3.2 للخدمة الشاقة (10 أقدام و6 بوصات)، وجرافة الخدمة الشاقة مقاس 2,0 م³ (2,62 ياردة³)، والمداسات ثلاثية الحواف مقاس 600 مم (24 بوصة)، وثقل موازنة 7700 كجم (16980 رطل). |
سعات إعادة التعبئة للخدمة - سعة خزان الوقود | 474 l ( 125.2 جالون (أمريكي) ) |
سعات إعادة التعبئة للخدمة - نظام التبريد | 25 l ( 6.6 جالون (أمريكي) ) |
سعات إعادة التعبئة للخدمة - زيت المحرك | 25 l ( 6.6 جالون (أمريكي) ) |
سعات إعادة التعبئة للخدمة - مجموعة إدارة التأرجح - لكل واحدة | 11.5 l ( 3 جالون (أمريكي) ) |
سعات إعادة التعبئة للخدمة - مجموعة الإدارة النهائية - لكل مجموعة | 4.5 l ( 1.2 جالون (أمريكي) ) |
سعات إعادة التعبئة للخدمة - النظام الهيدروليكي - بما في ذلك الخزان | 310 l ( 81.9 جالون (أمريكي) ) |
سعات إعادة التعبئة للخدمة - الخزان الهيدروليكي | 147 l ( 38.8 جالون (أمريكي) ) |
الأبعاد - ذراع الرافعة | الوصول مع الخدمة الشاقة 6,15 م (20 قدمًا وبوصتان) |
الأبعاد - الذراع | الوصول مع الخدمة الشاقة 3,2 م (10 اقدام و6 بوصات) |
الأبعاد - الجرافة | خدمة شاقة 2,0 م³ (2,62 ياردة³) |
الأبعاد - ارتفاع الشحن - الجزء العلوي من الكابينة | 3060 مم ( 10 قدم ) |
الأبعاد - ارتفاع الدرابزين | 3060 مم ( 10 قدم ) |
الأبعاد - طول الشحن | 10450 مم ( 34.3 قدم ) |
الأبعاد - نصف قطر تأرجح الحاجز | 3130 مم ( 10.3 قدم ) |
الأبعاد - خلوص ثقل الموازنة | 1120 مم ( 3.7 قدم ) |
الأبعاد - الخلوص الأرضي | 480 مم ( 1.6 قدم ) |
الأبعاد - طول الجنزير | 4860 مم ( 15.9 قدم ) |
الأبعاد - الطول إلى مركز البكرات | 3990 مم ( 13.1 قدم ) |
الأبعاد - مقاس الجنزير | 2740 مم ( 9 قدم ) |
الأبعاد - عرض النقل | 3340 مم ( 11 قدم ) |
نطاقات العمل والقوى - عمق الحفر الأقصى | 7370 مم ( 24.2 قدم ) |
نطاقات العمل والقوى - ذراع الرافعة | الوصول مع الخدمة الشاقة 6,15 م (20 قدمًا وبوصتان) |
نطاقات العمل والقوى - الذراع | الوصول مع الخدمة الشاقة 3,2 م (10 اقدام و6 بوصات) |
نطاقات العمل والقوى - الجرافة | خدمة شاقة 2,0 م³ (2,62 ياردة³) |
نطاقات العمل والقوى - أقصى وصول من مستوى الأرض | 10680 مم ( 35 قدم ) |
نطاقات العمل والقوى - أقصى ارتفاع للقطع | 9660 مم ( 31.7 قدم ) |
نطاقات العمل والقوى - أقصى ارتفاع للتحميل | 6510 مم ( 21.4 قدم ) |
نطاقات العمل والقوى - أدنى ارتفاع للتحميل | 2170 مم ( 7.1 قدم ) |
نطاقات العمل والقوى - الحد الأقصى لعمق القطع لقاع مستوٍ يبلغ 2440 مم (8 أقدام) | 7200 مم ( 23.6 قدم ) |
نطاقات العمل والقوى - عمق حفر الجدار الرأسي الأقصى | 6420 مم ( 20.5 قدم ) |
نطاقات العمل والقوى - قوة حفر الجرافة - ISO | 197 kN ( 44290 lbf ) |
نطاقات العمل والقوى - قوة حفر الذراع الطرفية - ISO | 147 kN ( 33050 lbf ) |
