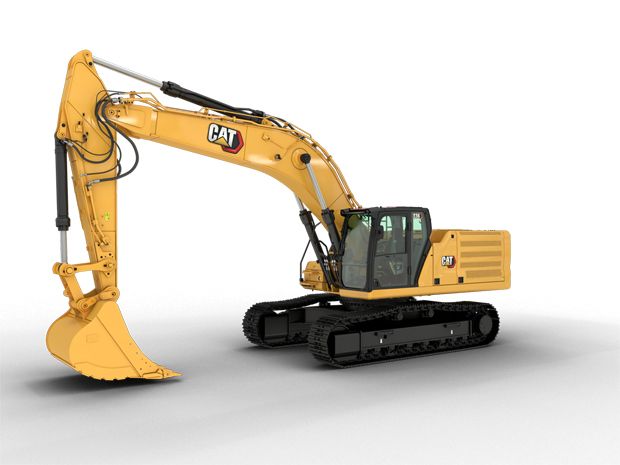

336 – Tier 3
LATEST FEATURES
Cab Monitor Improvements
- Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
- Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
- A new notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.
- Color coded notifications set critical messages apart from the rest.
- Use the in-monitor QR code to learn about machine technology and features through a full suite of "how-to" videos.
Operator Coaching
- Operator Coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.
- After detecting inefficient or restricted actions, the system alerts the operator and provides insight into the inefficiency and steps to improve.
- Paired with a VisionLink Productivity subscription, this information and other Operator Coaching insights can be viewed from anywhere.
- Standard integrated vehicle health management system alerts the operator with service guidance and parts needed to enhance uptime.
- Optional Cat Detect - People Detection helps the operator avoid personnel on the jobsite with visual and auditory alerts.
- Enhance visibility to make service work easier and safer with optional inspection lighting.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 08C
High Performance
- The C7.1 twin turbo engine reliably delivers power to the pumps for maximum production.
- The electrohydraulic system responds quickly and efficiently to the task at hand.
- Match the excavator to the job with three power modes – Power, Smart, and Eco. Power mode is maximum power all the time. Smart mode automatically matches engine and hydraulic power to digging conditions, providing maximum power when needed and reducing power when it isn’t to help save fuel. Eco mode reduces engine speed and keeps it constant to reduce fuel consumption.
Efficiency Through Technology
- Boost productivity up to 45% versus traditional grading with optional Cat Grade with 2D system – includes indicate-only and laser capability.
- Want a 3D system to improve your digging results? Caterpillar's single antenna global navigation satellite system (GNSS) makes it easy by giving you visual and auditory guidance to grade. Plus, you can create and edit designs on the touchscreen monitor while you’re on the job. If your application calls for a dual antenna system, it’s easy to upgrade.
- Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. Plus, you get added benefits of avoidance zones, cut and fill mapping, lane guidance, and augmented reality along with advanced positioning capability.
- Optional Grade Assist helps you stay on grade – simply and effortlessly – with single-lever digging.
- Dig with guidance to depth, slope, and horizontal distance to grade. You can set up to four different depth and slope targets to help save time and money.
- Automatically stop excavator swing at operator-defined set points in truck loading and trenching applications with Swing Assist.
- Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.
- Combine Payload with VisionLink® and remotely manage your production targets.
- Optional Operator Coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.
Take The Guesswork Out Of Managing Your Equipment
- VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
- VisionLink® Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacture.* View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.
- Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink® so you can keep a close eye on your fleet.
- Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
- Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
- The Cat PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition feature automatically adjusts machine settings based on the selected tool.
* Data field availability can vary by equipment manufacturer.
Built for Rugged Conditions
- Reinforced structures ensure long-term durability in harsh environments.
- Work up to 4500 m (14,764 ft) above sea level.
- Standard high-ambient temperature capability is 52° C (125° F) with cold start capability at –18° C (0° F).
- Auto hydraulic oil warmup gets you to work faster in cold temperatures and helps prolong the life of components.
- Two levels of filtration protect the engine from low-quality diesel fuel.
- Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
Work in Comfort
- Choose between Essential and Deluxe cabs – both with automatic climate control.
- Deluxe cab comes with heated seat to keep you warm and tilt-up left console to enable easy entry and exit.
- Control the excavator comfortably with easy-to-reach controls allocated in front of you.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.
- Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.
Simple to Operate
- Start the engine with the push of a button; use a Bluetooth key fob or Operator ID passcode.
- Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
- Trouble cutting through tough material? Optional auto dig boost gives you an automatic power increase of 8 percent when you need it for better bucket penetration, shorter cycle times, and greater payloads.
- Need more lift during your shift? Optional auto heavy lift gives you 8 percent more power exactly when you need it for as long as you need it.
- Make moving the excavator much easier with optional Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
- Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor or optional 254 mm (10 in) monitor.
- Protect your hammer from overworking. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds – all to prevent wear and tear on the attachment and excavator.
- Add an optional swing alarm to safeguard surroundings and assets. This features sends out warnings to the operator for any unexpected swings to enhance safety, minimizing downtime and increasing productivity.
- Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format. Productivity applications are displayed in grid-view to read on-the-go, and touchscreen navigation is programmed to make sure job performance continues without any hold ups.
- Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
Safety
- 2D E-Fence prevents the excavator from moving outside of operator-defined set points; the system works with thumb and bucket combinations along with hammer, grapple, and clamshell attachments.
- Enhance jobsite safety by adding Cat Command to your fleet. The remote control system comes with everything you need like WIFI radio, cameras, and microphone so you can work outside of the cab and avoid potential hazards.
- Cat Detect - People Detection helps protect the most valuable asset on any jobsite – people. The system uses smart cameras with depth sensors to provide the operator with visual and auditory alerts so he or she can take immediate action when a person is too close to the excavator.
- The Rollover Protective Structure (ROPS) cab meets industry standards and protects the operator in the event of a rollover.
- Enjoy great visibility with the help of narrow cab pillars, large windows, and a flat engine hood design.
- Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.
- Optional Cat Lift Assist helps you avoid tipping by letting you know if your load is within the excavator’s safe working range.
- A travel direction indicator helps you know which way to activate travel levers.
- Enhance jobsite safety by adding a swing alarm to alert people when you're rotating from trench to stockpile and back again.
- Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the push button starting feature.
- A ground-level shutoff switch stops the engine and machine from operating.
- Serrated steps and anti-skid punch plate on the service platform help prevent slipping.
- A rearview camera is standard.
- Add an optional swing alarm to safeguard surroundings and assets. This feature sends out warnings to the operator for any unexpected swings to enhance safety, minimizing downtime and increasing productivity.
Easy Maintenance
- Boost productivity with proactive service reminders. Our integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.
- Expect less maintenance cost due to 1,000 hour engine oil interval.
- Change all fuel filters at a synchronized 1,000 hours. Filters are grouped and located on right-hand side of machine for easy maintenance.
- Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
- The air intake filter with pre-cleaner has high dust holding capacity.
- The hydraulic oil filter provides superior filtration; anti-drain valves keep oil clean when the filter is replaced.
- The high-efficiency hydraulic fan has an optional automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
- S∙O∙SSM ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.
Documents & Brochures
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAT TECHNOLOGY
- VisionLink®
- Remote Flash
- Remote Troubleshoot
- Cat Grade 2D
- Cat Assist
- Compatibility with radios and base stations from Trimble, Topcon, and Leica
- Capability to install 3D grade systems from Trimble, Topcon, and Leica
ELECTRICAL SYSTEM
- Maintenance-free 1,000 CCA batteries (x2)
- Centralized electrical disconnect switch
- LED exterior chassis and boom lights
ENGINE
- Three selectable modes: Power, Smart, Eco
- Auto engine speed control
- -18°C (0°F) cold start capability
- Double element air filter with integrated pre-cleaner
- Remote disable
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Electronic main control valve
- Auto hydraulic oil warmup
- Bio hydraulic oil capability
- Fine swing
- Reverse swing damping valve
- Auto swing parking brake
- High performance hydraulic return filter
- Two speed travel
SAFETY AND SECURITY
- Inspection lighting
- Auto hammer stop
- Caterpillar One Key security system
- Lockable external tool / storage box
- Lockable door, fuel, and hydraulic tank locks
- Lockable fuel drain compartment
- Service platform with anti-skid plate & recessed bolts
- RH handrail and handhold
- Signaling / warning horn
- Lockable disconnect switch
- Ground-level secondary engine shutoff switch
- Rearview camera
SERVICE AND MAINTENANCE
- Grouped location of engine oil & fuel filters
- Scheduled Oil Sampling (S.O.S) ports
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- Towing eye on base frame
- Swivel guard
- HD bottom guard
- HD travel motor guards
- Grease lubricated track
DELUXE CAB
- High-resolution 203 mm (8") LCD touchscreen monitor
- Auto bi-level air conditioner
- Jog dial and shortcut keys for monitor control
- Keyless push-to-start engine control
- Height-adjustable console
- Tilt-up left-side console
- Heated air-suspension seat
- Monitor integrated Bluetooth radio with USB/Aux ports
- 12V DC outlets
- Beverage holder
- Cup holder
- Openable polycarbonate skylight hatch
- LED dome light
- Floor welcome light
- Roller rear sunscreen
- Beacon ready
- Roller front sunscreen
ESSENTIAL CAB
- High-resolution 203 mm (8") LCD touchscreen monitor
- Auto bi-level air conditioner
- Keyless push-to-start engine control
- Air-suspension seat
- Bluetooth radio with USB/Aux ports
- 24V DC outlet
- Beverage holder
- Openable steel hatch
- LED dome light
- Roller front sunscreen
Additional information
Offering Type | |
---|---|
Engine - Net Power - ISO 9249 | 223.5 kW ( 300 HP ) |
Engine - Net Power - ISO 9249 (DIN) | 304 hp (metric) ( 304 hp (metric) ) |
Engine Model | Cat C7.1 TTA |
Engine Power - ISO 14396 | 225 kW ( 302 HP ) |
Engine Power - ISO 14396 (DIN) | 306 hp (metric) ( 306 hp (metric) ) |
Engine - Bore | 105 mm ( 4 in ) |
Engine - Stroke | 135 mm ( 5 in ) |
Engine - Displacement | 7.01 l ( 428 in³ ) |
Engine - Biodiesel Capability | Up to B20¹ |
Engine - Emissions | Emits equivalent to U.S. EPA Tier 3.and EU Stage IIIA. |
Engine - Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,000 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
Engine - Note (2) | ¹Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to 100% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details. *For use of blends higher than 20% biodiesel, consult your Cat dealer. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Hydraulic System - Main System - Maximum Flow | 560 l/min ( 148 gal/min ) |
Hydraulic System - Maximum Pressure - Equipment | 35000 kPa ( 5076 psi ) |
Hydraulic System - Maximum Pressure - Equipment - Lift Mode | 38000 kPa ( 5511 psi ) |
Hydraulic System - Maximum Pressure - Travel | 35000 kPa ( 5076 psi ) |
Hydraulic System - Maximum Pressure - Swing | 29400 kPa ( 4264 psi ) |
Swing Mechanism - Swing Speed | 8.84 r/min ( 8.84 r/min ) |
Swing Mechanism - Maximum Swing Torque | 143 kN·m ( 105250 ft·lbf ) |
Weights - Operating Weight | 37500 kg ( 82600 lb ) |
Service Refill Capacities - Fuel Tank Capacity | 600 l ( 158.5 gal (US) ) |
Service Refill Capacities - Cooling System | 39 l ( 10.2 gal (US) ) |
Service Refill Capacities - Engine Oil | 25 l ( 6.6 gal (US) ) |
Service Refill Capacities - Swing Drive - Each | 18 l ( 4.8 gal (US) ) |
Service Refill Capacities - Final Drive - Each | 8 l ( 2.1 gal (US) ) |
Service Refill Capacities - Hydraulic System - Including Tank | 373 l ( 98.5 gal (US) ) |
Service Refill Capacities - Hydraulic Tank | 161 l ( 42.5 gal (US) ) |
Dimensions - Boom | Reach 6.5 m (21'4") |
Dimensions - Stick | Reach 3.2 m (10'6") |
Dimensions - Bucket | HD 2.12 m³ (2.77 yd³) |
Dimensions - Shipping Height - Top of Cab | 3180 mm ( 10.5 ft ) |
Dimensions - Handrail Height | 3180 mm ( 10.5 ft ) |
Dimensions - Shipping Length | 11170 mm ( 36.8 ft ) |
Dimensions - Tail Swing Radius | 3530 mm ( 11.7 ft ) |
Dimensions - Counterweight Clearance | 1260 mm ( 4.2 ft ) |
Dimensions - Ground Clearance | 510 mm ( 1.8 ft ) |
Dimensions - Track Length | 5030 mm ( 16.6 ft ) |
Dimensions - Track Length to Center of Rollers | 4040 mm ( 13.3 ft ) |
Dimensions - Track Gauge | 2740 mm ( 9 ft ) |
Dimensions - Transport Width - 600 mm (24”) Shoes | 3340 mm ( 11.11 ft ) |
Working Ranges & Forces - Boom | Reach 6.5 m (21'4") |
Working Ranges & Forces - Stick | Reach 3.2 m (10'6") |
Working Ranges & Forces - Bucket | HD 2.12 m³ (2.77 yd³) |
Working Ranges & Forces - Maximum Reach at Ground Level | 11060 mm ( 36.3 ft ) |
Working Ranges & Forces - Maximum Cutting Height | 10320 mm ( 33.8 ft ) |
Working Ranges & Forces - Maximum Loading Height | 7080 mm ( 23.3 ft ) |
Working Ranges & Forces - Minimum Loading Height | 2590 mm ( 8.5 ft ) |
Working Ranges & Forces - Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 7360 mm ( 24.1 ft ) |
Working Ranges & Forces - Maximum Vertical Wall Digging Depth | 5690 mm ( 18.7 ft ) |
Working Ranges & Forces - Bucket Digging Force - ISO | 210 kN ( 47180 lbf ) |
Working Ranges & Forces - Stick Digging Force - ISO | 166 kN ( 37350 lbf ) |
Air Conditioning System - Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.00 kg of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes. |
Working Ranges & Forces - Maximum Digging Depth | 7510 mm ( 24.7 ft ) |
-
Clamshell Grapples
CTV20-1300 Clamshell Grapple
View Details -
Clamshell Grapples
CTV20-1500 Clamshell Grapple
View Details -
Clamshell Grapples
CTV20-1500-BOCE Clamshell Grapple
View Details -
Clamshell Grapples
CTV20-1700 Clamshell Grapple
View Details -
Clamshell Grapples
CTV20-1900 Clamshell Grapple
View Details -
Clamshell Grapples
CTV20-2300 Clamshell Grapple
View Details -
Clamshell Grapples
CTV20-2300-BOCE Clamshell Grapple
View Details -
Clamshell Grapples
CTV30-1700 Clamshell Grapple
View Details -
Clamshell Grapples
CTV30-1900 Clamshell Grapple
View Details -
Clamshell Grapples
CTV30-1900-BOCE Clamshell Grapple
View Details -
Clamshell Grapples
CTV30-2300 Clamshell Grapple
View Details -
Clamshell Grapples
CTV30-2300-BOCE Clamshell Grapple
View Details -
Vibratory Plate Compactors
CVP110
View Details -
CW Series Couplers
CW-45
View Details -
CW Series Couplers
CW-45
View Details -
CW Series Couplers
CW-45S
View Details -
CW Series Couplers
CW-45S
View Details -
Ditch Cleaning
Ditch Cleaning Bucket 2200 mm (87 in): 462-8440
View Details -
Demolition and Sorting Grapples
G332 Demolition & Sorting Grapple: 587-8991
View Details -
Demolition and Sorting Grapples
G332 Demolition & Sorting Grapple: 587-8994
View Details -
Demolition and Sorting Grapples
G345 Demolition & Sorting Grapple: 608-0756
View Details -
General Duty
General Duty Bucket 1650 mm (65 in): 540-4108
View Details -
General Duty
General Duty Bucket 1800 mm (71 in): 540-4110
View Details -
General Duty
General Duty Bucket 1800 mm (71 in): 577-0346
View Details -
Orange Peel Grapples
GSH455 4-Tine, 1000-Liter Orange Peel Grapple
View Details -
Orange Peel Grapples
GSH455 4-Tine, 1500-Liter Orange Peel Grapple
View Details -
Orange Peel Grapples
GSH455 4-Tine, 2000-Liter Orange Peel Grapple
View Details -
Orange Peel Grapples
GSH555 5-Tine, 1000-Liter Orange Peel Grapple
View Details -
Orange Peel Grapples
GSH555 5-Tine, 1500-Liter Orange Peel Grapple
View Details -
Orange Peel Grapples
GSM50 5-Tine, 1250-Liter Orange Peel Grapple
View Details -
Orange Peel Grapples
GSM50 5-Tine, 1500-Liter Orange Peel Grapple
View Details -
GC Hammers
H130 GC
View Details -
GC Hammers
H130 GC S
View Details -
GC Hammers
H140 GC
View Details -
GC Hammers
H140 GC S
View Details -
Performance Hammers
H140 S
View Details -
GC Hammers
H160 GC
View Details -
GC Hammers
H160 GC S
View Details -
Performance Hammers
H160 S
View Details -
GC Hammers
H180 GC
View Details -
GC Hammers
H180 GC S
View Details -
Performance Hammers
H180 S
View Details -
Heavy Duty
Heavy Duty Bucket 1750 mm (69 in): 577-0343
View Details -
Heavy Duty
Heavy Duty Bucket 1850 mm (72 in): 528-4610
View Details -
Multi-Processor with Concrete Cutter Jaws
MP324 Concrete Cutter Jaw
View Details -
Multi-Processor with Demolition Jaws
MP324 Demolition Jaw
View Details -
Multi-Processor with Pulverizer Jaws
MP324 Pulverizer Jaw
View Details -
Multi-Processor with Shear Jaws
MP324 Shear Jaw
View Details -
Multi-Processor with Tank Shear Jaws
MP324 Tank Shear
View Details -
Multi-Processor with Universal Jaws
MP324 Universal Jaw
View Details -
Multi-Processor with Concrete Cutter Jaws
MP332 Concrete Cutter Jaw
View Details -
Multi-Processor with Demolition Jaws
MP332 Demolition Jaw
View Details -
Multi-Processor with Pulverizer Jaws
MP332 Pulverizer Jaw
View Details -
Multi-Processor with Shear Jaws
MP332 Shear Jaw
View Details -
Multi-Processor with Tank Shear Jaws
MP332 Tank Shear
View Details -
Multi-Processor with Universal Jaws
MP332 Universal Jaw
View Details -
Secondary Pulverizer
P224 Secondary Pulverizer
View Details -
Secondary Pulverizer
P232 Secondary Pulverizer
View Details -
Primary Pulverizers
P324 Primary Pulverizer
View Details -
Primary Pulverizers
P332 Primary Pulverizer
View Details -
Pin Grabber Couplers
Pin Grabber Coupler (DB-Linkage): 455-3906
View Details -
Pin Grabber Couplers
Pin Grabber Coupler (TB-Linkage): 455-3908
View Details -
Rotary Cutters
RC30
View Details -
Rotary Cutters
RC50
View Details -
Mobile Scrap & Demolition Shears
S3035 Rotating Scrap & Demolition Shear
View Details -
Severe Duty
Severe Duty Bucket 1500 mm (59 in): 528-4645
View Details -
Severe Duty
Severe Duty Bucket 1700 mm (67 in): 518-9328
View Details -
Severe Duty
Severe Duty Bucket 1900 mm (75 in): 518-9330
View Details
