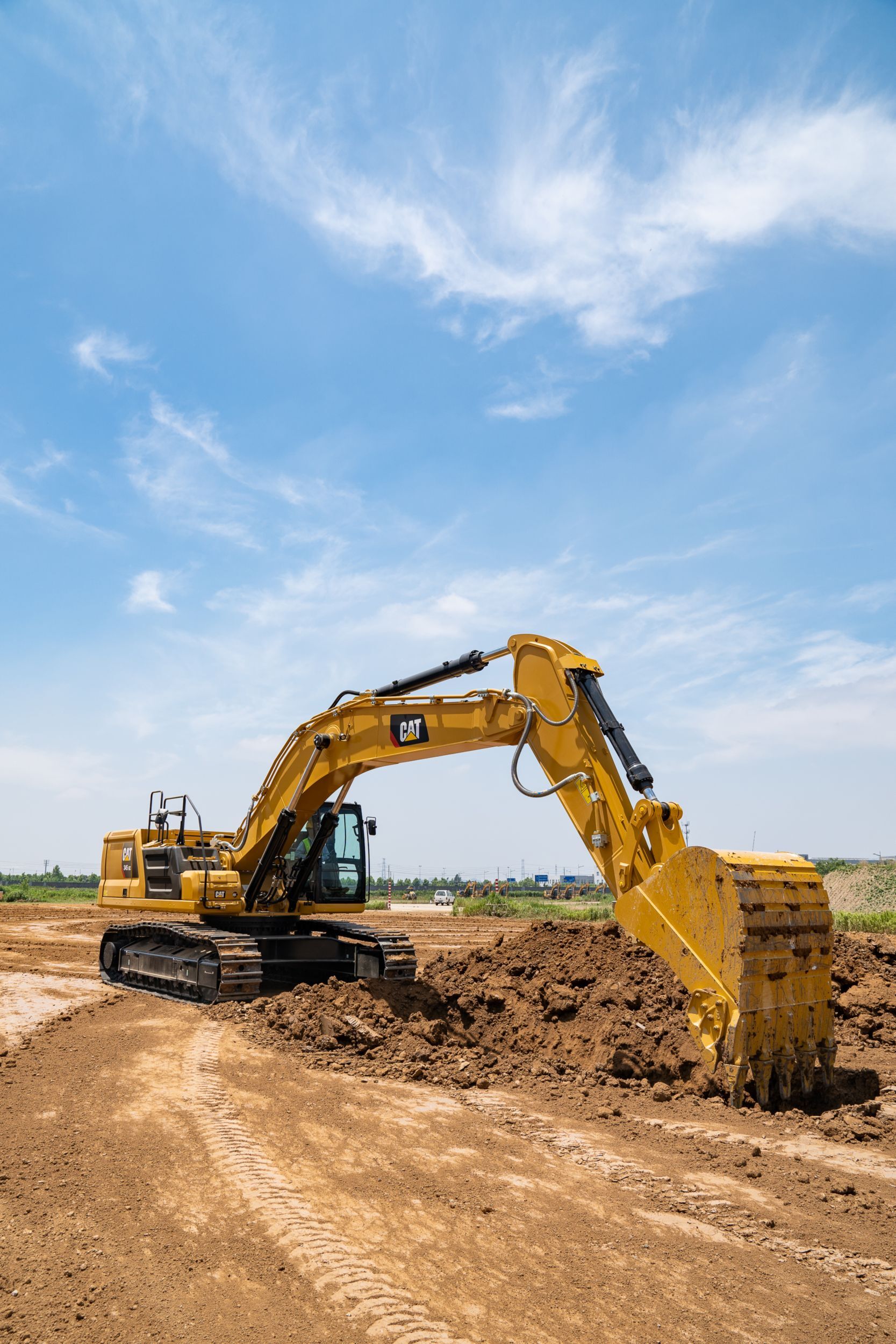

345 GC

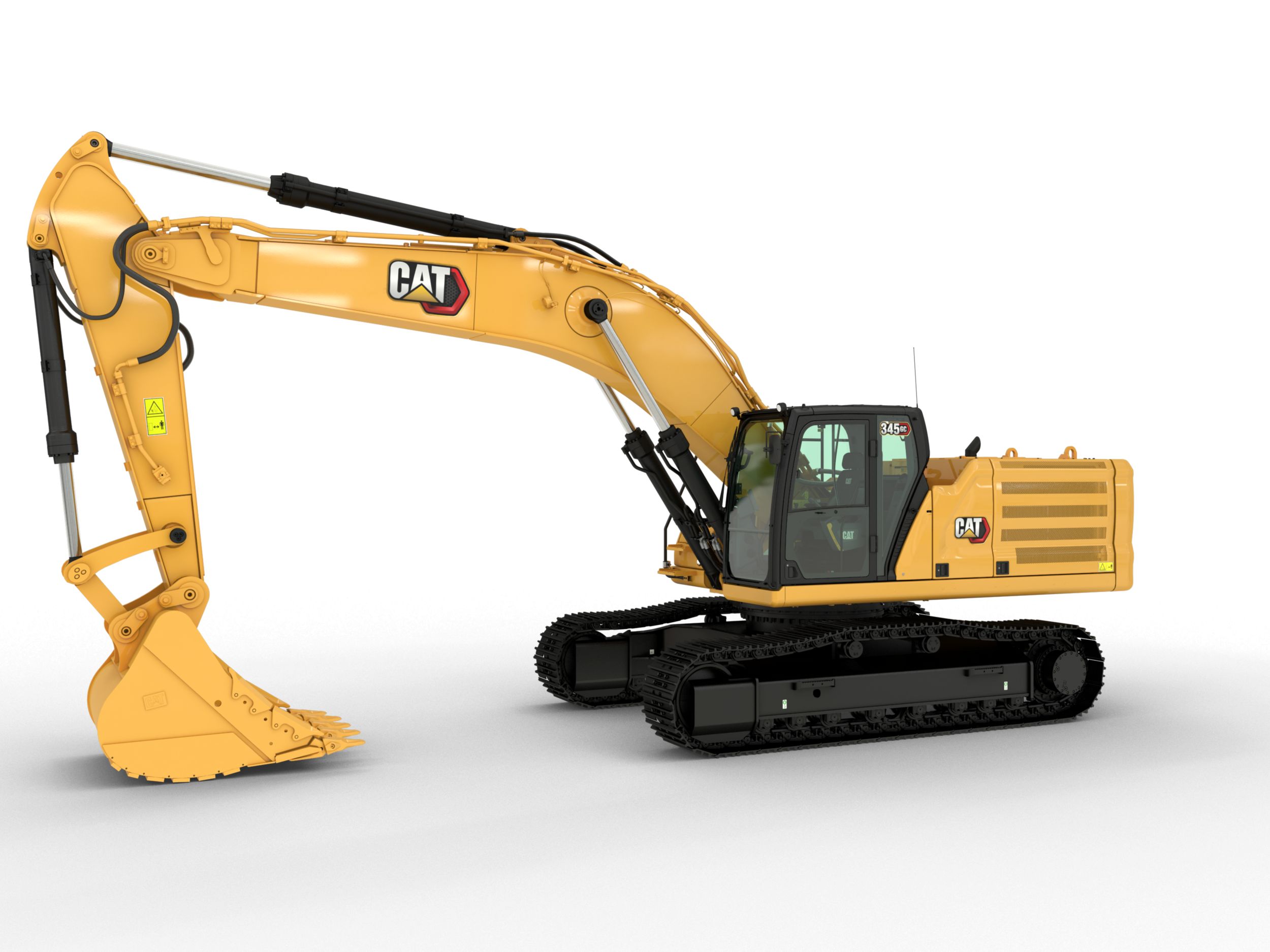

345 GC

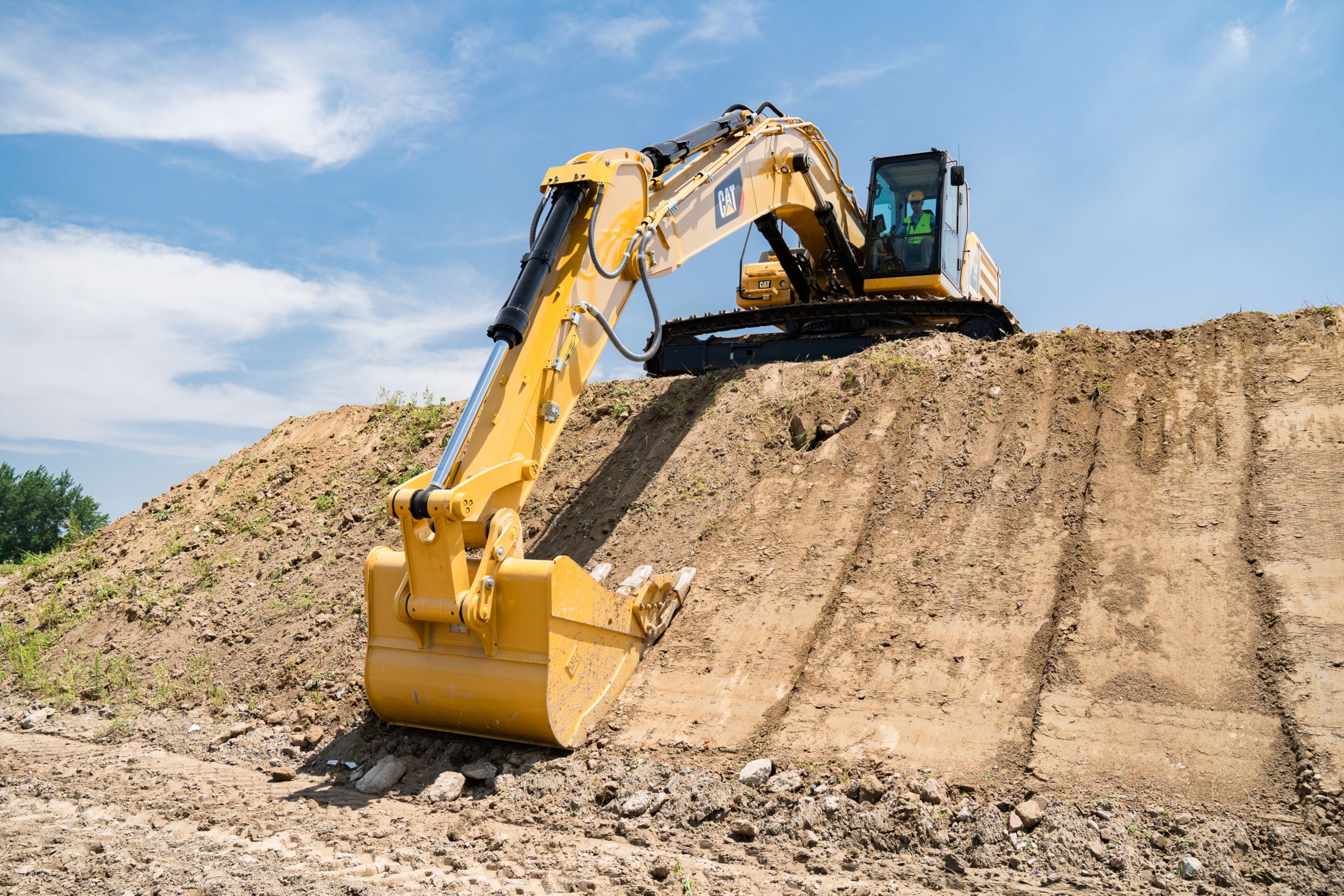

345 GC - Image 2

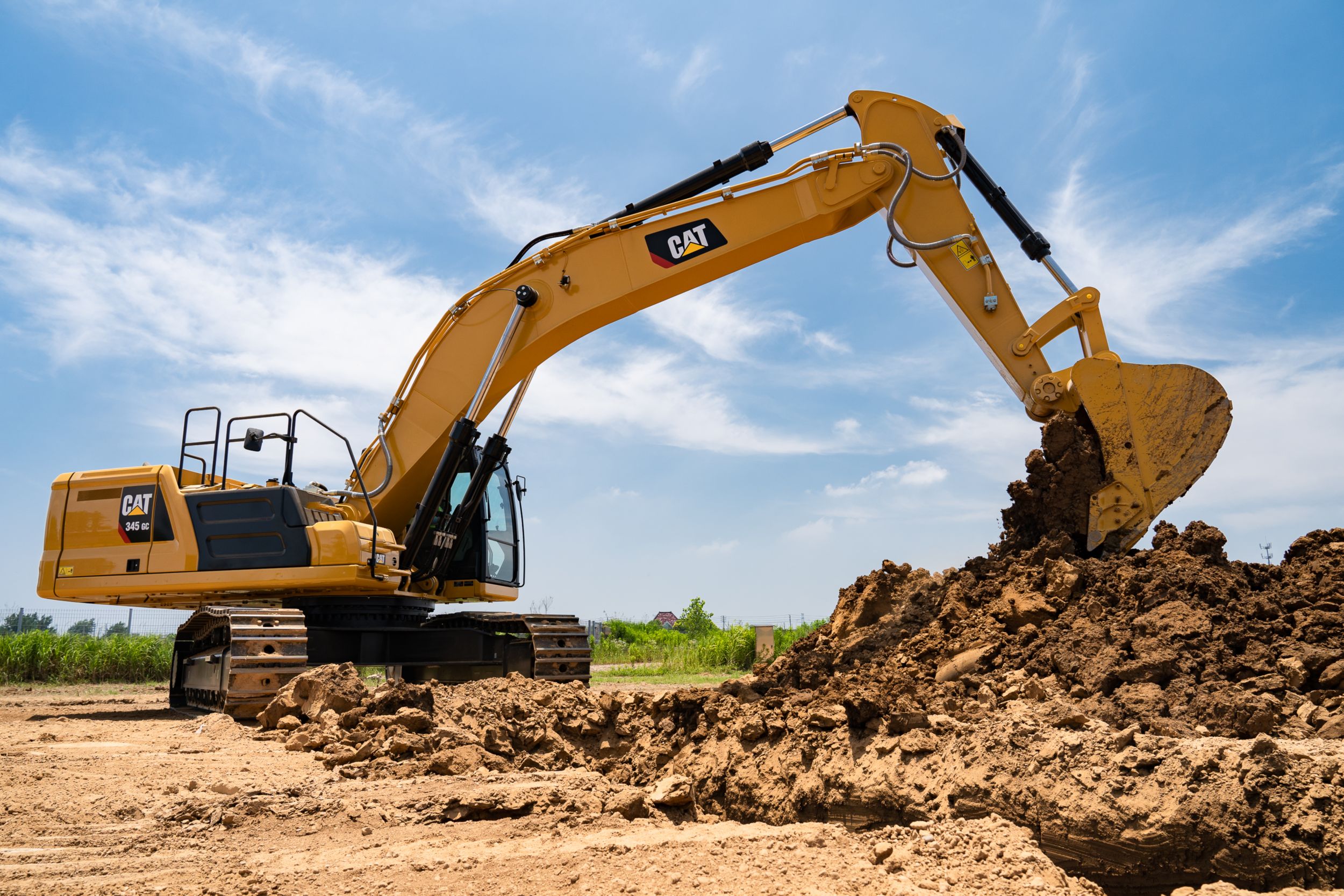

345 GC - Image 3

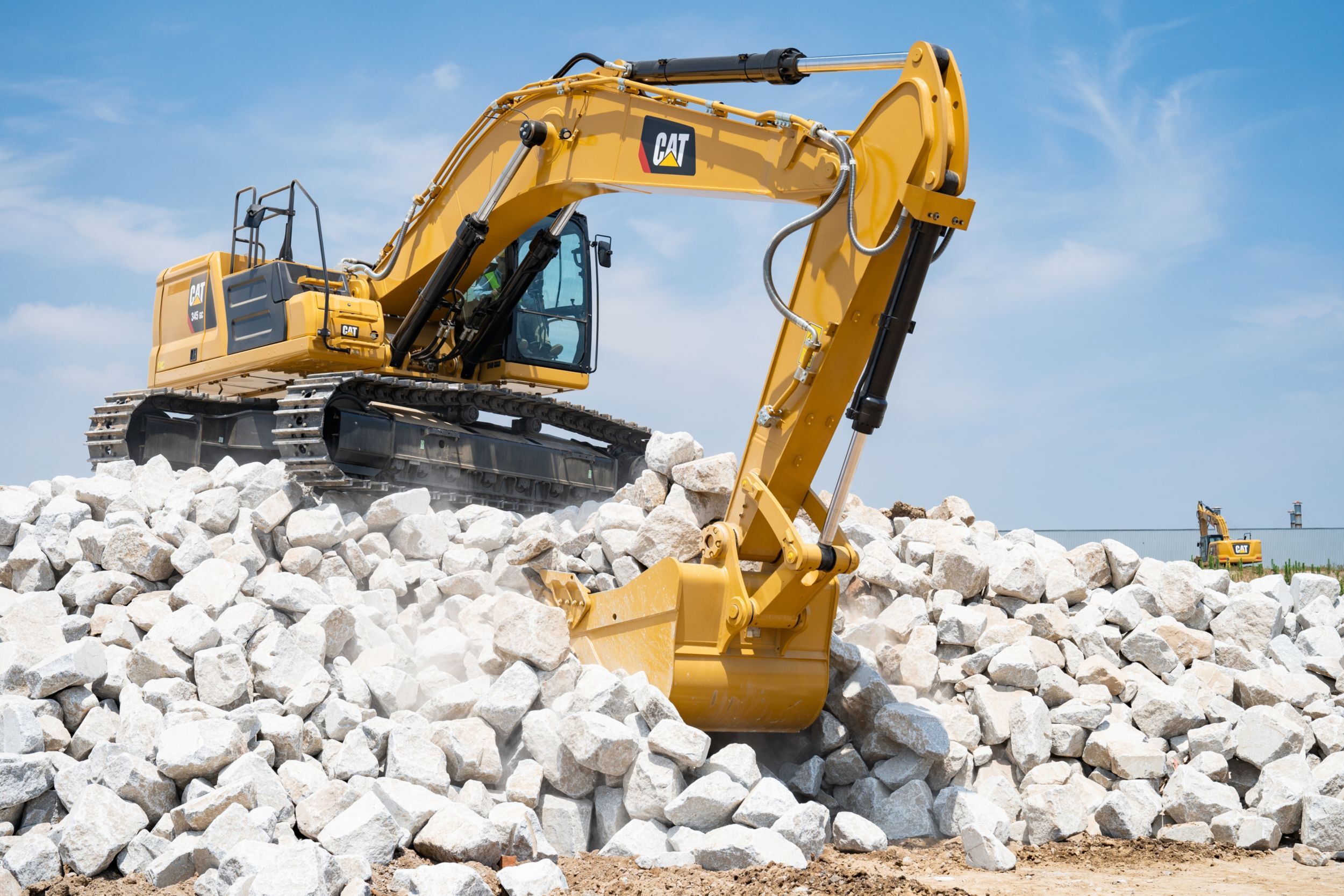

345 GC - Image 4

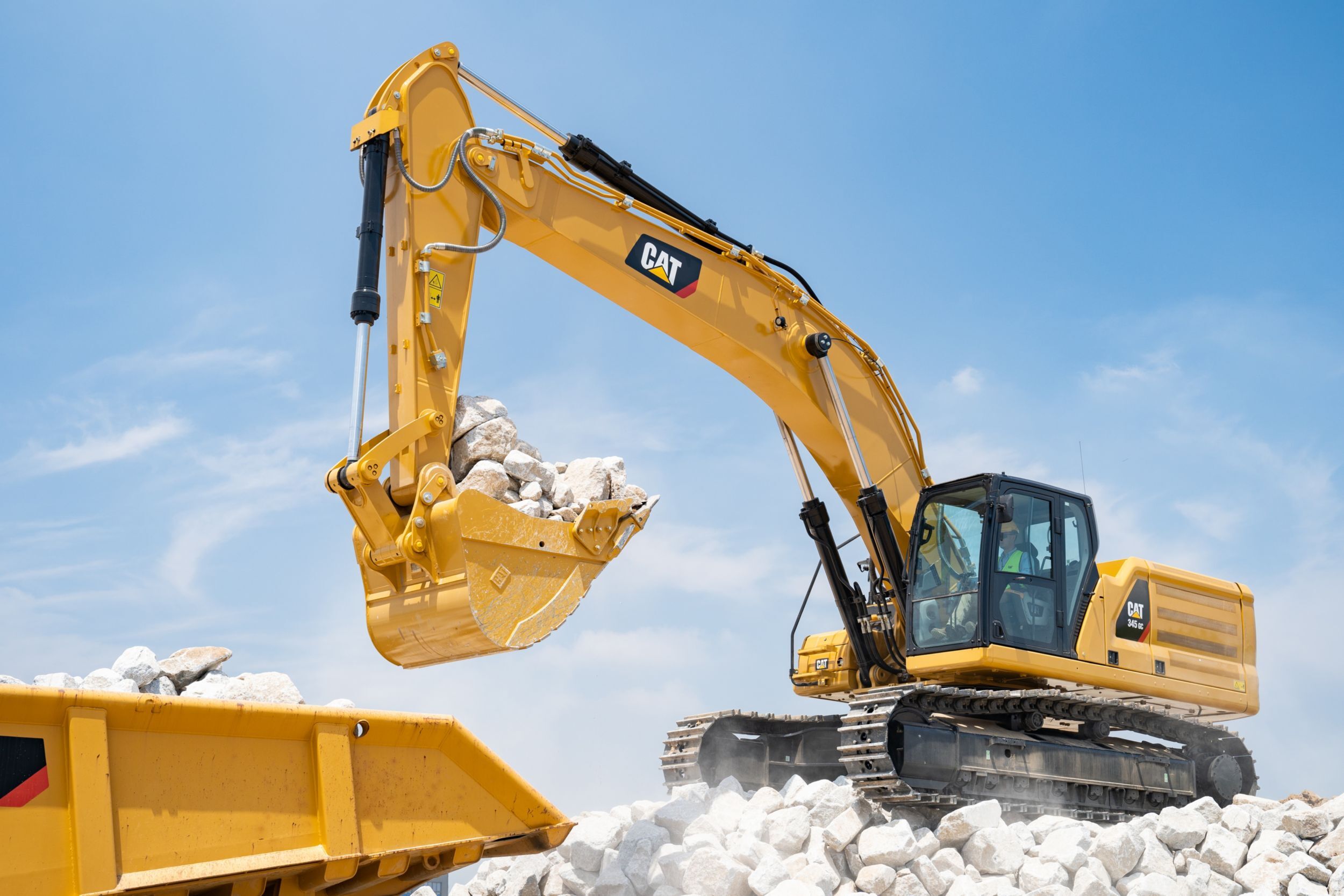

345 GC - Image 5
345 GC - Image 6

345 Excavator | 45 Ton Excavator | Digger

Fuel efficiency and serviceability make the 345 GC stand out. Add in a quiet and comfortable ROPS cab, easy-to-use controls, and multiple Cat attachment options and you have one tough excavator capable of taking on a variety of tasks.

Category:
Add to Quote

DO MORE WITH LESS FUEL

  • Get up to 25 percent more fuel efficiency than the 349D2 Tier 3 excavator in similar applications.
  • The C9.3B engine meets Brazil MAR-1 and China Nonroad Stage III emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
  • Match the excavator to the job with two power modes. Smart mode automatically matches engine and hydraulic power to digging conditions, providing max power when needed and reducing power when it isn’t to help save fuel.
  • The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
  • Valve priority puts hydraulic pressure and flow where you command it to go for fast light- to medium-load cycle times.
  • Advansys bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
  • Add auxiliary hydraulics to do more work with various Cat attachments.
  • Product Link™ comes standard so you can remotely monitor machine health, location, hours, and fuel consumption on demand through the VisionLink® online interface.

BUILT TO PERFORM

  • Work up to 3300 m (10,830 ft) above sea level.
  • Standard high-ambient temperature capability is 52° C (125° F) with cold start capability at –18° C (0° F).
  • Automatic hydraulic oil warm up gets you to work faster in cold temperatures and helps prolong the life of components.
  • Advancedfuelfiltration protects the engine from dirty diesel fuel.
  • Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
  • Standard built-in protection includes a heavy-duty bottom guard, travel motor guard, and swivel protection guard.
  • The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.

WORK IN COMFORT

  • The Comfort cab has a wide seat that adjusts for operators of all sizes.
  • Control the excavator comfortably with easy-to-reach controls all located in front of you.
  • Standard automatic climate control keeps you at the right temperature all shift long.
  • Advanced viscous mounts reduce cab vibration by up to 50 percent over previous excavator models.
  • Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.
  • Use the standard radio’s USB ports and Bluetooth® technology to connect to personal devices.

SIMPLE TO OPERATE

  • Start the engine with a push button; use a Bluetooth key fob, or Operator ID passcode.
  • Program your power mode and joystick preferences using Operator ID; the excavator will remember them every time you go to work.
  • Protect your hammer from overworking. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds — all to prevent wear and tear on the attachment and excavator.
  • Navigate quickly on the standard high-resolution 203 mm (8 inch) touchscreen monitor or with the aid of the jog dial control.
  • The Cat Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy. The excavator's onboard Bluetooth reader or Cat App on your phone will locate the device automatically.
  • Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
  • Make moving the excavator much easier with Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.

SAVE ON SERVICE AND MAINTENANCE

  • Expect up to 35 percent less maintenance cost than the 349D2 Tier 3 excavator due to extended and synchronized service intervals and smaller fluid quantities (savings calculated over 12,000 machine hours).
  • Check hydraulic system oil and easily drain fuel system water from ground level.
  • Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
  • Using Cat genuine oil and filters and doing your typical S∙O∙S monitoring will double the current service interval to 1,000 hours, giving you greater uptime to do more work.
  • Oil and fuel filters are grouped and located on right-hand side of machine for easy maintenance.
  • The new air intake filter with pre-cleaner has double the dirt holding capacity of the previous air intake filter.
  • The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000 hour replacement interval – 50 percent longer than previous filter designs.
  • S·O·S ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.

BUILT-IN SAFETY FEATURES

  • Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the push button starting feature.
  • The standard ROPS cab meets ISO 12117-2:2008 requirements.
  • A travel direction indicator helps operators know which way to activate the travel levers.
  • A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
  • Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab posts and larger windows.
  • Serrated steps and anti-skid plate on the service platform help prevent slipping.
  • A rearview camera is standard.

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
  • ROPS, standard sound suppression
  • High-resolution 203 mm (8") LCD touch screen monitor
  • Mechanically adjustable seat
ENGINE
  • Two selectable modes: Power, Smart
  • Auto engine speed control
  • Up to 3300 m (10,830 ft) altitude capability
  • 52° C (126° F) high-ambient cooling capacity
  • -18° C (0° F) cold start capability
  • Double element air filter with integrated precleaner
  • Biodiesel capability up to B20
HYDRAULIC SYSTEM
  • Boom and stick regeneration circuit
  • Electronic main control valve
  • Auto hydraulic oil warm up
  • Reverse swing damping valve
  • Auto swing parking brake
  • High performance hydraulic return filter
  • Two speed travel
  • Bio hydraulic oil capability
  • Long undercarriage
UNDERCARRIAGE AND STRUCTURES
  • Towing eye on baseframe (ISO 15818 Compliant)
  • 9 mt (19, 842 lb) counterweight
ELECTRICAL SYSTEM
  • Maintenance-free 1000 CCA batteries (x2)
  • Centralized electrical disconnect switch
  • LED chassis light, right and left hand boom lights, cab lights
CAT TECHNOLOGY
  • Cat Product Link
  • Auto hammer stop
SERVICE AND MAINTENANCE
  • Grouped location of engine oil & fuel filters
  • Scheduled Oil Sampling (S.O.S) sampling ports
SAFETY AND SECURITY
  • Caterpillar One Key security system
  • Lockable external tool / storage box
  • Lockable door, fuel, and hydraulic tank locks
  • Lockable fuel drain compartment
  • Service platform with anti-skid plate & recessed bolts
  • Right hand handrail & hand hold (ISO 2867 Compliant)
  • Signaling / warning horn
  • Standard visibility mirror package
  • Ground-level secondary engine shutoff switch
  • Rearview camera and right-hand-side mirror

Additional information

محرك - صافي القدرة - ISO 9249

258 كيلووات ( 346 حصان )
موديل المحرك

Cat C9.3
قدرة المحرك - ISO 14396

259 كيلووات ( 347 حصان )
محرك - التجويف

115 مم ( 5 بوصة )
محرك - الشوط

149 مم ( 6 بوصة )
محرك - الإزاحة

9.3 l ( 568 بوصة³ )
النظام الهيدروليكي - النظام الرئيسي - التدفق الأقصى

630 لتر/دقيقة (166 جالون/دقيقة)
النظام الهيدروليكي - أقصى ضغط - المعدات

35000 كيلو باسكال ( 5076 رطل لكل بوصة مربعة )
النظام الهيدروليكي - أقصى ضغط - السير

35000 كيلو باسكال ( 5076 رطل لكل بوصة مربعة )
النظام الهيدروليكي - أقصى ضغط - التأرجح

28000 كيلو باسكال ( 4061 رطل لكل بوصة مربعة )
آلية التأرجح - سرعة التأرجح

8.27 دورة في الدقيقة ( 8.27 دورة في الدقيقة )
آلية التأرجح - أقصى عزم للتأرجح

155 kN·m ( 114543 ft·lbf )
الأوزان - الوزن أثناء التشغيل

42200 كجم ( 93000 رطل )
سعات إعادة التعبئة للخدمة - سعة خزان الوقود

600 l ( 158.5 جالون (أمريكي) )
سعات إعادة التعبئة للخدمة - نظام التبريد

40 l ( 10.5 جالون (أمريكي) )
سعات إعادة التعبئة للخدمة - زيت المحرك

32 l ( 8.5 جالون (أمريكي) )
سعات إعادة التعبئة للخدمة - مجموعة إدارة التأرجح

13.5 l ( 3.6 جالون (أمريكي) )
سعات إعادة التعبئة للخدمة - مجموعة الإدارة النهائية - لكل مجموعة

8 l ( 2.1 جالون (أمريكي) )
سعات إعادة التعبئة للخدمة - النظام الهيدروليكي - بما في ذلك الخزان

423 l ( 111.7 جالون (أمريكي) )
سعات إعادة التعبئة للخدمة - الخزان الهيدروليكي

186 l ( 49.1 جالون (أمريكي) )
الأبعاد - ذراع الرافعة

الوصول 6,9 م (22,8 بوصة)
الأبعاد - الذراع

R2.9TB (9 أقدام و6 بوصات)
الأبعاد - الجرافة

HD 2,41 م³ (3,15 ياردات³)
الأبعاد - ارتفاع الشحن - الجزء العلوي من الكابينة

3230 مم ( 10.6 قدم )
الأبعاد - ارتفاع الدرابزين

3370 مم ( 11.1 قدم )
الأبعاد - طول الشحن

11600 مم ( 38.1 قدم )
الأبعاد - نصف قطر تأرجح الحاجز

3530 مم ( 11.6 قدم )
الأبعاد - خلوص ثقل الموازنة

1300 مم ( 4.3 قدم )
الأبعاد - الخلوص الأرضي

520 مم ( 1.7 قدم )
الأبعاد - طول الجنزير

5030 مم ( 16.5 قدم )
الأبعاد - طول الجنزير إلى مركز البكرات

4040 مم ( 13.3 قدم )
الأبعاد - مقاس الجنزير

2740 مم ( 9 قدم )
الأبعاد - عرض النقل

3340 مم ( 11 قدم )
نطاقات العمل والقوى - عمق الحفر الأقصى

7200 مم ( 23.6 قدم )
نطاقات العمل والقوى - ذراع الرافعة

الوصول 6,9 م (22,8 بوصة)
نطاقات العمل والقوى - الذراع

R2.9TB (9 أقدام و6 بوصات)
نطاقات العمل والقوى - الجرافة

HD 2,41 م³ (3,15 ياردات³)
نطاقات العمل والقوى - أقصى وصول من مستوى الأرض

11290 مم ( 37 قدم )
نطاقات العمل والقوى - أقصى ارتفاع للقطع

10540 مم ( 34.6 قدم )
نطاقات العمل والقوى - أقصى ارتفاع للتحميل

7210 مم ( 23.7 قدم )
نطاقات العمل والقوى - أدنى ارتفاع للتحميل

3130 مم ( 10.3 قدم )
نطاقات العمل والقوى - الحد الأقصى لعمق القطع لقاع مستوٍ يبلغ 2440 مم (8 أقدام)

7040 مم ( 23 قدم )
نطاقات العمل والقوى - عمق حفر الجدار الرأسي الأقصى

5390 مم ( 17.7 قدم )
نطاقات العمل والقوى - قوة حفر الجرافة - ISO

235 kN ( 52860 lbf )
نطاقات العمل والقوى - قوة حفر الذراع الطرفية - ISO

180 kN ( 40530 lbf )
عدد دورات المحرك في الدقيقة - التشغيل

1750 دورة في الدقيقة ( 1750 دورة في الدقيقة )
نطاقات العمل وقوى العمل - قوة حفر الذراع - SAE

190 kN ( 42790 lbf )
نطاقات العمل وقوى العمل - قوة حفر الجرافة - SAE

203 kN ( 45650 lbf )
نظام مكيف الهواء - مكيف الهواء

يحتوي نظام تكييف الهواء بهذه الماكينة على المبرد R134a المكون من غاز مفلور يؤدي للاحتباس الحراري (دليل الاحتباس الحراري = 1430). يحتوي النظام على 1,0 كجم من المبرّد الذي يعادل 1430 طنًا متريًا من غاز ثاني أكسيد الكربون CO2.
الوزن التشغيلي

ذراع الوصول، والذراع R2.9TB‏ (9 أقدام و6 بوصات)، وجرافة الخدمة الشاقة سعة 2,41 م3 (3,15 ياردة3)، ومداسات مزدوجة الحواف مقاس 600 مم (24 بوصة)، وثقل موازنة بوزن 9 أطنان مترية (19842 رطلاً).
عدد دورات المحرك في الدقيقة - السير

1900 دورة في الدقيقة ( 1900 دورة في الدقيقة )
