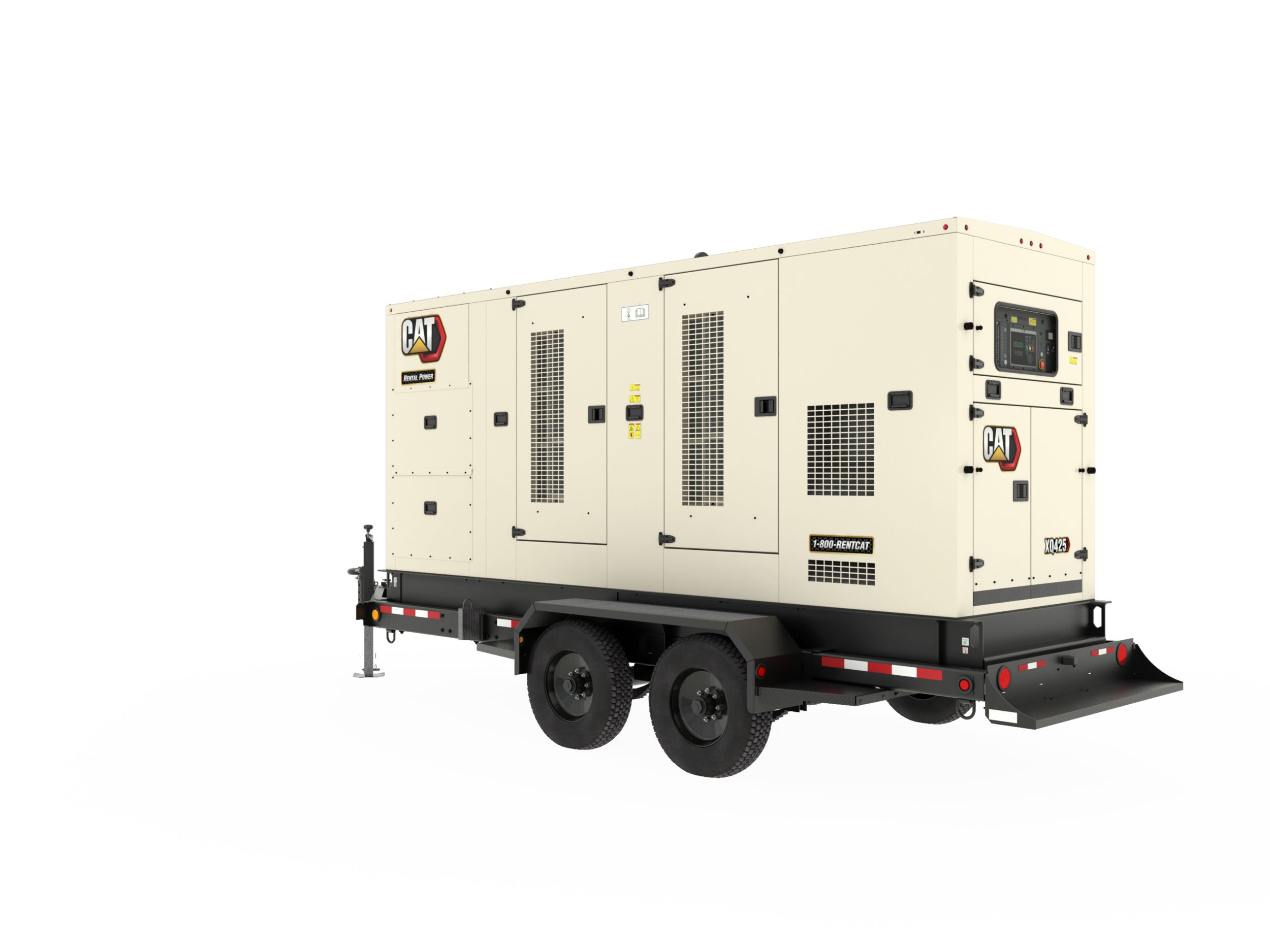

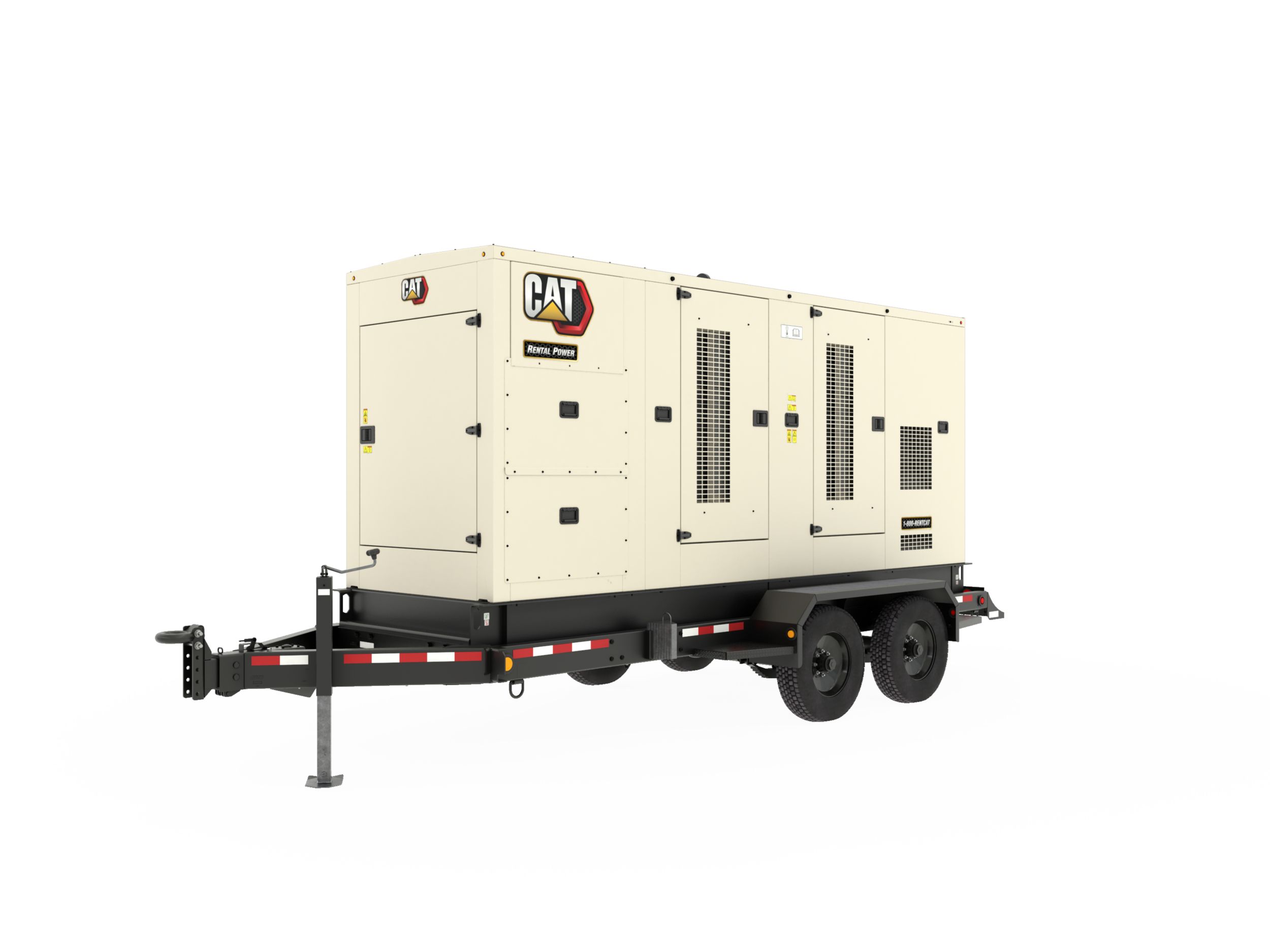

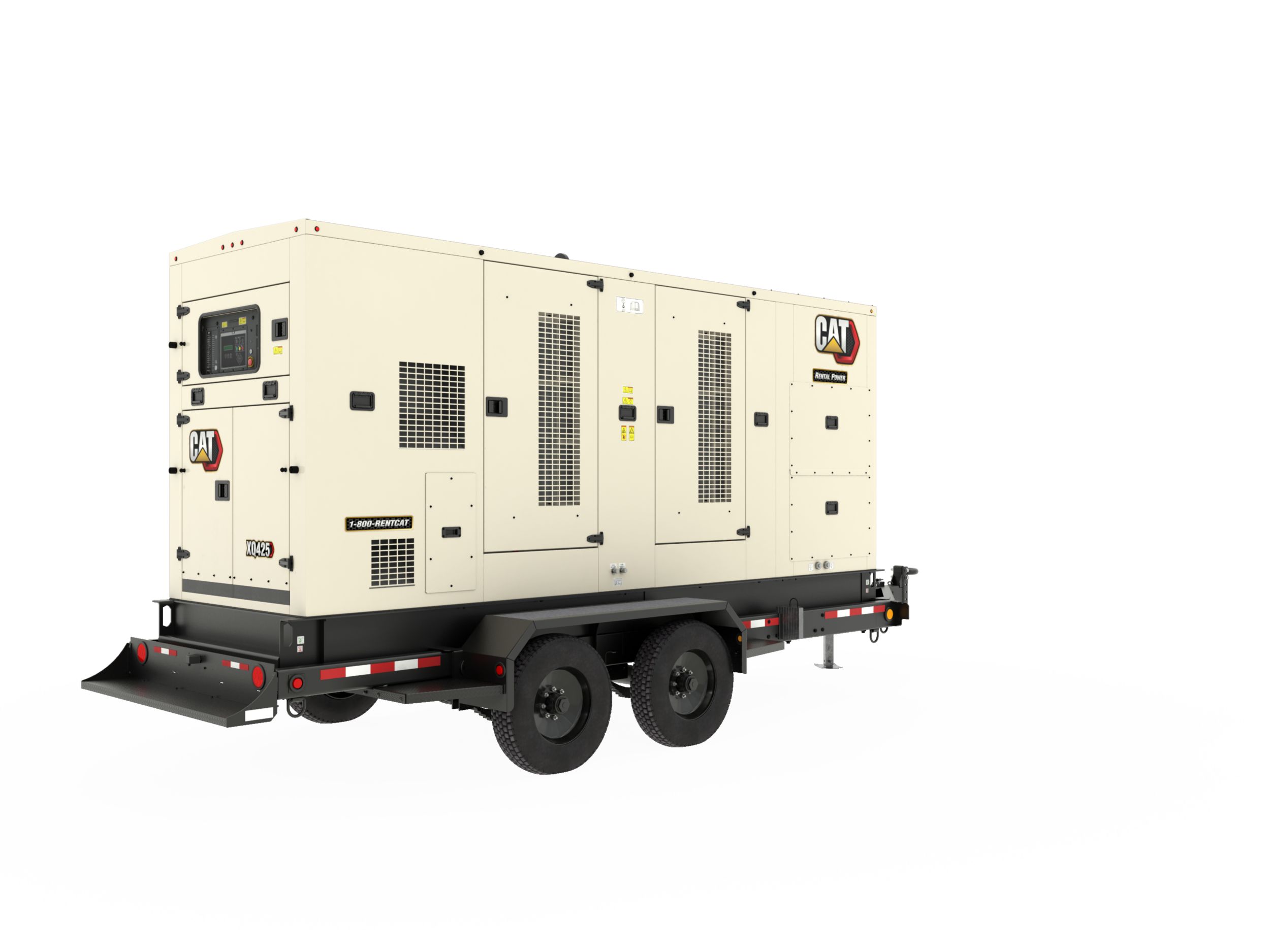

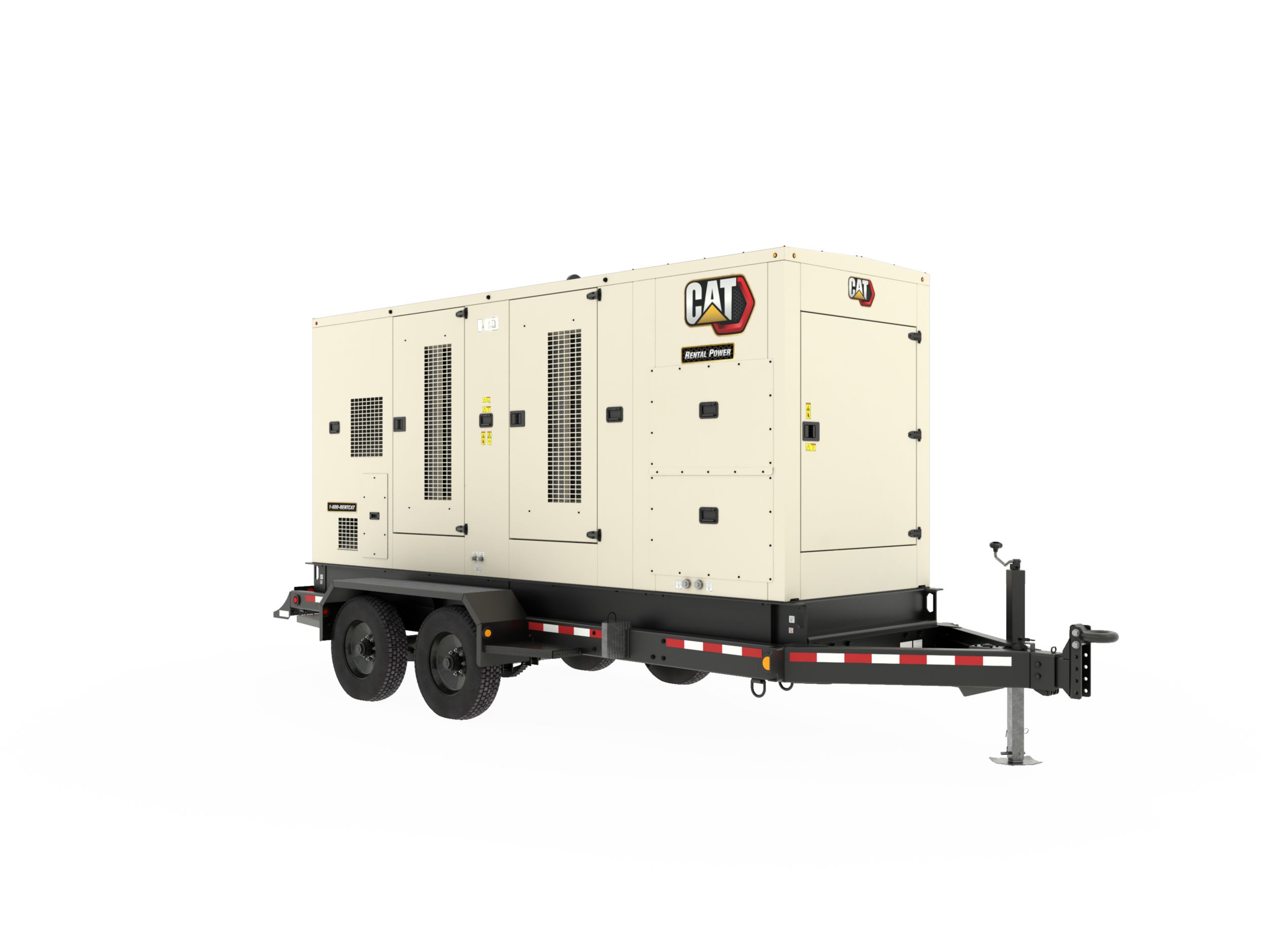

XQ425 Tier 4 Final
XQ425
The Cat® XQ425 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C13 Tier 4 Final engine compliant equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ425 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.
Rental ready
Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy
Meets U.S. EPA Tier 4 Final emission standards and CARB certified for non-road mobile applications at all 60 Hz ratings
Cat C13 Diesel Engine
Industry proven reliability
CAT EMCP 4.2 digital controls
Easy to use digital controls
Cat SR4B Series Generator
Integrated voltage regular for fast response in demanding applications
Sound Isolated Operator panel
Improved operator comfort
Cat Connect
Remote monitoring for fleet management and asset tracking
Factory designed, built and tested
Single-source Supplier
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
500 hr oil change intervals
Reducing operating costs and producing less waste
Improved transportability
Lifting frame, 4 point lift and trailers
Power Distribution
Distribution sockets
Additional options
Synchronising controls.
Extended Service interval kits
600V generator
208V 3-phase NEMA Sockets
Virtual Tours
Documents & Brochures
Standard Equipment
CAT C13 Diesel Engine
- Heavy-duty.
Turbocharged.
After treatment
Generator
- SR4B - 450 Frame
Control Panel
- Digital EMCP4.2 set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.
Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
Additional information
| Offering Type | |
|---|---|
| Generator Set - Rating Prime | 340 ekW (425 kVA) |
| Generator Set - Frequency | 50/60 Hz |
| Generator Set - Voltage | 120 – 600 V |
| Generator Set - Rating Standby | 375 ekW (469 kVA) |
| Engine | C13 |
| Engine - Fuel | Diesel |
| Dimensions - Height - Without Trailer | 1524 mm ( 60 in ) |
| Dimensions - Length - Without Trailer | 5080 mm ( 208.7 in ) |
| Dimensions - Width - Without Trailer | 2642 mm ( 104 in ) |
| Dimensions - Weight with Lube Oil and Coolant, Without Trailer | 6667 kg ( 14700 lb ) |
| Fuel Consumption - 100% Load 60Hz | 95.7 l/hr ( 25.1 gal/hr ) |
| Fuel Consumption - 75% Load 60Hz | 73.4 l/hr ( 19.2 gal/hr ) |
| Fuel Consumption - 50% Load 60Hz | 52.3 l/hr ( 13.6 gal/hr ) |
| Noise rating (with enclosure) - Sound Power @ 7 meters (23 feet) @ All Ratings | 74 dB(A) |
