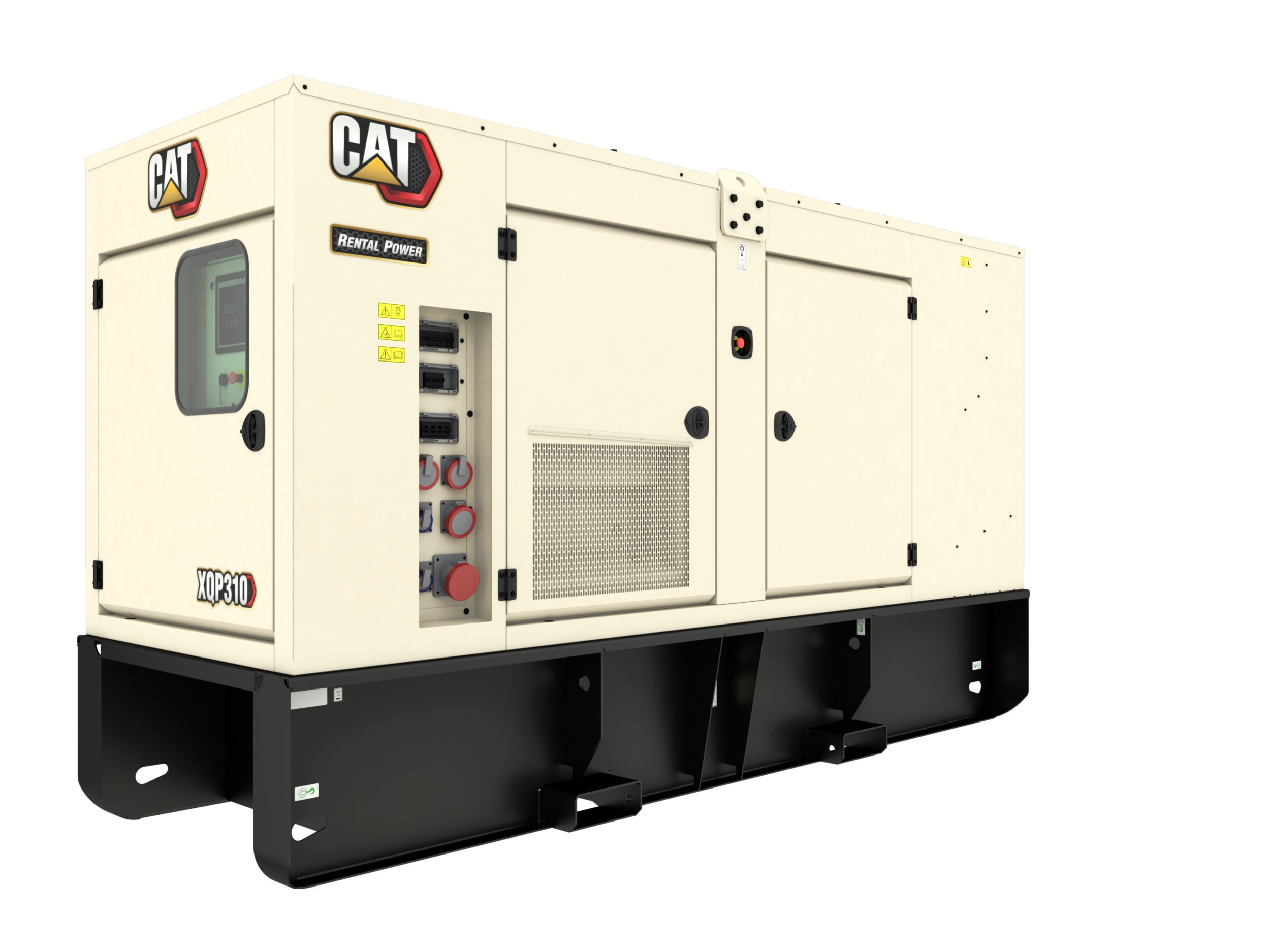

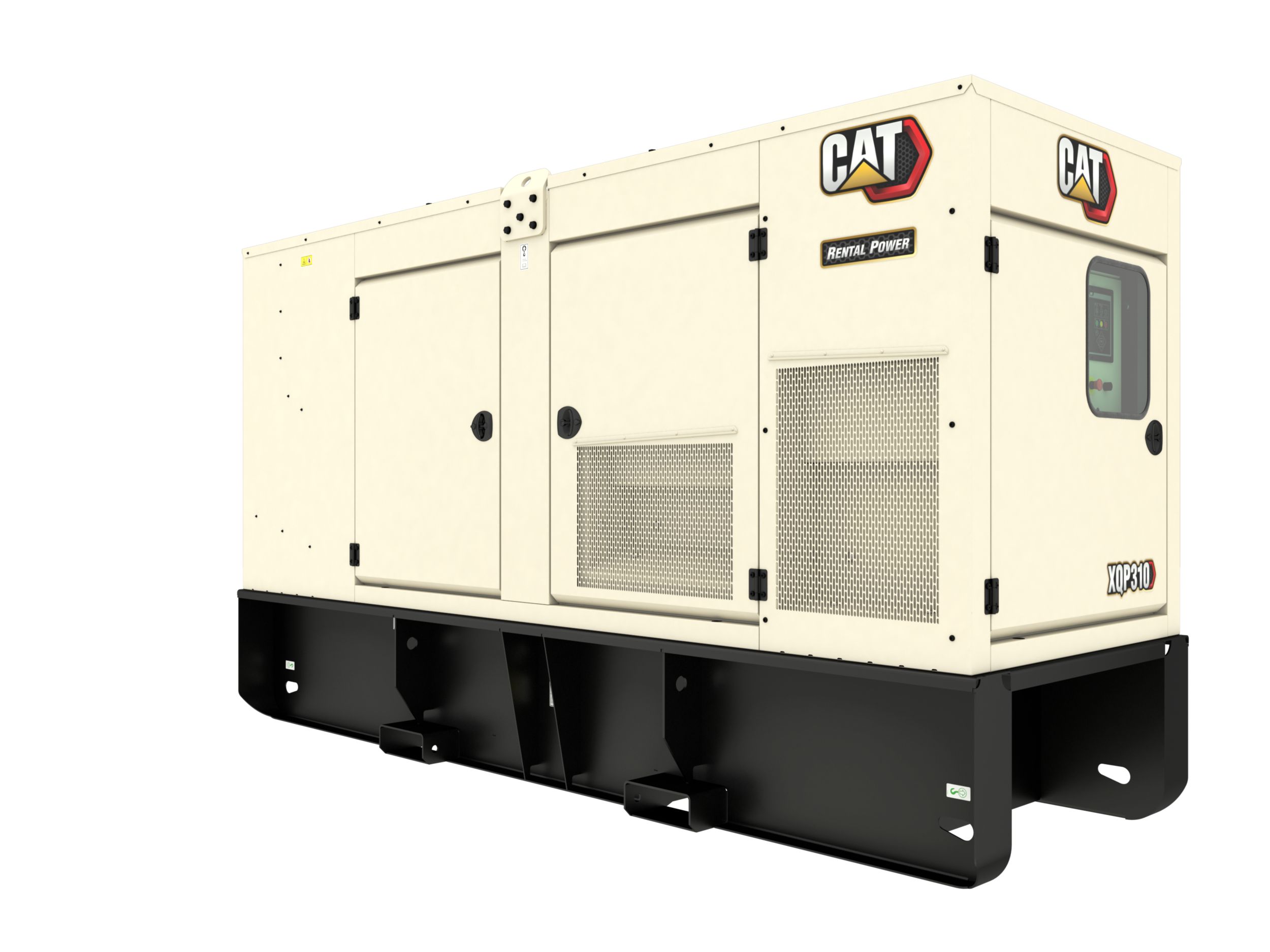

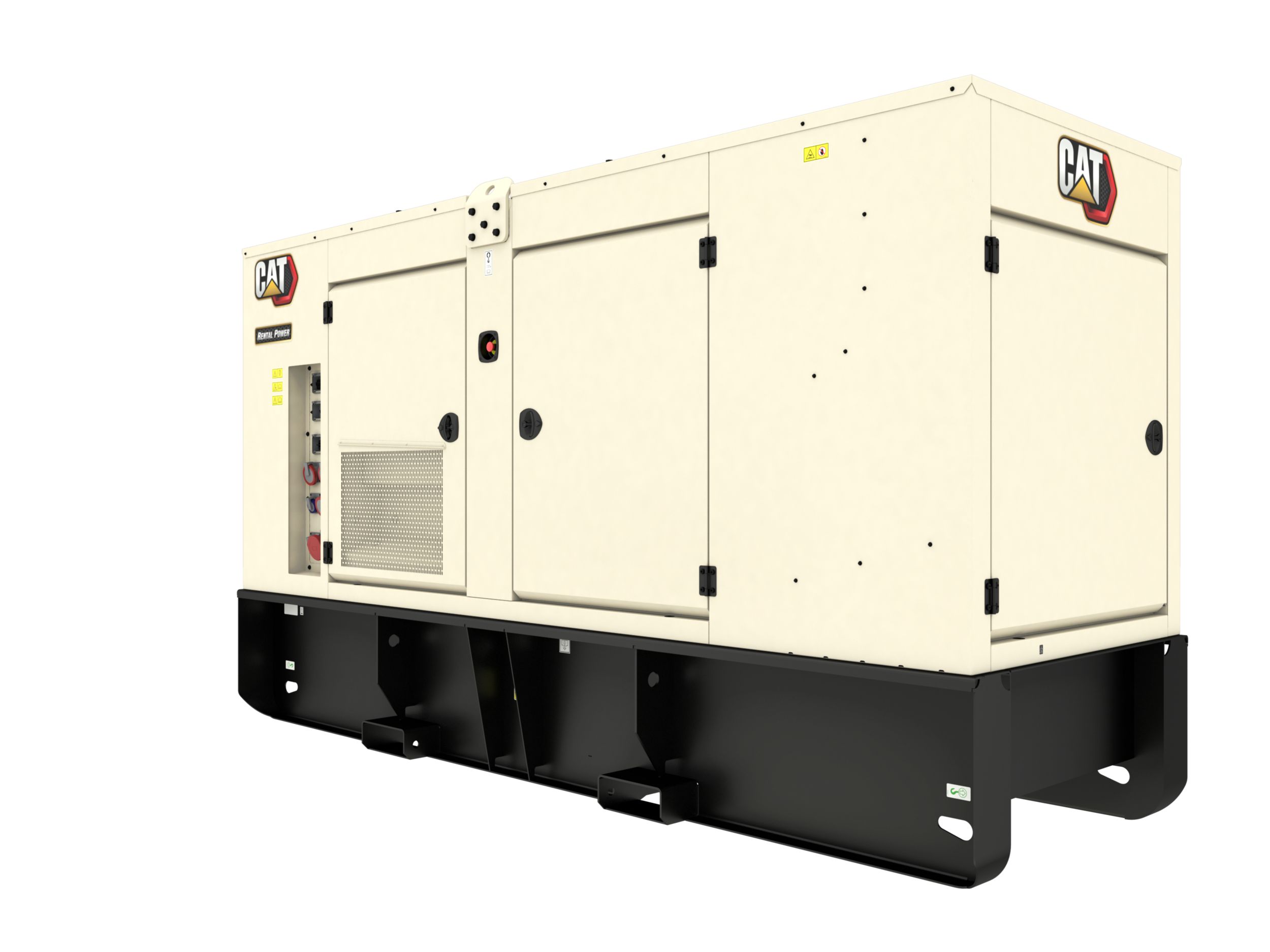

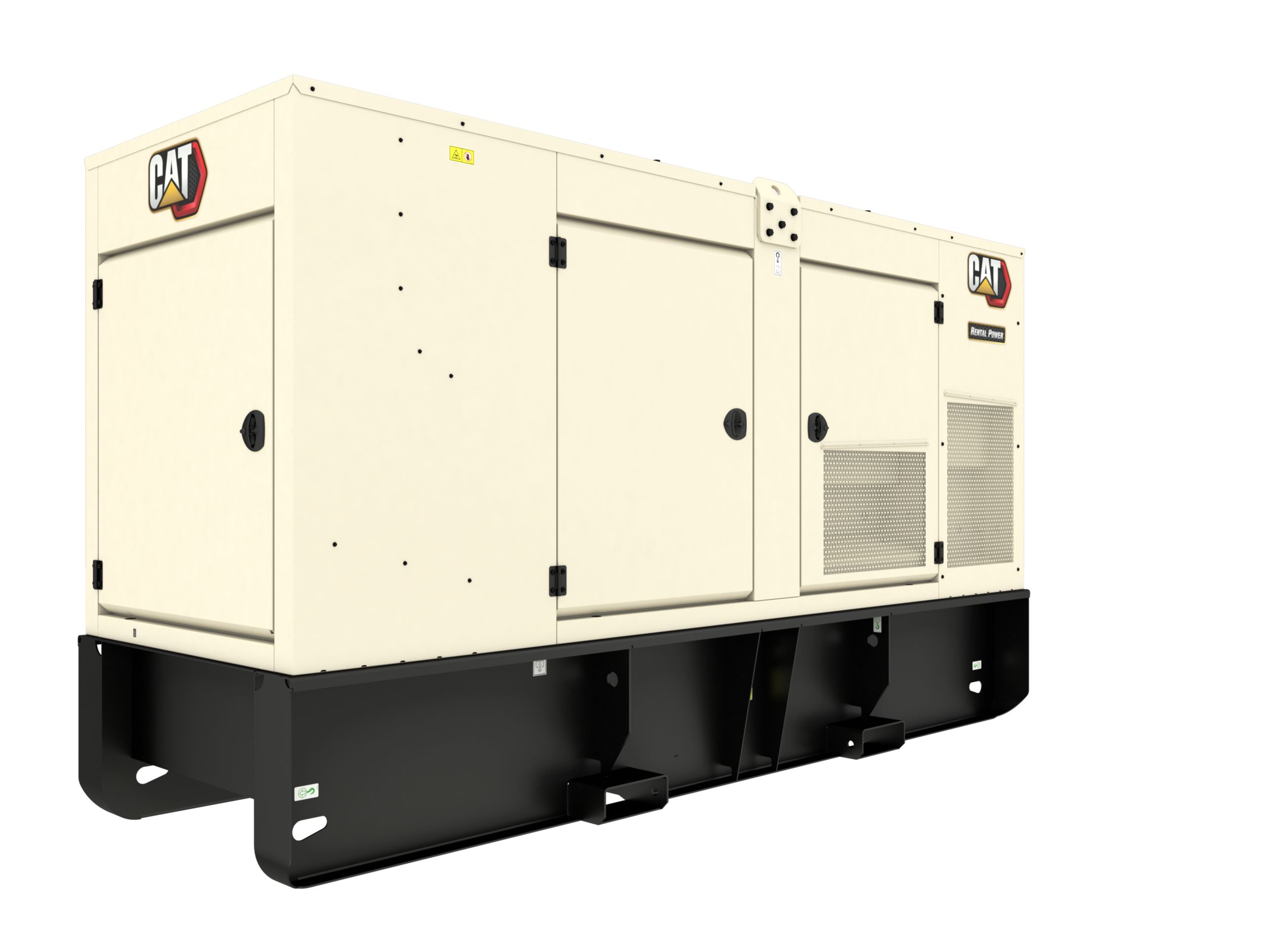

XQP310
XQP310 EU Stage V
This XQP310 generator set is EU Stage V emission standard capable. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.
Rental ready
Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy
EU Stage V.
Cat C9.3B Diesel Engine
Industry proven reliability.
Cat EMCP 4.2B Control Panel
Easy to use digital controls.
Cat LC5114N Alternator
Integrated voltage regular for fast response in demanding applications.
Robust Galvanised Enclosure
Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.
Sound Isolated Operator Panel
Improved operator comfort.
Cat Connect
Remote monitoring for fleet management and asset tracking.
Factory Designed, Built and Tested
Single-source Supplier
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
500 hr Oil Change Intervals
Reducing operating costs and producing less waste.
Improved Transportability
Dual point lifting frame, Fork lift pockets and 4 Point lift.
Additional Options Available
Synchronising controls. Distribution sockets. Extended Service interval kits.
Videos
Virtual Tours
Documents & Brochures
Standard Equipment
Cat® C9.3B Diesel Engine
- Twin Turbocharged, air-to-air aftercooler
- Electronic ECM controlled
After Treatment
- Engine Mounted Clean Emissions Module (CEM)
- Diesel Emissions Fluid (DEF)
Alternator
- LC5114N Frame
- Coastal insulation protection
Control Panel
- Digital EMCP4.2B set mounted digital controller
Air Filter
- High efficiency two stage air cleaner, with dust cup andservice indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
- High ambient performance
Charging / Starting System
- 24V heavy duty charging alternator with integral regulator
Fuel System
- 12hour dual wall fuel tank with internal fuel fill
- Engine mounted primary and secondary fuel filter
Distribution
- Separate robust steel enclosures for control & distribution sections
- 4 pole, 630A main circuit breaker
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
- Sealed quarter-turn compression latches with key orpadlock capabilities
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
- Full manufacturer's warranty
Additional information
| مجموعة المولد - التقدير الرئيسية | 310 كيلوفولت أمبير |
|---|---|
| مجموعة المولد - التردد | 50/60 هرتز |
| مجموعة المولد - الجهد | 220 – 480 V |
| مجموعة المولد - إستراتيجية الوقود/الانبعاثات | الاتحاد الأوروبي، المرحلة V |
| محرك | Cat C9.3 |
| محرك - لاستهلاك | ديزل |
| الأبعاد - العرض | 1514 مم ( 60 بوصة ) |
| الأبعاد - الارتفاع | 2277 مم ( 90 بوصة ) |
| الأبعاد - الطول | 4085 مم ( 161 بوصة ) |
| الأبعاد - الوزن - مع زيت التشحيم وسائل التبريد | 4103 كجم ( 9046 رطل ) |
| لاستهلاك الوقود - 100% حمل بتردد 50 هرتز | 67.1 l/hr ( 17.7 gal/hr ) |
| لاستهلاك الوقود - 100% حمل بتردد 60 هرتز | 77.4 l/hr ( 20.4 gal/hr ) |
| لاستهلاك الوقود - 75% حمل بتردد 50 هرتز | 50.0 l/hr ( 13.2 gal/hr ) |
| لاستهلاك الوقود - 75% حمل بتردد 60 هرتز | 56.5 l/hr ( 14.9 gal/hr ) |
| Offering Type |
