1.3 m3 (1.7 yd3), Skid Steer Coupler, Bolt-On Cutting Edge

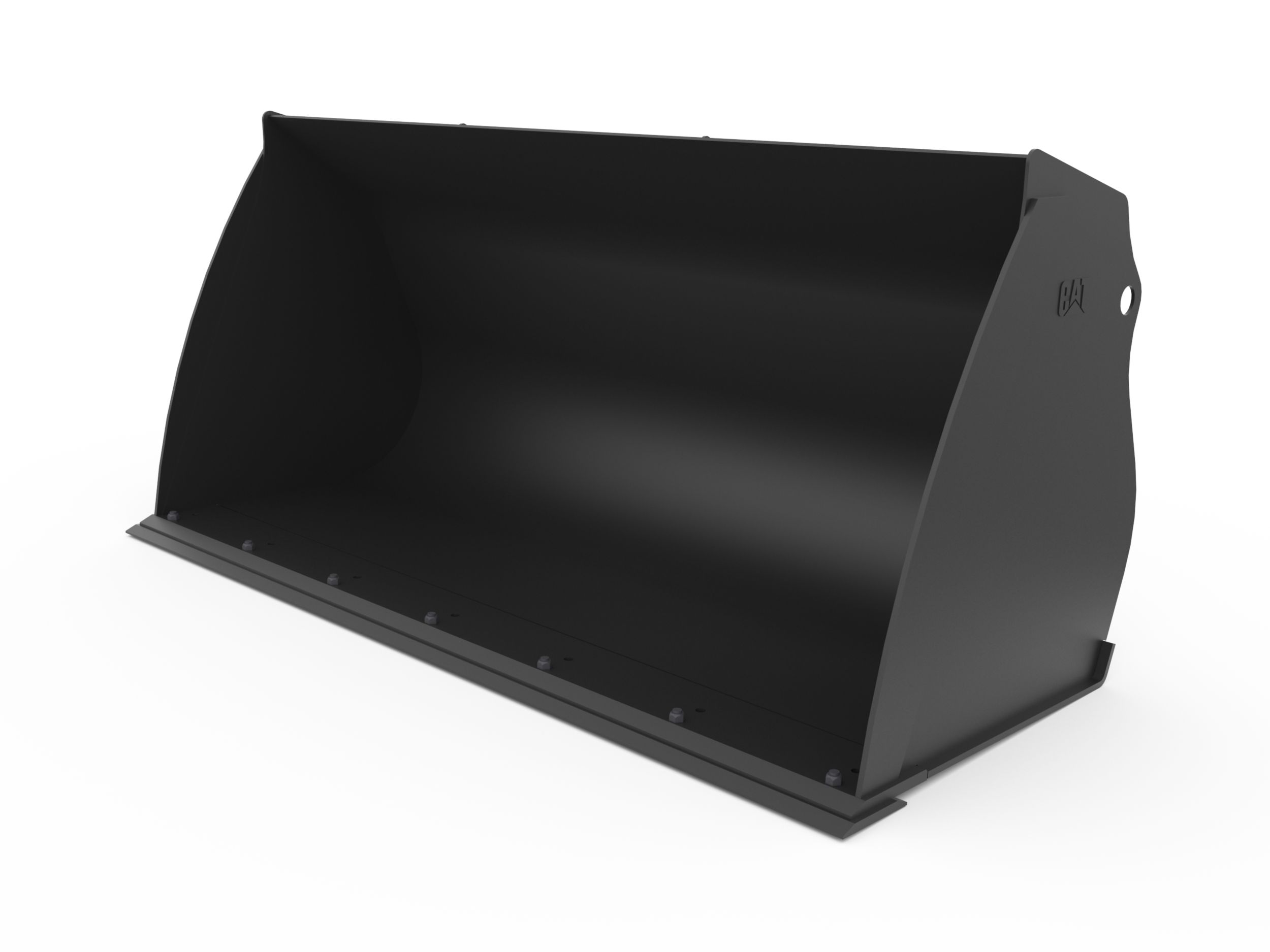

1.3 m3 (1.7 yd3) Skid Steer Coupler Light Material Bucket With Bolt-On Cutting Edge
High capacity increases productivity in handling light materials.

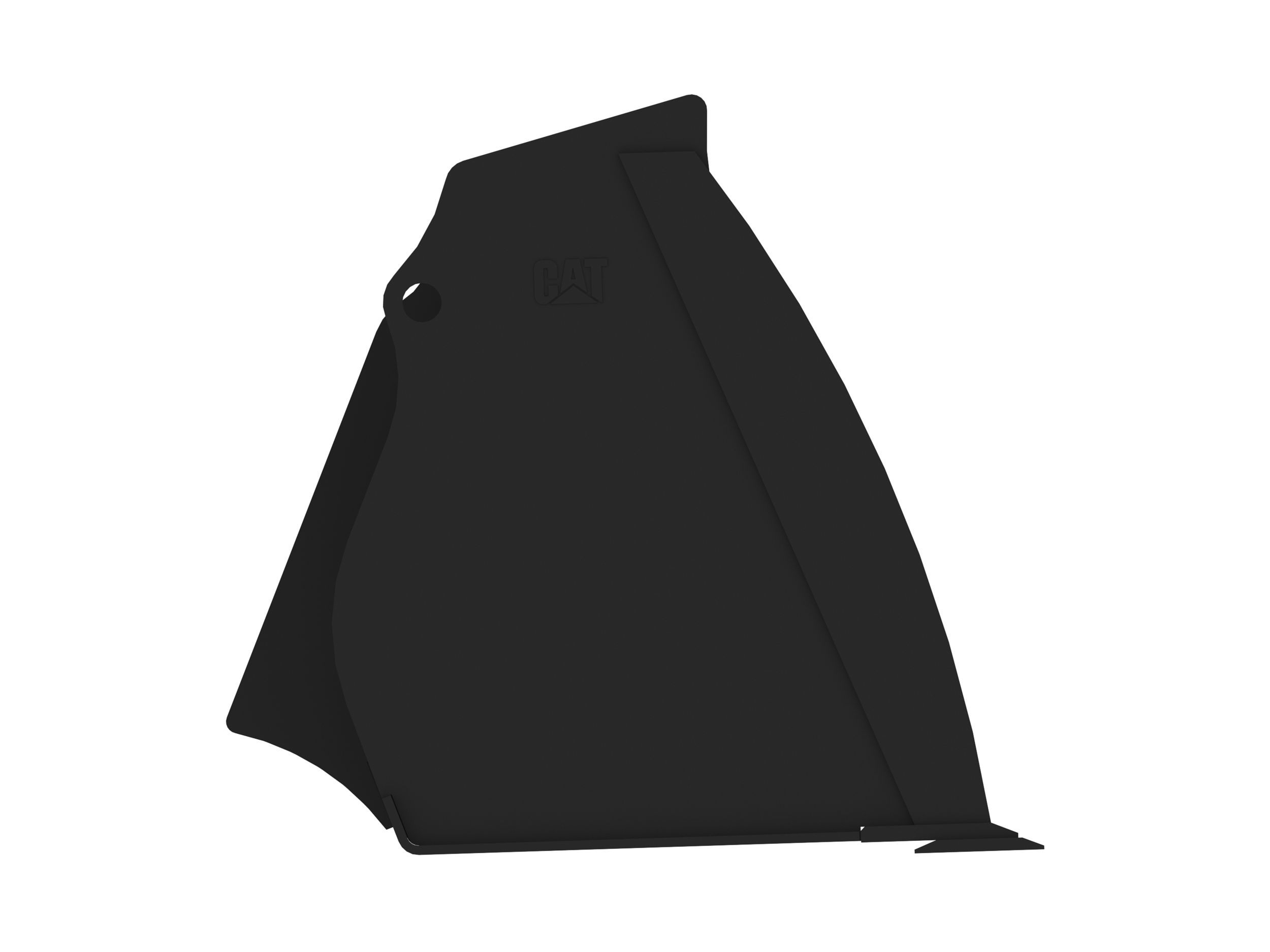

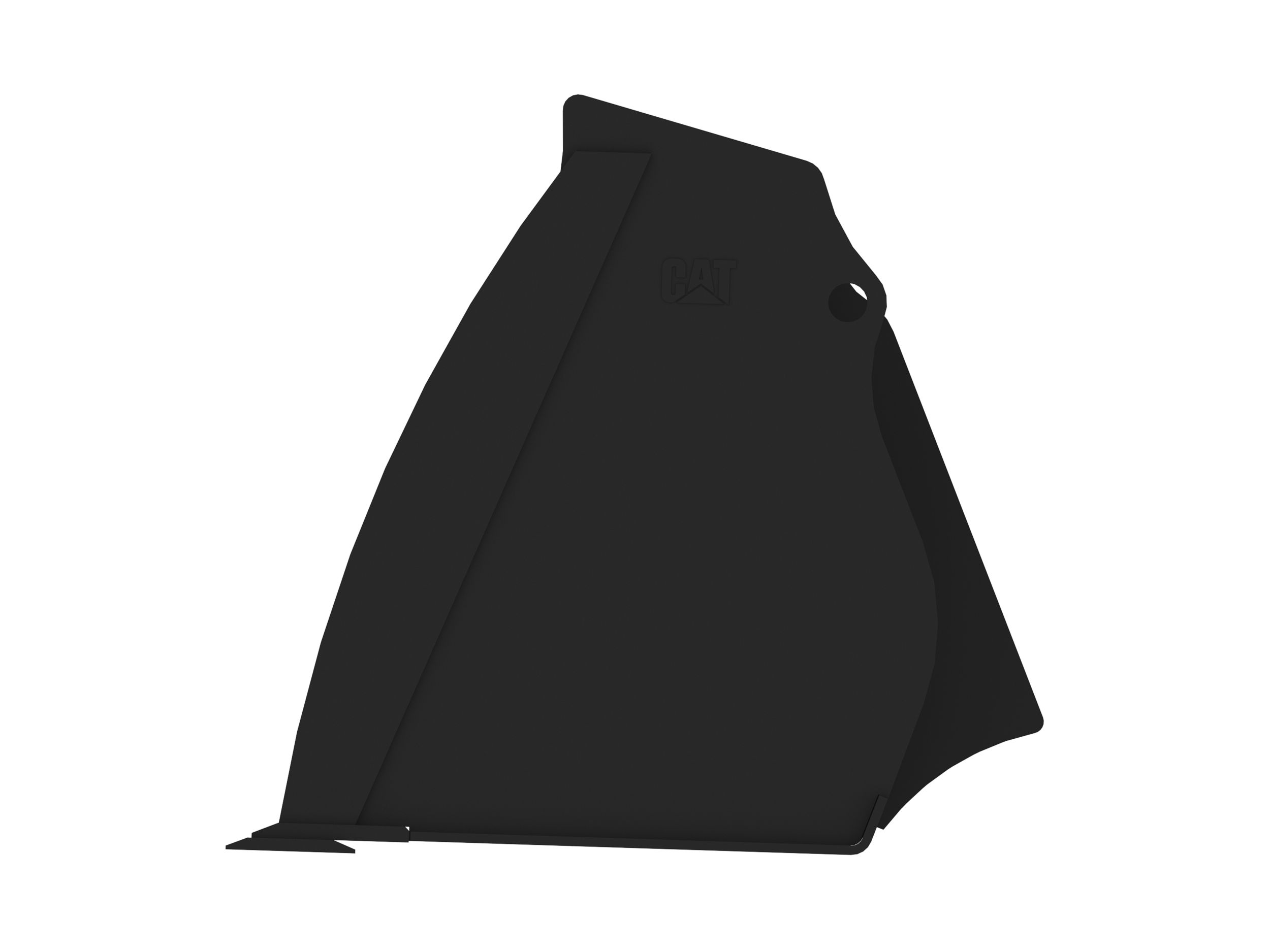

Curved Side Plates
Designed to improve material retention when truck loading or working on rough, uneven ground.

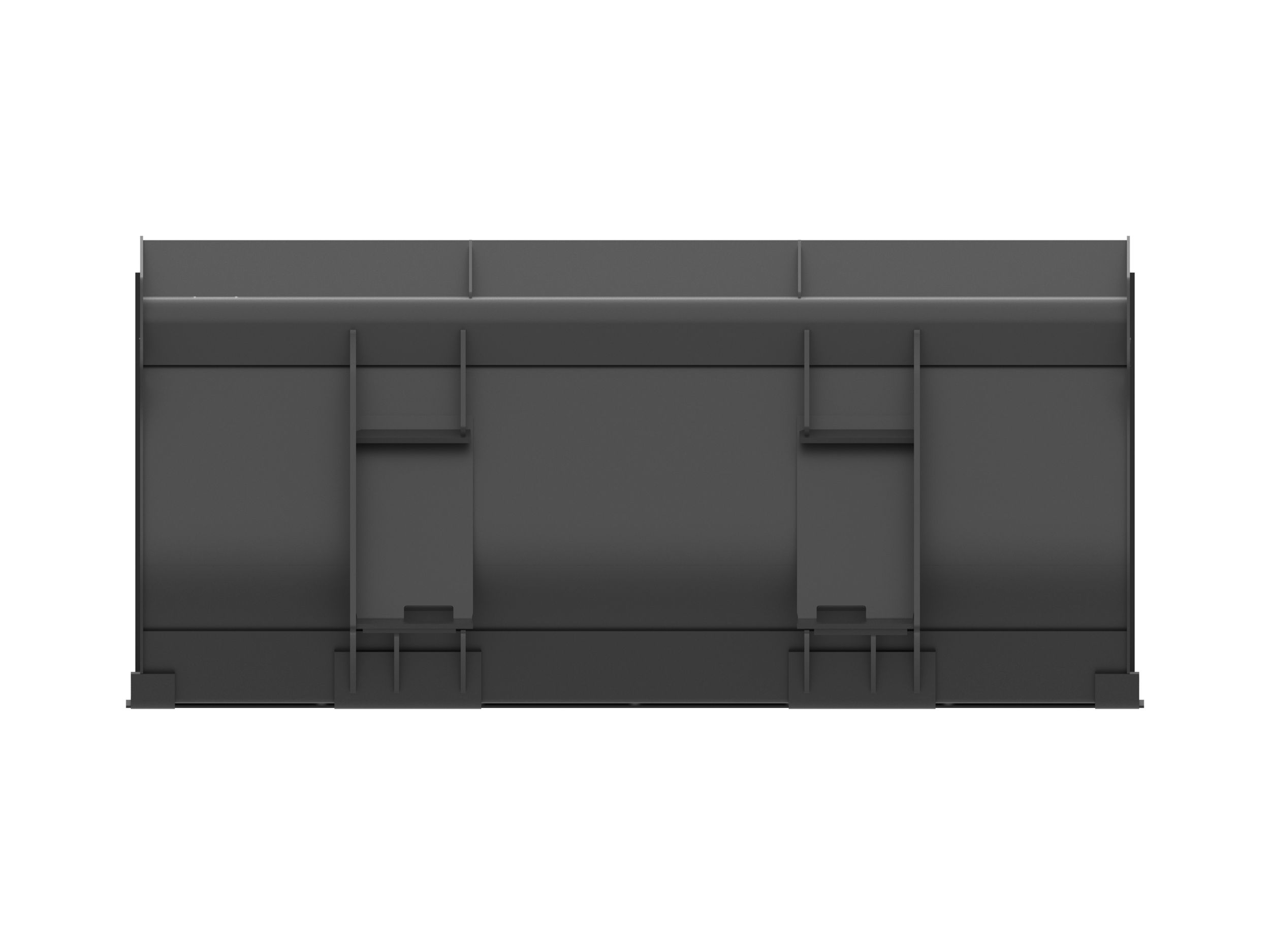

Flat Upper Torque Tube
Flat upper torque tube is parallel to cutting edge for better ground reference (which aligns with all other Cat loader buckets). This reduces the cutting edge wear and improves grading capabilities. Edge angle and placement can be easier to gauge from within the cab.
Rugged Design
Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.
Ground Engaging Tool Options
Buckets are available with bolt-on cutting edges.
Additional information
| Offering Type | |
|---|---|
| Width | 2080 mm ( 81.9 in ) |
| Weight | 466 kg ( 1027.4 lb ) |
| Height | 975 mm ( 38.4 in ) |
| Length | 1035 mm ( 40.7 in ) |
| Capacity | 1.25 m³ ( 1.6 yd³ ) |
| Base Edge Thickness | 20 mm ( 0.8 in ) |
| Cutting Edge Thickness | 16 mm ( 0.6 in ) |
| Interface Type | Skid Steer Loader |
-
