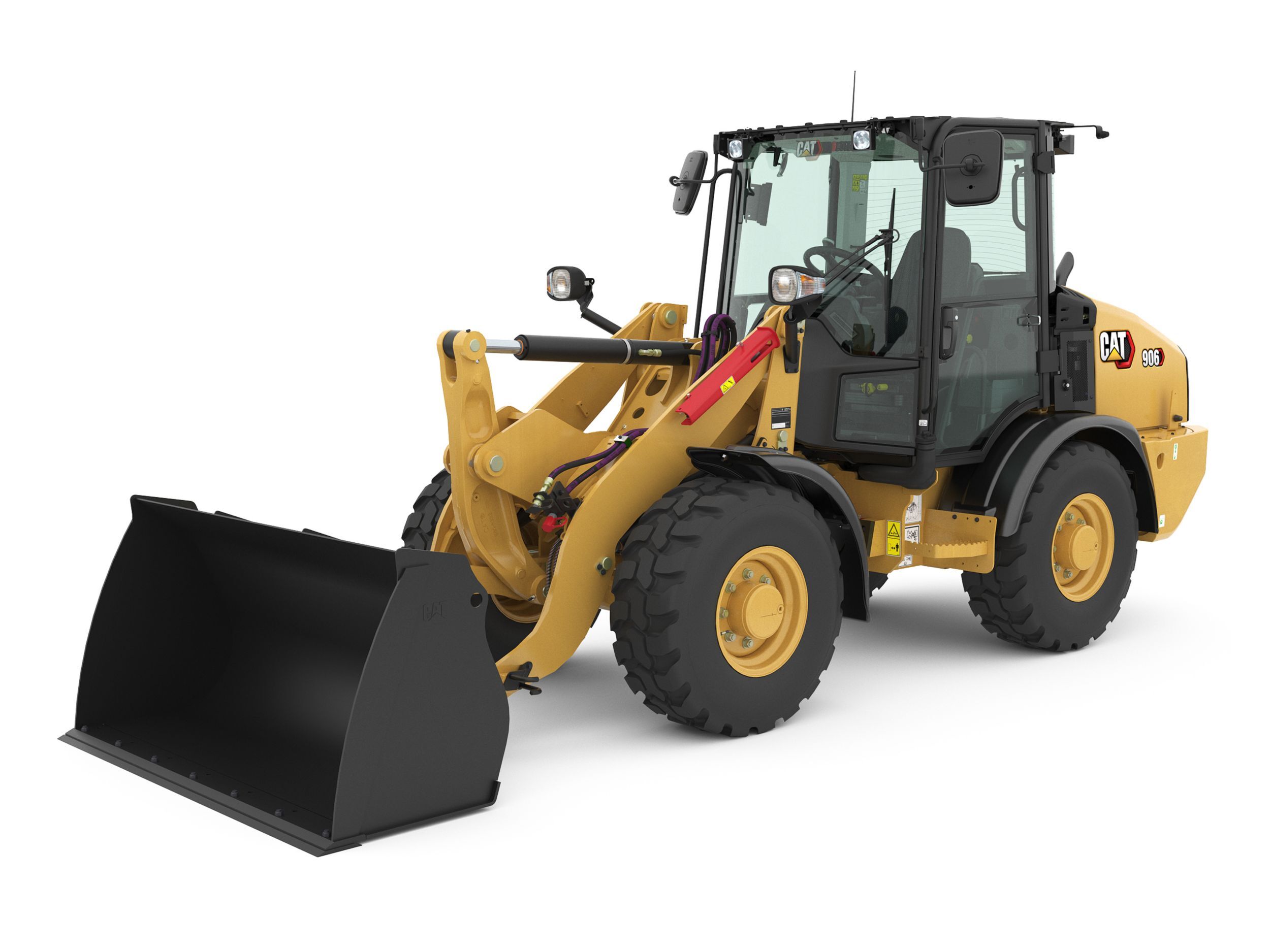

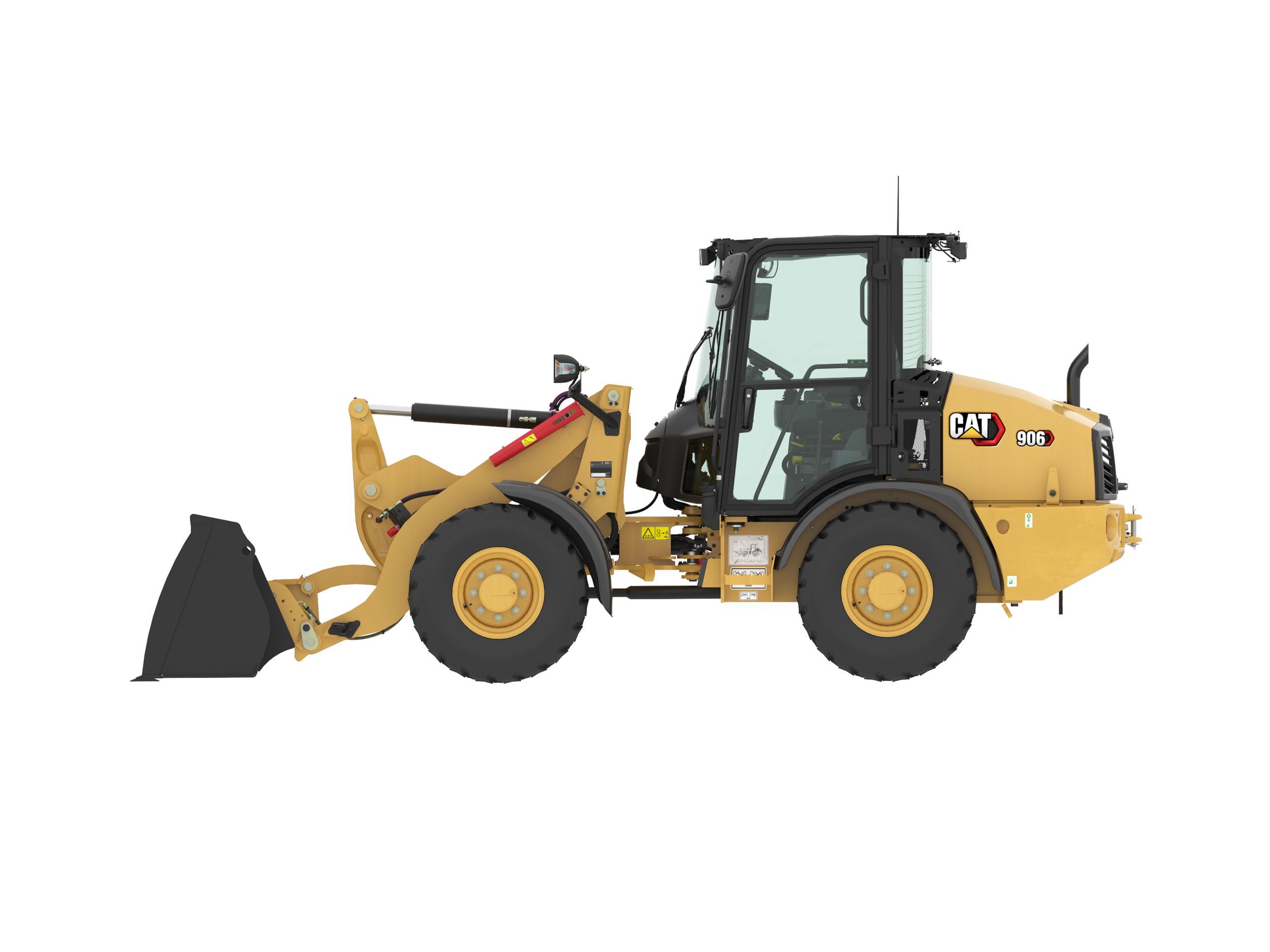

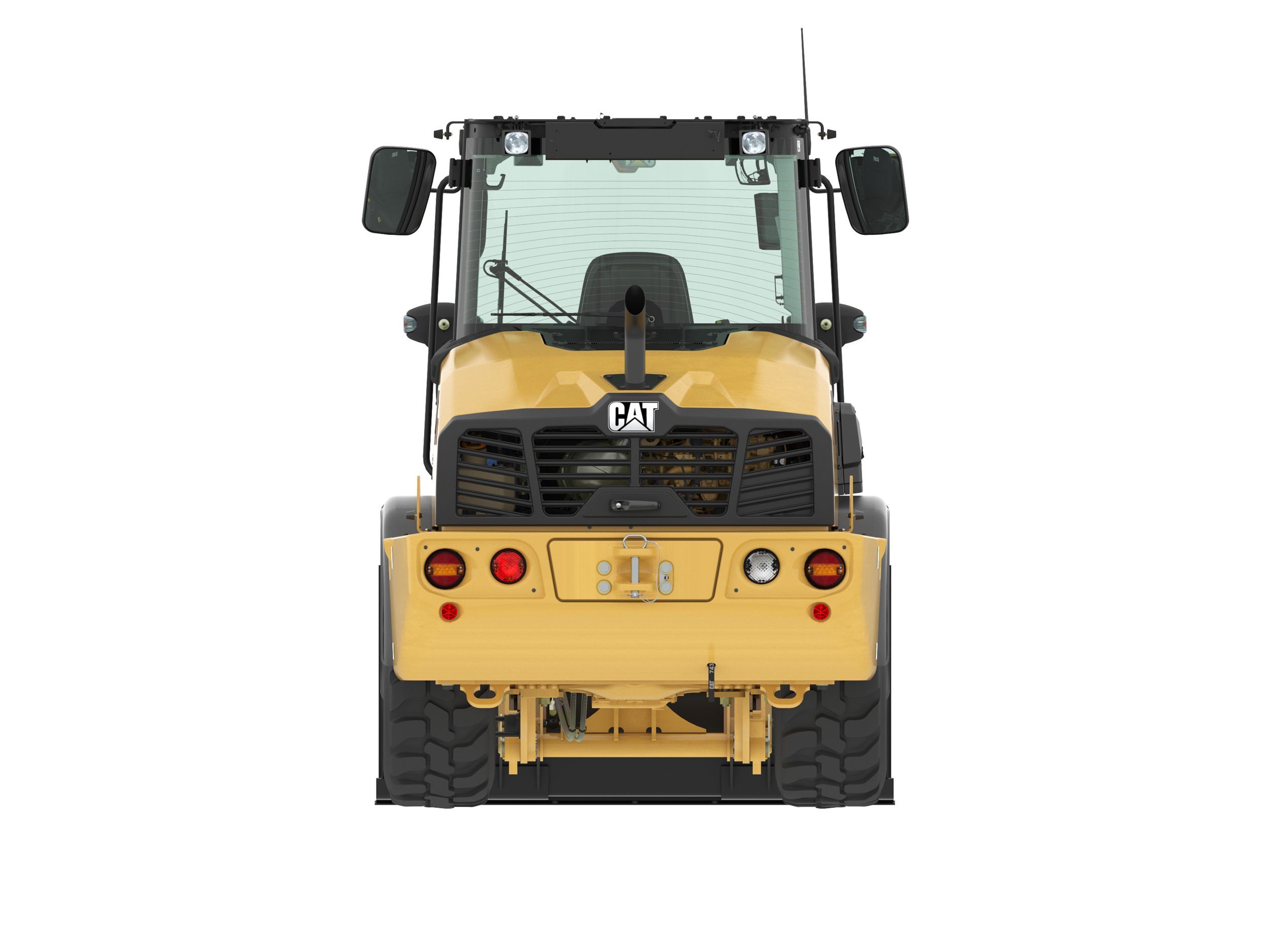

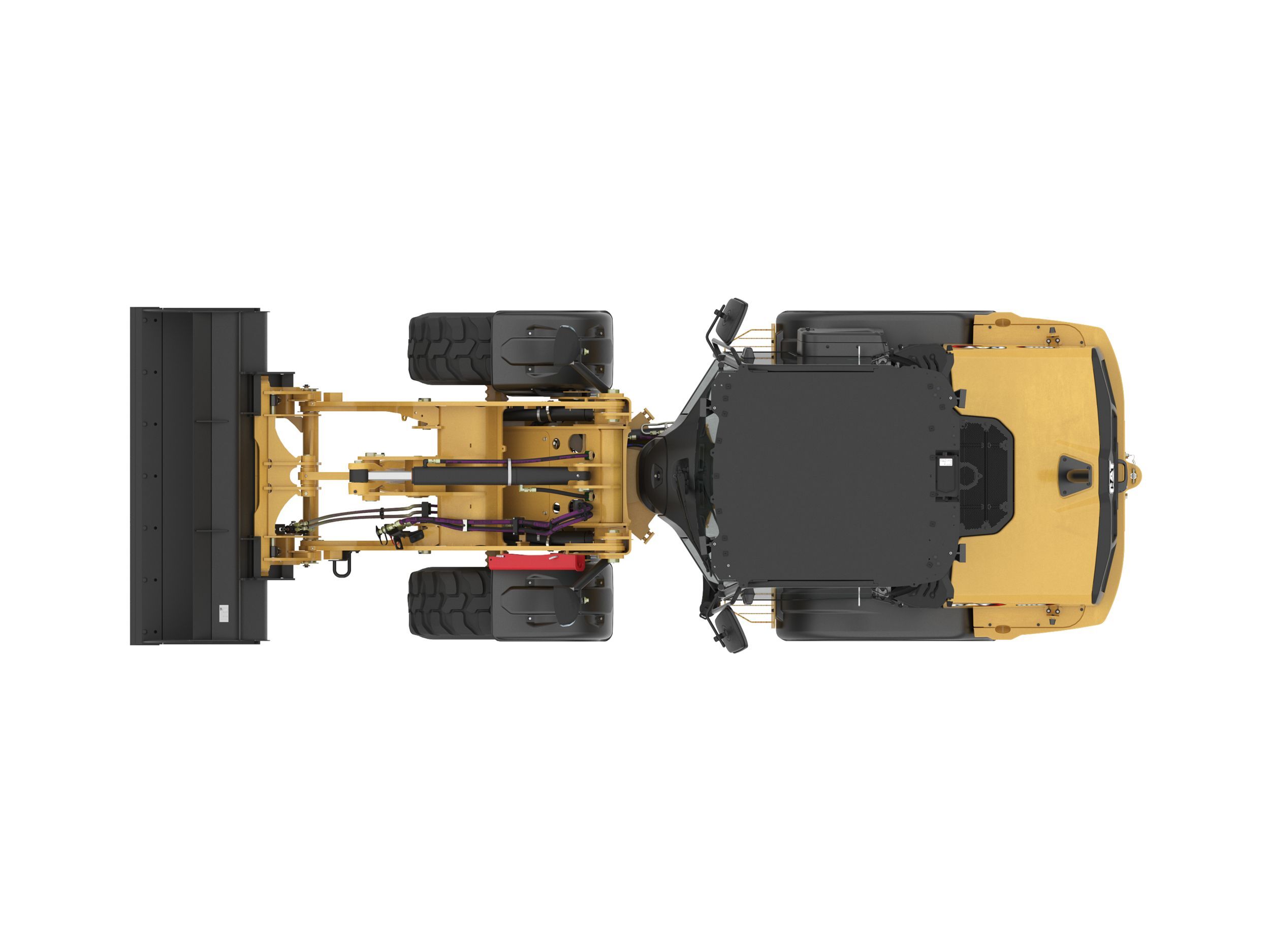

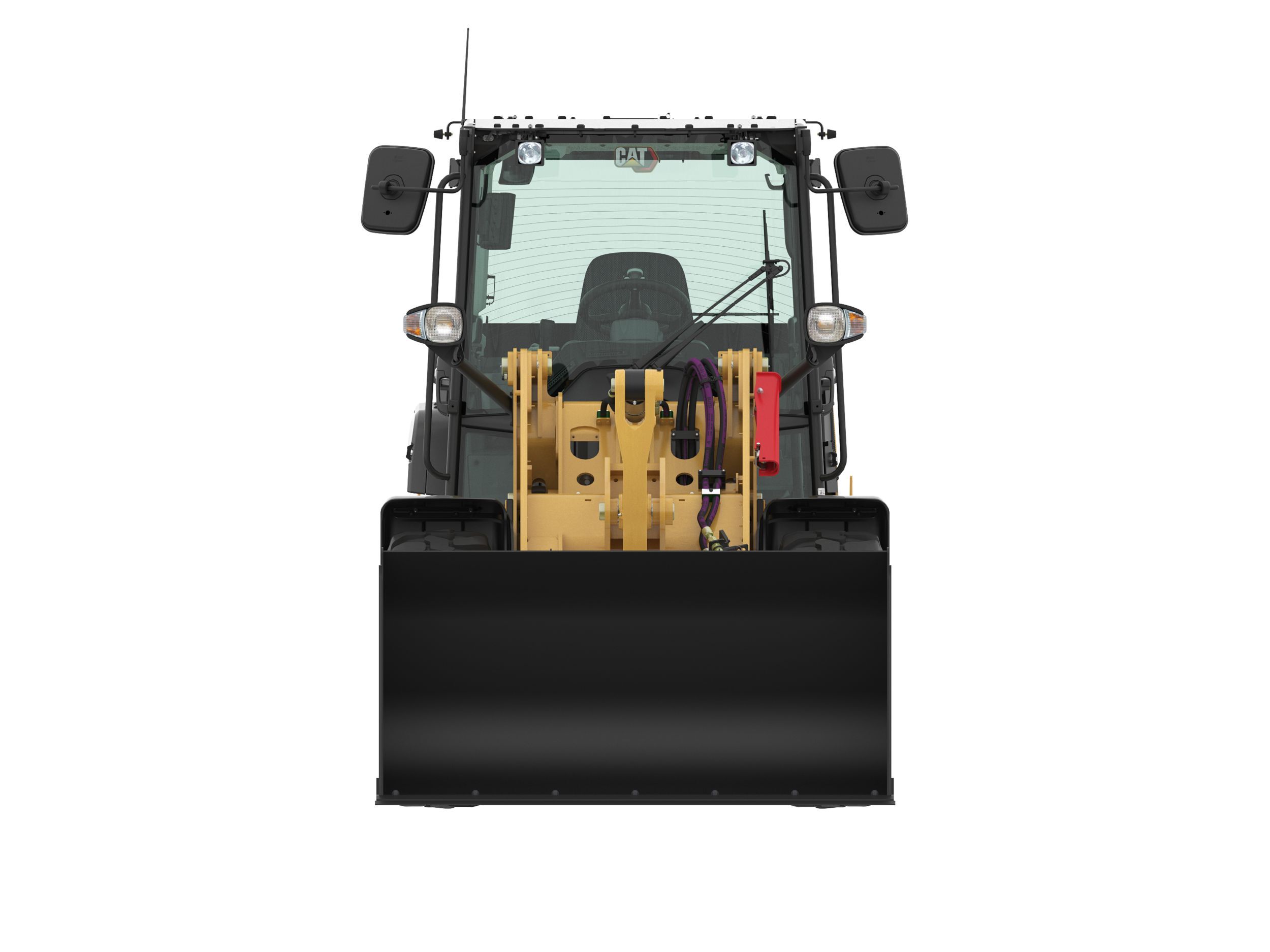

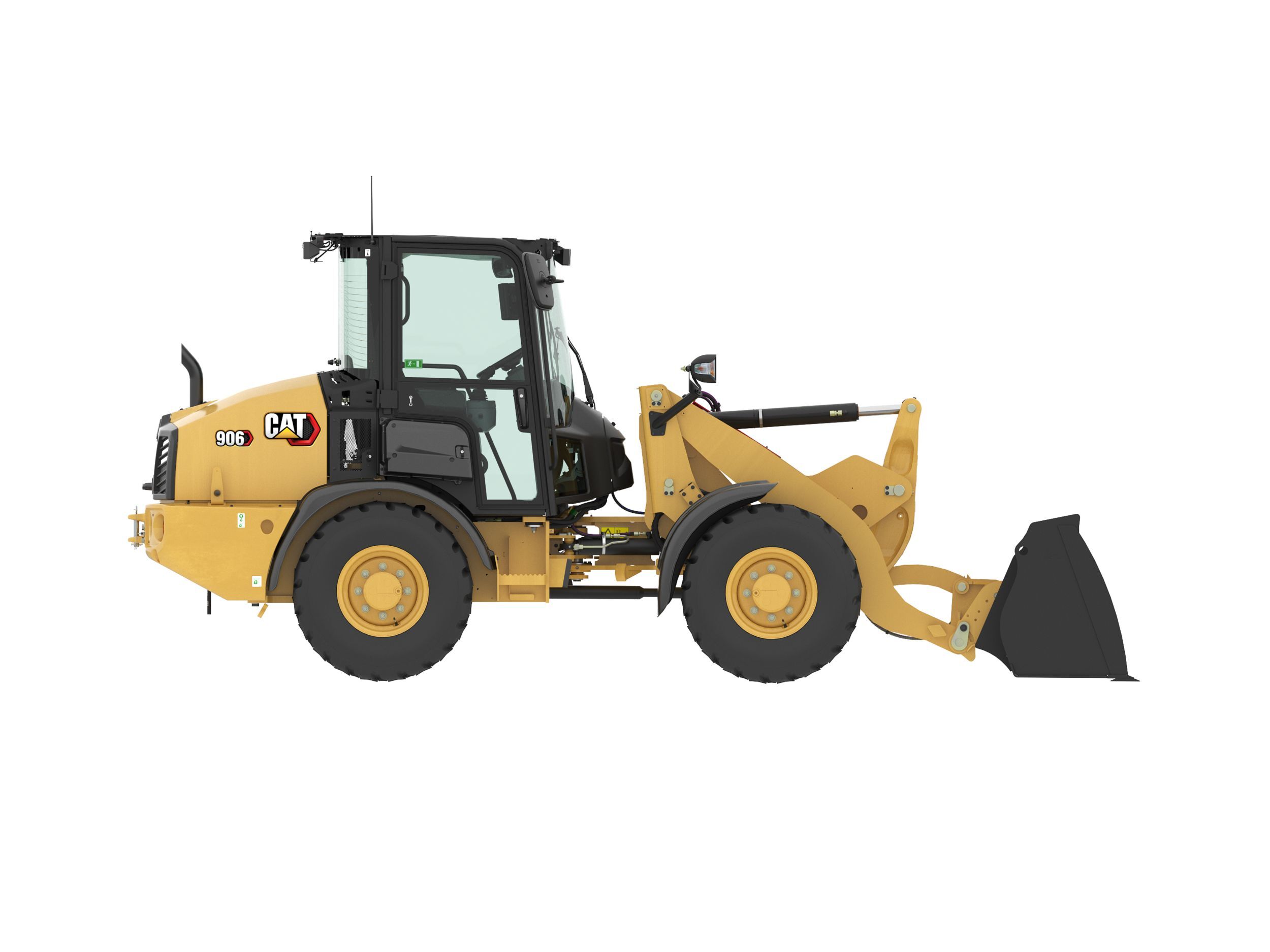

Cat 906 Compact Wheel Loader

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.

Category:
Add to Quote

CONFIGURED FOR SUCCESS

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines emit equivalent to EU Stage IIIA (U.S. EPA Tier 3) or meets EU Stage V (U.S. EPA Tier 4 Final) with a clean emission module designed to manage itself so you can concentrate on the task at hand.

ENJOY ALL DAY COMFORT

  • All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
  • Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.

EFFICIENTLY POWERFUL

  • Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
  • “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.

WORK MADE EASY

  • All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.

CUSTOMIZE YOUR EXPERIENCE

  • Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
  • Machine security is enhanced with a standard keycode or optional Bluetooth® technology.

PURPOSE BUILT SPECIALTY MODELS

  • Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.
  • The 906 is availble with the following specific handler arrangements: Ag Handler and Waste Handler

AFTERMARKET AND SERVICES

  • Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
  • Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
  • Integrated Technology available to reduce service costs and maintenance.

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

POWER TRAIN
  • Emissions compliant, two options (Dependent on regional regulations.)
    – U.S. EPA Tier 4 Final and EU Stage V
    – U.S. EPA Tier 3 and EU Stage IIIA equivalent
  • Cat C2.8 engine
    – Diesel particulate filter (Fit for Life) or muffler (Dependent on regional regulations.)
    – Fuel, diesel, ultra low or low Sulphur (Dependent on regional regulations.)
    – Hydrostatic transmission, two speed, with inching function, “shift on the go”
    – Power train mode, hystat
  • Air cleaner, two stage filter, with in cab audio/visual indicator on display
  • Axles, heavy duty, frame mounted with outboard planetary reduction
  • Closed circuit breather
  • Coolant, extended life, –36° C (–33° F)
  • Drive shaft, sealed for life, universal joints
  • Engine, auto idle shutdown, hibernation mode
  • Engine oil, ECO drain tap and hose
  • Fuel pump, priming (manual)/water separator/drain
HYDRAULICS
  • Hystat displacement pump, infinitely variable
  • Implement valve, pressure compensated
  • Joystick, single lever, single auxiliary roller
  • Multi-function lift and tilt with loader arm float
  • Motor, single drive with dedicated implement and steering pumps
ELECTRICAL
  • Alternator, 100 amp sealed
  • Battery, heavy duty, 12V, 90Ah and 1,000 CCA
  • Battery disconnect switch
  • Cab mounted fuse panel
  • Lights, rear stop and turn, LED
  • Lights, roading, front halogen
  • Service (Electronic Technician™)
  • Product Link™
OPERATOR ENVIRONMENT
  • ROPS/FOPS certified canopy/cab
    – 12V power outlets, interior/exterior
    – Pedals, raised, foot, brake/inching, accelerator
    – Lever, parking brake
    – Cup holders (2)
    – CB radio clip, phone holder
    – Door release, internal (left and right)
    – Hook, large, coat and hard hat
    – Floormat, heavy duty, easy clean
    – Mirrors, (2) external breakaway, (1) internal
    – Operator station on isolation mounts
    – Steering wheel, spinner knob, horn in center
    – Seat belt, orange, retractable, 51 mm (2 in)
    – Storage, personal (trays [3], seat pocket)
    – Steering column, tilt adjusted
    – Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
    – Quick coupler switch, in cab
  • Display, analog and digital
    – Gauges (2), hydraulic oil, engine coolant
    – Digital with soft touch buttons – fuel level, speed range, speedometer, service hour meter, service/maintenance information, hydraulic and power train performance and aggressiveness settings, security passcode (multiple languages)
  • Joystick, seat mounted, standard multifunction
    – FNR, auxiliary roller, speed range select, continuous flow, differential lock, horn
    – Arm rest, padded right, multiple position vertical height
  • Seat, manual height adjustment, (cab) fabric with adjustable left arm rest, (canopy) vinyl
  • Cab
    – Doors (2), fixed glass
    – Wipers, front and rear, full front coverage
    – Windshield, front single piece
    – Window, rear heated
    – Radio ready, speakers and wiring
    – Air vents, (4) screen, (7) directional
    – Heating, mechanical control unit
    – Sun visor, solid, front full width
    – Interior light (incandescent)
OTHER
  • Fenders, front and rear
  • Ground level easy access daily service points
  • Loader arm safety brace
  • Lockable main and side engine enclosures
  • Lockable, fuel cap, HVAC filters, nose cone
  • Machine lifting/tie down points
  • Paint, Electro-Coat primer, gloss topcoat
  • Recovery hitch with pin
  • Scheduled Oil Sampling (S·O·S℠) ports, engine oil and hydraulic oil

Additional information

Engine - Maximum Gross Power

60 kW ( 75.1 HP )
Engine Model

Cat C2.8*
Maximum Engine Speed

2550 rpm
Maximum Gross Power - Rated Engine Speed

2400 r/min ( 2400 r/min )
Engine - Maximum Gross Power - SAE J1995

60 kW ( 75.1 HP )
Engine - Maximum Gross Power - ISO 14396

55.4 kW ( 74.3 HP )
Engine - Maximum Gross Power - ISO 14396 (metric)

75.3 mhp ( 75.3 mhp )
Rated Net Power - Rated Engine Speed

2400 r/min ( 2400 r/min )
Engine - Rated Net Power - SAE J1349

54.4 kW ( 73 HP )
Engine - Rated Net Power - ISO 9249

53.8 kW ( 72.1 HP )
Engine - Rated Net Power - 2,400 rpm - ISO 9249 (metric)

73.1 mhp ( 73.1 mhp )
Engine - Maximum Gross Torque - SAE J1995

301 N·m ( 222 lb/ft )
Engine - Maximum Gross Torque - ISO 14396

300 N·m ( 221 lb/ft )
Engine - Maximum Net Torque - SAE J1349

296 N·m ( 218 lb/ft )
Engine - Maximum Net Torque - ISO 9249

295 N·m ( 217 lb/ft )
Engine - Displacement

2.8 l ( 171 in³ )
Engine - Bore

90 mm ( 3.54 in )
Engine - Stroke

110 mm ( 4.33 in )
Engine - Note

*Equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Engine - Note (1)

Maximum gross and net torque measured at 1,600 rpm.
Engine - Note (2)

Net power ratings are tested at the reference conditions for the specified standard.
Engine - Note (3)

Net power advertised is the power available at the flywheel.
Weights - Operating Weight

5730 kg ( 12628 lb )
Buckets - Bucket Capacities

0.75-1.55 m³ (1.0-2.0 yd³)
Buckets - Bucket Capacities - General Purpose

0.80-1.35 m³ (1.0-1.7 yd³)
Buckets - Bucket Capacities - Light Material

1.25-1.55 m³ (1.6-2.0 yd³)
Buckets - Multi-Purpose

0.75-1.1 m³ (1.0-1.4 yd³)
Buckets - Note

All capacities are applicable for each model. Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
Buckets - Note (1)

Bucket capacities stated include BOCE, in line with ISO 7546.
Service Refill Capacities - Fuel Tank

70 l ( 18.5 Gal )
Service Refill Capacities - Cooling System

12 l ( 3.2 Gal )
Service Refill Capacities - Engine Crankcase

8.8 l ( 2.3 Gal )
Service Refill Capacities - Axles - Front Center Differential

8.8 l ( 2.3 Gal )
Service Refill Capacities - Axles - Rear Center Differential

8.8 l ( 2.3 Gal )
Service Refill Capacities - Hydraulic System - Including Tank

67.5 l ( 17.8 Gal )
Service Refill Capacities - Hydraulic Tank

44.6 l ( 11.8 Gal )
Service Refill Capacities - Transmission

2.4 l ( 0.6 Gal )
Service Refill Capacities - Note

No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.
Axles - Front

Fixed (standard)
Axles - Rear

Fixed (standard)
Axles - Note

Oscillation of ±11 degrees via hitch between front and rear frames.
Steering Articulation Angle - Each Direction

39 ° ( 39 ° )
Maximum Flow - Steering Pump

46.7 l/min ( 12.3 gal/min )
Maximum Working Pressure - Steering Pump

23000 kPa ( 3336 psi )
Steering Cycle Times – (full left to full right) – at High Idle

2.8 s ( 2.8 s )
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left

3.25 turns or 4.00 turns
Transmission - Forward and Reverse - Speed Range Creep#

10 km/h ( 6 mile/h )
Transmission - Forward and Reverse - Speed Range 1*

10 km/h ( 6 mile/h )
Transmission - Forward and Reverse - Speed Range 2** - High Speed

17 km/h ( 10.5 mile/h )
Transmission - Forward and Reverse - Speed Range 2** - Standard

20 km/h ( 12 mile/h )
Transmission - Forward and Reverse - Speed Range 3***

40 km/h ( 25 mile/h )
Transmission - Note

#Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
Transmission - Note (1)

*Creep function not available in this gear or above.
Transmission - Note (2)

**Max speed dependent on model and configuration (standard vs. high speed transmission).
Transmission - Note (3)

***Reverse is 30 km/h (19 mph).
Tires - Tire Size - Standard

*405/70 R18 SPT9
Tires - Tire Size - Optional

405/70 R18 Powerloads
Tires - Tire Size - Optional (1)

340/80 R18 XMCL/Bibload
Tires - Tire Size - Optional (2)

340/80 R18 TRI 2
Tires - Tire Size - Optional (3)

40X14-20 TL, SM/TR
Tires - Tire Size - Optional 4

340/80 R18 Duraforce
Tires - Note

*This tire has been used for all dimension, stability and performance data.
Tires - Note (1)

Other tire choices are available. Contact your Cat dealer for details.
Tires - Note (2)

In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Tires - Note (3)

Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Cab - ROPS

ISO 3471:2008
Cab - FOPS

ISO 3449:2005 Level II
Cab - Note (1)

Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.
Cab - Note (2)

The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 71 dB(A).
Cab - Note (3)

*Measurements were conducted with the cab doors and windows closed.
Cab - Note (4)

The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 101 dB(A). 99 dB(A) Low Sound – Option available.
Loader Hydraulic System - Main Relief - 1st Auxiliary (3rd slice)

23500 kPa ( 3408 psi )
Loader Hydraulic System - Main Relief - 1st Auxiliary (3rd slice) - Standard Flow*

80 l/min ( 21 gal/min )
Loader Hydraulic System - Main Relief - 1st Auxiliary (3rd slice) - High Flow*

120 l/min ( 32 gal/min )
Loader Hydraulic System - Main Relief - 2nd Auxiliary (4th slice)

23500 kPa ( 3408 psi )
Loader Hydraulic System - Main Relief - 2nd Auxiliary (4th slice) - Flow

45 l/min ( 12 gal/min )
Loader Hydraulic System - Hydraulic Cycle Time - Rackback

2.2 s ( 2.2 s )
Loader Hydraulic System - Hydraulic Cycle Time - Lift

5 s ( 5 s )
Loader Hydraulic System - Hydraulic Cycle Time - Dump

1.6 s ( 1.6 s )
Loader Hydraulic System - Hydraulic Cycle Time - Float Down

2.8 s ( 2.8 s )
Loader Hydraulic System - Note

* Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.
Dimensions - With HPL-V Coupler - Approximate# - Height: Ground to Cab**

2468 mm ( 8.08 ft )
Dimensions - With HPL-V Coupler - Approximate# - Height: Ground to Beacon**

2651 mm ( 8.67 ft )
Dimensions - With HPL-V Coupler - Approximate# - Height: Ground Axle Center**

480 mm ( 1.5 ft )
Dimensions - With HPL-V Coupler - Approximate# - Height: Ground Clearance**

300 mm ( 0.92 ft )
Dimensions - With HPL-V Coupler - Approximate# - Length: Overall*

5369 mm ( 17.58 ft )
Dimensions - With HPL-V Coupler - Approximate# - Length: Rear Axle to Bumper

1391 mm ( 4.5 ft )
Dimensions - With HPL-V Coupler - Approximate# - Length: Hitch to Front Axle

1085 mm ( 3.5 ft )
Dimensions - With HPL-V Coupler - Approximate# - Length: Wheel Base

2170 mm ( 7.08 ft )
Dimensions - With HPL-V Coupler - Approximate# - Clearance: Bucket at 45° *

2499 mm ( 8.17 ft )
Dimensions - With HPL-V Coupler - Approximate# - Clearance: Load over Height**

2900 mm ( 9.5 ft )
Dimensions - With HPL-V Coupler - Approximate# - Clearance: Level Bucket**

3038 mm ( 9.92 ft )
Dimensions - With HPL-V Coupler - Approximate# - Height: Bucket Pin**

3244 mm ( 10.58 ft )
Dimensions - With HPL-V Coupler - Approximate# - Height: Overall**

4115 mm ( 13.5 ft )
Dimensions - With HPL-V Coupler - Approximate# - Reach: Bucket at 45° *

725 mm ( 2.33 ft )
Dimensions - With HPL-V Coupler - Approximate# - Carry Height: Bucket Pin

311 mm ( 1 ft )
Dimensions - With HPL-V Coupler - Approximate# - Dig Depth**

77 mm ( 0.25 ft )
Dimensions - With HPL-V Coupler - Approximate# - Width: Bucket

1890 mm ( 6.17 ft )
Dimensions - With HPL-V Coupler - Approximate# - Width: Tread Center

1420 mm ( 4.58 ft )
Dimensions - With HPL-V Coupler - Approximate# - Turning Radius: Over Bucket

4406 mm ( 14.42 ft )
Dimensions - With HPL-V Coupler - Approximate# - Width: Over Tires

1840 mm ( 6 ft )
Dimensions - With HPL-V Coupler - Approximate# - Turning Radius: Outside of Tires

4007 mm ( 13.08 ft )
Dimensions - With HPL-V Coupler - Approximate# - Turning Radius: Inside of Tires

2128 mm ( 6.92 ft )
Dimensions - With HPL-V Coupler - Approximate# - Rack Angle at Full Lift

56°
Dimensions - With HPL-V Coupler - Approximate# - Dump Angle at Full Lift

45°
Dimensions - With HPL-V Coupler - Approximate# - Rack Angle at Carry

51°
Dimensions - With HPL-V Coupler - Approximate# - Departure Angle - Degrees

30°
Dimensions - With HPL-V Coupler - Approximate# - Articulation Angle - Degrees

39°
Dimensions - With HPL-V Coupler - Approximate# - Operating Weight: Bucket ^

5730 kg ( 12628 lb )
Dimensions - With HPL-V Coupler - Approximate# - Tipping Load - Straight - ISO 14397-1 †

4427 kg ( 9756 lb )
Dimensions - With HPL-V Coupler - Approximate# - Tipping Load - Full Turn - ISO 14397-1 †

3701 kg ( 8157 lb )
Dimensions - With HPL-V Coupler - Approximate# - Operating Weight: Carriage and Tines ^^

5552 kg ( 12236 lb )
Dimensions - With HPL-V Coupler - Approximate# - Tipping Load - Straight †

3514 kg ( 7745 lb )
Dimensions - With HPL-V Coupler - Approximate# - 80% of Tip: Firm and Level EN474-3 ††

2364 kg ( 5209 lb )
Dimensions - With HPL-V Coupler - Approximate# - Note (1)

*Vary with bucket
Dimensions - With HPL-V Coupler - Approximate# - Note (2)

**Vary with tire
Dimensions - With HPL-V Coupler - Approximate# - Note (3)

^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
Dimensions - With HPL-V Coupler - Approximate# - Note (4)

^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Dimensions - With HPL-V Coupler - Approximate# - Note (5)

†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Dimensions - With HPL-V Coupler - Approximate# - Note (6)

††Full compliance to EN474-3 and SAE J1197.
Dimensions - With HPL-V Coupler - Approximate# - Note (7)

#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Dimensions - With HPL-V Coupler - Approximate# - Note (8)

Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines (tire supplier variability can impact dimensions by 2%).
Dimensions - With SSL Coupler - Approximate - Height - Ground to Cab

2468 mm ( 8.08 ft )
Dimensions - With SSL Coupler - Approximate - Height: Ground to Beacon**

2651 mm ( 8.67 ft )
Dimensions - With SSL Coupler - Approximate - Height: Ground Axle Center**

480 mm ( 1.5 ft )
Dimensions - With SSL Coupler - Approximate - Height - Ground Clearance

300 mm ( 0.92 ft )
Dimensions - With SSL Coupler - Approximate - Length - Overall with Bucket

5527 mm ( 18.08 ft )
Dimensions - With SSL Coupler - Approximate - Length: Rear Axle to Bumper

1391 mm ( 4.5 ft )
Dimensions - With SSL Coupler - Approximate - Length: Hitch to Front Axle

1085 mm ( 3.5 ft )
Dimensions - With SSL Coupler - Approximate - Length - Wheel Base

2170 mm ( 7.08 ft )
Dimensions - With SSL Coupler - Approximate - Clearance - Bucket at 45°

2385 mm ( 7.75 ft )
Dimensions - With SSL Coupler - Approximate - Clearance: Load over Height**

2900 mm ( 9.5 ft )
Dimensions - With SSL Coupler - Approximate - Clearance - Level Bucket

3030 mm ( 9.92 ft )
Dimensions - With SSL Coupler - Approximate - Height - Bucket Pin

3244 mm ( 10.58 ft )
Dimensions - With SSL Coupler - Approximate - Height: Overall**

4205 mm ( 13.75 ft )
Dimensions - With SSL Coupler - Approximate - Reach - Bucket at 45°

822 mm ( 2.67 ft )
Dimensions - With SSL Coupler - Approximate - Carry Height: Bucket Pin

335 mm ( 1.08 ft )
Dimensions - With SSL Coupler - Approximate - Dig Depth

85 mm ( 0.275 ft )
Dimensions - With SSL Coupler - Approximate - Width - Bucket

1890 mm ( 6.17 ft )
Dimensions - With SSL Coupler - Approximate - Width - Tread Center

1420 mm ( 4.58 ft )
Dimensions - With SSL Coupler - Approximate - Turning Radius - Over Bucket

4481 mm ( 14.67 ft )
Dimensions - With SSL Coupler - Approximate - Width - Over Tires

1840 mm ( 6 ft )
Dimensions - With SSL Coupler - Approximate - Turning Radius: Outside of Tires

4007 mm ( 13.08 ft )
Dimensions - With SSL Coupler - Approximate - Turning Radius - Inside Tire

2128 mm ( 6.92 ft )
Dimensions - With SSL Coupler - Approximate - Rack Angle at Full Lift

50°
Dimensions - With SSL Coupler - Approximate - Dump Angle at Full Lift

45°
Dimensions - With SSL Coupler - Approximate - Rack Angle at Carry

46°
Dimensions - With SSL Coupler - Approximate - Departure Angle - Degrees

30°
Dimensions - With SSL Coupler - Approximate - Articulation Angle - Degrees

39°
Dimensions - With SSL Coupler - Approximate - Operating Weight: Bucket ^

5835 kg ( 12859 lb )
Dimensions - With SSL Coupler - Approximate - Tipping Load – Straight – ISO 14397-1 †

3907 kg ( 8610 lb )
Dimensions - With SSL Coupler - Approximate - Tipping Load – Full Turn – ISO 14397-1 †

3248 kg ( 7158 lb )
Dimensions - With SSL Coupler - Approximate - Operating Weight: Carriage and Tines ^^

5640 kg ( 12430 lb )
Dimensions - With SSL Coupler - Approximate - Tipping Load - Straight †

3338 kg ( 7357 lb )
Dimensions - With SSL Coupler - Approximate - 80% of Tip: Firm and Level EN474-3 ††

2254 kg ( 4968 lb )
Dimensions - With SSL Coupler - Approximate - Note (1)

*Vary with bucket
Dimensions - With SSL Coupler - Approximate - Note (2)

**Vary with tire
Dimensions - With SSL Coupler - Approximate - Note (3)

^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
Dimensions - With SSL Coupler - Approximate - Note (4)

^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Dimensions - With SSL Coupler - Approximate - Note (5)

†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Dimensions - With SSL Coupler - Approximate - Note (6)

††Full compliance to EN474-3 and SAE J1197.
Dimensions - With SSL Coupler - Approximate - Note (7)

#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Dimensions - With SSL Coupler - Approximate - Note (8)

Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines (tire supplier variability can impact dimensions by 2%).

Related products

  • Equipment
  • Power Systems
  • Attachments
  • Material Handling
Select Up To 3 Models To Compare
Compare
