1500 mm (59 in), Pin On

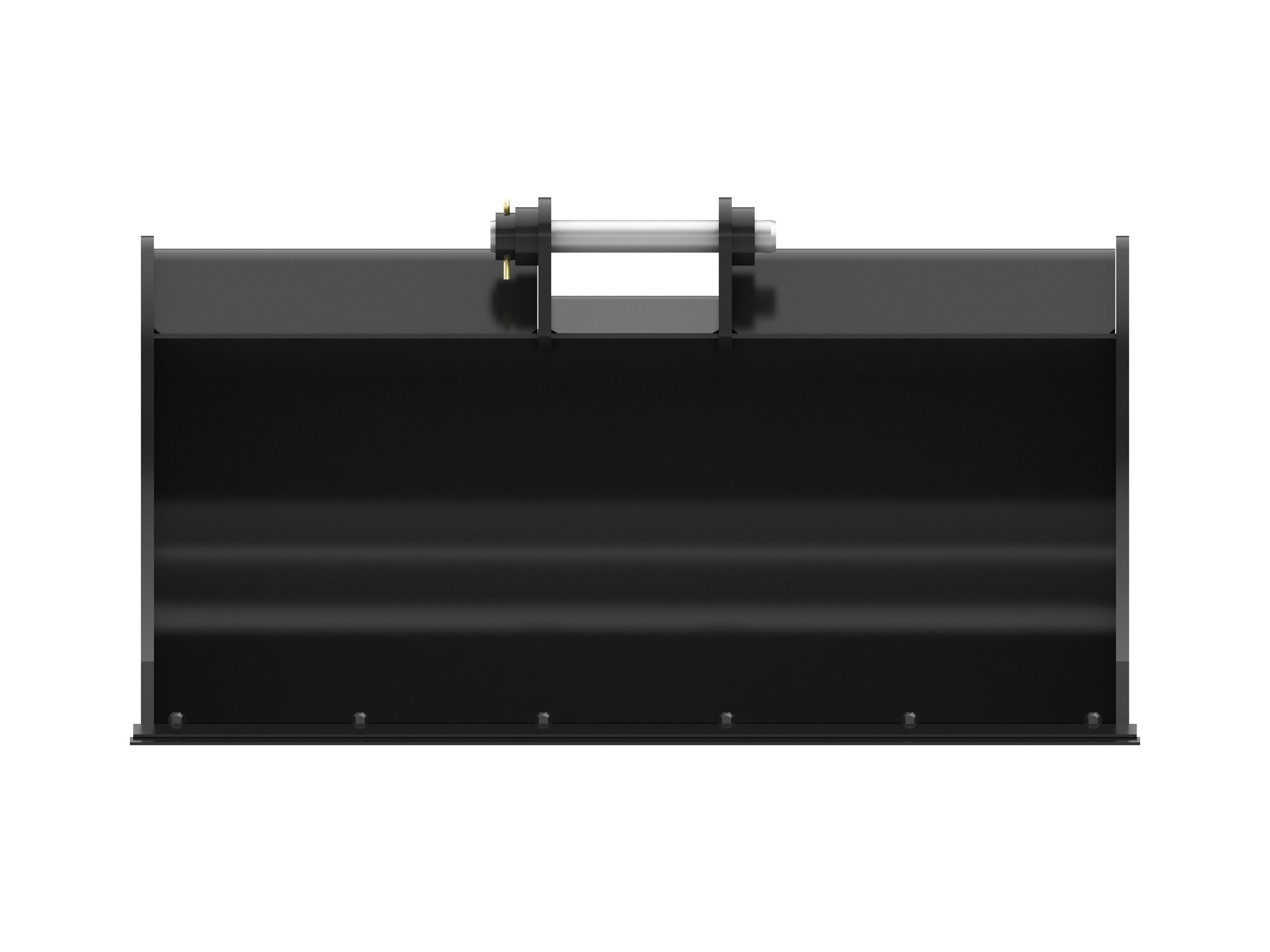

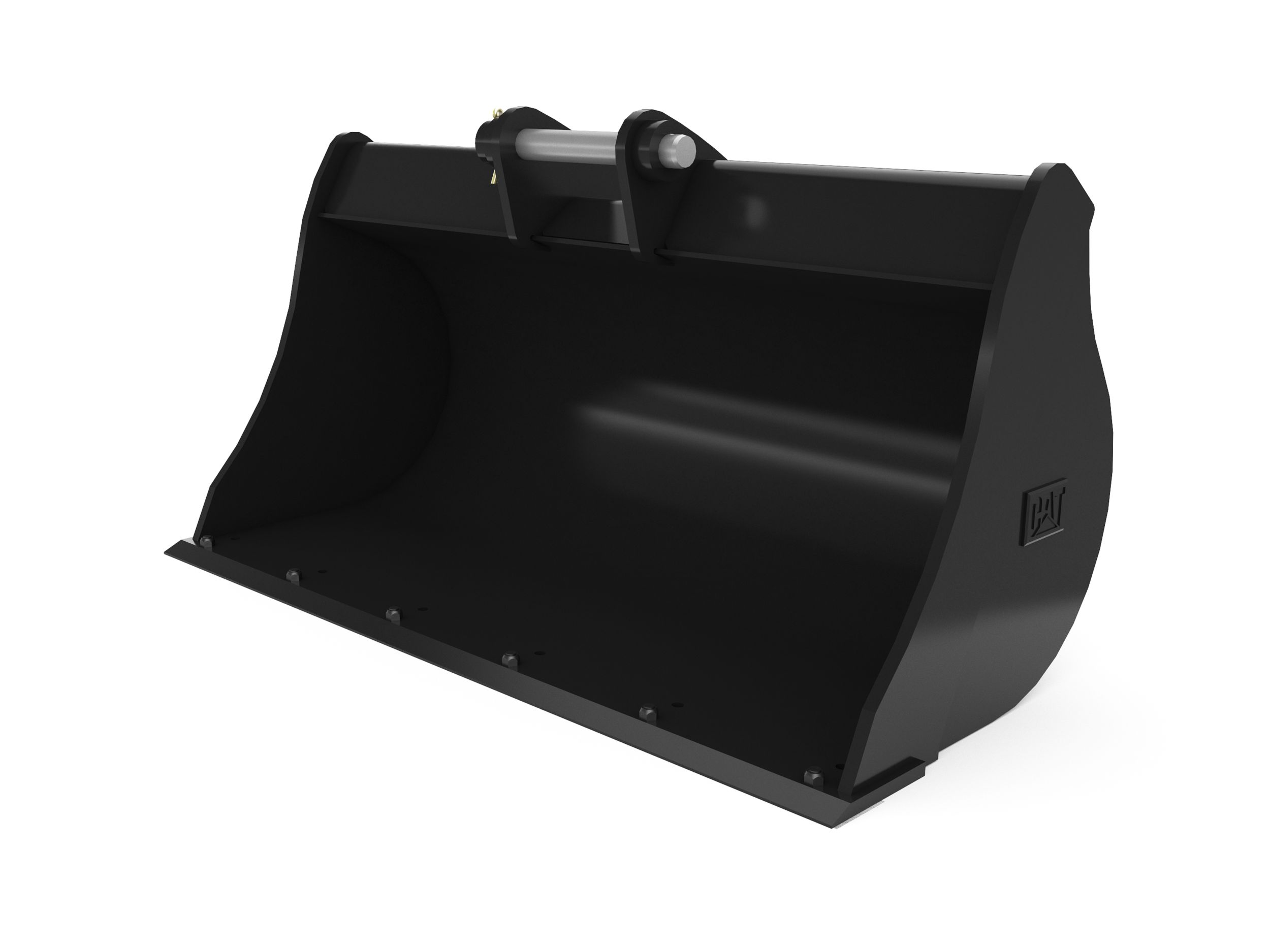

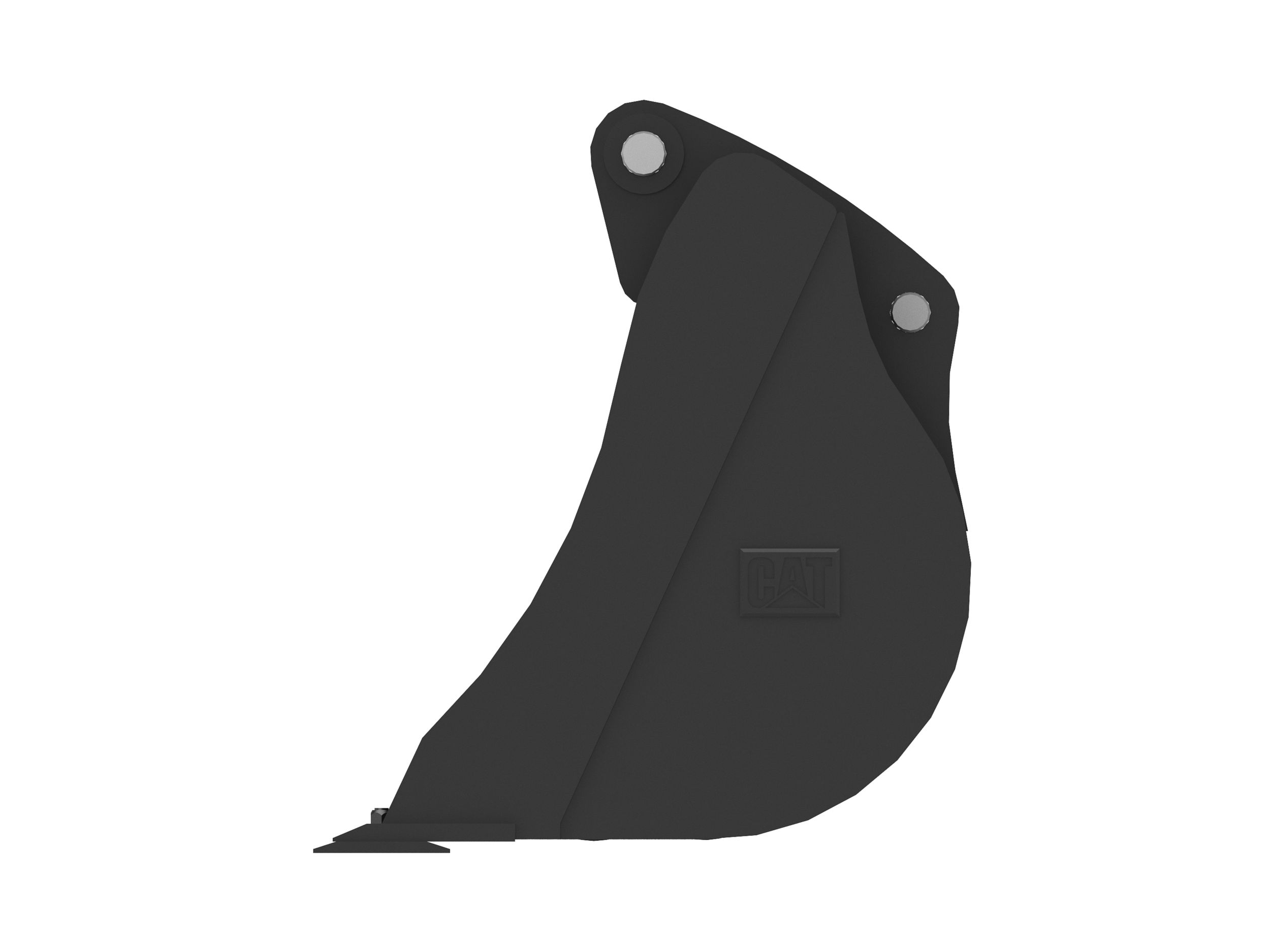

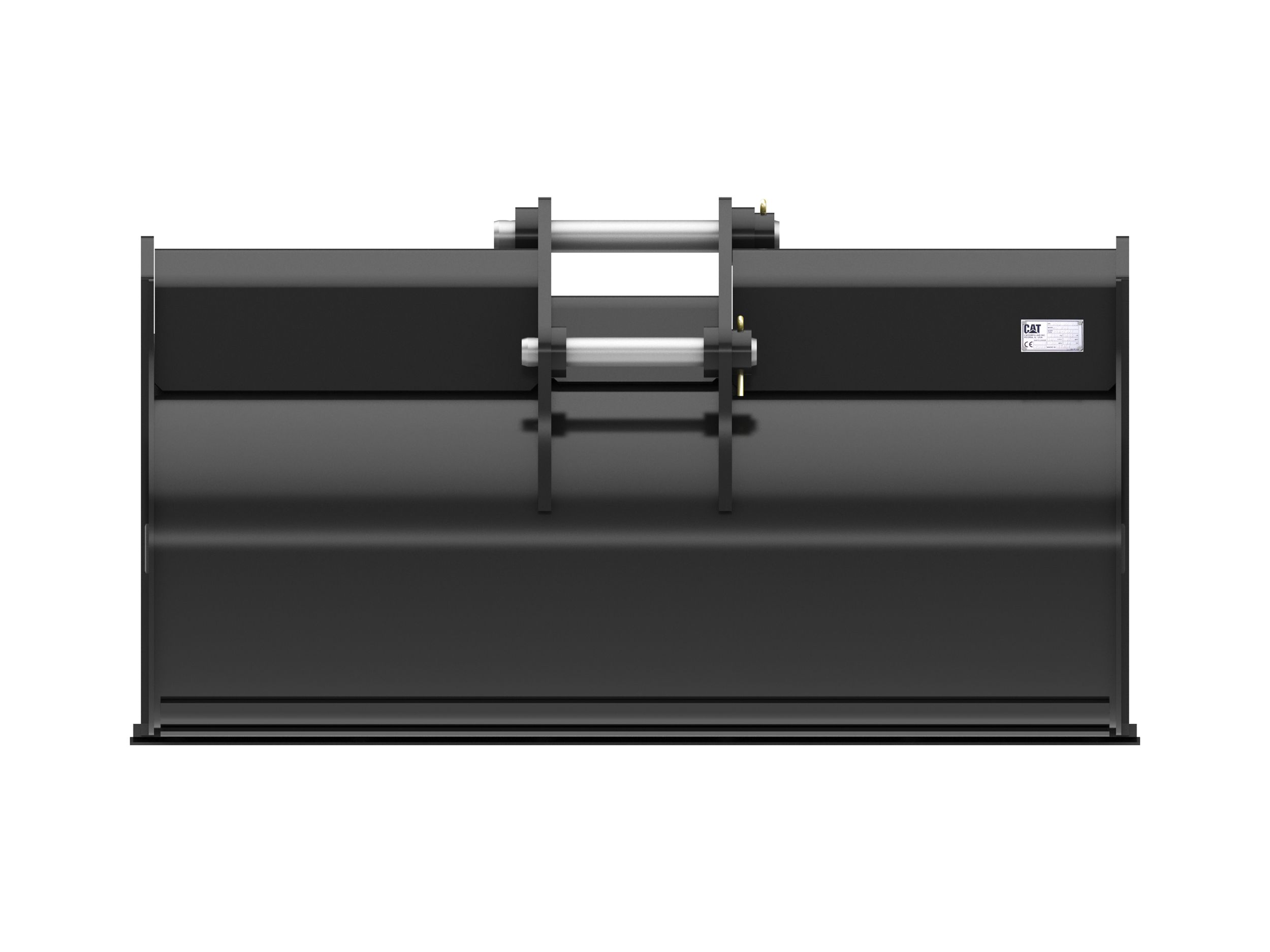

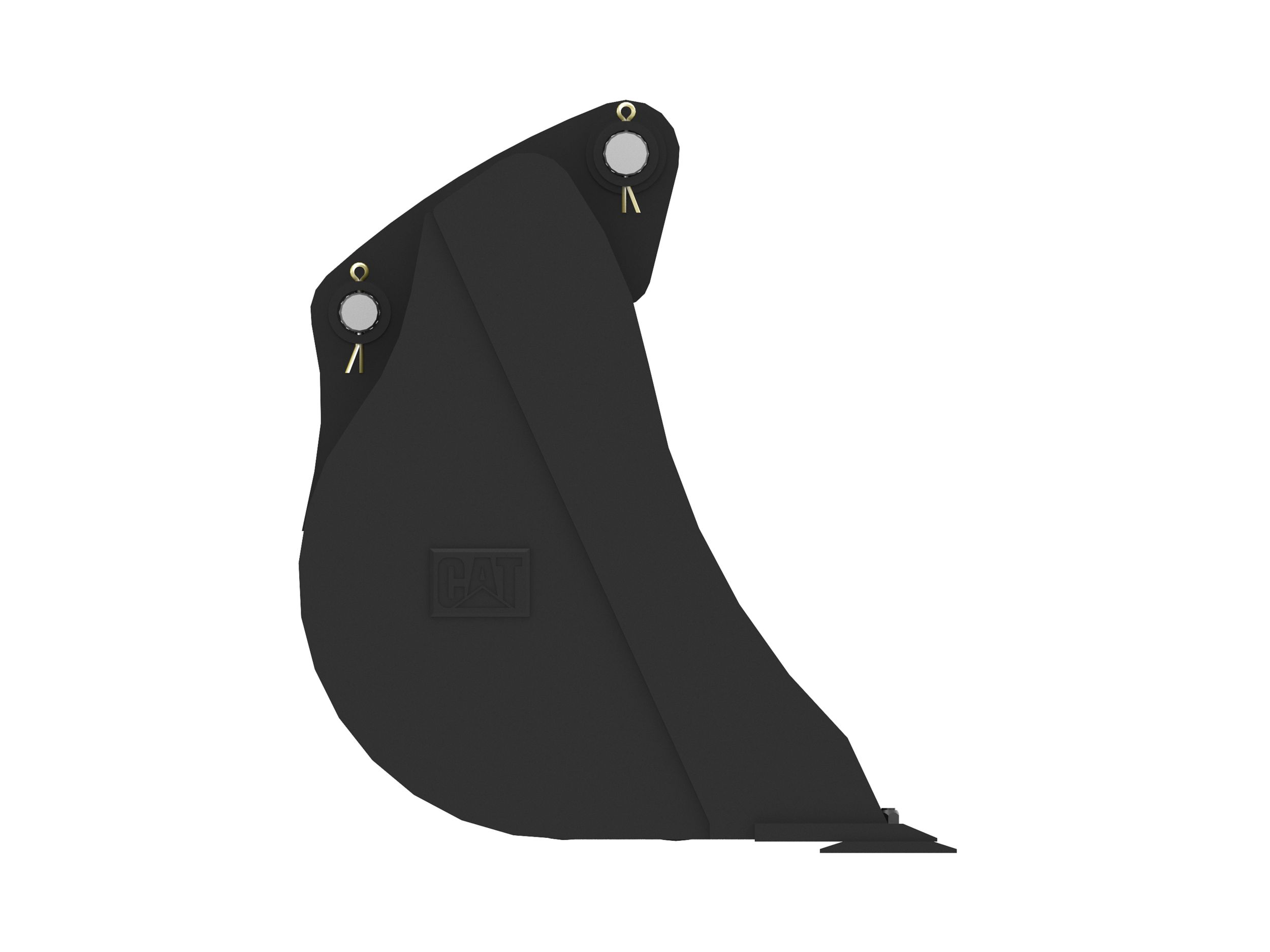

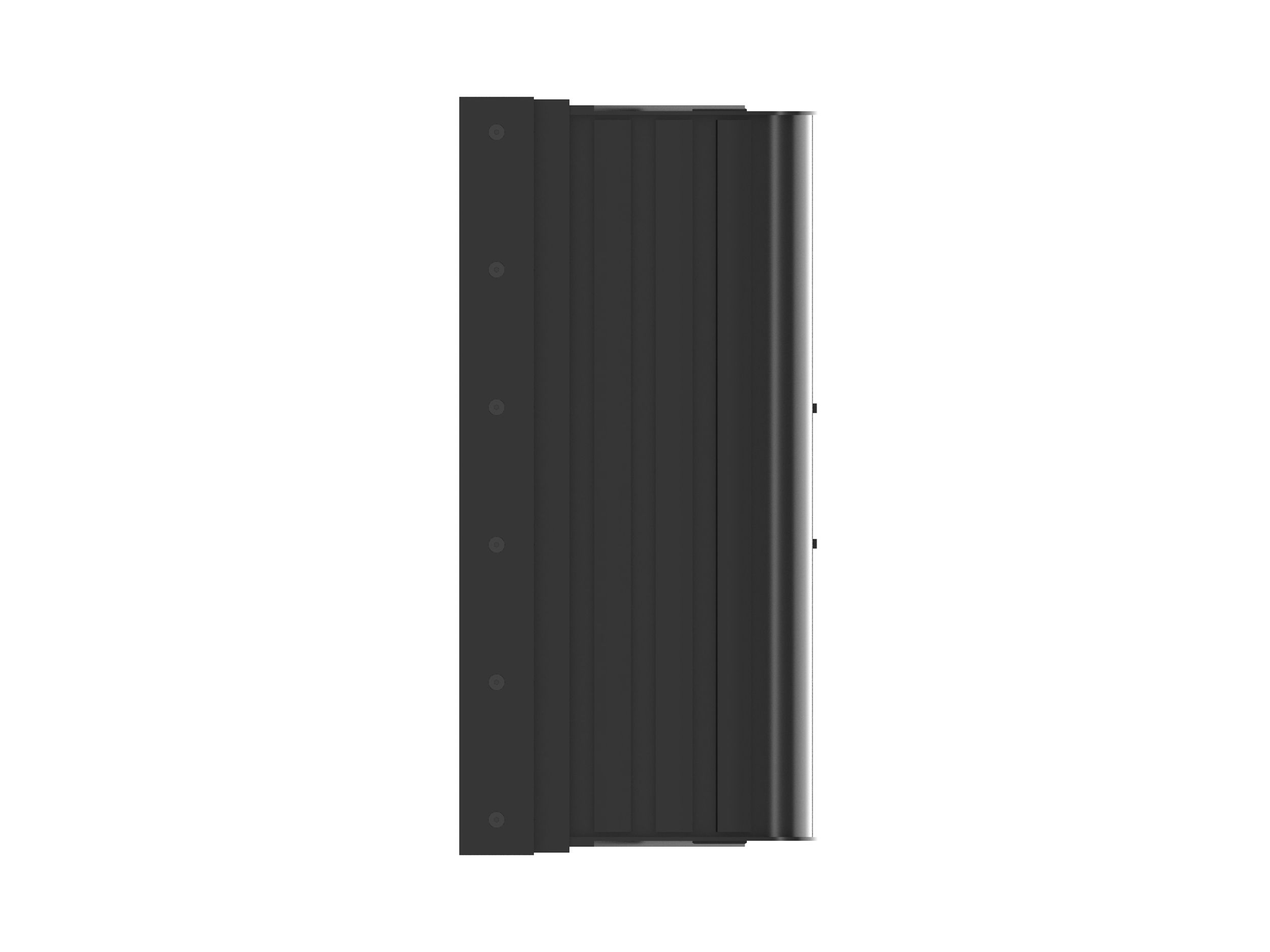

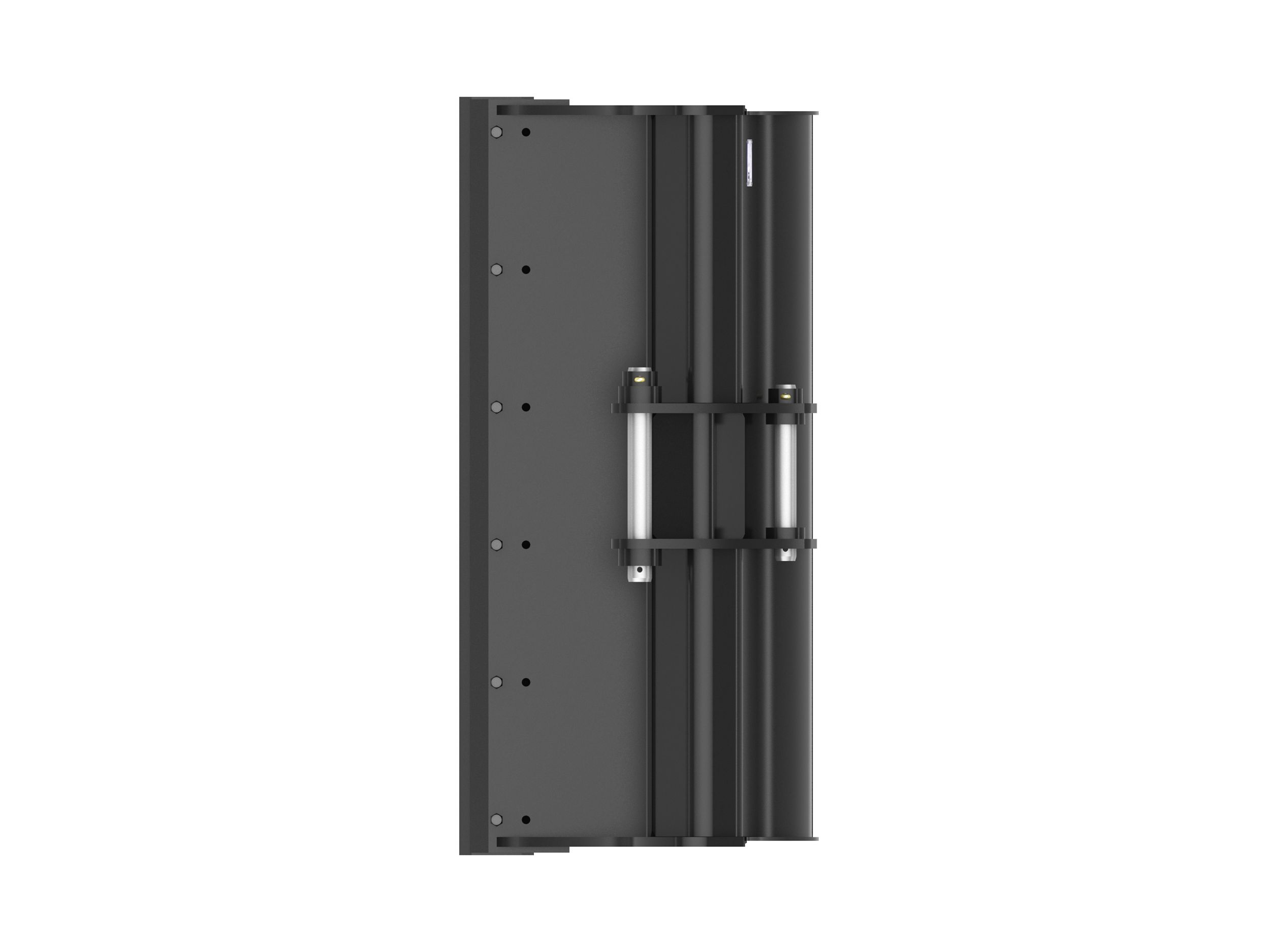

1500 mm (59 in) Pin On Grading Bucket

For cleaning ditches, sloping, grading and other finishing work.

Category:
Add to Quote

Bucket Nesting

Transport all buckets needed for a job within the Grading Bucket.

Bolt-On Cutting Edge

Allows for smooth finish in grading applications.

Lack of Drainage Holes

Retains material and water for waste removal and light material applications.

Included Pins

Pins come pre-installed with bucket.

Videos

Documents & Brochures

Additional information

Offering Type

Width

1500 mm ( 59.1 in )
Capacity

527 l ( 18.6 ft³ )
Weight

337 kg ( 743 lb )
Base Edge Thickness

20 mm ( 0.8 in )
Bolt-On Cutting Edge Thickness

12.7 mm ( 0.5 in )
Tip Radius

860 mm ( 33.9 in )
Interface Type

Pin On
