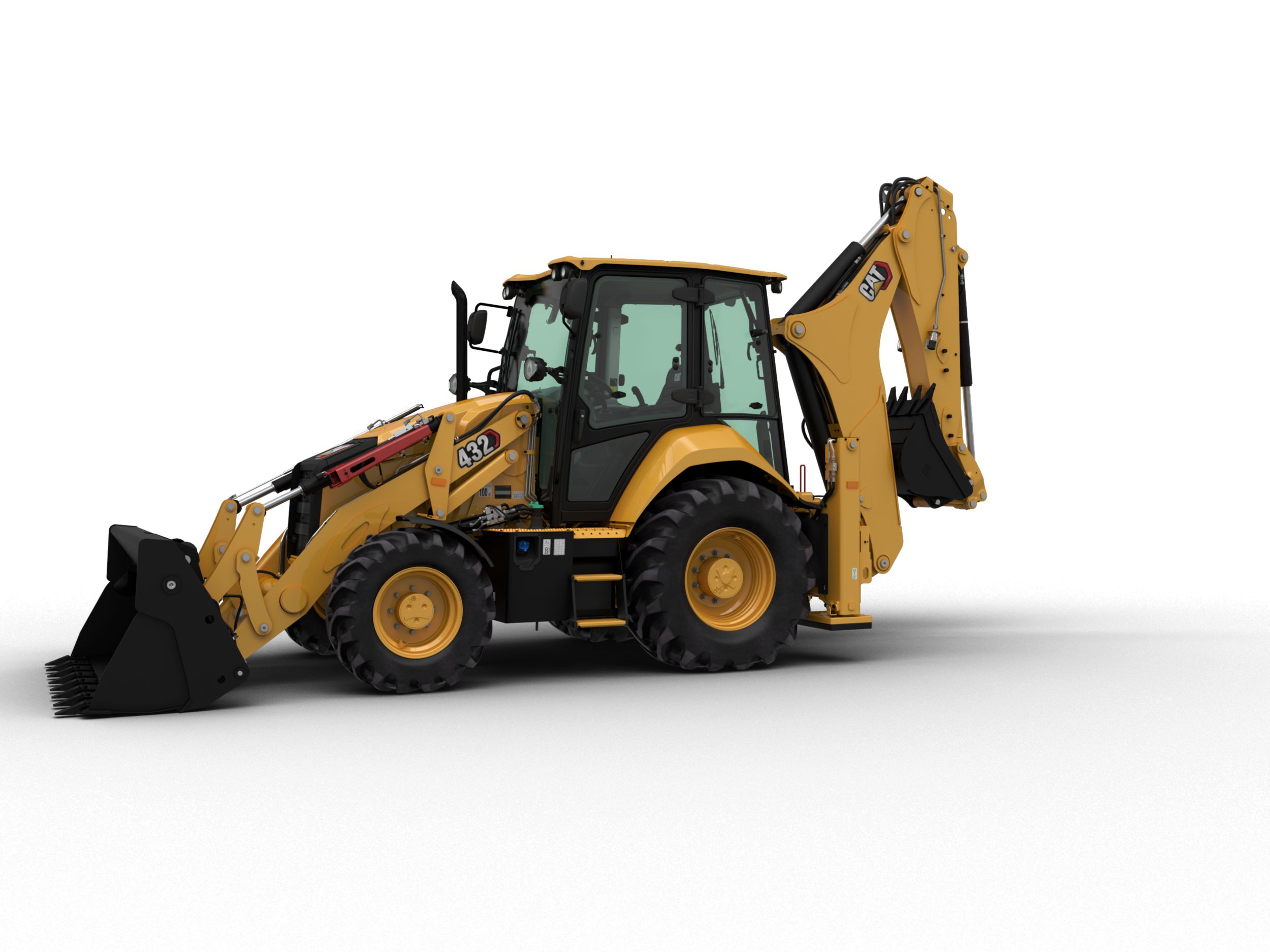

432 Backhoe Loader

The Cat® 432 Backhoe Loader provides a proven engine, operator comfort and control, a powershift transmission, an Excavator Style Boom, powerful and efficient hydraulics, three Power Management Modes, and Product Link™.

Category:
Add to Quote

Proven Cat® Engine

Powered with proven and reliable Cat® engine. There are two engine options available. Tier 2 equivalent 3054C engine and Tier 3 equivalent C4.4 engine, both with 74.5 kW power rating. All the options deliver superior performance with best in class fuel efficiency.

Operator Comfort and Control

Standard Pilot Hoe Controls provides smooth and comfort to operators. These controls mounted on fully adjustable pods offer the operator finer controls whilst giving improved ergonomics.

Powershift Transmission

The 4 speed powershift transmission, improves operator comfort by utilizing the Power Shuttle Lever to shift gears. There is no floor-mounted gear shift lever, improving the already spacious work environment.

Excavator Style Boom

The Excavator Style Boom is iconic to Cat BHL’s. This gives the operator more dig depth and reach when working around obstacles meaning less repositioning of the machine is required.

Powerful and Efficient Hydraulics

The load sensing and closed center hydraulic system actively matches power and flow to the demand and delivers best in class fuel efficiency and better component life. Flow sharing valves provide greater control and precision to the operation.

Power Management Modes

The operator can choose between Eco Mode, or Standard Mode dependent on job and site conditions. Eco mode will save the operator fuel, lowering their owning and operating costs.

Product Link™

Product Link™ comes as standard on Cat BHL’s (however, it depends on the local restrictions if any). Cat Product Link offers data like machine location, Service Meter Units (Hours) (SMU), etc.

Documents & Brochures

Standard Equipment

Cab ROPS and FOPS
  • Cab, Standard
Tires/Steering/Brakes
  • All Wheel Drive
  • 100% Differential Lock
  • Hydraulic Boosted Brakes
  • Tires 26 inch
Engine/Transmission
  • Engine Cat 3054C 74.5 kW
  • Battery, 750 CCA, Standard
  • Hinged Radiator Pack
  • Forward-Neutral-Reverse (FNR) on Loader Lever
  • Eco Mode
  • Standard Mode
  • Transmission Neutralizer
  • Transmission, Four Speed Powershift
Controls
  • Controls, Pilot Joysticks
  • Pattern Selector (ISO/SAE)
  • Power Steering, Hydrostatic
Hydraulics
  • Variable Displacement Piston Pump
  • Side Shift Lock
  • Hydraulic Oil Cooler
  • Loader Kickout, Float
  • Loader Kickout, Return to Dig
  • Continuous Flow
  • Programmable Auxiliary Flow
Booms, Sticks and Linkages
  • Stick Standard, 4.3 m
  • Transport Lock, Swing
  • Transport Lock, Boom
Other Attachments
  • External Tool Box
  • Transport Tie Downs
Electrical
  • Product Link Cellular
  • Reversing Alarm
  • Stabilizer Alarm

Additional information

Offering Type

Transmission - Note

Travel speeds of backhoe loader at full throttle, when equipped with 440/80-28 rear tires.
Engine - Standard Offering Tier 2 Equivalent - Note

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Engine - Optional Offering Tier 3 Equivalent - Note

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Weights - Power-Shift Transmission

Standard
Transmission - Powershift Transmission (Standard) - Forward - 1st

6 km/h ( 3.7 mile/h )
Transmission - Auto-Shift Transmission (Optional) - Reverse - 2nd

12.5 km/h ( 7.8 mile/h )
Transmission - Auto-Shift Transmission (Optional) - Forward - 5th

27.3 km/h ( 17 mile/h )
Transmission - Powershift Transmission (Standard) - Forward - 4th

40 km/h ( 24.9 mile/h )
Transmission - Auto-Shift Transmission (Optional) - Forward - 1st

6 km/h ( 3.7 mile/h )
Transmission - Auto-Shift Transmission (Optional) - Forward - 3rd

12.5 km/h ( 7.8 mile/h )
Transmission - Auto-Shift Transmission (Optional) - Forward - 4th

19.8 km/h ( 12.3 mile/h )
Transmission - Auto-Shift Transmission (Optional) - Forward - 6th

40 km/h ( 24.9 mile/h )
Engine - Optional Offering Tier 3 Equivalent - Net Torque - SAE J1349

398 N·m ( 294 lbf )
Transmission - Powershift Transmission (Standard) - Reverse - 2nd

12.5 km/h ( 7.8 mile/h )
Engine - Standard Offering Tier 2 Equivalent - Net Torque - SAE J1349

397 N·m ( 293 lbf )
Transmission - Powershift Transmission (Standard) - Reverse - 1st

6 km/h ( 3.7 mile/h )
Transmission - Auto-Shift Transmission (Optional) - Reverse - 3rd

27.3 km/h ( 17 mile/h )
Transmission - Auto-Shift Transmission (Optional) - Reverse - 1st

6 km/h ( 3.7 mile/h )
Transmission - Powershift Transmission (Standard) - Forward - 3rd

19.8 km/h ( 12.3 mile/h )
Transmission - Powershift Transmission (Standard) - Forward - 2nd

9.5 km/h ( 5.9 mile/h )
Transmission - Powershift Transmission (Standard) - Reverse - 3rd

27.3 km/h ( 17 mile/h )
Transmission - Auto-Shift Transmission (Optional) - Forward - 2nd

9.5 km/h ( 5.9 mile/h )
Engine - Power - Net

70 kW ( 95 HP )
Engine - Standard Offering Tier 2 Equivalent - Bore

105 mm ( 4.1 in )
Engine - Standard Offering Tier 2 Equivalent - Displacement

4.4 l ( 269 in³ )
Engine - Standard Offering Tier 2 Equivalent - Ratings at 2,200 rpm - Gross Power ISO 14396

74.5 kW/101 hp
Engine - Standard Offering Tier 2 Equivalent - Power Rating Conditions - No De-Rating Required Up To

2286 m ( 7500 ft )
Engine - Standard Offering Tier 2 Equivalent - Ratings at 2,200 rpm - Gross Power SAE J1995

75 kW/102 hp
Engine - Standard Offering Tier 2 Equivalent - Torque Rise (net)

31% @ 1,400 rpm
Engine - Standard Offering Tier 2 Equivalent - Net Power Rating at 2,200 rpm - ISO 9249

71 kW/96 hp
Engine - Standard Offering Tier 2 Equivalent - Net Power Rating at 2,200 rpm - SAE J1349

70 kW/95 hp
Engine - Standard Offering Tier 2 Equivalent - Stroke

127 mm ( 5 in )
Engine - Standard Offering Tier 2 Equivalent - Engine

3054C 74.5 kW Mechanical Turbo
Engine - Optional Offering Tier 3 Equivalent - Torque Rise (net)

32% @ 1,400 rpm
Engine - Optional Offering Tier 3 Equivalent - Ratings at 2,200 rpm - Gross Power ISO 14396

74.5 kW/101 hp
Engine - Optional Offering Tier 3 Equivalent - Stroke

127 mm ( 5 in )
Engine - Optional Offering Tier 3 Equivalent - Displacement

4.4 l ( 269 in³ )
Engine - Optional Offering Tier 3 Equivalent - Net Power Rating at 2,200 rpm - ISO 9249

70 kW/95 hp
Engine - Optional Offering Tier 3 Equivalent - Power Rating Conditions - No De-Rating Required Up To

2286 m ( 7500 ft )
Engine - Optional Offering Tier 3 Equivalent - Engine

C4.4 74.5 kW Electronic Turbo Intercooled
Engine - Optional Offering Tier 3 Equivalent - Bore

105 mm ( 4.1 in )
Engine - Optional Offering Tier 3 Equivalent - Net Power Rating at 2,200 rpm - SAE J1349

69 kW/94 hp
Engine - Optional Offering Tier 3 Equivalent - Ratings at 2,200 rpm - Gross Power SAE J1995

76 kW/104 hp
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Reverse - 3rd

27.3 km/h ( 17 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 4th

19.8 km/h ( 12.3 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Reverse - 2nd

12.5 km/h ( 7.8 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 6th

40 km/h ( 24.9 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 5th

27.3 km/h ( 17 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 2nd

9.5 km/h ( 5.9 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 3rd

12.5 km/h ( 7.8 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 1st

6 km/h ( 3.7 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Reverse - 1st

6 km/h ( 3.7 mile/h )
Axle Ratings - Rear Axle - Static

26500 kg ( 58422 lb )
Axle Ratings - Front Axle (AWD) - Static

23500 kg ( 51809 lb )
Axle Ratings - Rear Axle - Dynamic

10000 kg ( 22046 lb )
Axle Ratings - Front Axle (AWD) - Dynamic

9000 kg ( 19842 lb )
Weights - Operating Weight - Nominal

8444 kg ( 18616 lb )
Weights - Operating Weight - Maximum

11000 kg ( 24251 lb )
Weights - Counterweights - Base

115 kg ( 254 lb )
Weights - Counterweights - Maximum

460 kg ( 1014 lb )
Weights - 4.3 m Extendible Stick - Excluding Front Counterweight

199 kg ( 439 lb )
Weights - Ride Control

15 kg ( 33 lb )
Weights - Operating Weight - ROPS Capacity - Maximum

11000 kg ( 24251 lb )
Weights - Operating Weight

8444 kg ( 18616 lb )
Weights - 4.9 m Extendible Stick - Excluding Front Counterweight

355 kg ( 783 lb )
Weights - Loader, IT with Quick Coupler

185 kg ( 408 lb )
Weights - Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - MP

460 kg ( 1014 lb )
Weights - MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks

860 kg ( 1896 lb )
Weights - Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - GP

460 kg ( 1014 lb )
Weights - Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - MP

115 kg ( 254 lb )
Weights - MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks

611 kg ( 1347 lb )
Weights - Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - MP

460 kg ( 1014 lb )
Weights - Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - GP

460 kg ( 1014 lb )
Weights - Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - GP

240 kg ( 529 lb )
Weights - Counterweights - Stackable, One

240 kg ( 529 lb )
Weights - Total Gross Weight Not to Exceed

11000 kg ( 24251 lb )
Weights - Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - MP

0 kg ( 0 lb )
Weights - Cab - ROPS/FOPS

Standard
Weights - Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - GP

460 kg ( 1014 lb )
Weights - Note

Machine Configuration – LRC 74.5 kW engine; 4.3 m standard stick hoe; standard cab with A/C; AWD powershift transmission; 1.03 m³ MP loader bucket; 600 mm standard duty hoe bucket; 340/80-18 and 440/80-28 tires; no counterweight; 80 kg operator; full fuel tank.
Weights - Air Conditioning

Standard
Hydraulic System - System Pressure - Backhoe

250 bar ( 3626 psi )
Hydraulic System - System Pressure - Loader

250 bar ( 3626 psi )
Hydraulic System - Pump Capacity @ 2,200 rpm

187 l/min ( 49.4 gal/min )
Hydraulic System - Type

Closed Center
Hydraulic System - Pump Type

Variable-Flow, Axial Piston
Steering - AWD Cylinder, One (1) Double Acting - Axle Oscillation

11 mm ( 0.4 in )
Steering - Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket

10.745 m ( 35.25 ft )
Steering - AWD Cylinder, One (1) Double Acting - Rod Diameter

40 mm ( 1.6 in )
Steering - Turning Circle (inner wheel not braked) - Outside Front Wheels

8.205 m ( 26.92 ft )
Steering - AWD Cylinder, One (1) Double Acting - Stroke

106 mm ( 4.2 in )
Steering - AWD Cylinder, One (1) Double Acting - Bore

65 mm ( 2.6 in )
Steering - Type

Front Wheel
Power Steering

Hydrostatic
Service Refill Capacities - Rear Axle

16 l ( 4.2 gal (US) )
Service Refill Capacities - Engine Oil - With Filter

9 l ( 2.4 gal (US) )
Service Refill Capacities - Hydraulic System

95 l ( 25.1 gal (US) )
Service Refill Capacities - Rear Axle - Planetaries

1.7 l ( 0.4 gal (US) )
Service Refill Capacities - Front Axle (AWD)

11 l ( 2.9 gal (US) )
Service Refill Capacities - Hydraulic Tank

42 l ( 11.1 gal (US) )
Service Refill Capacities - Diesel Exhaust Fluid

19 l ( 5 gal (US) )
Service Refill Capacities - Front Axle (AWD) - Planetaries

0.7 l ( 0.2 gal (US) )
Service Refill Capacities - Cooling System - A/C

18 l ( 4.8 gal (US) )
Service Refill Capacities - Fuel Tank

160 l ( 42.3 gal (US) )
Service Refill Capacities - Transmission - Power Shuttle - AWD

18 l ( 4.8 gal (US) )
Service Refill Capacities - Transmission (Powershift) - AWD

19 l ( 5 gal (US) )
