457 mm (18 in), Pin On

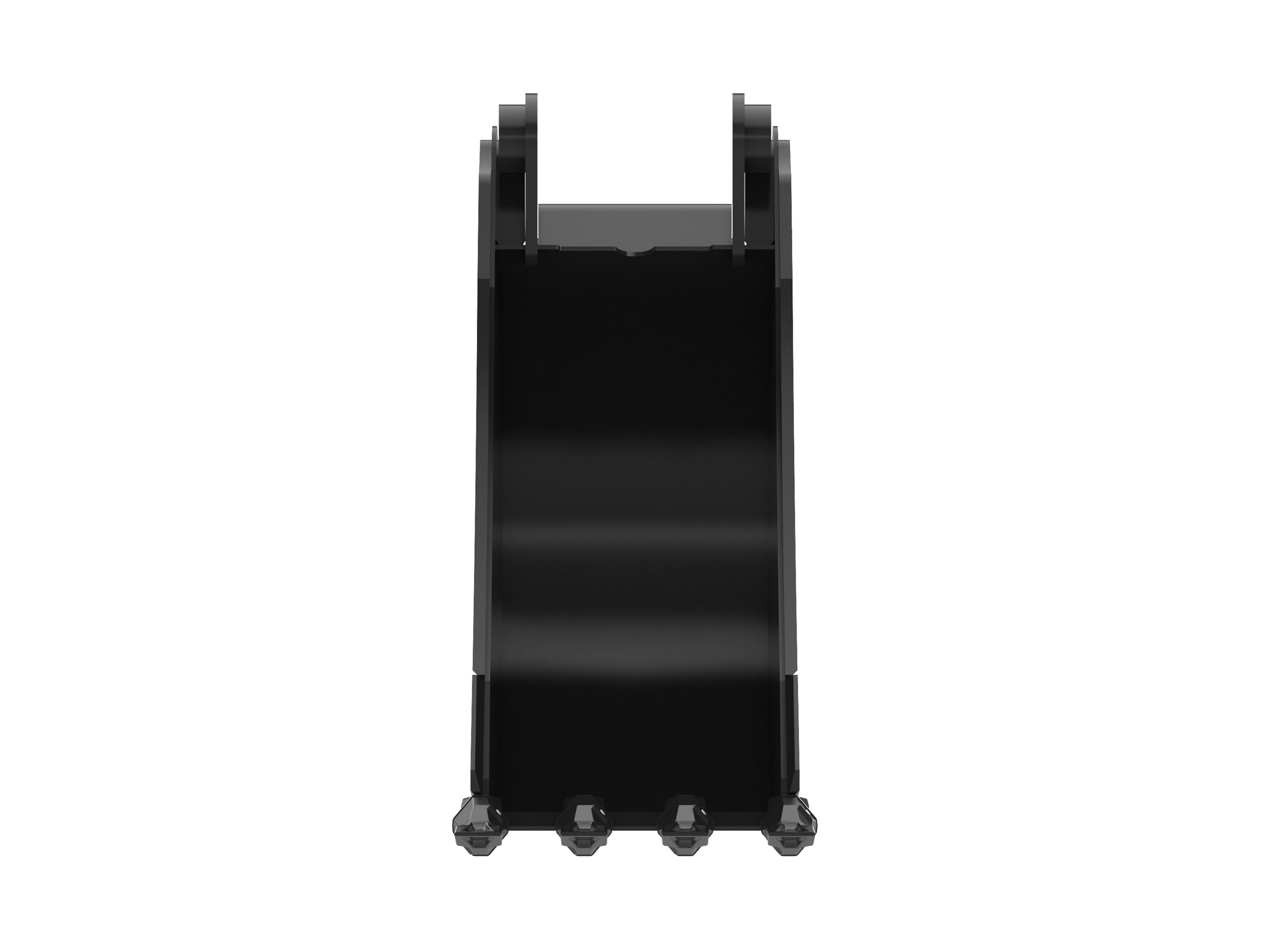

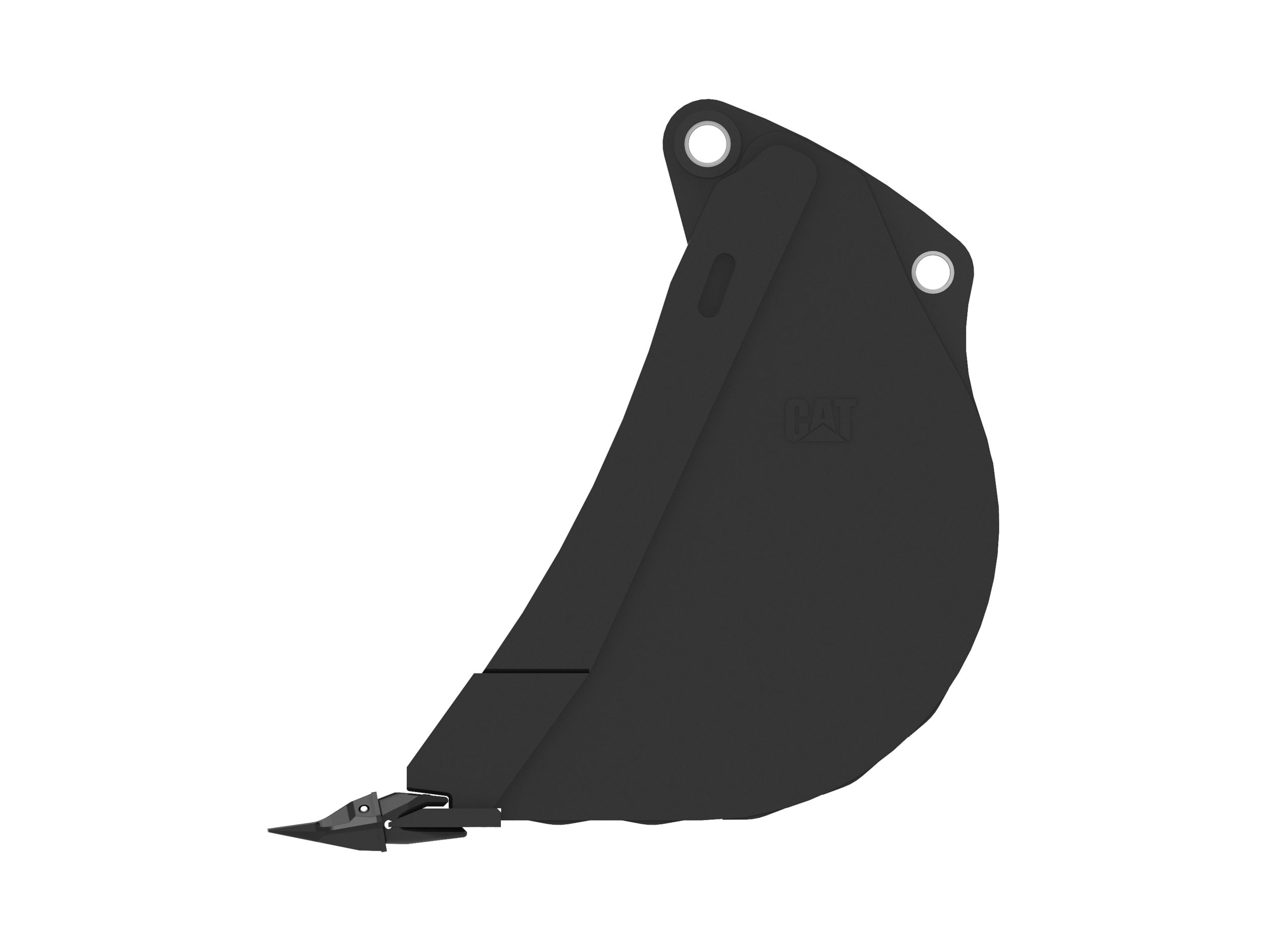

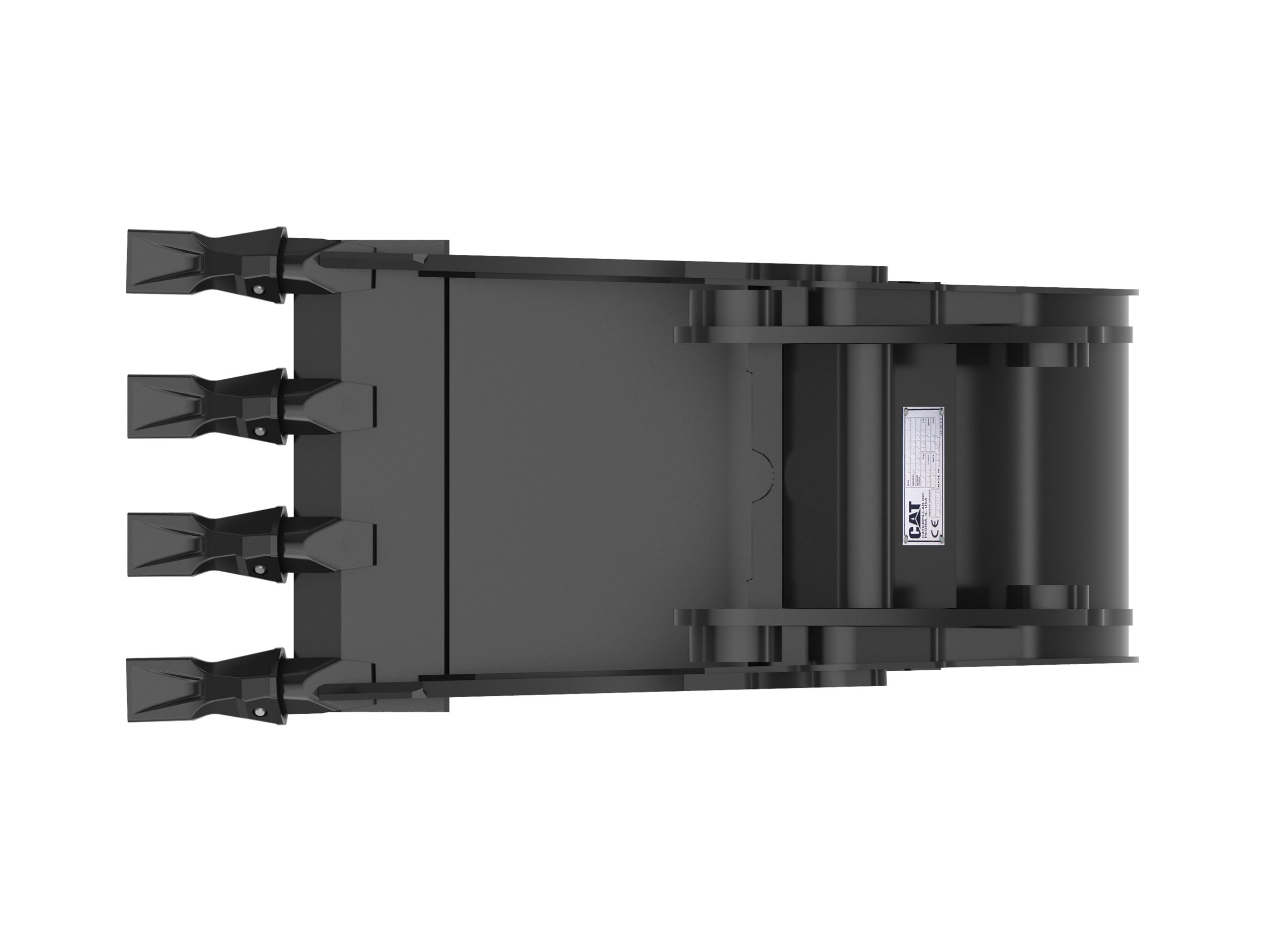

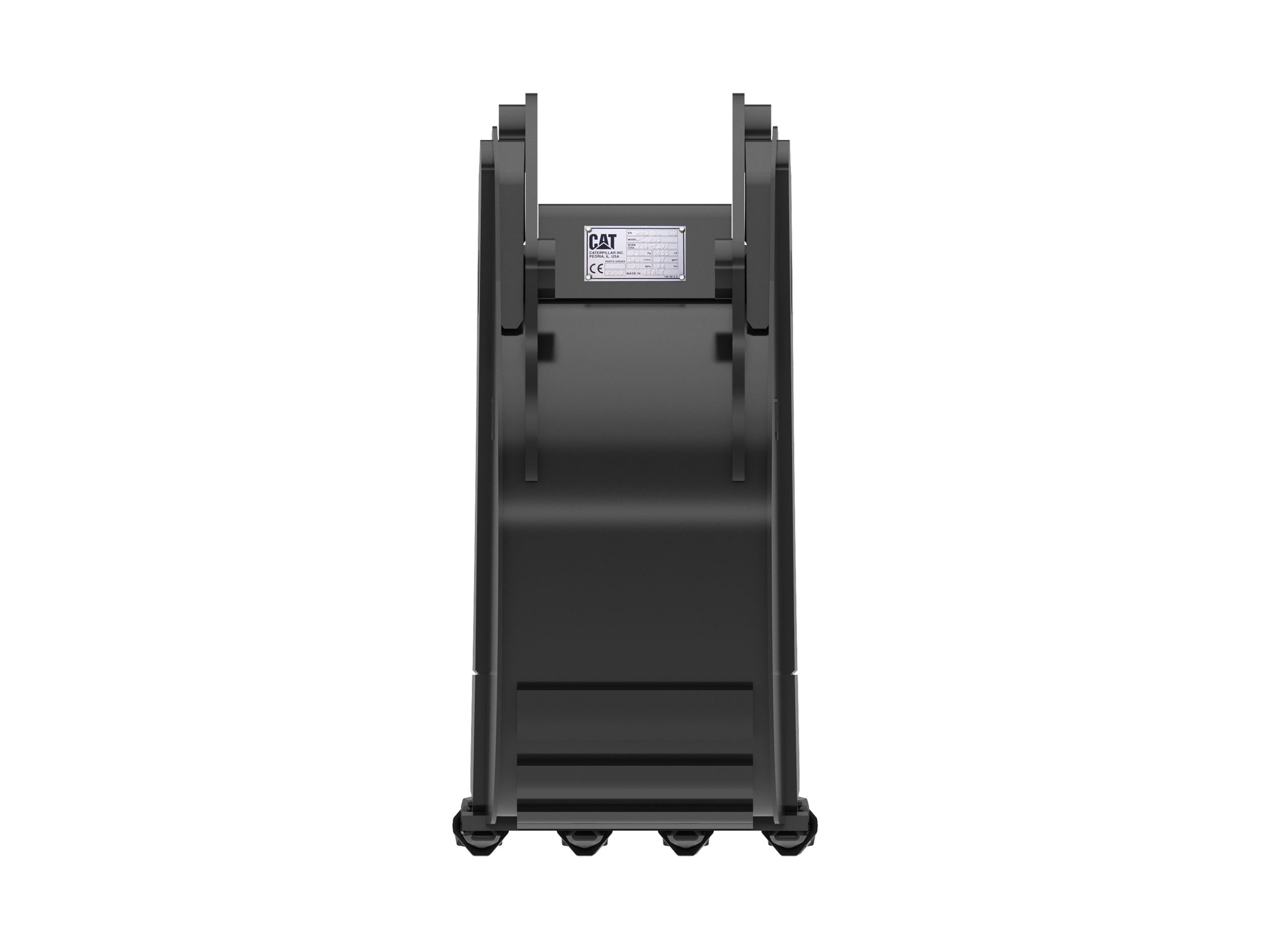

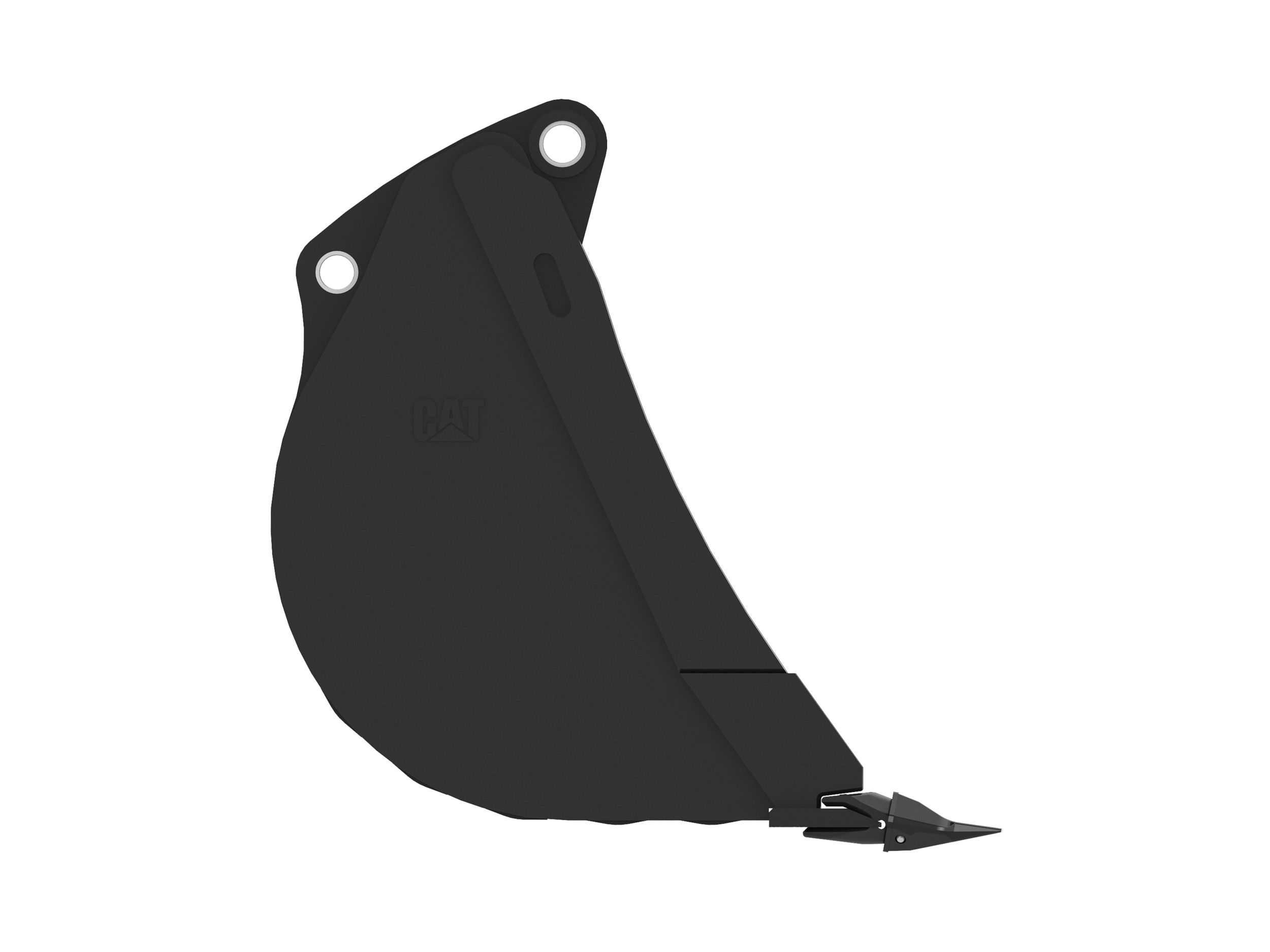

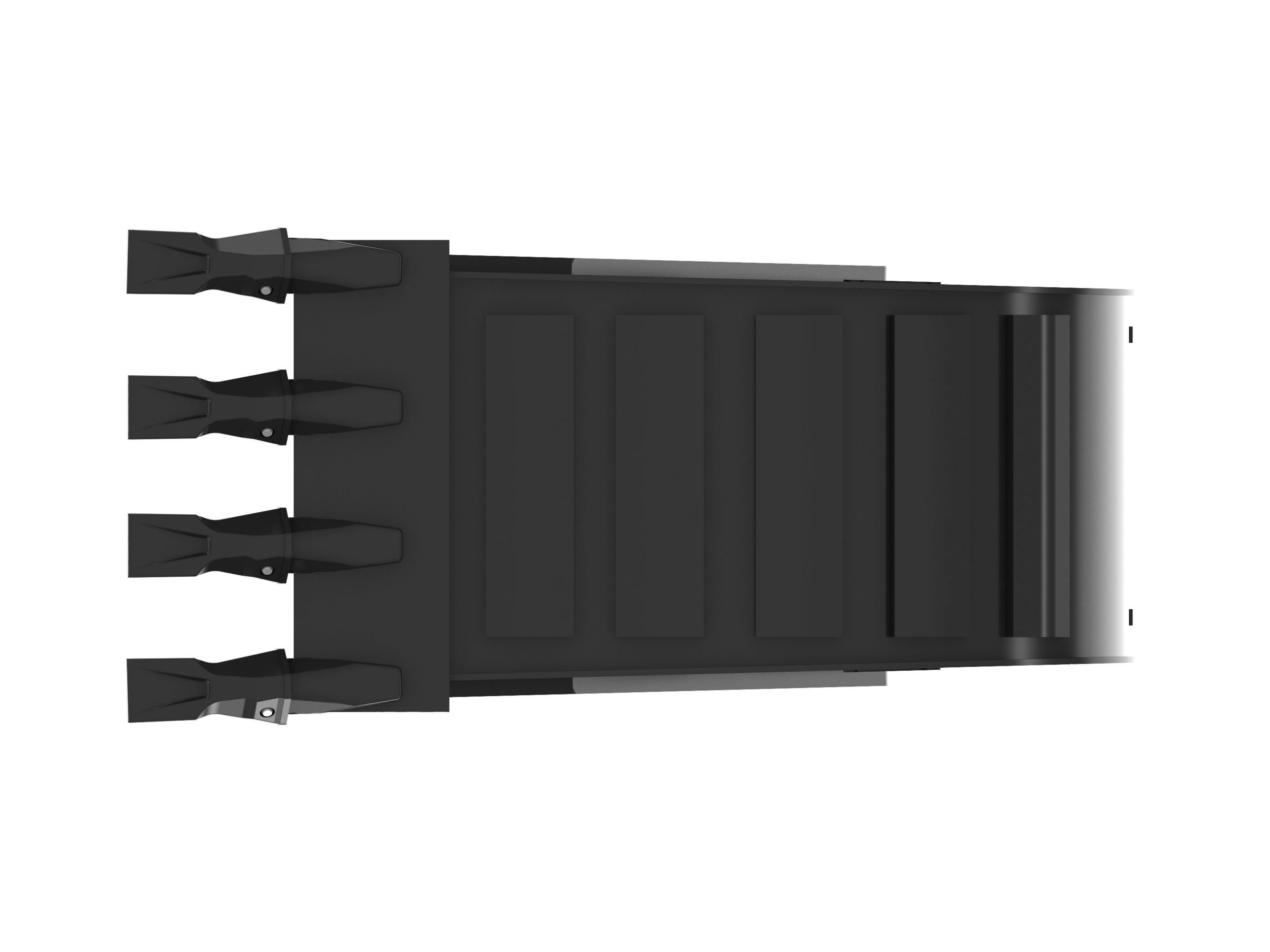

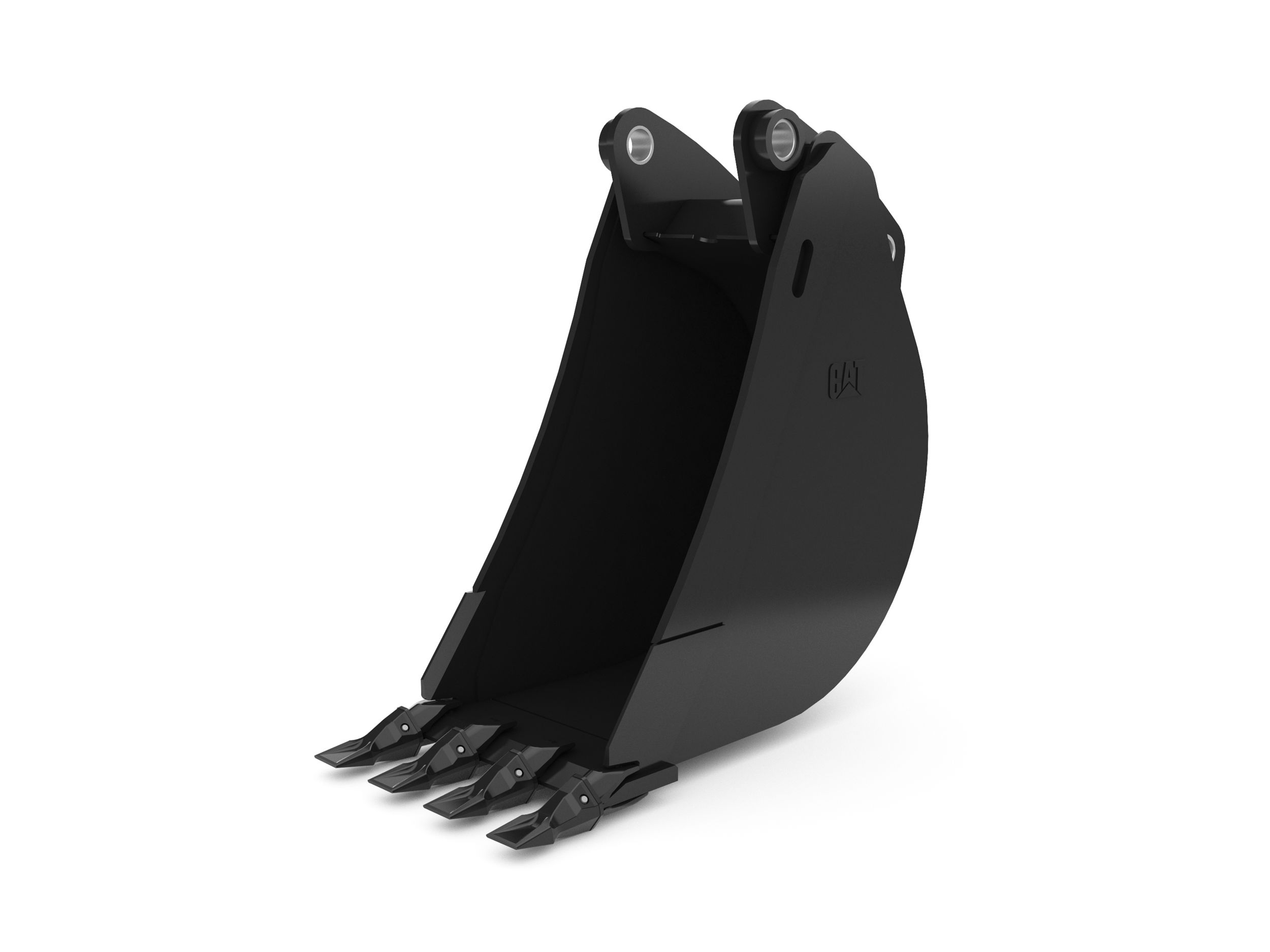

457 mm (18 in) Pin On High Capacity Bucket

Ideal for work in lower density soils and light materials.

Category:
Add to Quote

Application

Well suited for work in lower density soils and light materials. Cat® High Capacity Buckets have the same durable characteristics as heavy duty buckets but are capable of moving greater volumes.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Rugged Design

Cat® Buckets are designed for superior productivity, reliability and long life.

Videos

Documents & Brochures

Additional information

Offering Type

Width

457 mm ( 18 in )
Capacity

181 l ( 6.4 ft³ )
Weight

146 kg ( 321.9 lb )
Base Edge Thickness

25 mm ( 1 in )
Tip Radius

1084 mm ( 42.7 in )
Interface Type

Pin On
