428

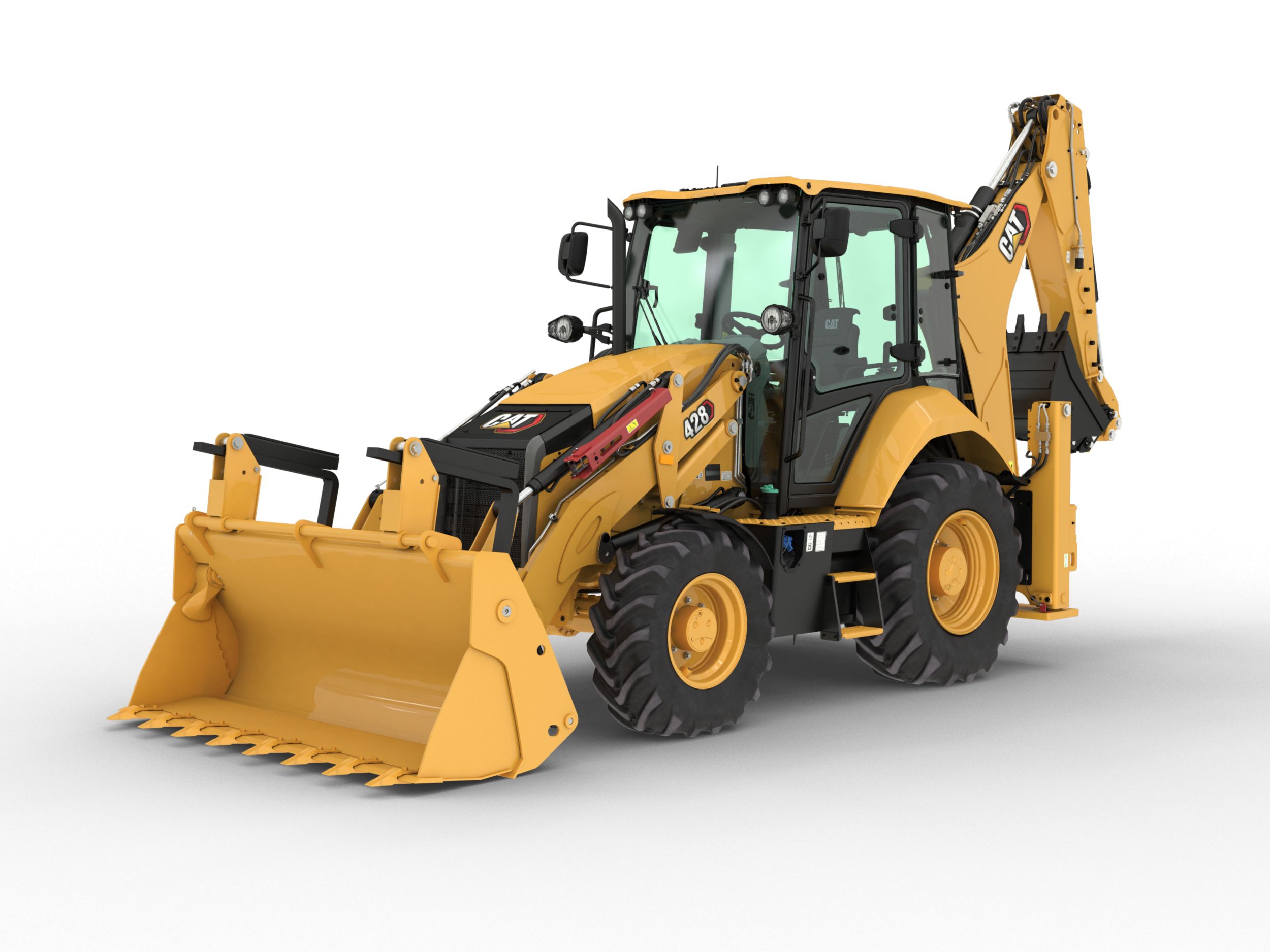

428 Backhoe Loader

The Cat® 428 Backhoe Loader provides a proven engine, improved operator comfort, greater lifting performance, a powershift transmission, an Excavator Style Boom, powerful and efficient hydraulics, three Power Management Modes, and Product Link™.

Category:
Add to Quote

Proven Cat® Engine

Powered with a proven and reliable Cat® engine. There are two power rating options for the Tier 2 equivalent Cat 3054C engine: 68.5 kW and 74.5 kW. For those requiring the Tier 3 equivalent C4.4 engine, again there are two power rating options: 70 kW and 74.5 kW. All the options deliver superior performance with best in class fuel efficiency.

Improved Operator Comfort

Pilot hoe controls are an optional upgrade on your 428. These controls mounted on fully adjustable pods offer the operator finer controls whilst giving improved ergonomics and comfort.

Greater Lifting Performance

The option of a larger boom cylinder will give greater lifting performance on the back of the 428 machine.

Powershift Transmission

The 4 speed powershift transmission, improves operator comfort by utilizing the Power Shuttle Lever to shift gears. There is no floor-mounted gear shift lever, improving the already spacious work environment.

Excavator Style Boom

The Excavator Style Boom is iconic to the Cat backhoe loader (BHL). This gives the operator more dig depth and reach when working around obstacles meaning less repositioning of the machine is required.

Powerful and Efficient Hydraulics

The load sensing and closed center hydraulic system actively matches power and flow to the demand and delivers best in class fuel efficiency and better component life. Flow sharing valves provide greater control and precision to the operation.

Product Link™

Product Link™ comes as standard on the Cat BHL depending on local restrictions. Cat Product Link offers data like machine location, Service Meter Units (Hours) (SMU), etc.

Documents & Brochures

Standard Equipment

Cab ROPS and FOPS
  • Cab, Standard
Tires/Steering/Brakes
  • All Wheel Drive
  • 100% Differential Lock
  • Hydraulic Boosted Brakes
  • Tires 26 inch
Engine/Transmission
  • Engine Cat 3054C 68.5 kW
  • Battery, 750 CCA, Standard
  • Hinged Radiator Pack
  • Standard Mode
  • Diff Lock
  • Transmission Neutralizer
  • Transmission, Four Speed Manual
  • Transmission, Six Speed Automatic with LUTC
Controls
  • Controls, Mechanical Levers
  • Power Steering, Hydrostatic
Hydraulics
  • Variable Displacement Piston Pump
  • Side Shift Lock
  • Hydraulic Oil Cooler
  • Loader Kickout, Float
  • Loader Kickout, Return to Dig
Booms, Sticks and Linkages
  • Stick Standard, 4.3 m
  • Transport Lock, Swing
  • Transport Lock, Boom
Other Attachments
  • External Tool Box
  • Transport Tie Downs
Electrical
  • Product Link Cellular
  • Reversing Alarm
  • Stabilizer Alarm

Additional information

Offering Type

Transmission - Note

Travel speeds of backhoe loader at full throttle, when equipped with 440/80-28 rear tires.
Engine - Standard Offering Tier 2 Equivalent - Note

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Engine - Optional Offering Tier 3 Equivalent - Note

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Engine - Optional Offering Tier 2 Equivalent - Note

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Engine - Optional Offering Tier 3 Equivalent - A - Note

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Engine - Optional Offering Tier 3 Equivalent - A - Ratings at 2,200 rpm - Gross Power SAE J1995

76 kW/104 hp
Engine - Optional Offering Tier 3 Equivalent - A - Bore

105 mm ( 4.1 in )
Engine - Optional Offering Tier 3 Equivalent - A - Ratings at 2,200 rpm - Gross Power ISO 14396

75 kW/101 hp
Engine - Optional Offering Tier 3 Equivalent - A - Stroke

127 mm ( 5 in )
Engine - Optional Offering Tier 3 Equivalent - A - Net Power Rating at 2,200 rpm - SAE J1349

69 kW/94 hp
Engine - Optional Offering Tier 3 Equivalent - A - Power Rating Conditions - No De-Rating Required Up To

2286 m ( 7500 ft )
Engine - Optional Offering Tier 3 Equivalent - A - Displacement

4.4 l ( 269 in³ )
Engine - Optional Offering Tier 3 Equivalent - A - Torque Rise (net)

32% @ 1,400 rpm
Engine - Optional Offering Tier 3 Equivalent - A - Net Power Rating at 2,200 rpm - ISO 9249

70 kW/95 hp
Engine - Optional Offering Tier 3 Equivalent - A - Torque Rise (net) - SAE J1349 Net

398 N·m ( 294 lbf )
Engine - Optional Offering Tier 3 Equivalent - A - Engine

C4.4 74.5 kW Mechanical – Turbo Intercooled
Weights - Operating Weight (estimated)

8275 kg ( 18243 lb )
Engine - Power - Net

64 kW ( 87 HP )
Engine - Standard Offering Tier 2 Equivalent - Stroke

127 mm ( 5 in )
Engine - Standard Offering Tier 2 Equivalent - Power Rating Conditions - No De-Rating Required Up To

2286 m ( 7500 ft )
Engine - Standard Offering Tier 2 Equivalent - Ratings at 2,200 rpm - Gross Power ISO 14396

68 kW/93 hp
Engine - Standard Offering Tier 2 Equivalent - Torque Rise (net) - SAE J1349 Net

384 N·m ( 283 lbf )
Engine - Standard Offering Tier 2 Equivalent - Bore

105 mm ( 4.1 in )
Engine - Standard Offering Tier 2 Equivalent - Torque Rise (net)

38% @ 1,400 rpm
Engine - Standard Offering Tier 2 Equivalent - Displacement

4.4 l ( 269 in³ )
Engine - Standard Offering Tier 2 Equivalent - Net Power Rating at 2,200 rpm - SAE J1349

64 kW/87 hp
Engine - Standard Offering Tier 2 Equivalent - Engine

3054C 68.5 kW Mechanical Turbo
Engine - Standard Offering Tier 2 Equivalent - Net Power Rating at 2,200 rpm - ISO 9249

65 kW/88 hp
Engine - Standard Offering Tier 2 Equivalent - Ratings at 2,200 rpm - Gross Power SAE J1995

69 kW/94 hp
Engine - Optional Offering Tier 2 Equivalent - Engine

3054C 74.5 kW Mechanical Turbo
Engine - Optional Offering Tier 2 Equivalent - Torque Rise (net) - SAE J1349 Net

397 N·m ( 293 lbf )
Engine - Optional Offering Tier 2 Equivalent - Bore

105 mm ( 4.1 in )
Engine - Optional Offering Tier 2 Equivalent - Stroke

127 mm ( 5 in )
Engine - Optional Offering Tier 2 Equivalent - Displacement

4.4 l ( 269 in³ )
Engine - Optional Offering Tier 2 Equivalent - Net Power Rating at 2,200 rpm - SAE J1349

70 kW/95 hp
Engine - Optional Offering Tier 2 Equivalent - Power Rating Conditions - No De-Rating Required Up To

2286 m ( 7500 ft )
Engine - Optional Offering Tier 2 Equivalent - Ratings at 2,200 rpm - Gross Power SAE J1995

75 kW/102 hp
Engine - Optional Offering Tier 2 Equivalent - Ratings at 2,200 rpm - Gross Power ISO 14396

74 kW/101 hp
Engine - Optional Offering Tier 2 Equivalent - Net Power Rating at 2,200 rpm - ISO 9249

71 kW/96 hp
Engine - Optional Offering Tier 2 Equivalent - Torque Rise (net)

31% @ 1,400 rpm
Engine - Optional Offering Tier 3 Equivalent - Bore

105 mm ( 4.1 in )
Engine - Optional Offering Tier 3 Equivalent - Net Power Rating at 2,200 rpm - ISO 9249

65 kW/89 hp
Engine - Optional Offering Tier 3 Equivalent - Power Rating Conditions - No De-Rating Required Up To

2286 m ( 7500 ft )
Engine - Optional Offering Tier 3 Equivalent - Stroke

127 mm ( 5 in )
Engine - Optional Offering Tier 3 Equivalent - Torque Rise (net) - SAE J1349 Net

383 N·m ( 282 lbf )
Engine - Optional Offering Tier 3 Equivalent - Ratings at 2,200 rpm - Gross Power SAE J1995

71 kW/97 hp
Engine - Optional Offering Tier 3 Equivalent - Torque Rise (net)

37% @ 1,400 rpm
Engine - Optional Offering Tier 3 Equivalent - Engine

C4.4 70 kW Mechanical Turbo Intercooled
Engine - Optional Offering Tier 3 Equivalent - Displacement

4.4 l ( 269 in³ )
Engine - Optional Offering Tier 3 Equivalent - Ratings at 2,200 rpm - Gross Power ISO 14396

70 kW/95 hp
Engine - Optional Offering Tier 3 Equivalent - Net Power Rating at 2,200 rpm - SAE J1349

65 kW/88 hp
Transmission - Power Shuttle Transmission (Standard) - Reverse - 3rd

21 km/h ( 13 mile/h )
Transmission - Power Shuttle Transmission (Standard) - Reverse - 4th

37 km/h ( 23 mile/h )
Transmission - Power Shuttle Transmission (Standard) - Forward - 4th

37 km/h ( 23 mile/h )
Transmission - Power Shuttle Transmission (Standard) - Forward - 3rd

21 km/h ( 13 mile/h )
Transmission - Power Shuttle Transmission (Standard) - Reverse - 2nd

9.2 km/h ( 5.7 mile/h )
Transmission - Power Shuttle Transmission (Standard) - Forward - 2nd

9.2 km/h ( 5.7 mile/h )
Transmission - Power Shuttle Transmission (Standard) - Reverse - 1st

5.6 km/h ( 3.5 mile/h )
Transmission - Power Shuttle Transmission (Standard) - Forward - 1st

5.6 km/h ( 3.5 mile/h )
Transmission - Powershift Transmission (Optional) - Reverse - 1st

5.9 km/h ( 3.7 mile/h )
Transmission - Powershift Transmission (Optional) - Forward - 2nd

9.5 km/h ( 5.9 mile/h )
Transmission - Powershift Transmission (Optional) - Reverse - 3rd

27 km/h ( 16.8 mile/h )
Transmission - Powershift Transmission (Optional) - Forward - 3rd

20 km/h ( 12.4 mile/h )
Transmission - Powershift Transmission (Optional) - Reverse - 2nd

12.4 km/h ( 7.7 mile/h )
Transmission - Powershift Transmission (Optional) - Forward - 4th

40 km/h ( 24.9 mile/h )
Transmission - Powershift Transmission (Optional) - Forward - 1st

5.9 km/h ( 3.7 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Reverse - 2nd

12 km/h ( 7.5 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 4th

20 km/h ( 12.4 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 5th

27 km/h ( 16.8 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 2nd

9.5 km/h ( 5.9 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Reverse - 1st

5.9 km/h ( 3.7 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 1st

5.9 km/h ( 3.7 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 3rd

12 km/h ( 7.5 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Reverse - 3rd

27 km/h ( 16.8 mile/h )
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) - Forward - 6th

40 km/h ( 24.9 mile/h )
Axle Ratings - Front Axle (AWD) - Dynamic

9000 kg ( 19842 lb )
Axle Ratings - Front Axle (AWD) - Static

23500 kg ( 51809 lb )
Axle Ratings - Rear Axle - Dynamic

10000 kg ( 22046 lb )
Axle Ratings - Rear Axle - Static

26500 kg ( 58422 lb )
Weights - Operating Weight - Nominal

8275 kg ( 18243 lb )
Weights - Operating Weight - Maximum

11000 kg ( 24251 lb )
Weights - Operating Weight - ROPS Capacity - Maximum

11000 kg ( 24251 lb )
Weights - Loader, IT with Quick Coupler

185 kg ( 408 lb )
Weights - Auto-Shift Transmission

105 kg ( 231 lb )
Weights - Ride Control

15 kg ( 33 lb )
Weights - Counterweights - Base

115 kg ( 254 lb )
Weights - Extendible Stick - Excludes Front Counterweight

208 kg ( 459 lb )
Weights - Counterweights - Maximum

460 kg ( 1014 lb )
Weights - MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks

860 kg ( 1896 lb )
Weights - Note

Machine Configuration – standard LRC engine; standard stick hoe; standard cab with A/C; AWD standard shift transmission; 1.03 m³ MP loader bucket; 610 mm standard duty hoe bucket; front 340/80-18 and rear 440/80-28 tires; no counterweight; 80 kg operator; full fuel tank.
Weights - Cab - ROPS/FOPS

STD
Weights - Counterweights - Stackable, One

240 kg ( 529 lb )
Weights - MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks

674 kg ( 1486 lb )
Weights - Total Gross Weight Not to Exceed

11000 kg ( 24251 lb )
Weights - Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - Parallel Lift - MP

0 kg ( 0 lb )
Weights - Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - Parallel Lift - MP

0 kg ( 0 lb )
Weights - Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - Parallel Lift - GP

460 kg ( 1014 lb )
Weights - Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - Parallel Lift - GP

115 kg ( 254 lb )
Weights - Air Conditioning

STD
Hydraulic System - System Pressure - Loader

250 bar ( 3626 psi )
Hydraulic System - System Pressure - Backhoe

250 bar ( 3626 psi )
Hydraulic System - Pump Capacity @ 2,200 rpm

160 l/min ( 42.3 gal/min )
Hydraulic System - Type

Closed Center
Hydraulic System - Pump Type

Variable-Flow, Axial Piston
Steering - AWD Cylinder, One (1) Double Acting - Bore

65 mm ( 2.6 in )
Steering - AWD Cylinder, One (1) Double Acting - Stroke

106 mm ( 4.2 in )
Steering - Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket

10.745 m ( 35.25 ft )
Steering - AWD Cylinder, One (1) Double Acting - Rod Diameter

40 mm ( 1.6 in )
Steering - AWD Cylinder, One (1) Double Acting - Axle Oscillation

11 ° ( 11 ° )
Steering - Turning Circle (inner wheel not braked) - Outside Front Wheels

8.205 m ( 26.92 ft )
Steering - Type

Front Wheel
Power Steering

Hydrostatic
Service Refill Capacities - Diesel Exhaust Fluid

19 l ( 5 gal (US) )
Service Refill Capacities - Engine Oil - With Filter

9 l ( 2.4 gal (US) )
Service Refill Capacities - Cooling System - A/C

18 l ( 4.8 gal (US) )
Service Refill Capacities - Hydraulic System

95 l ( 25.1 gal (US) )
Service Refill Capacities - Hydraulic Tank

42 l ( 11.1 gal (US) )
Service Refill Capacities - Rear Axle - Planetaries

1.7 l ( 0.4 gal (US) )
Service Refill Capacities - Fuel Tank

160 l ( 42.3 gal (US) )
Service Refill Capacities - Front Axle (AWD) - Planetaries

0.7 l ( 0.2 gal (US) )
Service Refill Capacities - Rear Axle

16 l ( 4.2 gal (US) )
Service Refill Capacities - Front Axle (AWD)

11 l ( 2.9 gal (US) )
Service Refill Capacities - Transmission - Power Shuttle - AWD

18 l ( 4.8 gal (US) )
Service Refill Capacities - Transmission (Powershift) - AWD

19 l ( 5 gal (US) )

Related products

  • Equipment
  • Power Systems
  • Attachments
  • Material Handling
Select Up To 3 Models To Compare
Compare
