P318 Primary Pulverizer
P318 Primary Pulverizer
Cat P300 Series Primary Pulverizers are designed for applications such as cutting, breaking, and crushing concrete structures during demolition.
HIGH PERFORMANCE
- Cat pulverizer jaws are designed to cut through material quickly to enhance your machine’s overall operating efficiency and help reduce fuel consumption.
- Precisely position primary pulverizer jaws with 360-degree rotation and visibility to the moveable jaw during demolition.
- The Speed Booster valve actively balances speed and power, delivering fast cycle times and strong closing force to help increase productivity.
EASY TO MAINTAIN
- Replaceable wear parts can be swapped quickly in the field and do not require surface welding to help reduce service time.
- Daily wear parts inspection and grease points are accessible from the ground with the pulverizer still mounted on the machine.
- Safely perform maintenance with easy access through one inspection panel.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
RELIABILITY AND DURABILITY
- Cat pulverizers are manufactured with high-strength, abrasion-resistant steel, especially in excessive wear areas.
- Reinforced cylinder rod hinges on the moveable jaw are designed to help boost durability and life of the pulverizer.
- The C-shaped cylinder guard provides extra protection against concrete demolition.
- Cat pulverizers have a versatile use across demolition applications, making them your choice for a wide variety of job sites.
BOOST EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED TECHNOLOGIES
- Never waste time looking for your attachments again. Cat asset tracking is available on all pulverizers.
- Track your entire fleet of attachments and machines from one source. Pulverizers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Pulverizers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
VERSATILITY AND CONVENIENCE WITH COUPLERS
- Share pulverizers and other attachments of the same size class across multiple machines by adding a quick coupler.
- Significantly reduce the time it takes to switch attachments when using a quick coupler.
- Quick couplers add a new level of safety to your job site with the ability to switch attachments while the operator stays in the cab with built-in redundancies to keep your attachments secure in the event of a pressure loss.
- A variety of couplers are available to suit your specific needs:
- Cat Pin Grabber Couplers – dedicated pin system
- CW Dedicated Couplers – wedge-style, dedicated system
- S Type Couplers – wedge-style, dedicated system
- Hydraulic Connecting CW Couplers – hydraulic connecting version of the CW coupler with instant hydraulic capability upon connection
- Hydraulic Connecting S Type Couplers – hydraulic connecting version of the S type coupler with instant hydraulic capability upon connection
Videos
Additional information
| Offering Type | |
|---|---|
| Performance - Cycle Time - Open | 1.6 s ( 1.6 s ) |
| Performance - Cycle Time - Close | 1 s ( 1 s ) |
| Performance - Crushing Force - Primary Cutter | 2740 kN ( 308 Sh Ton ) |
| Performance - Crushing Force - Tip | 795 kN ( 89 Sh Ton ) |
| Performance - Crushing Force - Primary Tooth | 1120 kN ( 126 Sh Ton ) |
| Hydraulic Requirements - Jaw Circuit - Max. Oil Pressure | 33000 kPa ( 4786 psi ) |
| Hydraulic Requirements - Jaw Circuit - Max. Oil Flow | 150 l/min ( 40 gal/min ) |
| Hydraulic Requirements - Rotation Circuit - Max. Oil Pressure | 14000 kPa ( 2031 psi ) |
| Hydraulic Requirements - Rotation Circuit - Max. Oil Flow | 40 l/min ( 11 gal/min ) |
| Dimensions - Jaw - Jaw Depth | 660 mm ( 26 in ) |
| Dimensions - Jaw - Cutter Length | 150 mm ( 5.9 in ) |
| Dimensions - Jaw - Jaw Opening - Maximum | 1085 mm ( 42.7 in ) |
| Dimensions - Jaw - Jaw Width - Fixed | 620 mm ( 24.4 in ) |
| Dimensions - Jaw - Jaw Width - Moveable | 335 mm ( 13.2 in ) |
| Dimensions - Housing + Jaw - Length | 2125 mm ( 83.7 in ) |
| Dimensions - Housing + Jaw - Height | 1525 mm ( 60 in ) |
| Dimensions - Housing + Jaw - Width | 790 mm ( 31.1 in ) |
| Weight - Housing, Jaw and Bracket | 2080 kg ( 4586 lb ) |
| Recommended Carrier Weight - Excavator Minimum | 18000 kg (39700 lb) |
| Recommended Carrier Weight - Excavator Maximum | 25000 kg (55100 lb) |
-
Medium Excavators
320 – Tier 3
View Details -
Medium Excavators
320 GC – Tier 3
View Details -
Medium Excavators
323 – Tier 3
View Details -
Medium Excavators
323 GC – Tier 3
View Details -
Medium Excavators
326 – Tier 3
View Details -
Demolition Excavators
340 UHD
View Details -
Wheel Excavators
M320
View Details -
Wheel Excavators
M322D2
View Details
Related products
-
Primary Pulverizers

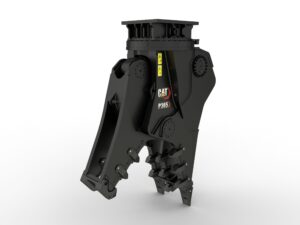

P365 Primary Pulverizer
View Details -
Primary Pulverizers

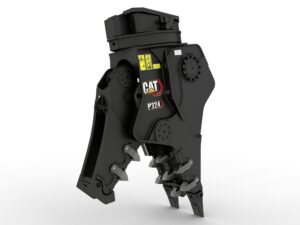

P324 Primary Pulverizer
View Details -
Primary Pulverizers

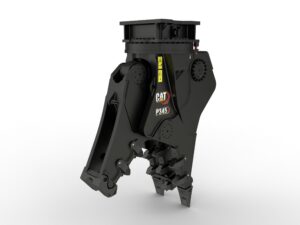

P345 Primary Pulverizer
View Details -
Primary Pulverizers

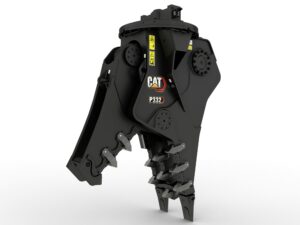

P332 Primary Pulverizer
