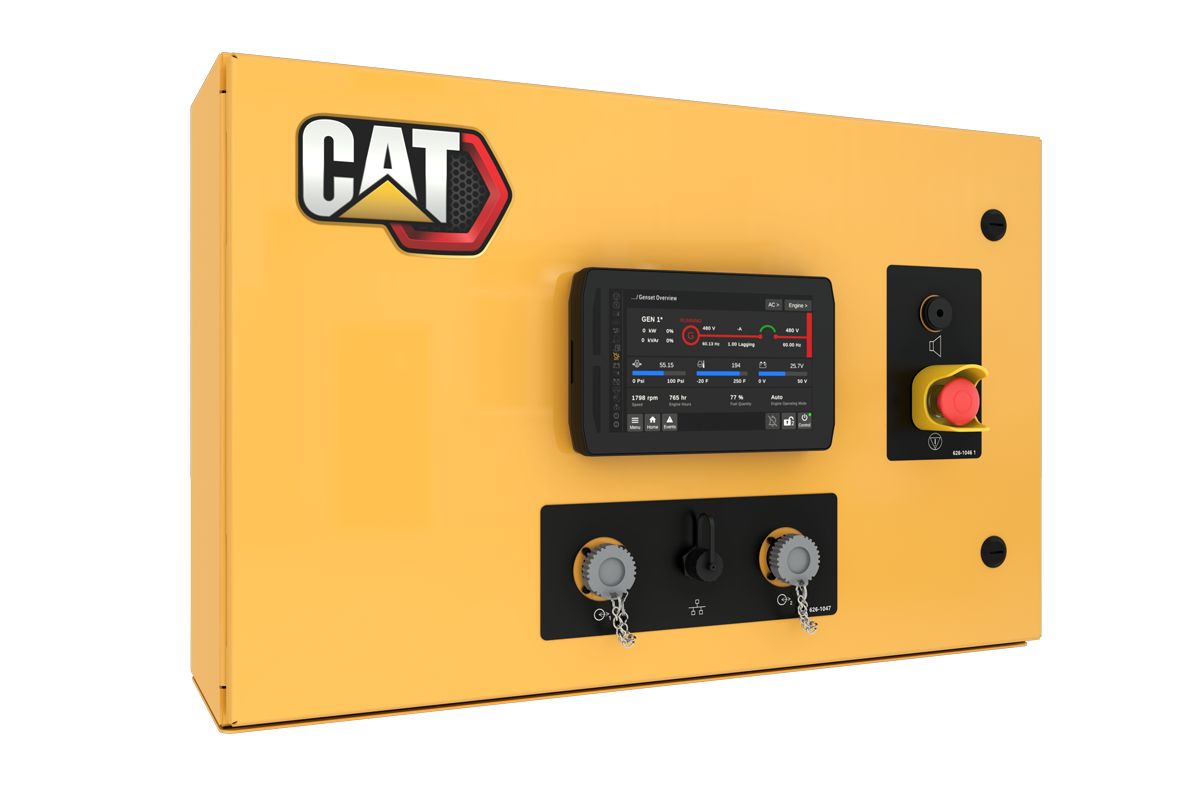

Cat® Energy Control System 100 (Cat ECS 100) control panel

Name: Cat® Energy Control System 100 (Cat ECS 100) control panel
SKU: 41410
Availability: InStock

Cat® Energy Control System 100 (Cat ECS 100) control panel

The Cat® Energy Control System 100 (Cat ECS 100) control panel provides all of the controls and system indicators in one easy to access interface.

Category: Control Panels

Description
Additional Information

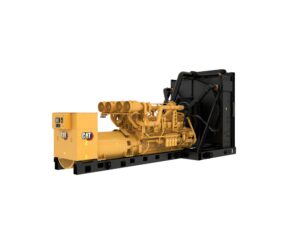

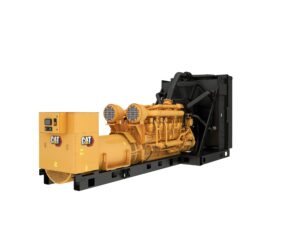

Used With Equipment

Cat® Energy Control System 100

The Cat ECS 100 generator set controller uses:

System graphic icons and labels that allow for simple, comprehensive generator set operation

Easy-to use 8” color LED touchscreen display features scroll navigation

Generator set and remote-mount options are available

Control Features

Island mode – single unit operation

High visibility graphical touchscreen display with alarm/event descriptions, set points, engine and generator monitoring

Intuitive navigation for display of power metering, protection, engine and generator parameters and tuning

Lockout security provision to assure platform integrity with three programable security levels

Support for 10 languages

Communications

Ethernet Modbus TCP for external communications

Support of up to four remote HMI’s (sold separately)

Compatible with Cat Connect Product Link devices

Embedded HMI Web Server

Advance Functionality

Automatic mains failure with utility voltage sensing capability (open transition) and remote breaker or contactor control/monitoring

Engine remote start integrity monitoring

Single genset transient load relief (TLR)

Advanced Overcurrent Protection

Arc Flash Maintenance Mode

Basic programmable logic control (PLC) function

EPA Tier 4 integration

Inducement override

Real (kW) load histograms

Status event log

Real-Time Clock

Programmable Cycle Timer (PCT)

Supports dynamic gas blending (DGB)

Applicable Standards and Certifications

Compliance with UL2200 3^rd edition requirements including UL6200 functional safety requirements

Local annunciation facilitates compliance to NFPA 110 (subject to local authority having jurisdiction approval)

World Wide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countries

Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Videos

Cat ECS Control Panels

Virtual Tours

Documents & Brochures

Cat ECS 100 Control Panel

Standard Equipment

Control

Auto/Start/Stop
Emergency stop
Engine cooldown timer
Engine cycle crank
Programmable cycle timer
Speed and voltage adjust

Generator Monitoring

Generator AC voltage monitoring (+/- 0.25% accuracy)
Utility AC voltage monitoring (+/- 0.25% accuracy)
3 phase/4 wire (L-L & L-N) sensing
Generator current sensing (3 phase/6 wire) (+/- 0.25% accuracy)
Generator AC current (per phase and average)
Generator frequency
kWh, kVArh and import and export kVAh (total and trip)
Generator stator and bearing temperature (with optional RTD module)
kW load histogram

Generator Protection

Generator phase sequence (47G)
Over/Under voltage (27/59)
Over/Under frequency (81 O/U)
Overcurrent timed and inverse (50/51)
Overcurrent (thermal damage curve) (51)
Reverse power real (kW) (32)
Reverse power reactive (kVAr) (32RV)
Current balance (46)
Overload (49)

Engine Monitoring

Engine oil pressure (psi or kPa)
Engine oil temperature (°C or °F)
Engine coolant temperature (°C or °F)
Engine speed (RPM)
Battery voltage
Crank attempt and successful start counter
Run hour meter
Real time clock

Engine Protection

Control switch not in auto (alarm)
Low oil pressure
High coolant temperature (alarm and shutdown)
Low coolant temp (alarm)
Low coolant level (alarm and shutdown)
High engine oil temp (alarm and shutdown)
Low/High/Weak battery voltage
Fail to start
Overspeed
Overcrank
Low gas pressure (alarm and shutdown)

Communications

Primary and accessory CAN data link
Remote annunciator data link
Cat Data Link - with optional PLE702
Ethernet (Modbus TCP/IP) - 100 baseT
USB touchscreen display
4x 4-wire ports/managed switch (for internal and customer use)
2x 2-wire ports: internal device network

Inputs & Outputs

Digital Inputs: Emergency stop
Digital Inputs: Remote start
Digital Inputs: 16 programmable inputs (generator set configuration may affect available features)
Digital Outputs: 12 programmable outputs (total)
Digital Outputs: Up to 2 programmable outputs for functional safety
Analog Outputs: 2 analog outputs
PWM Outputs: 3 total (1 for IVR - standard)
Analog Inputs: 3 programmable inputs 0-5V or resistive (generator set configuration may affect available features)
